Buy AS Schwabe CEE power distributor Stecky 11+ 60961 400 V 16 A

Multi-socket extension lead standing upright with a handle, featuring two red and six blue sockets, connected with a black cable.

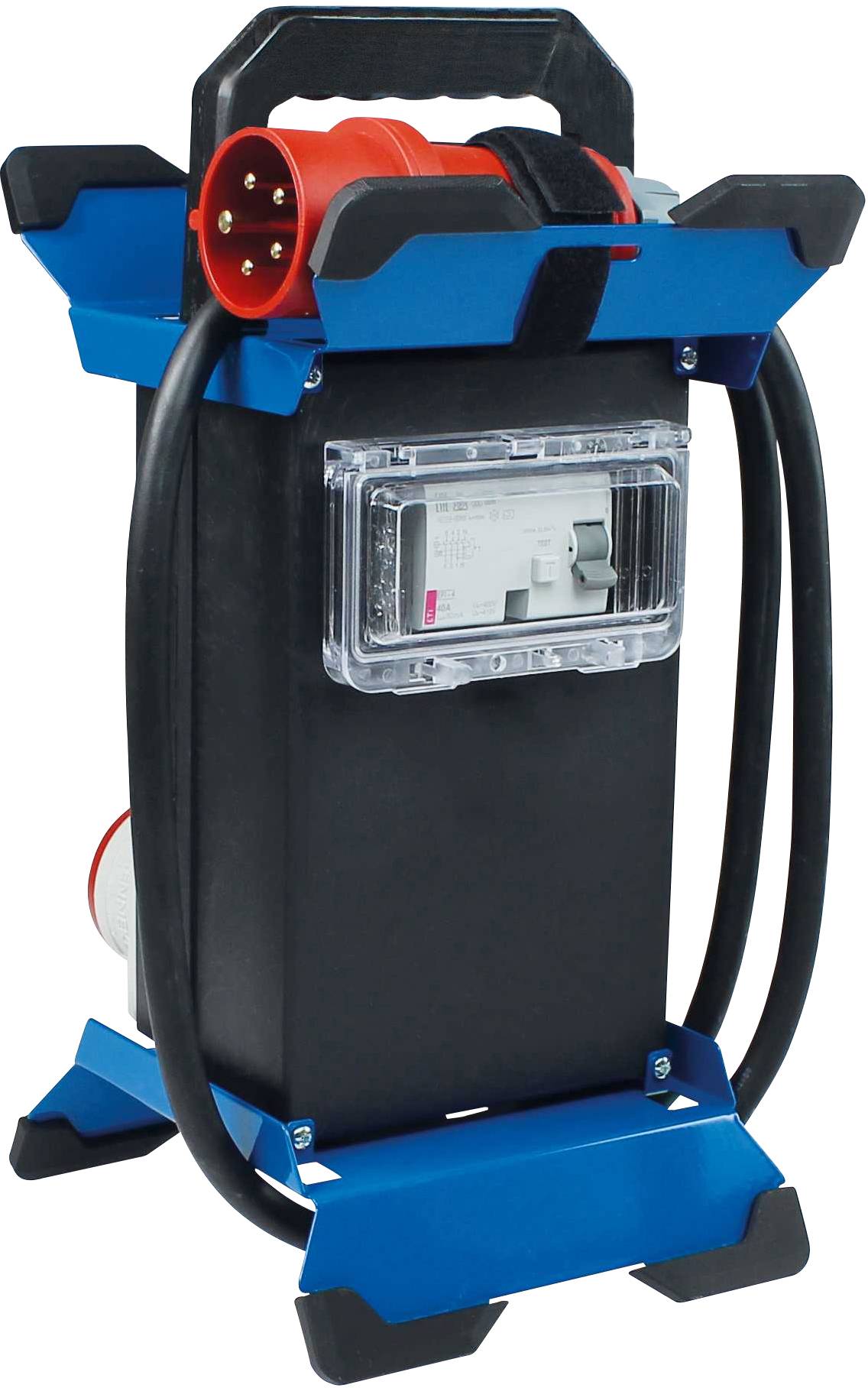

Electric construction site distribution board with multiple sockets and safety switch, supported by non-slip feet, ideal for construction sites.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

CEE power distributor plug 11+

Robust housing made of highly break resistant special plastic
Stable metal frame with edge protection
With large, ergonomic carry handle and cable winder
IP44: Protected against foreign objects and water

Technical specifications

11 kW

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 16 A)

Type B: CEE connector (5-pin, 16 A)
PG socket

No. of PG sockets: 4

Nominal input voltage: 400 V

Nominal output voltage: 230 V AC

Nominal input current: 16 A

: IP44

Cable length: 2.50 m

Cable standard: H07RN-F 5G 2,5 mm²

Protection: FI 40A, 30mA, type A

Standards: CE

Factory colour: Black
Blue

Weight: 4.2

Dim: (W x H x D) 225 x 435 x 235 mm

Width: 225 mm

Height: 435 mm

Type: MALE SPADE CONNECTOR 11+

Inputs (CEE power distributor): CEE plug (5-pin, 16 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

Depth: 235 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249576 AS Schwabe CEE power distributor Stecky 11+ 60961 400 V 16 A

Description

The power distributor offers 2 CEE sockets (400 V, 16 A, 5 pin) & 4 earthing contact sockets (230 V, 16 A) + automatic fuse. The large, ergonomic carrying handle & the cable winder provide for a practical cable management.
The housing of the current splitter consists of high-break-proof special plastic. The metal frame with edge protection offers a high level of occupational safety. High-quality materials & the oil-resistant cable provide for a long life.
Safety: The IP44 CEE distributor offers the following protection: 1x FI 40 A, 30 mA, type A;
The IP44 junction box is foreign body & splash-proof. With the portable CEE distributor cables extend easily!
Connect the power strip to a power source via the CEE plug (input 16 A) to supply power to electrical devices. ideal for outdoor use: Camping, caravan, garden equipment.
