Buy AS Schwabe CEE power distributor Stecky 12 60962 400 V 32 A

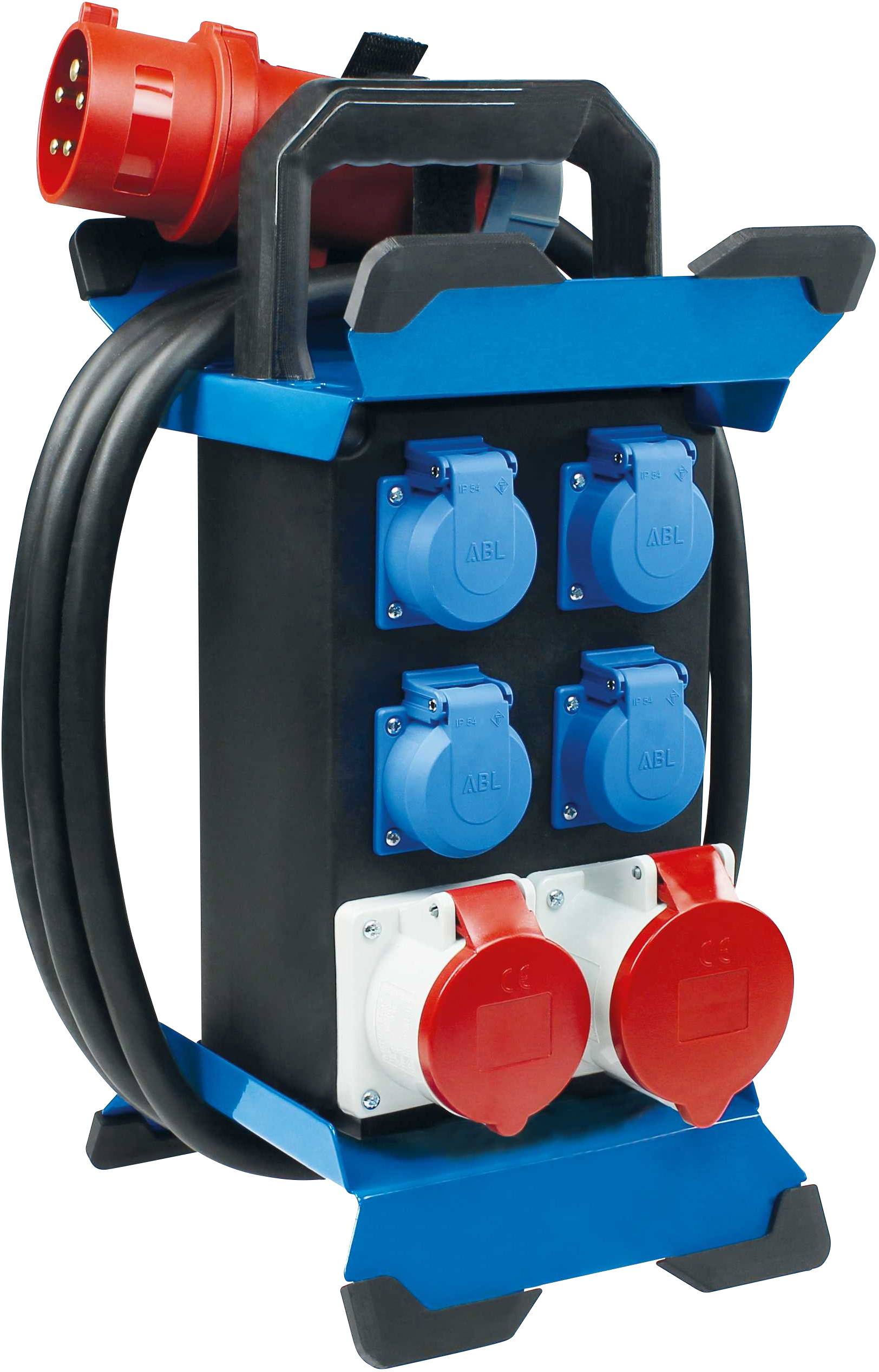

Portable power distribution unit with multiple blue and red socket outlets, suitable for industrial applications.

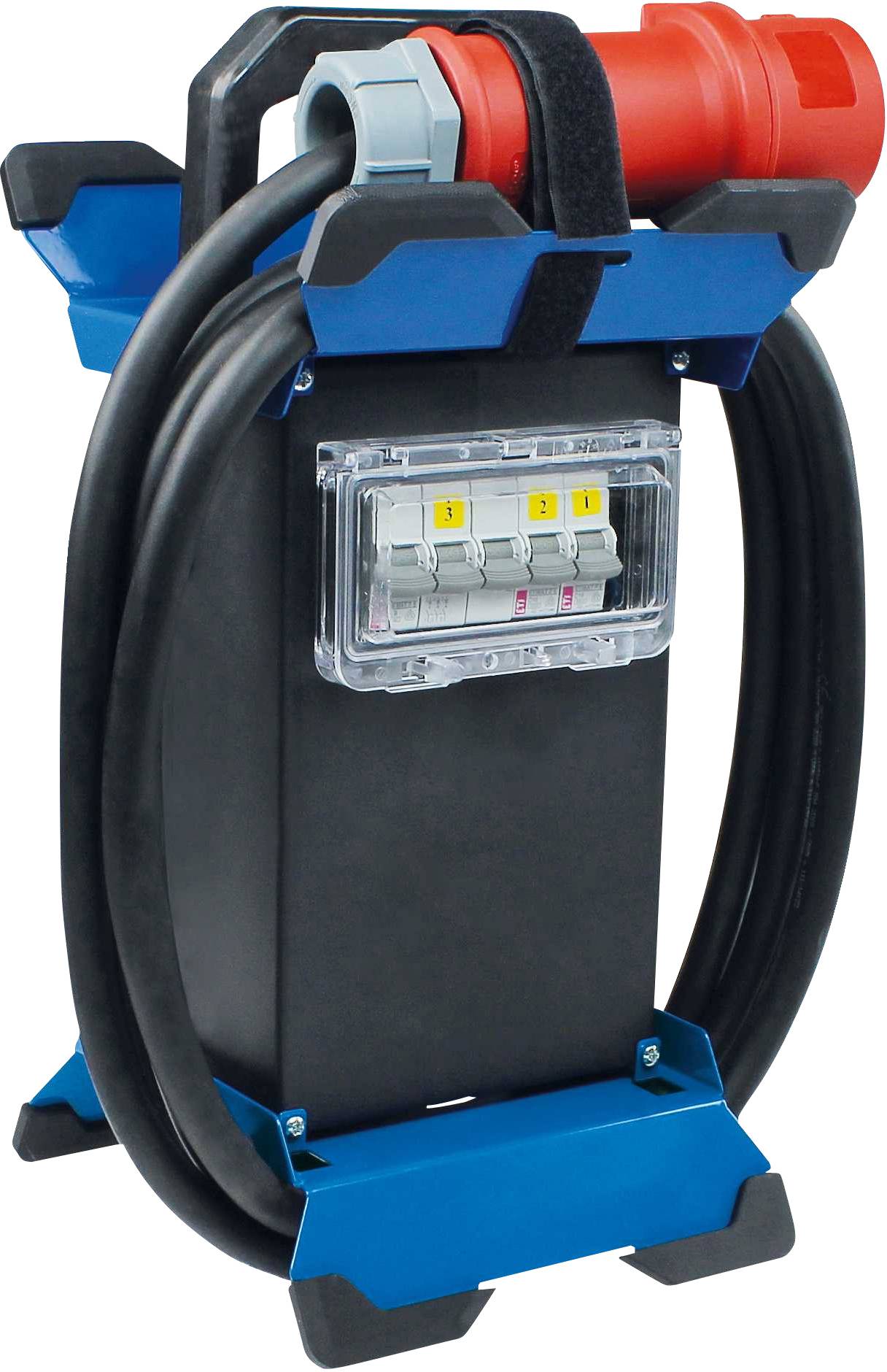

'Portable power distributor with socket, blue and red connections, and four toggle switches, wrapped with a cable.'

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

CEE power distributor plug 12

Robust housing made of highly break resistant special plastic
Stable metal frame with edge protection
With large, ergonomic carry handle and cable winder
IP44: Protected against foreign objects and water

Technical specifications

22 kW

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 32 A)

Type B: CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG socket

No. of PG sockets: 4

Nominal input voltage: 400 V

Nominal output voltage: 230 V AC

Nominal input current: 32 A

: IP44

Cable length: 4.50 m

Cable standard: H07RN-F 5G 4 mm²

Protection: 1x LS C 16 A, 3-pin
2x LS C 16 A, 1-pin

Standards: CE

Factory colour: Black
Blue

Weight: 5.5

Dim: (W x H x D) 225 x 435 x 235 mm

Width: 225 mm

Height: 435 mm

Type: SOCKY 12

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

Depth: 235 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249577 AS Schwabe CEE power distributor Stecky 12 60962 400 V 32 A

Description

The power distributor has: 2 CEE sockets (1x 400 V, 16 A, 5-pin + 1x 400 V, 16 A, 5-pin), 4 earthing contact sockets (230 V, 16 A), automatic fuse, ergonomic carrying handle + cable winder.
The housing of the current splitter consists of high-break-proof special plastic. The metal frame with edge protection offers a high level of occupational safety. High-quality materials & the oil-resistant cable provide for a long life.
The IP44 CEE distributor offers the following protection: 1x LS C 16 A, 3-pin; 2x LS C 16 A, 1-pin; foreign bodies- & splash-proof.
Connect the power strip to a power source via the CEE plug (input 32 A) to supply power to electrical devices. ideal for outdoor use: Camping, caravan, garden equipment.

This text is machine translated.
