AS Schwabe CEE suspended distributor 60753 60753 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MIXO Energy Cube VII+
- For cable diameters: 5 x 4 mm² to 5 x 6 mm²
- Compressed air connection with 1 x input NW7.2 and 2 x outlet NW7.2
- Casing made of highly break resistant special plastic
- Wired as ready to connect
- Including cable entry with screw cap and chain with snap hook
- Tested according to DIN VDE 0620, IEC 60309
- IP44: Protected against foreign objects and water
- 3x G fuse (10 A), non-resetting, slow-blow T10 A, SPT 5x20 m
Technical specifications
- Tested according to DIN VDE 0620, IEC 60309
- Product type
CEE suspended distributor
- No. of CEE connectors
3
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
- Outputs
2x CEE-coupling 16 A 5-pin, 1x CEE-coupling 32 A 5-pin
- Nominal input voltage
400 V
- Nominal output voltage
400 V
IP44
- Factory colour
Black
- Dim
(L x W x H) 22 x 20 x 27.5 cm
- Length
22 cm
- Width
20 cm
- Height
27.5 cm
- Type
MIXO VII+
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Nominal current
32 A
- Operating voltage
400 V
- Outlets
3
Documents & Downloads
Datasheet
Datasheet 1857789 AS Schwabe CEE suspended distributor 60753 60753 400 V
User & Safety Instructions
User & Safety Instructions 1857789 AS Schwabe CEE suspended distributor 60753 60753 400 V
Description

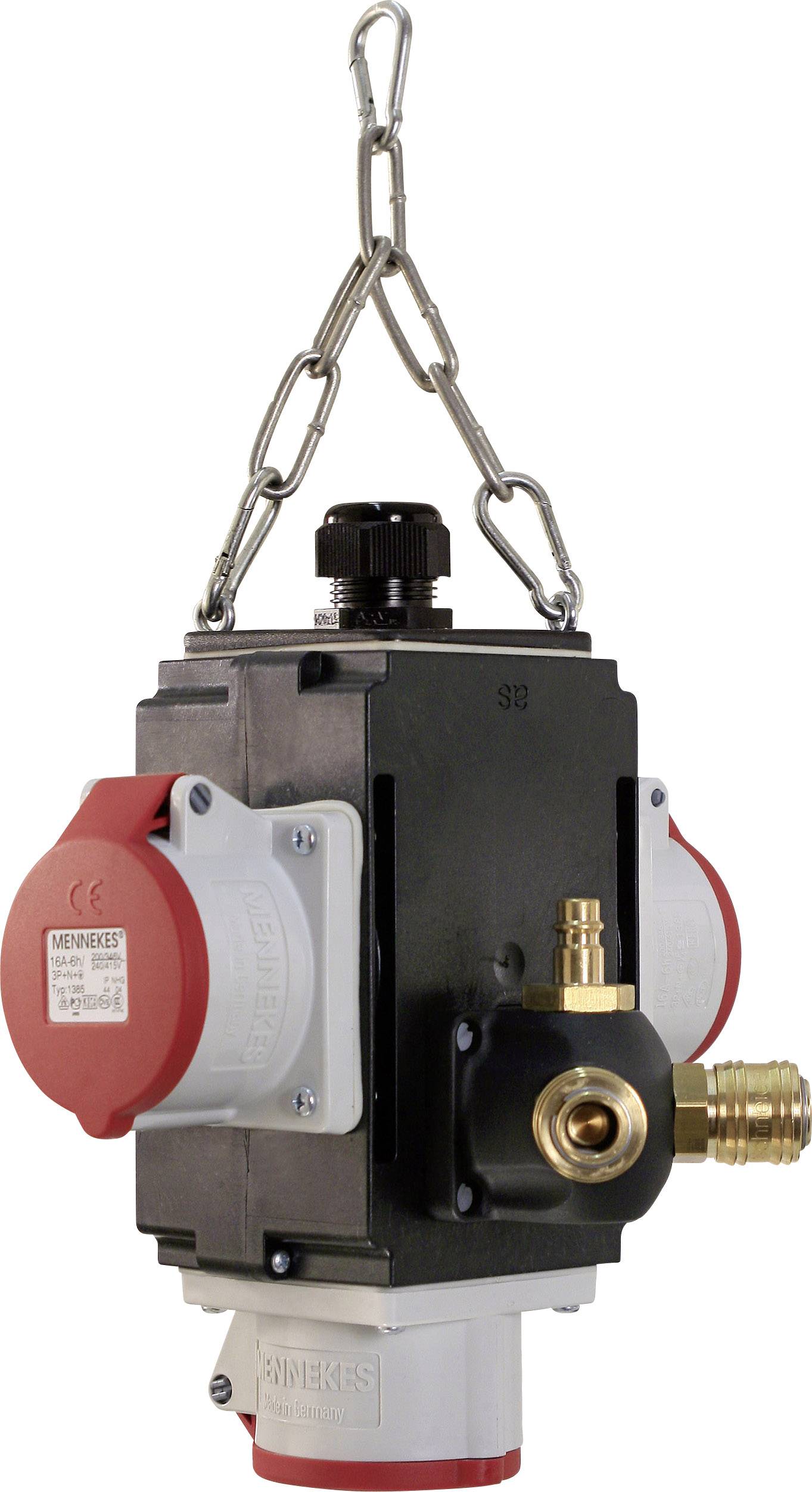

MIXO-energy dice with CEE, earthing contact, compressed air and CAT-boxes. Cable entry with screw cap and chain with carabiner hook. The power supply "from above" for workshops, hobby room and schools.
This text is machine translated.
This text is machine translated.
Features
- 2 CEE-socket 16A, 400V, 5-pin
- 1 CEE-socket 32A, 400V, 5-pin
- With compressed air connection
- 3-G fuses (10 A) Not-resetting wearing T10A
