AS Schwabe CEE suspended distributor MIXO 60730 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MIXO energy cube V +
- For cable diameters: 5 x 4 mm² to 5 x 6 mm²
- Compressed air connection with 1 x input NW7.2 and 2 x outlet NW7.2
- Casing made of highly break resistant special plastic
- Wired as ready to connect
- Including cable entry with screw cap and chain with snap hook
- Tested according to DIN VDE 0620, IEC 60309
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to DIN VDE 0620, IEC 60309
- Product type
CEE suspended distributor
- No. of CEE connectors
3
- Type B
CEE connector (5-pin, 32 A)
- Outputs
3x CEE-coupling 32 A 5-pin
- Nominal input voltage
400 V
IP44
- Factory colour
Black
- Dim
(L x W x H) 22 x 20 x 28 cm
- Length
22 cm
- Width
20 cm
- Height
28 cm
- Type
MIXO V+
- Content
1 pc(s)
- Nominal current
32 A
- Outlets
3
Documents & Downloads
Datasheet
Datasheet 1857788 AS Schwabe CEE suspended distributor MIXO 60730 400 V
User & Safety Instructions
User & Safety Instructions 1857788 AS Schwabe CEE suspended distributor MIXO 60730 400 V
Description

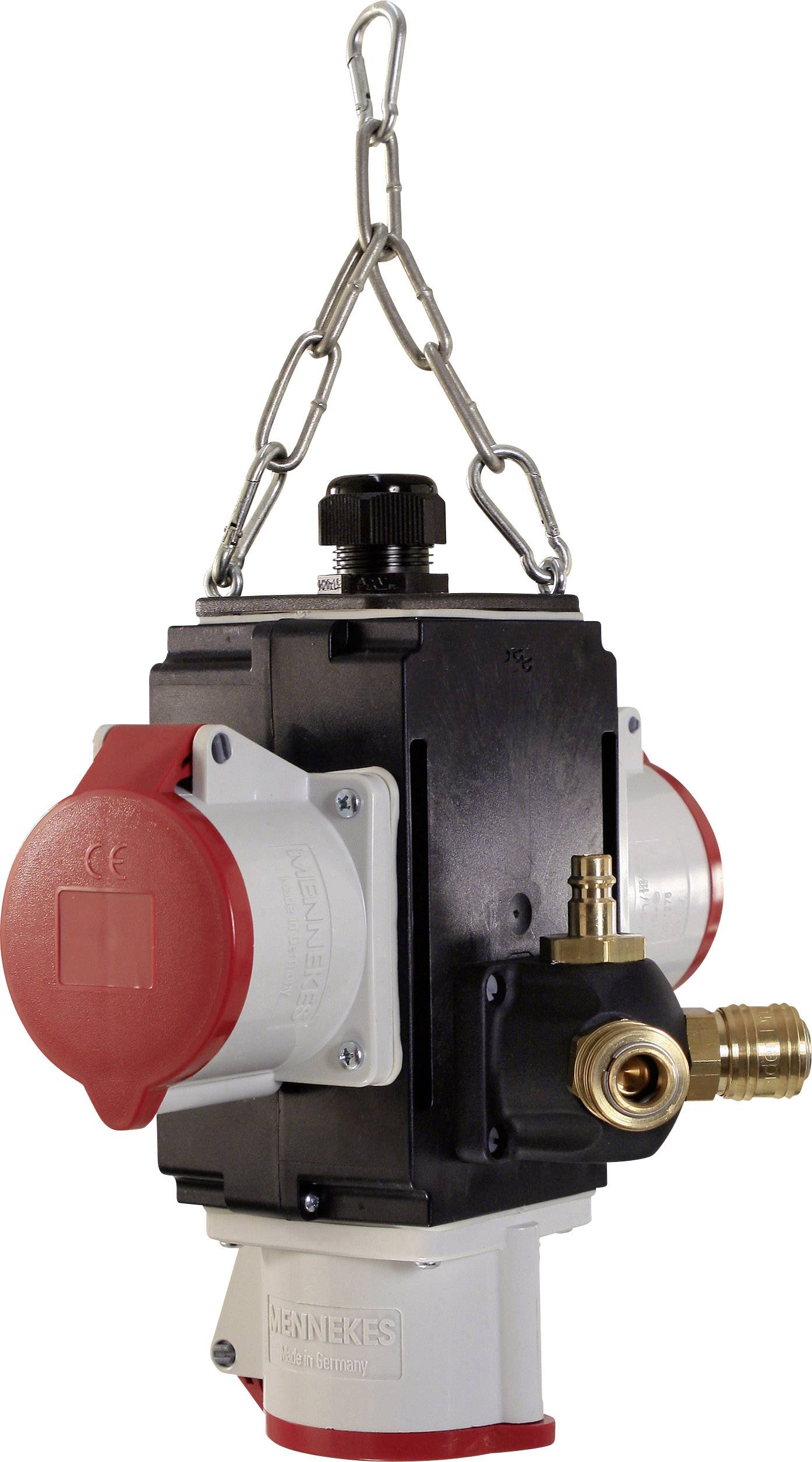

MIXO-energy dice with CEE, earthing contact, compressed air and CAT-boxes. Cable entry with screw cap and chain with carabiner hook. The power supply "from above" for workshops, hobby room and schools.
This text is machine translated.
This text is machine translated.
Features
- 3 CEE-sockets 32 A, 400 V, 5-pin
- with compressed air connection
