AS Schwabe CEE suspended distributor MIXO 60737 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

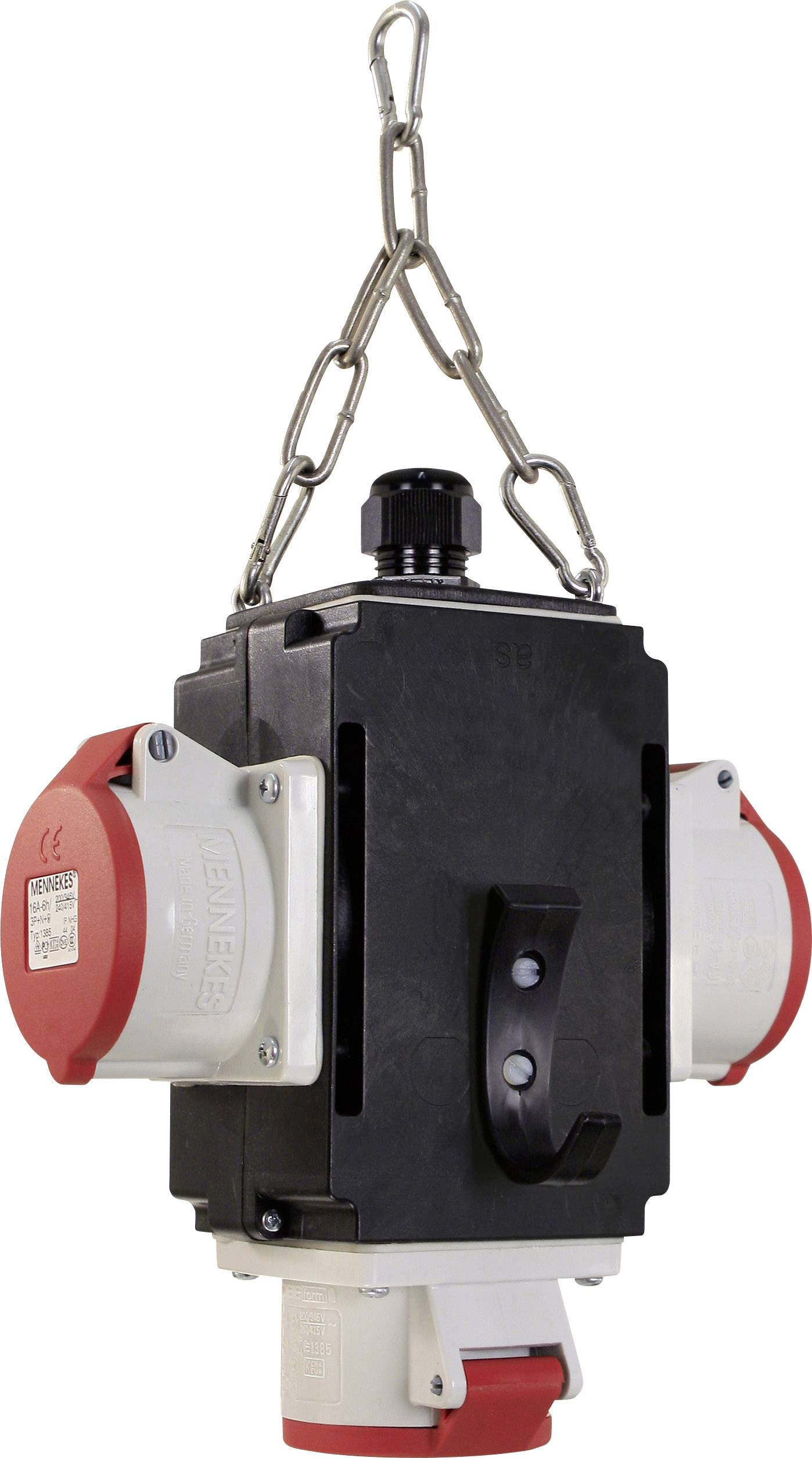

As - Swabia Energie-Wuerfel IV for hanging IP44 with 3 CEE sockets 16 A 400 V5p
- For cable diameters: 5x2.5 mm² to 5x4 mm²
- Casing made of highly break resistant special plastic
- Wired as ready to connect
- Including cable entry with screw cap and chain with snap hook
- Tested according to DIN VDE 0620, IEC 60309
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to DIN VDE 0620, IEC 60309
- Product type
CEE suspended distributor
- No. of CEE connectors
3
- Type B
CEE connector (5-pin, 16 A)
- Outputs
3 CEE-socket 16A, 400V, 5-pin
- Nominal input voltage
400 V
- Cable length
3.00 m
- Standards
DIN VDE 0620-1, IEC 60309
- Dim
(L x W x H) 22 x 20 x 27.5 cm
- Length
22 cm
- Width
20 cm
- Height
27.5 cm
- Type
MIXO IV
- Content
1 pc(s)
- Nominal current
16 A
Documents & Downloads
Datasheet
Datasheet 1857524 AS Schwabe CEE suspended distributor MIXO 60737 400 V
User & Safety Instructions
User & Safety Instructions 1857524 AS Schwabe CEE suspended distributor MIXO 60737 400 V
Description
Energie-Wuerfel IV for hanging IP44 with 3 CEE sockets 16 A 400 V5p
MIXO-energy dice with CEE, earthing contact, compressed air and CAT-boxes. Cable entry with screw cap and chain with carabiner hook. The power supply "from above" for workshops, hobby room and schools.
This text is machine translated.
MIXO-energy dice with CEE, earthing contact, compressed air and CAT-boxes. Cable entry with screw cap and chain with carabiner hook. The power supply "from above" for workshops, hobby room and schools.
This text is machine translated.
