AS Schwabe CEE suspended distributor MIXO 60766 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MIXO ENERGY CUBE III DAT+
- For cable diameters: 5x2.5 mm² to 5x4 mm²
- Compressed air connection with 1 x input NW7.2 and 2 x outlet NW7.2
- 1 x data socket flange socket IP67 with 2 x RJ45 CAT.6 module
- Casing made of highly break resistant special plastic
- Wired as ready to connect
- Including cable entry with screw cap and chain with snap hook
- Tested according to DIN VDE 0620, IEC 60309
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to DIN VDE 0620, IEC 60309
- Product type
CEE suspended distributor
- No. of CEE connectors
2
- Type B
PG socket
- No. of PG sockets
2
- Outputs
2x power socket outlets, 2x CEE-socket 16 A
- Nominal input voltage
400 V
- Nominal output voltage
400 V
IP44
- Factory colour
Black
- Dim
(L x W x H) 22 x 20 x 27.5 cm
- Length
22 cm
- Width
20 cm
- Height
27.5 cm
- Type
III DAT+
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Nominal current
16 A
- Operating voltage
400 V
- Outlets
4
Documents & Downloads
Datasheet
Datasheet 1857790 AS Schwabe CEE suspended distributor MIXO 60766 400 V
User & Safety Instructions
User & Safety Instructions 1857790 AS Schwabe CEE suspended distributor MIXO 60766 400 V
Description

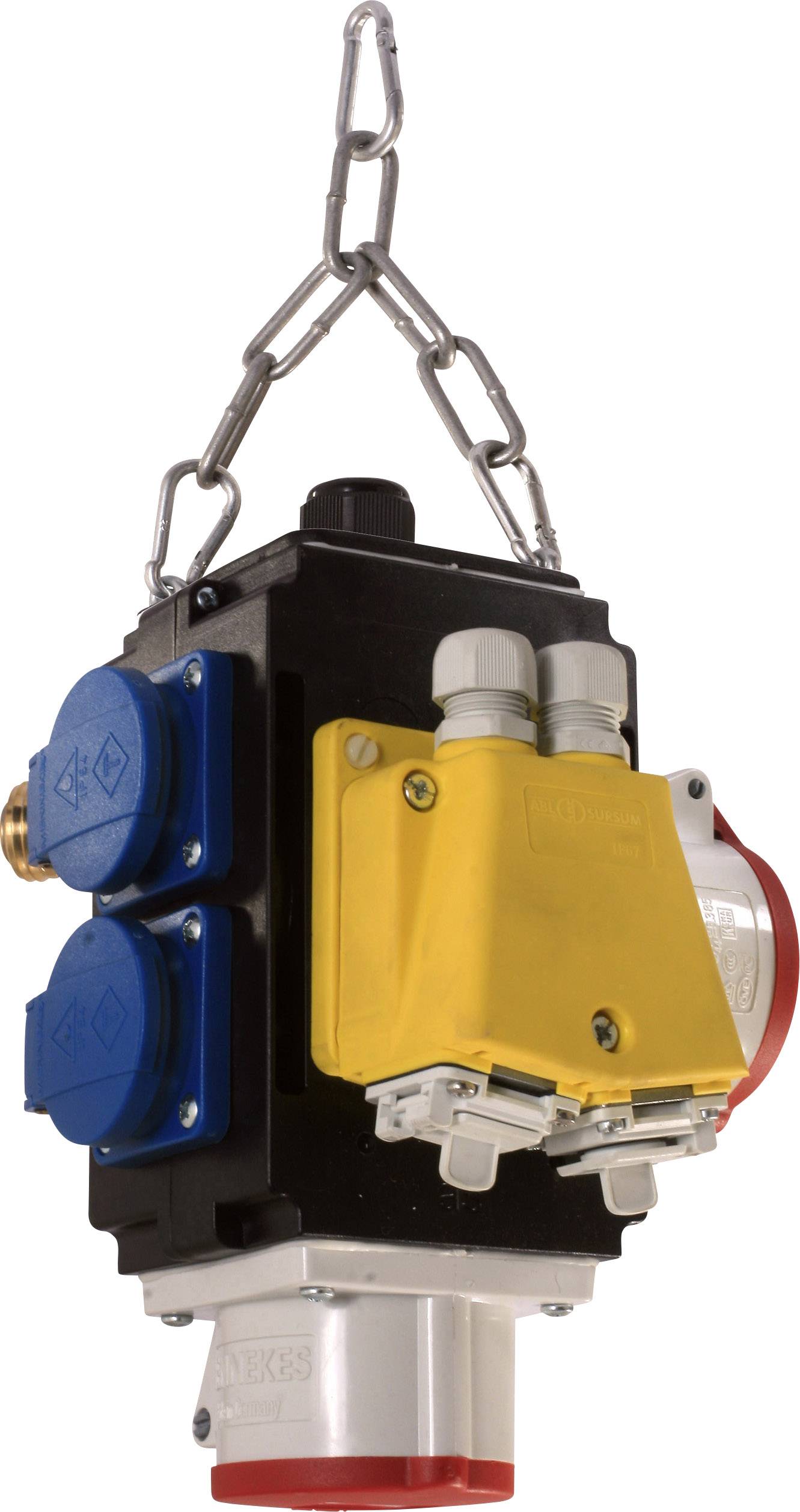

MIXO-energy dice with CEE, earthing contact, compressed air and CAT-boxes. Cable entry with screw cap and chain with carabiner hook. The power supply "from above" for workshops, hobby room and schools.
This text is machine translated.
This text is machine translated.
Features
- 2 earthing contact sockets 16 A, 230 V
- 2 CEE-socket 16A, 400V, 5-pin
- 2× RJ45 CAT. 6 Module IP67
- Compressed air connection
