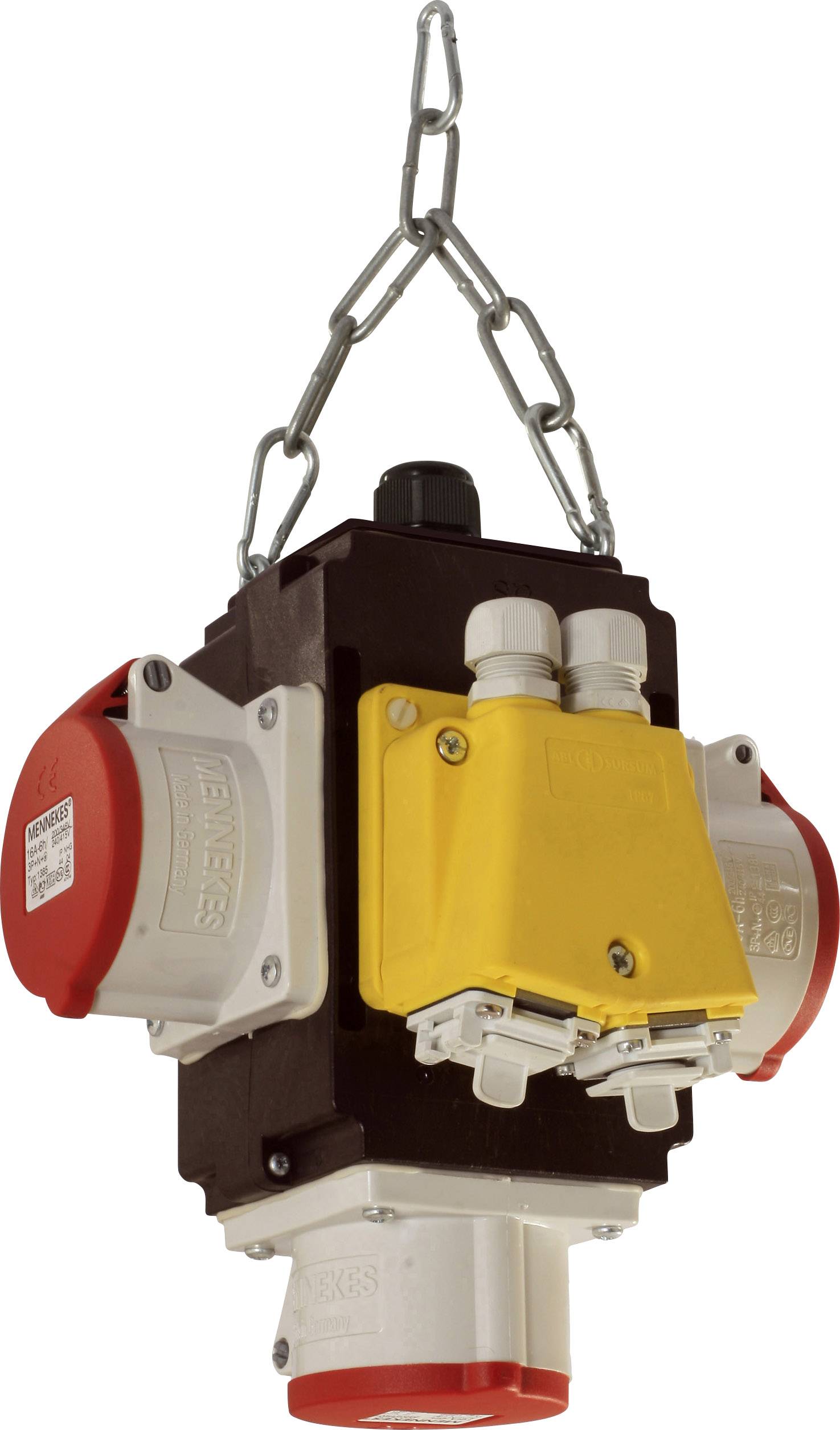

AS Schwabe CEE suspended distributor MIXO 60768 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MIXO energy cube IV DAT +
- For cable diameters: 5x2.5 mm² to 5x4 mm²
- Compressed air connection with 1 x input NW7.2 and 2 x outlet NW7.2
- 1 x data socket flange socket IP67 with 2 x RJ45 CAT.6 module
- Casing made of highly break resistant special plastic
- Wired as ready to connect
- Including cable entry with screw cap and chain with snap hook
- Tested according to DIN VDE 0620, IEC 60309
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to DIN VDE 0620, IEC 60309
- Product type
CEE suspended distributor
- No. of CEE connectors
3
- Type B
CEE connector (5-pin, 16 A)
- Nominal input voltage
400 V
- Standards
Tested according to DIN VDE 0620-1, IEC 60309
- Dim
(L x W x H) 22 x 20 x 27.5 cm
- Length
22 cm
- Width
20 cm
- Height
27.5 cm
- Type
IV DAT+
- Content
1 pc(s)
- Number of pins
5
- Nominal current
16 A
Documents & Downloads
Datasheet
Datasheet 1857935 AS Schwabe CEE suspended distributor MIXO 60768 400 V
User & Safety Instructions
User & Safety Instructions 1857935 AS Schwabe CEE suspended distributor MIXO 60768 400 V
Description
MIXO-energy dice with CEE, earthing contact, compressed air and CAT-boxes. Cable entry with screw cap and chain with carabiner hook. The power supply "from above" for workshops, hobby room and schools.
