AS Schwabe ChargeReel T2 2+8m Charging cable adapter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

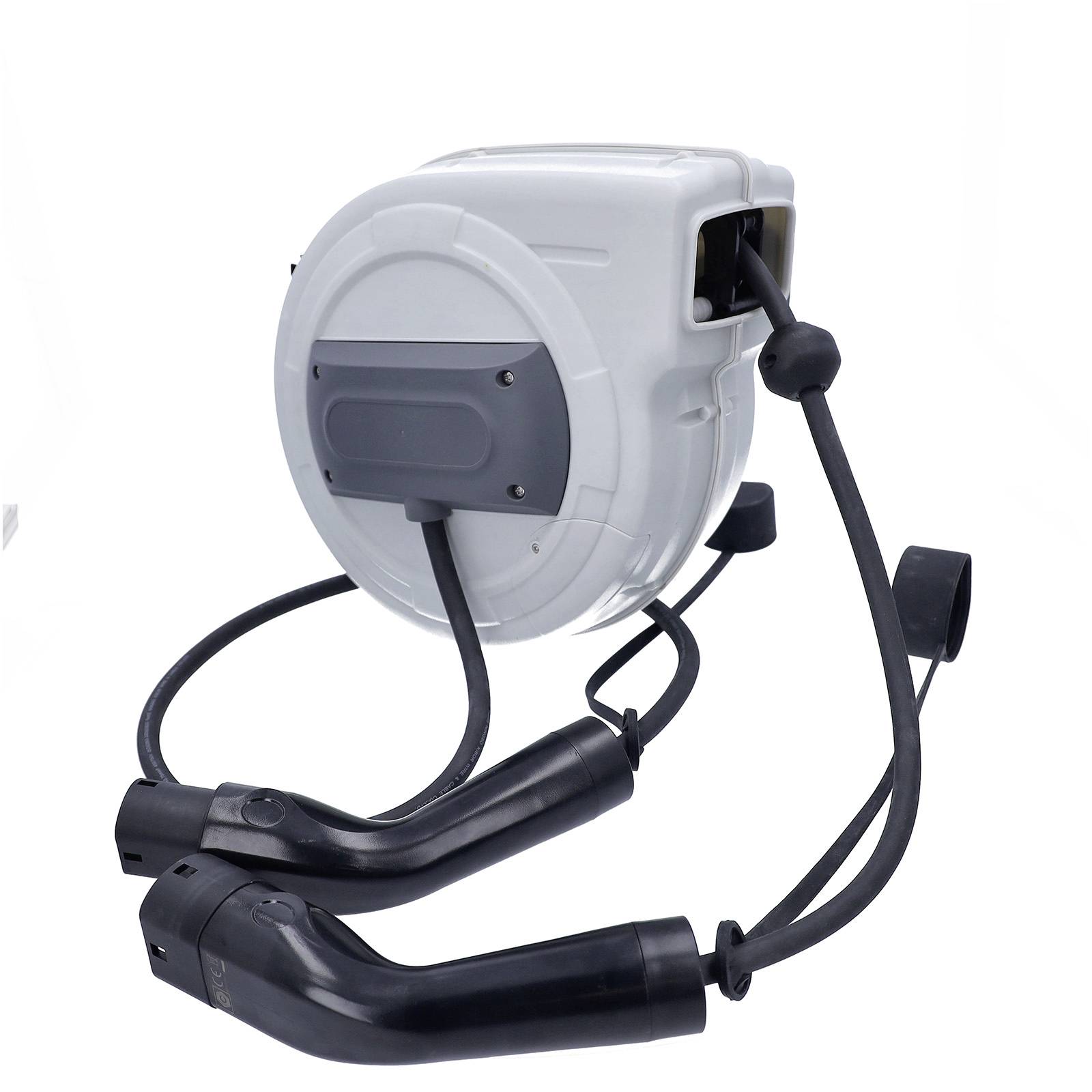

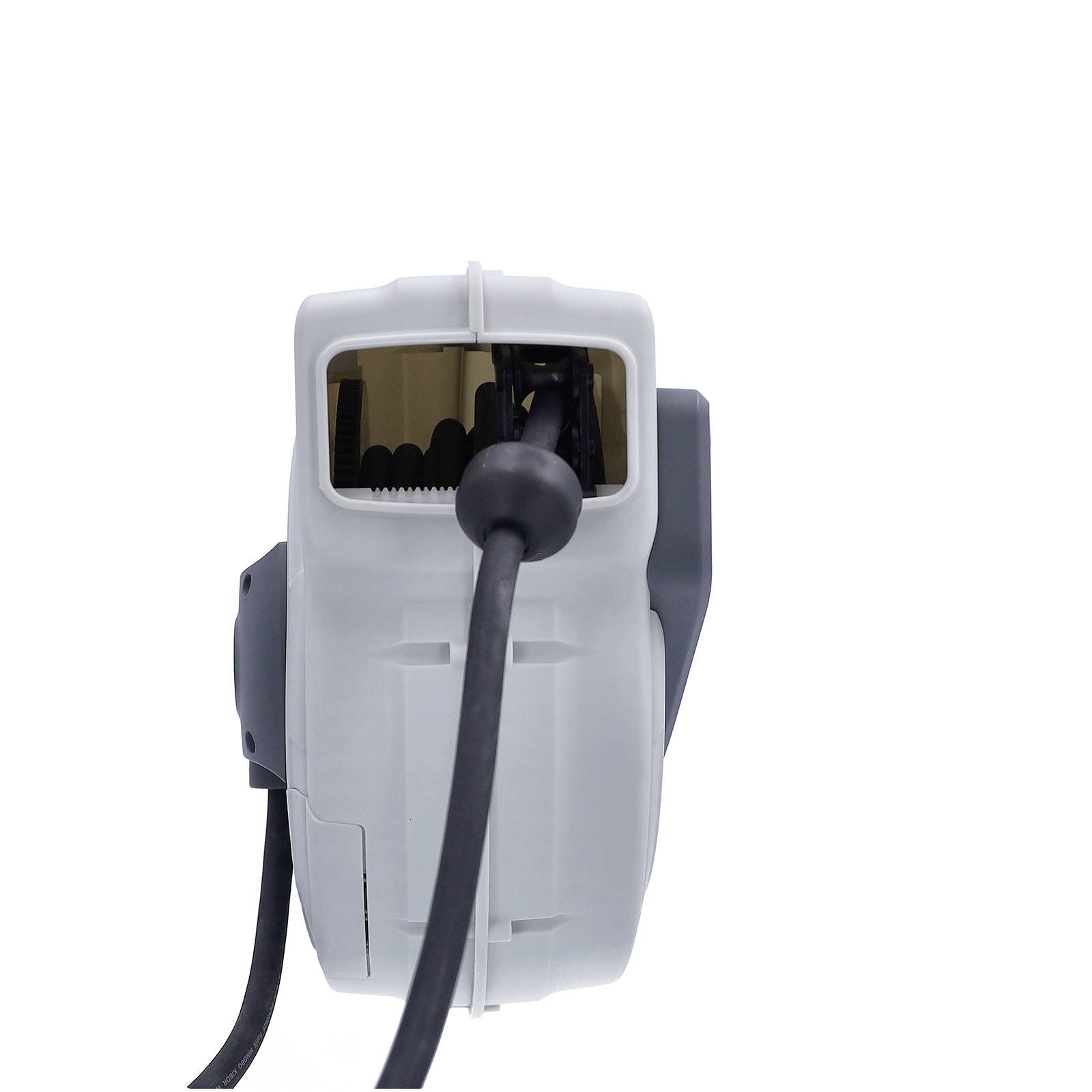

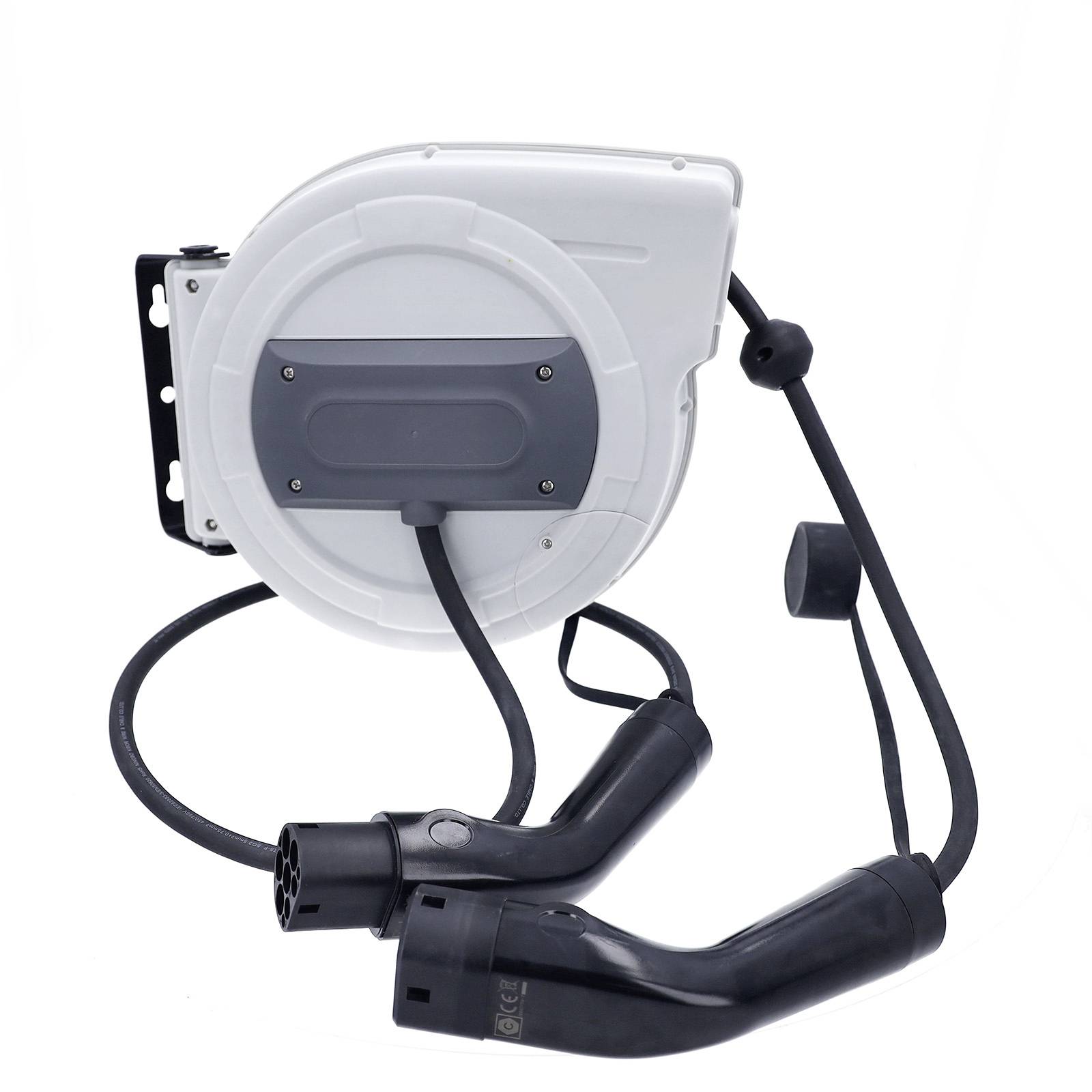

as - Schwabe electro-auto charging cable reel IP44 with spring mechanism, type 2 plug, 11kW charging power and 8 m output cable
- Robust cord winder with automatic spring mechanism for clean cable management
- Type 2 charging plug for three-phase charging up to 11 kW
- 8 m output cable for high action radius and flexible vehicle positioning
- Swivel wall mount and robust polypropylene casing with protection type IP44
Technical specifications
- Product type
Charging cable adapter
IP44
- Length
420 mm
- Height
322 mm
- Depth
190 mm
- Weight
6.76 kg
Documents & Downloads
Datasheet
Datasheet 3838869 AS Schwabe ChargeReel T2 2+8m Charging cable adapter
User & Safety Instructions
User & Safety Instructions 3838869 AS Schwabe ChargeReel T2 2+8m Charging cable adapter
Description
The as - Schwabe electric car charging cable reel offers a convenient and professional solution for the safe charging of electric vehicles. The integrated spring mechanism enables an automatic and proper rolling of the charger cable and protects it reliably against wear and damage.
The robust plastic casing made of high-quality polypropylene is Ideal suitable for daily use in the private, commercial or semi-public area. With a charging capacity of up to 11 kW and three-phase version, the cable reel supports efficient and reliable charging processes of modern electric vehicles.
The 8 m long output cable extends the action radius and allows flexible vehicle positioning while charging. Equipped with type 2 input and output plugs, the reel is compatible with common electric vehicles and charging stations. The 180° swivel wall bracket also ensures comfortable and flexible use. Thanks to IP44 protection class, the charging cable reel is suitable for use in indoor and protected outdoor areas.
This text is machine translated.
The robust plastic casing made of high-quality polypropylene is Ideal suitable for daily use in the private, commercial or semi-public area. With a charging capacity of up to 11 kW and three-phase version, the cable reel supports efficient and reliable charging processes of modern electric vehicles.
The 8 m long output cable extends the action radius and allows flexible vehicle positioning while charging. Equipped with type 2 input and output plugs, the reel is compatible with common electric vehicles and charging stations. The 180° swivel wall bracket also ensures comfortable and flexible use. Thanks to IP44 protection class, the charging cable reel is suitable for use in indoor and protected outdoor areas.
This text is machine translated.
Features
- 400 V, three-phase, max. 11 kW
- Cable 5G2.5 + 1x0.75
- Input cable 2 m, output cable 8 m
- Input plug type 2, output plug type 2
- Voltage display
- Overheating protection
- Wall bracket can be rotated by 180 degrees
Scope of delivery
- Roller-controller for electric car charger cable 2+8m
