1/3
AS Schwabe Industrial power distributor G-S23 63272
EAN:
Part number:
Item no:
Highlights & Details

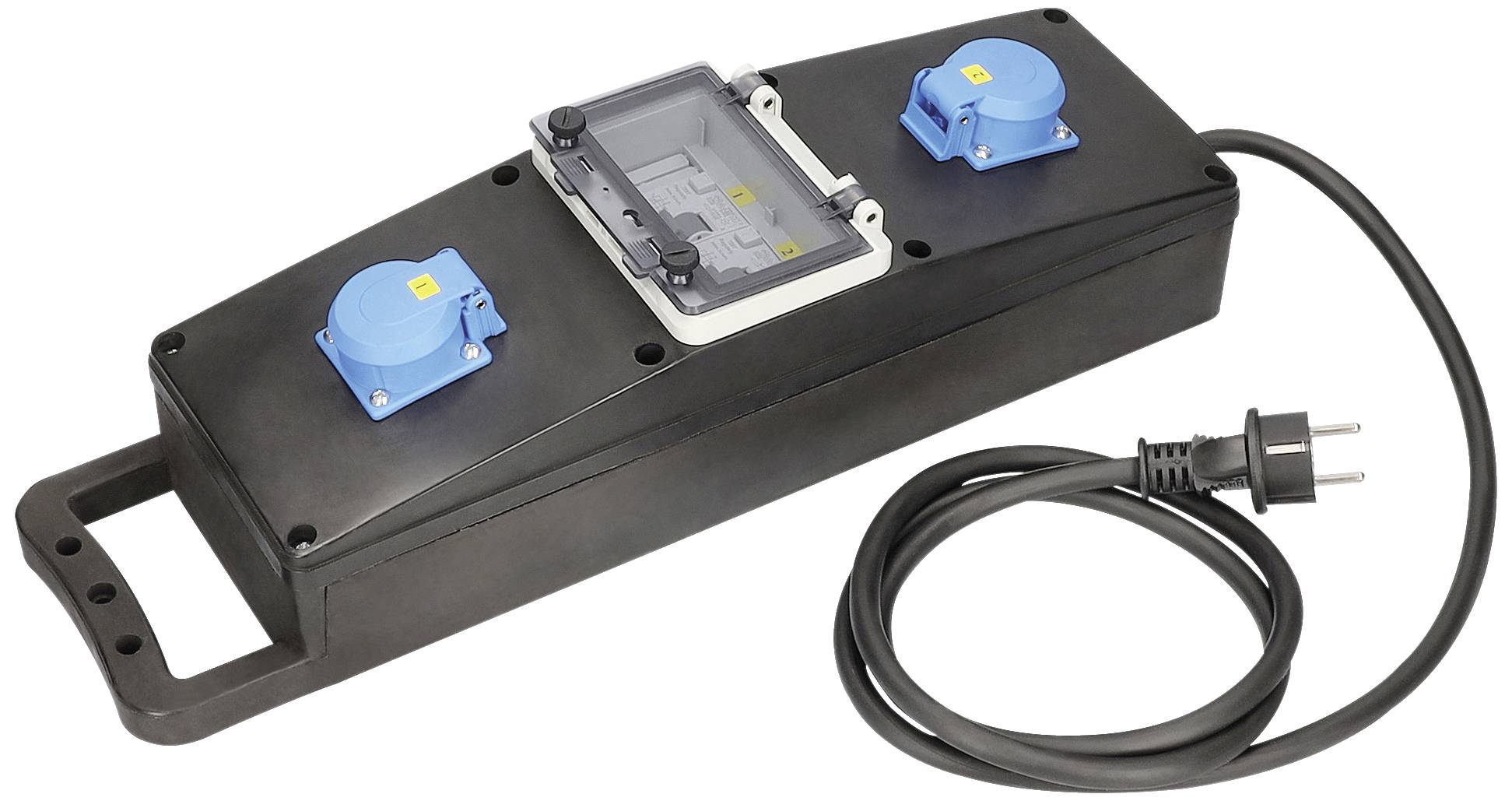

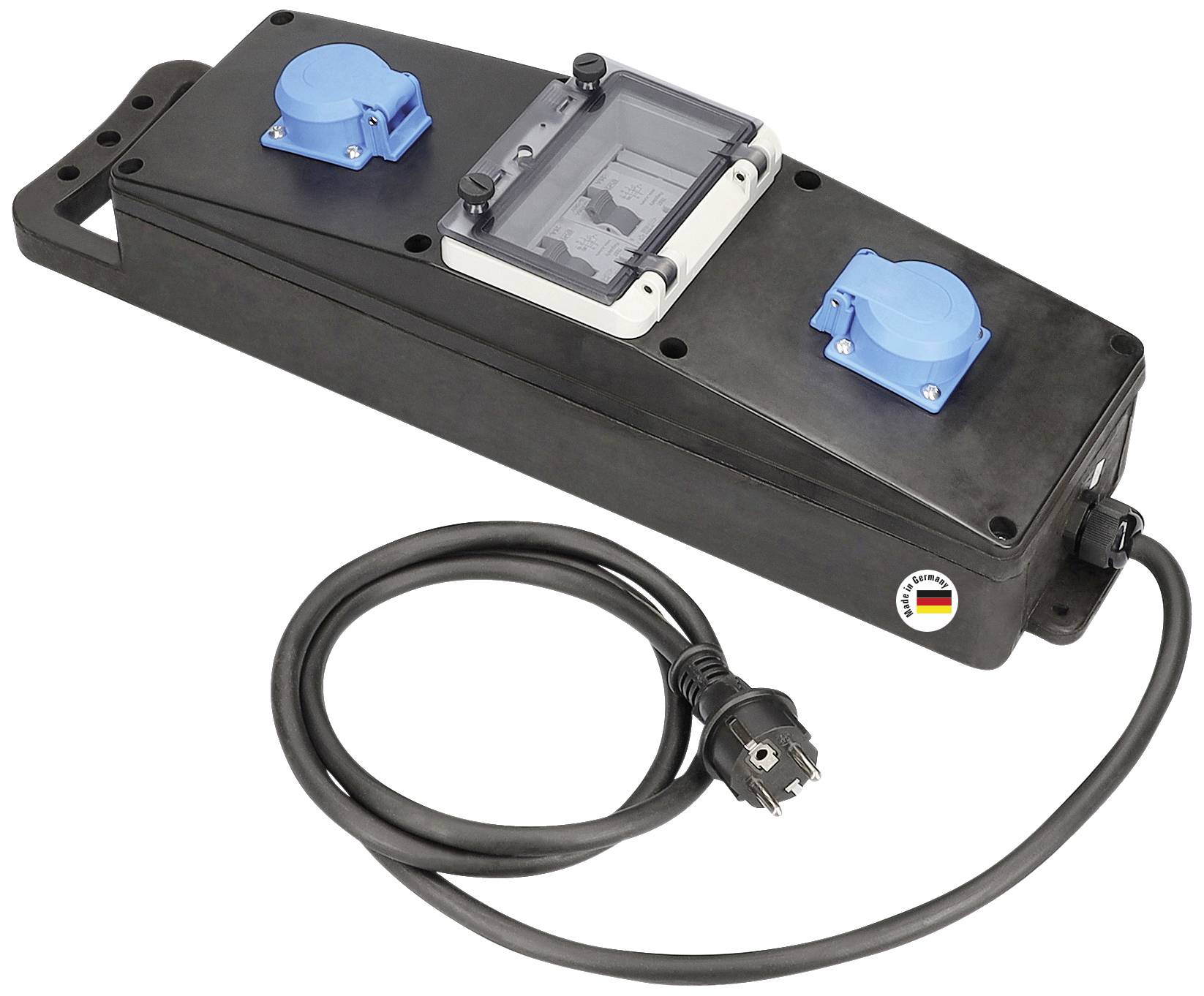

as - Schwabe mobile solid rubber socket strip G-S23, 3.6 kW
- With 2 sockets 230 V/16 A
- Input: Protective contact plug with 2 m cable
- 2 RCCB 2-pin
Technical specifications
- Product type
Industrial power distributor
- Type A
PG plug
- Type B
PG socket
- No. of PG sockets
2
- Outputs
2
IP44
- Cable length
2 m
- Cable standard
H07RN-F 3G 2,5 mm²
- Protection
2 RCCB 2-pole 25 A, 30 mA, Type A
- Standards
Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- Factory colour
Black
- Dim
(L x W x H) 500 x 140 x 135 mm
- Length
500 mm
- Width
140 mm
- Height
135 mm
- Content
1 pc(s)
- Number of pins
3
- Cable type
H07RN-F
- Insulation material
Neoprene
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2891096 AS Schwabe Industrial power distributor G-S23 63272
Description
The power distributor has the protection class IP44 and is Ideal suitable for the application in the external area and on construction sites

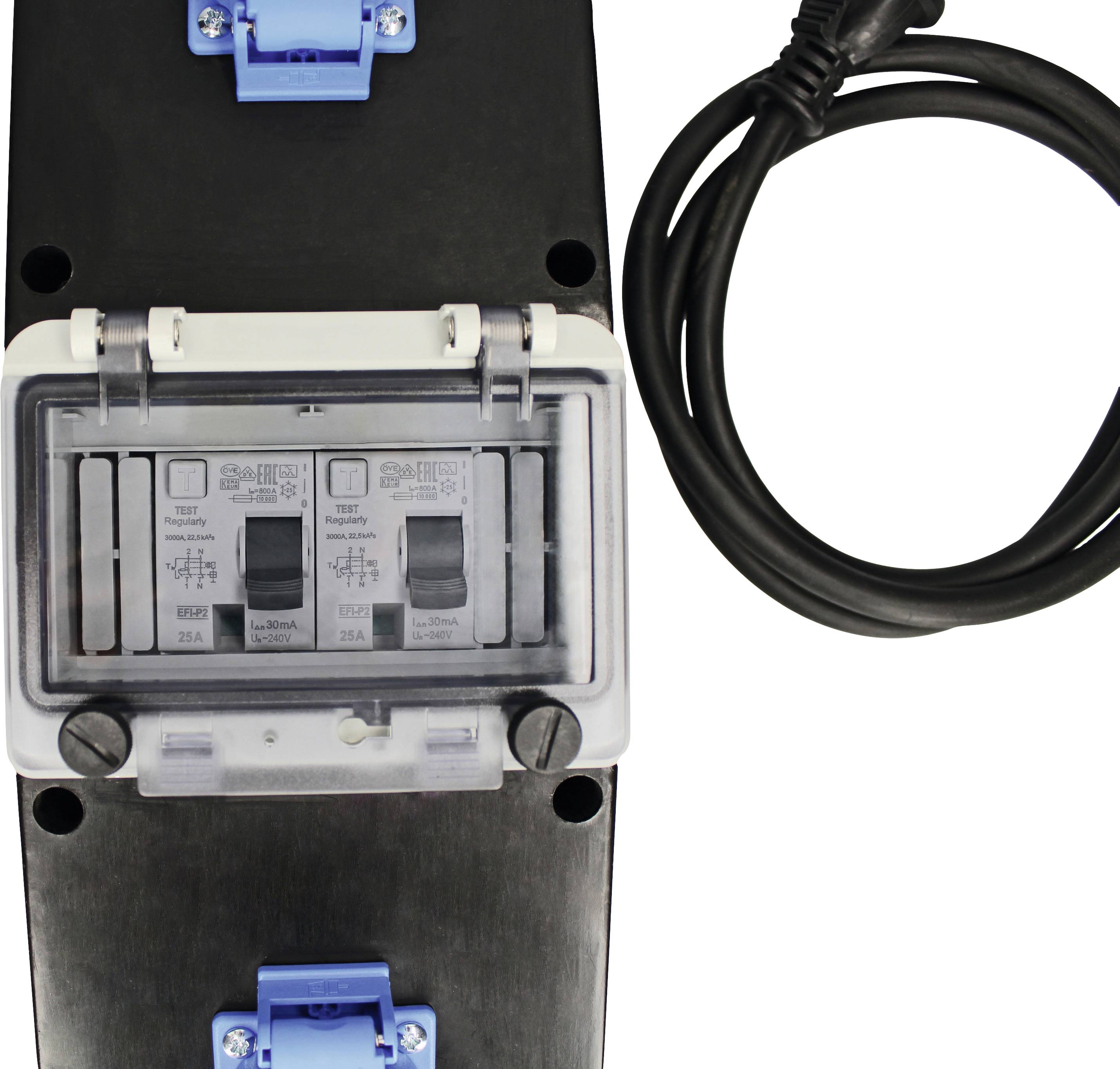

The construction site distributor is safe from accidental contact in accordance with BGV A2. For additional safety, the fuses provide: 2x ground fault circuit breakers, 2-pole, 25 A, 30 mA, type A
The casing of the power distributor for emergency power supply is made of extremely robust solid rubber and was designed especially for heavy construction sites application
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
The construction site distributor is safe from accidental contact in accordance with BGV A2. For additional safety, the fuses provide: 2x ground fault circuit breakers, 2-pole, 25 A, 30 mA, type A
The casing of the power distributor for emergency power supply is made of extremely robust solid rubber and was designed especially for heavy construction sites application
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- The current distributor strip has a 2 m heavy rubber hose cable H07RN-F 3G6.
- The G series rubber strip has a 230 V, 16 A input
- 2 earthing contact socket outlets 230 V, 16 A outputs
- Fuse: Earth-leakage circuit breaker 2-pin
