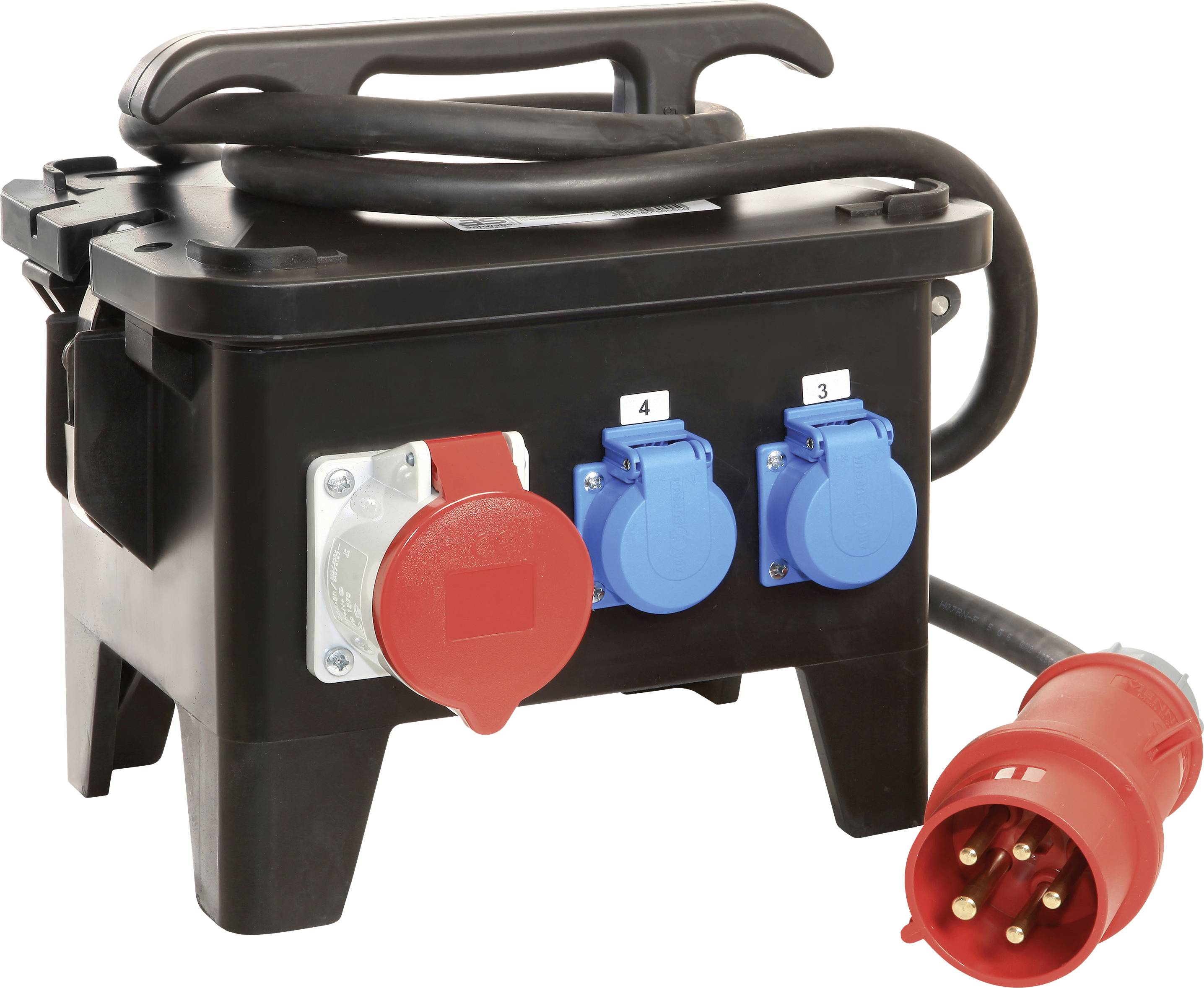

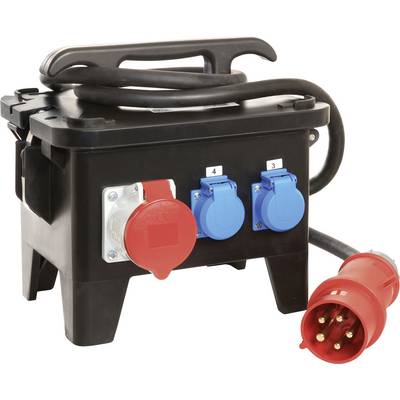

AS Schwabe Industrial power distributor M4 60554 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Construction site power distributor "M-series "M4
- Input: CEE plug 400 V, 32 A, 5-pin
- 4x earthing contact socket outlets 230 V, 16 A
- 1x CEE sockets 400 V, 16 A, 5-pin
- 1x CEE socket 400 V, 32 A, 5-pin
- 1x FI 40 A, 4-pin, 30 mA, Type A
- 2x LS-switch C 16 A, 1-pin
- 1x LS-Switch C 16 A, 3-pin
- This text is machine translated.
Technical specifications
- 1 FI protective switch 40 A IΔN = 30 mA
- 2 LS-SWITCH C 16 A 1-pin
- 1 LS-SWITCH C 16 A 3-pin
- Product type
Industrial power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG socket
- No. of PG sockets
4
- Nominal input voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 6 mm²
- Protection
1x FI 40 A, 4-pin, 30 mA, Type A
2x LS-switch C 16 A, 1-pin
1x LS-Switch C 16 A, 3-pin
- Standards
Tested according to DIN VDE 0620-1, IEC 60309, DIN 50525-2
- Factory colour
Black
- Dim
(L x W x H) 40 x 40 x 33 cm
- Length
40 cm
- Width
40 cm
- Height
33 cm
- Type
M3 - 400V/32A/5-pin/22 kW - outputs 6
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
- Number of pins
5
Black
400
330 mm
400 mm
2 m
Plastic
Nickel-plated
CuZn
IP44
FALSE
Documents & Downloads
Datasheet
Datasheet 1857543 AS Schwabe Industrial power distributor M4 60554 400 V 32 A
User & Safety Instructions
User & Safety Instructions 1857543 AS Schwabe Industrial power distributor M4 60554 400 V 32 A
Description
The power distributor is stackable and thus save space to store. Closed housing base with 77 mm ground clearance to prevent water from entering. Housing cover with stainless steel quick releases. Contact-safe - even with open lid - in accordance with BGV A2. Additional security thanks to the screw or padlock. Problem-free changing of the mounting sockets.
