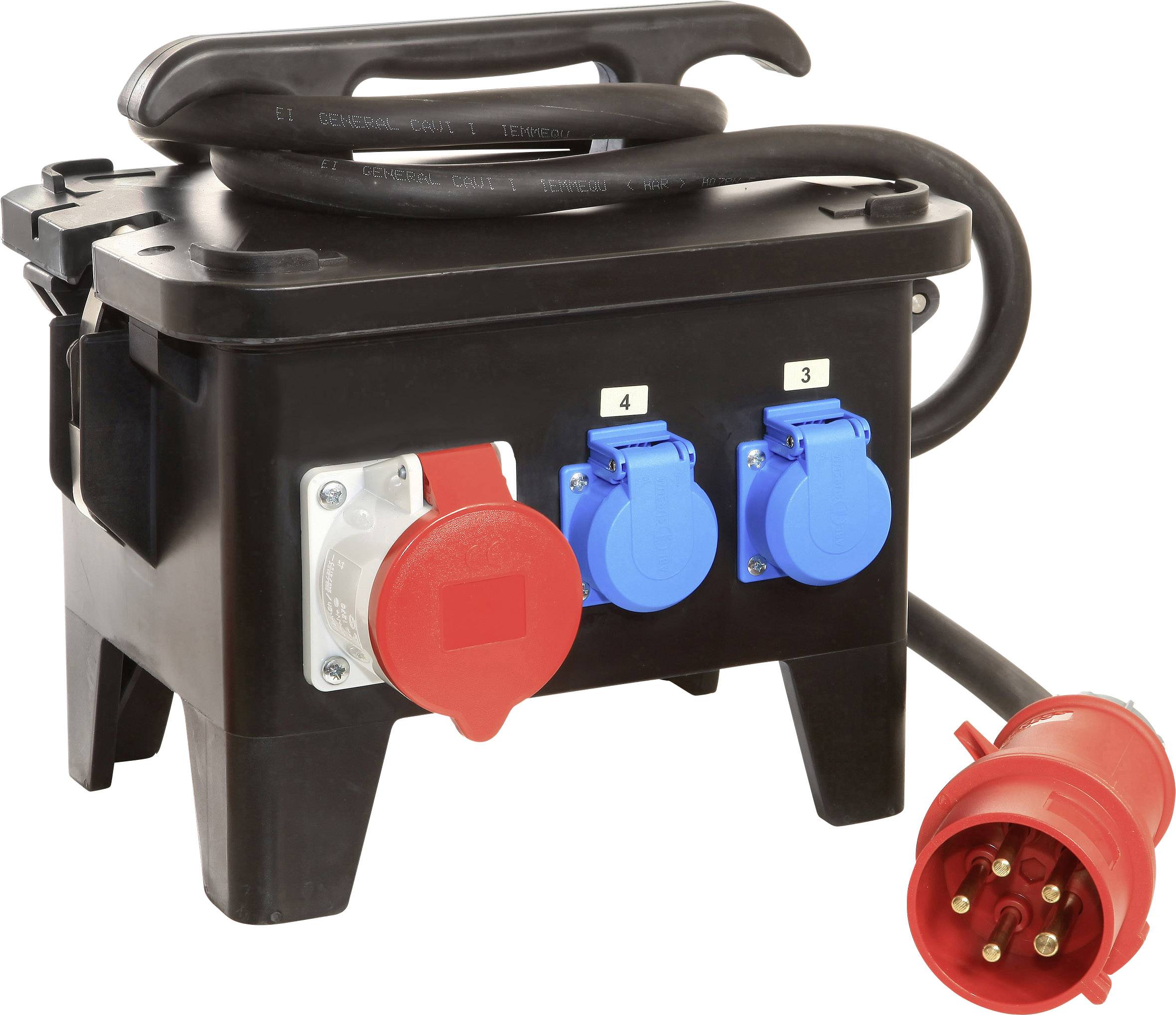

AS Schwabe Industrial power distributor M5 60551 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Construction site power distribution M5
- Input: CEE plug 400 V, 32 A, 5-pin
- 3x earthing contact socket-outlets 230 V, 16 A
- 1x CEE sockets 400 V, 16 A, 5-pin
- 2x CEE socket 400 V, 32 A, 5-pin
- 1x FI 40 A, 4-pin, 30 mA, Type A
- 3x LS-switch C 16 A, 1-pin
- 1x LS-Switch C 16 A, 3-pin
Technical specifications
- 1x FI 40 A, 4-pin, 30 mA, Type A
- 3x LS-switch C 16 A, 1-pin
- 1x LS-Switch C 16 A, 3-pin
- Product type
Industrial power distributor
- No. of CEE connectors
3
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG socket
- No. of PG sockets
3
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 6 mm²
- Protection
1x FI 40 A, 4-pin, 30 mA, Type A
3x LS-switch C 16 A, 1-pin
1x LS-Switch C 16 A, 3-pin
- Standards
Tested according to DIN VDE 0620-1, IEC 60309, EN 60439-4, DIN VDE 0282-4
- Factory colour
Black
- Dim
(L x W x H) 40 x 40 x 33 cm
- Length
40 cm
- Width
40 cm
- Height
33 cm
- Type
M5 - 400V/32A/5-pin/22 kW - outputs 6
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 1857821 AS Schwabe Industrial power distributor M5 60551 400 V 32 A
User & Safety Instructions
User & Safety Instructions 1857821 AS Schwabe Industrial power distributor M5 60551 400 V 32 A
Description
The power distribution are stackable and thus extremely space-saving storage.
