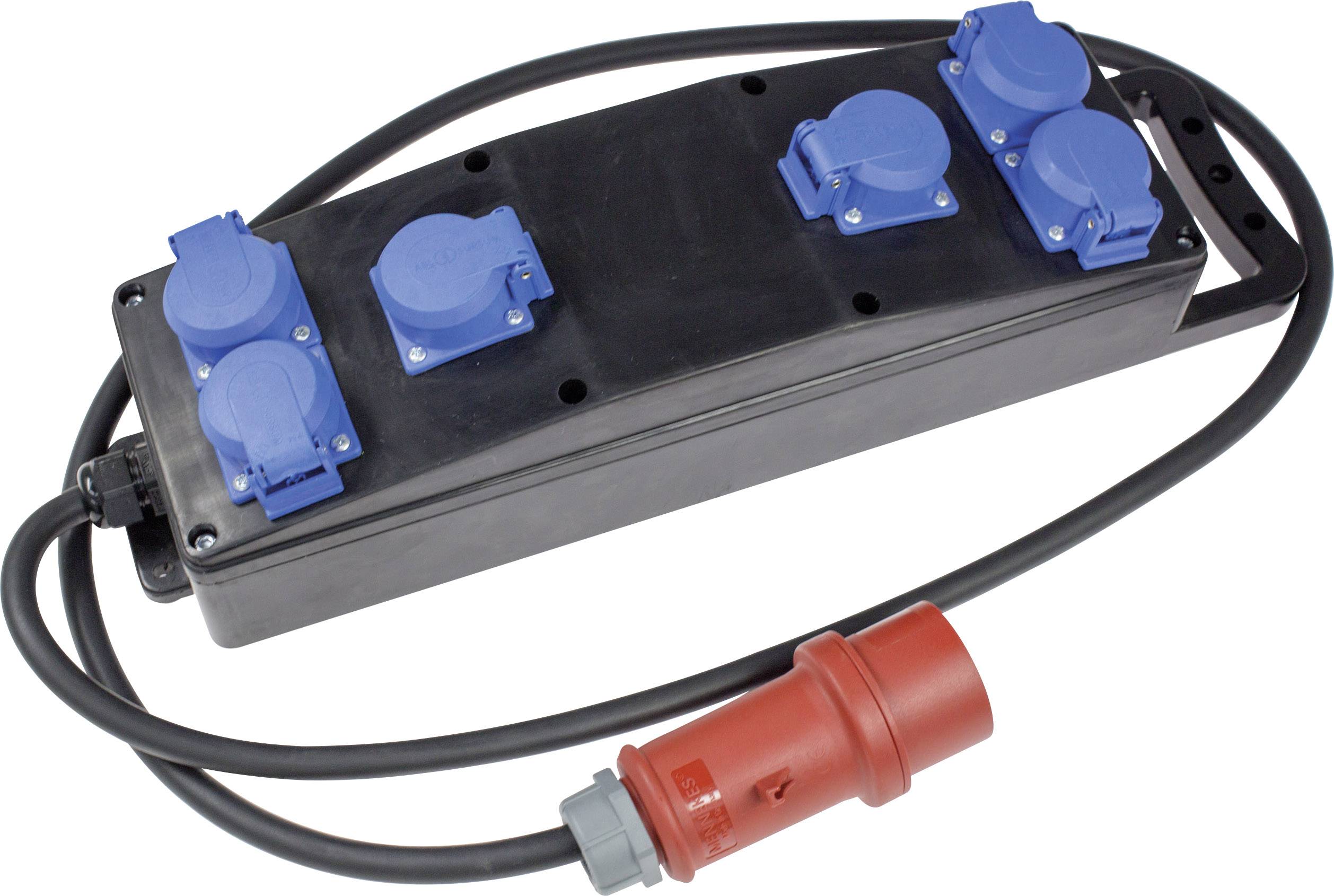

AS Schwabe Industrial power distributor S2 60854 400 V 16 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
As - Swabia rubber distributor strip S2
- Casing made from extremely robust solid rubber
- Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to DIN VDE 0620-1, IEC 60309, DIN 50525-2;Outputs: 6 protective contact sockets 16 A/ 230 V
- Product type
Industrial power distributor
- Type A
CEE plug (5-pin, 16 A)
- Type B
PG socket
- No. of PG sockets
6
- Nominal input voltage
400 V
- Nominal output voltage
230 V
- Nominal input current
16 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 2,5 mm²
- Standards
Tested according to DIN VDE 0620-1, IEC 60309, EN 60439-4, DIN VDE 0282-4
- Dim
(L x W x H) 48 x 14 x 13 cm
- Length
48 cm
- Width
14 cm
- Height
13 cm
- Type
S2:400V/16A/5-pole/11kW - outputs:6
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Plug type
CEE connector
- Used at
Outdoors
Documents & Downloads
Datasheet
Datasheet 1857823 AS Schwabe Industrial power distributor S2 60854 400 V 16 A
User & Safety Instructions
User & Safety Instructions 1857823 AS Schwabe Industrial power distributor S2 60854 400 V 16 A
Description
Practical socket strips made of rubber with diverse combinations of inputs and outputs
