AS Schwabe MIXO 61745 Electricity meter (3-phase) Analogue 16 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase)
Current load
16 A
Display
Analogue
Calibration
Calibrated
Operating voltage
400 V
Datasheet (PDF)
Highlights & Details

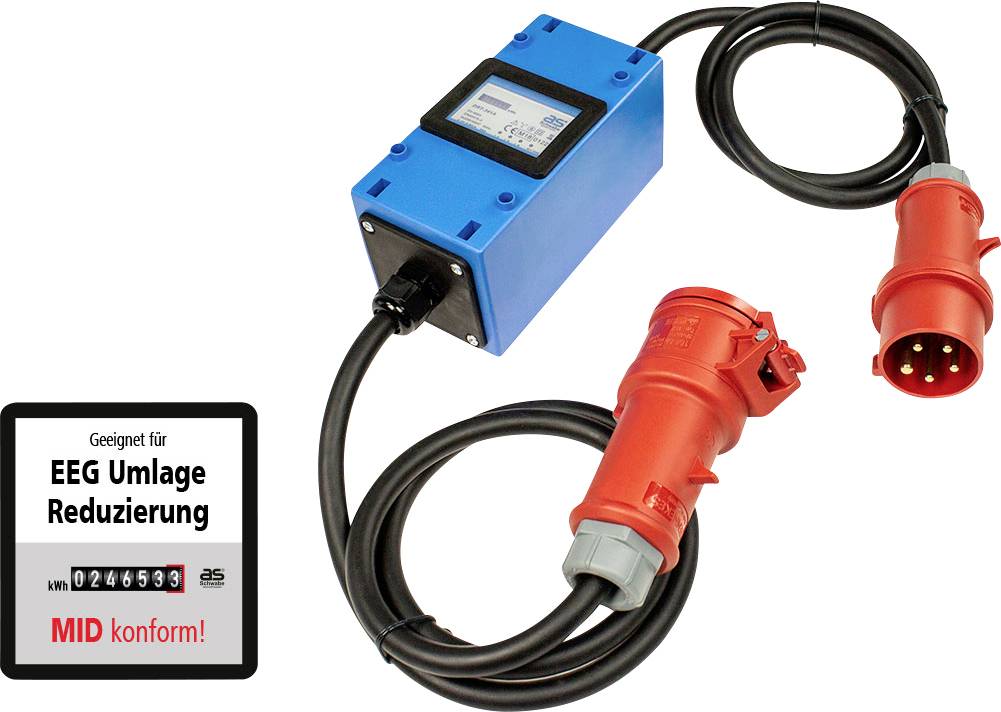

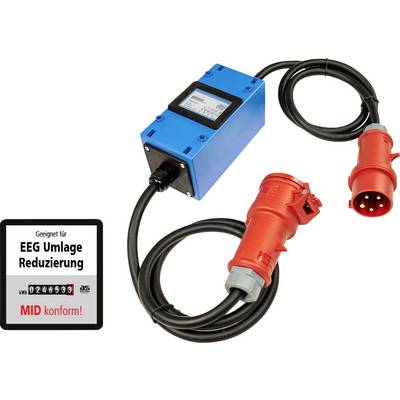

MIXO current counter 400V 16A
- Housing made of highly break-resistant special plastic
- Built-in current meter MID calibrated and sealed
- 2 × 1.5 m heavy rubber hose line H07RN-F
- IP44 suitable for the heavy construction sites and suitable for outdoor use
- With CEE plug and CEE-coupling 5-pin 400 V
- This text is machine translated.
Technical specifications
- Product type
Electricity meter (3-phase)
- Current load
16 A
- Display
Analogue
- Calibration
Calibrated
- Operating voltage
400 V
- Factory colour
Blue
- Operating voltage
400 V
- MID-approved
Yes
- Reading type
Active energy
- Nominal voltage range
400 V (max)
- Mains voltage (max.)
400 V
- Current (max.)
80 A
- Current (min.)
0.25 A
- Current range
0.25 up to 80 A
- Type
MIXO
- Effective current range
0.25-5 A
- Power (max.)
11 kW
- Active power range
11 kW (max)
Documents & Downloads
Datasheet
Datasheet 1857886 AS Schwabe MIXO 61745 Electricity meter (3-phase) Analogue 16 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1857886 AS Schwabe MIXO 61745 Electricity meter (3-phase) Analogue 16 A MID-approved: Yes 1 pc(s)
Conformity certificate
Conformity certificate 1857886 AS Schwabe MIXO 61745 Electricity meter (3-phase) Analogue 16 A MID-approved: Yes 1 pc(s)
Description
Hints
EEG allocation: The electricity meter / intermediate counter is MID-compliant and thus suitable for reducing the EEG allocation
