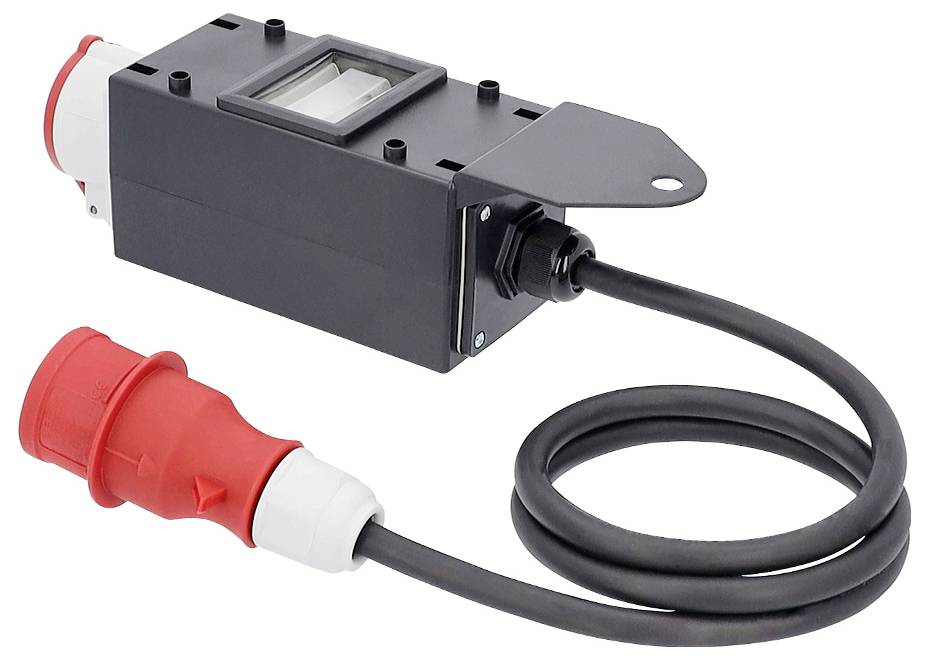

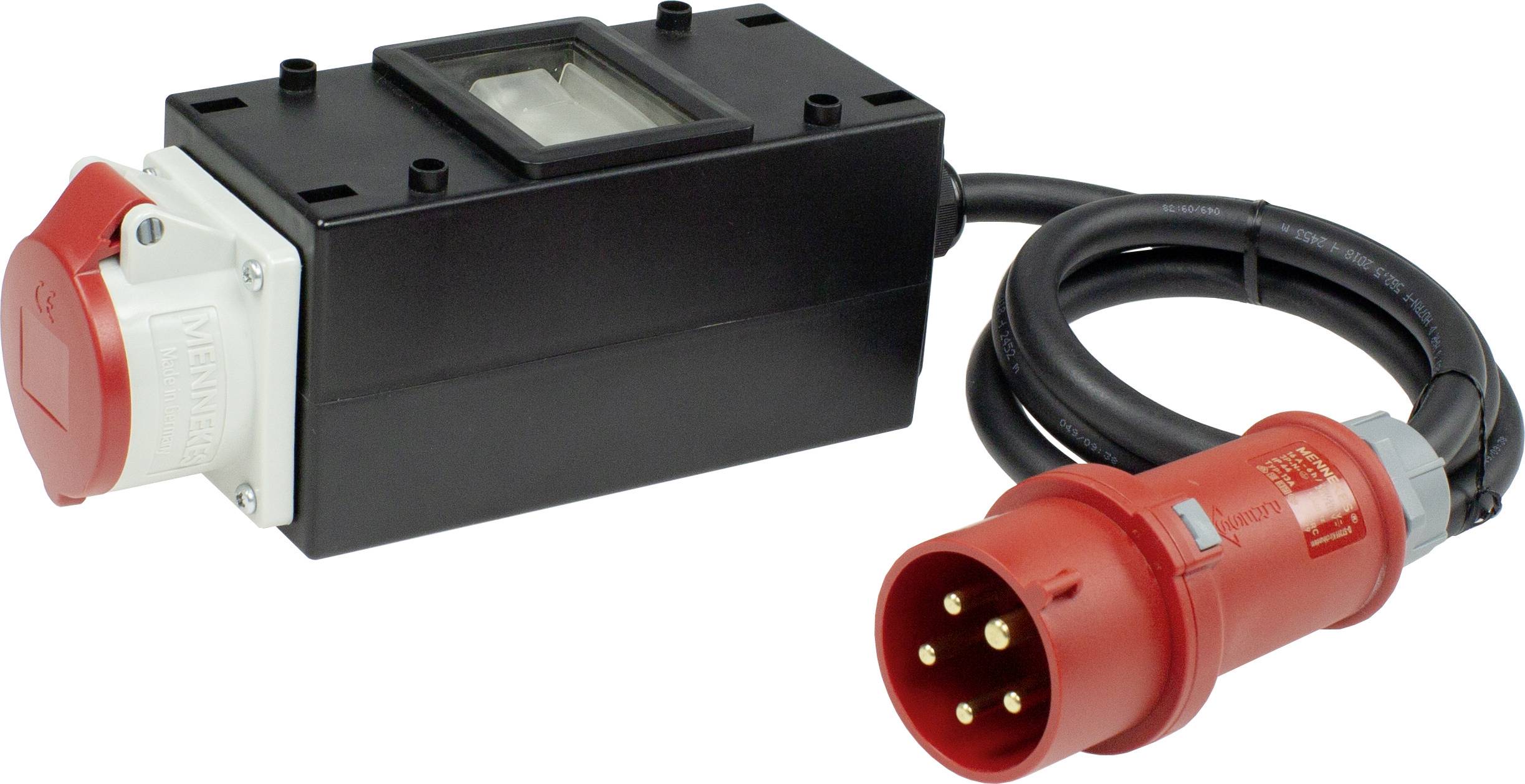

AS Schwabe MIXO WERRA 16 A 61705 CEE adapter 16 A 400 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
MIXO FI adapter 'WALDACH' 400V 11kw
- Heavy rubber hose line
- IP44: Protected against foreign objects and water
Technical specifications
- Product type
CEE adapter
- Nominal voltage
400 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
CEE connector (5-pin, 16 A)
- Type B
CEE plug (5-pin, 16 A)
- Cable standard
H07RN-F 5G 2,5 mm²
- Type
MIXO WERRA
IP44
- Standards
Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- Factory colour
Black-red
- Dim
(L x W x H) 28.5 x 10 x 9.5 cm
- Length
28.5 cm
- Width
10 cm
- Height
9.5 cm
- Content
1 pc(s)
11 kW
- Number of pins
5
- Protection
1x FI 40 A, 4-pin, 30 mA, Type A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2484896 AS Schwabe MIXO WERRA 16 A 61705 CEE adapter 16 A 400 V 1 pc(s)
Description
Robust housing made of highly-unbreakable special plastic and space-saving design.
For various, mobile applications at the construction site
This text is machine translated.
For various, mobile applications at the construction site
This text is machine translated.
Features
- Input: CEE plug 400 V, 16 A, 5-pin with 1.5 m H07RN-F 5G2.5 heavy rubber hose
- Output: 1x CEE socket 400 V, 16 A, 5-pin fuse
- 1x FI 40 A, 4-pin, 30 mA, Type A
