ASRock A520M Pro4 Motherboard PC base AMD AM4 Form factor (details) Micro-ATX
EAN:
Part number:
Item no:

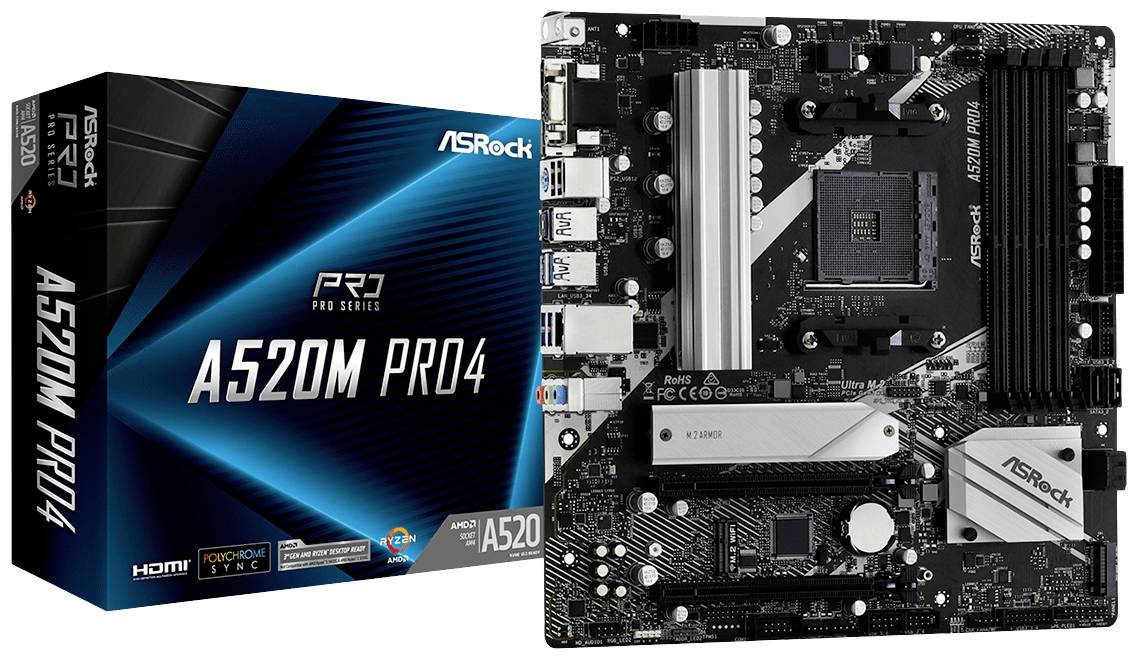

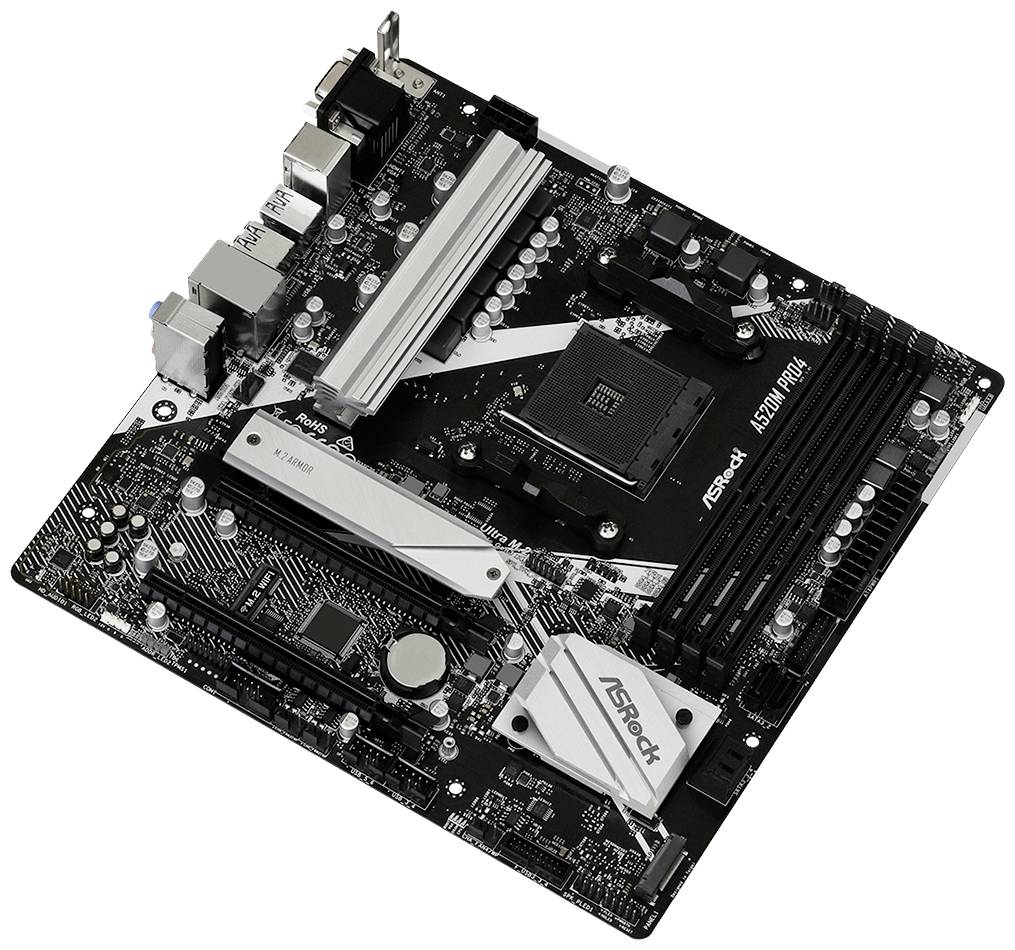

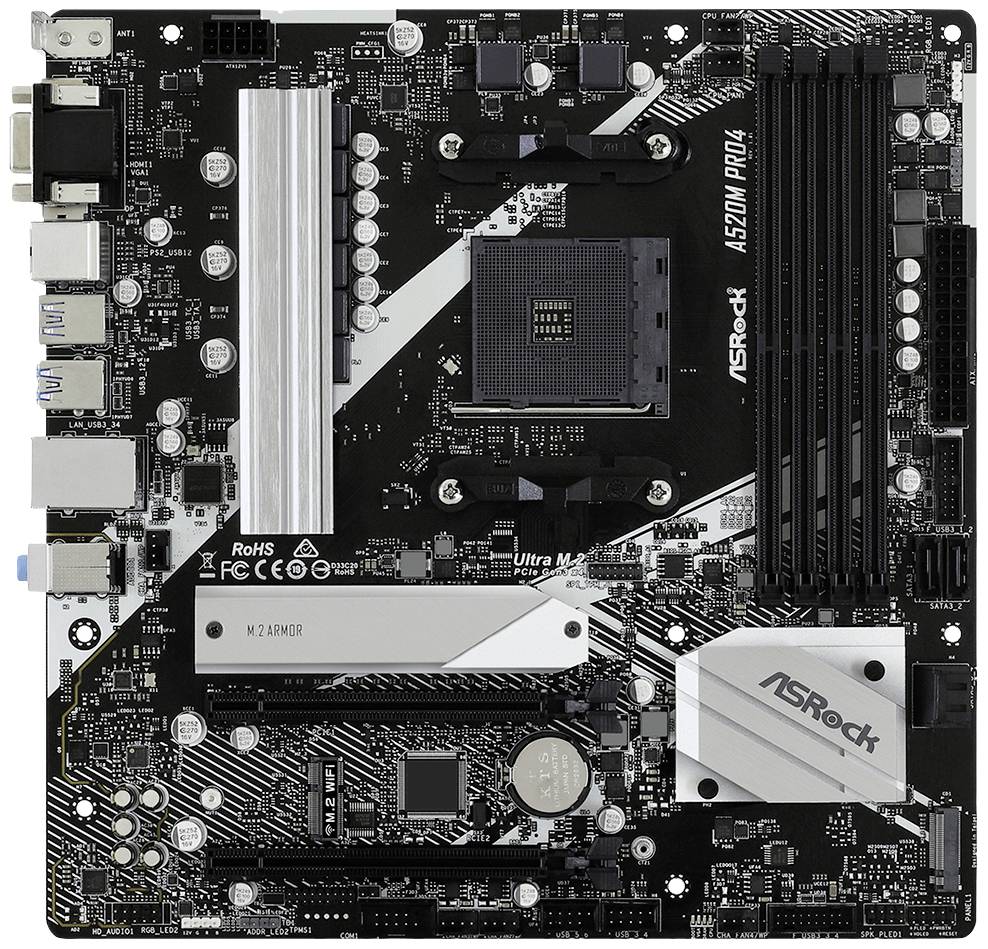

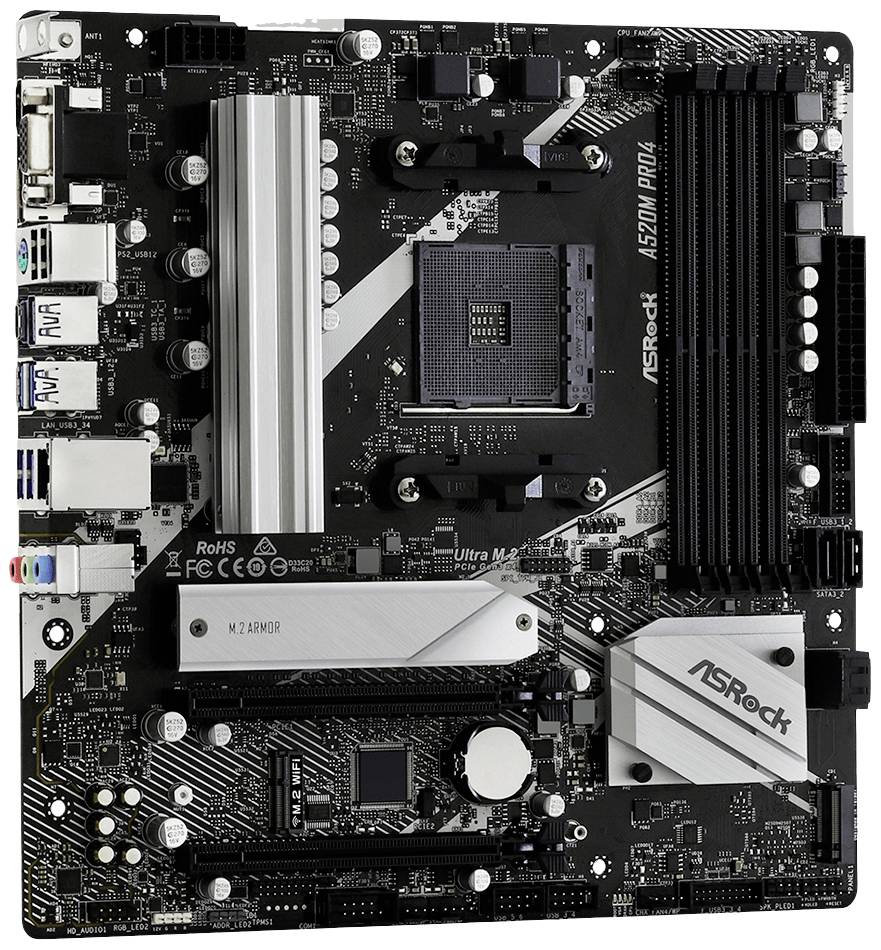

ASRock A520M Pro4 Motherboard
Technical specifications
- Product type
Motherboard
AMD AM4
- Form factor
Micro-ATX
- RAM type
DDR4 RAM
- RAM / Max. upgrade
64 GB
- No. of USB 2.0 ports
2 x
- No. of PS/2 ports
1 x
- Depth
201 mm
- Height
100 mm
- Width
230 mm
- No. of 10 Gb LAN ports
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of memory slots
2
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Onboard graphics card (GPU manufacturer)
AMD
- Range of use
PC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2892143 ASRock A520M Pro4 Motherboard PC base AMD AM4 Form factor (details) Micro-ATX
Description
Features
- Processor manufacturer: AMD
- Socket AM4
- Compatible processors: 3rd generation AMD Ryzen™ 3
- 3rd generation AMD Ryzen 5
- 3rd generation AMD Ryzen™ 7
- 3rd Supported memory: DDR4 SDRAM
- RAM maximum: 64 GB
- RAM type DIMM. Supported drive interfaces: M.2
- SATA III Graphics card family: AMD
- Graphics card: Radeon Vega. Ethernet interfaces, type Gigabit Ethernet
- Realtek RTL8111H LAN controller
- This text is machine translated.
