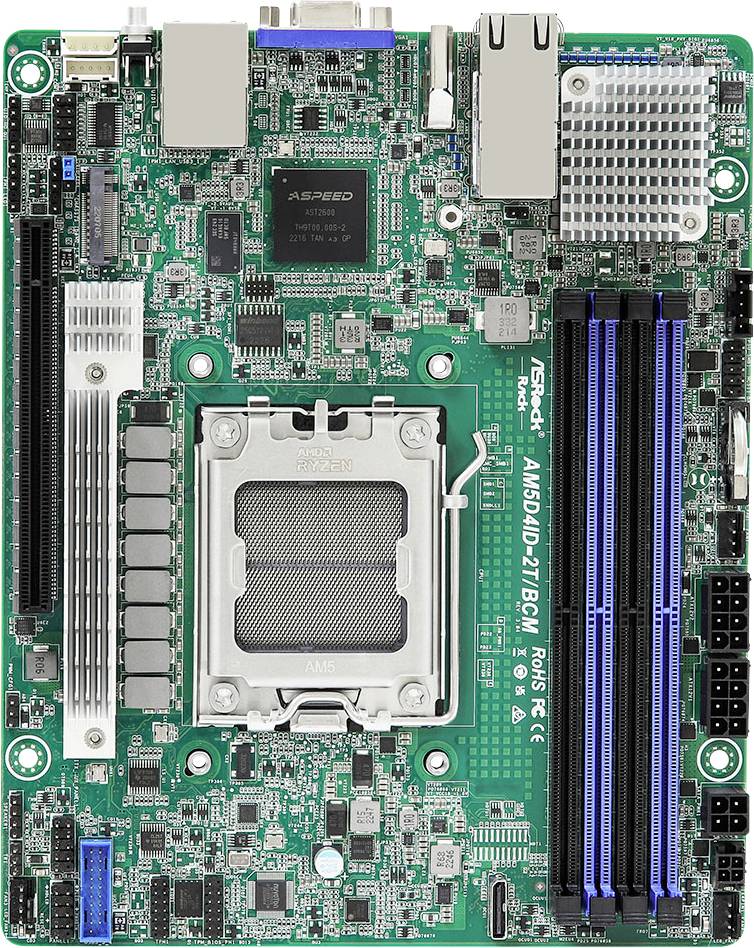

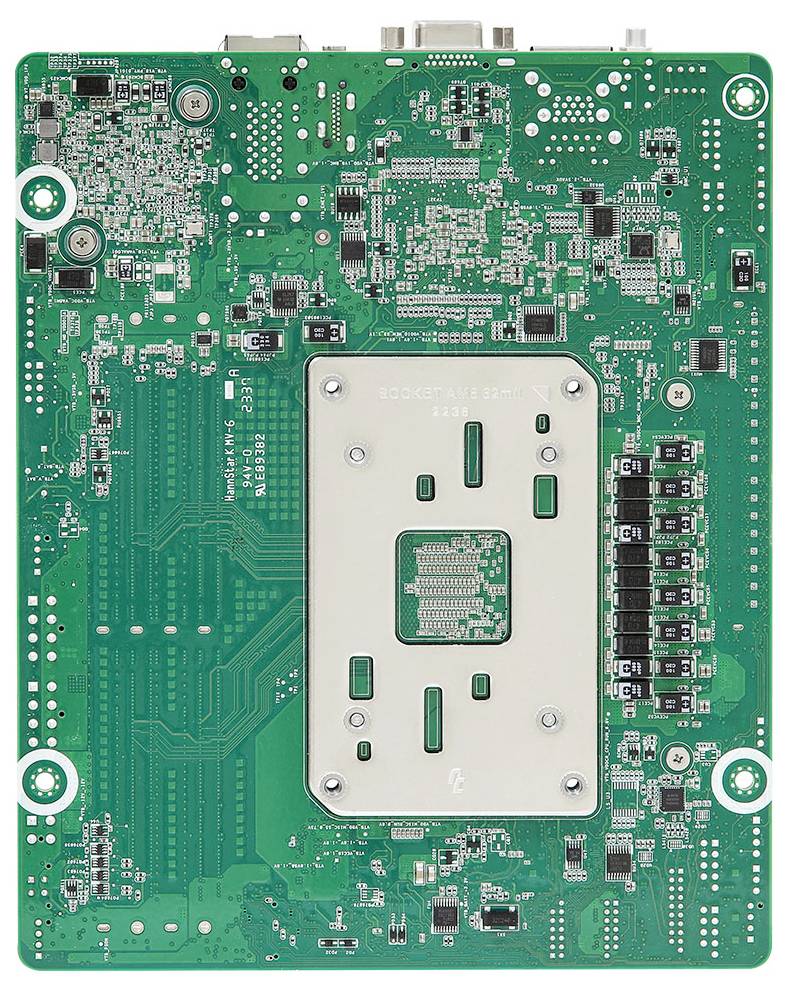

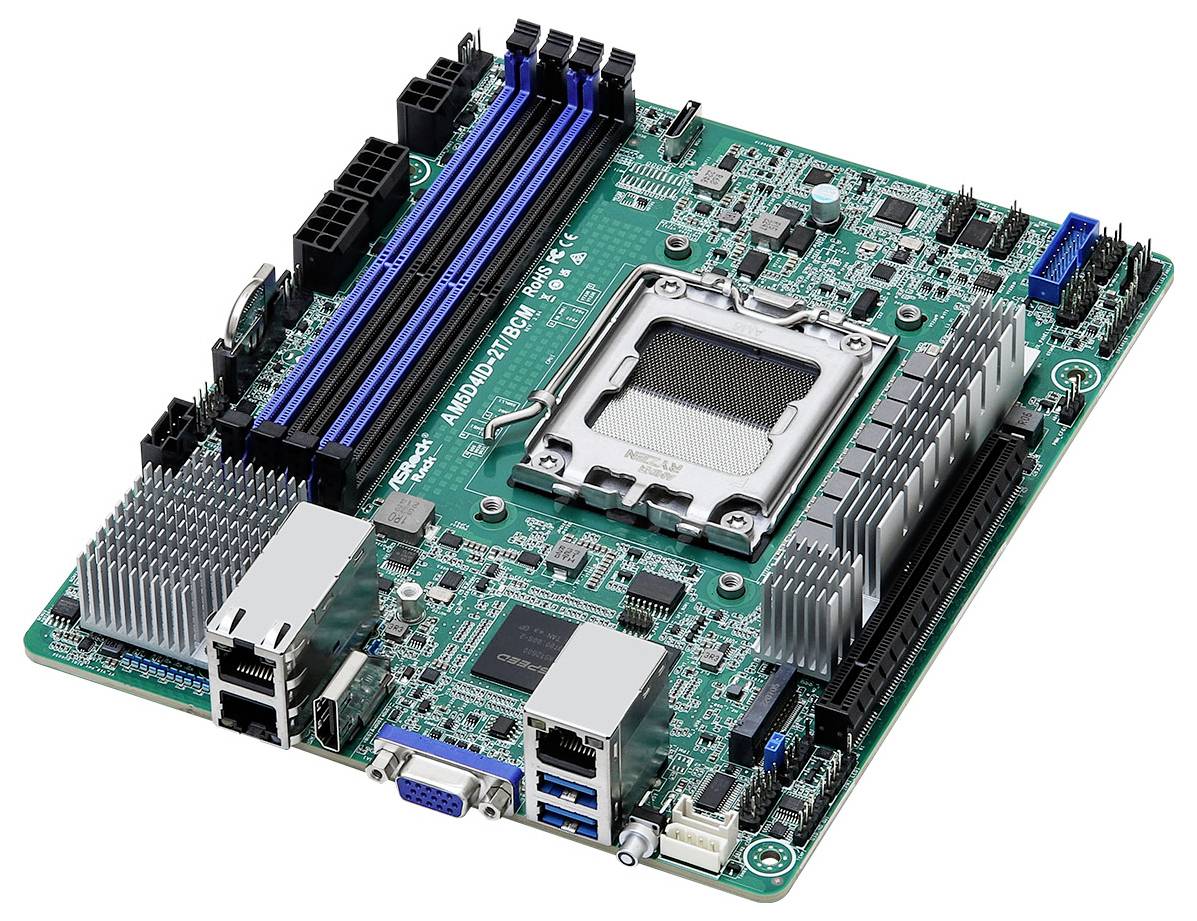

ASRock AM5D4ID-2T/BCM Motherboard PC base #####AMD AM5 Form factor (details) Mini-ITX
EAN:
Part number:
Item no:
ASRock AM5D4ID-2T/BCM Motherboard PC base #####AMD AM5 Form factor (details) Mini-ITX
Highlights & Details
- AMD socket AM5 AMD EPYC 4004, AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- Server mini ITX KNOLL3 X300
- DDR5 SDRAM 4 DIMM
- SSD M.2
- ASPEED AST2600
- BIOS Type: UEFI AMI 256 Mbit ACPI Version: 5.1
- 10 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC and non-ECC
- Motherboard chipset: KNOLL3 X300
- Motherboard form factor: Mini ITX
- Product type
Motherboard
- Form factor
Mini-ITX
#####AMD AM5
- Graphics card type
ASPEED
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
HDMI™
VGA
- No. of PCIe 3.0 x16
1 x
- Depth
20.83 cm
- Width
17.02 cm
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
2 x
- RAM type
DIMM
- Range of use
Server
- UKCA
yes
- BIOS memory size
256 Mbit
- Operating temperature (T-T)
10 - 35 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Audio connector
yes
- Number of memory slots
4
- Number of M.2 (M) slots
1
- 12V power connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- TPM connector
yes
- Supported memory clock speed (max)
5200 MHz
- Storage temperature (T-T)
-40 - 70 °C
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- IPMI LAN (RJ-45) port
yes
