ASRock ASROCK B860 Rock WIFI 7 (1851) (D) Motherboard PC base #####Intel® 1851 Form factor (details) ATX

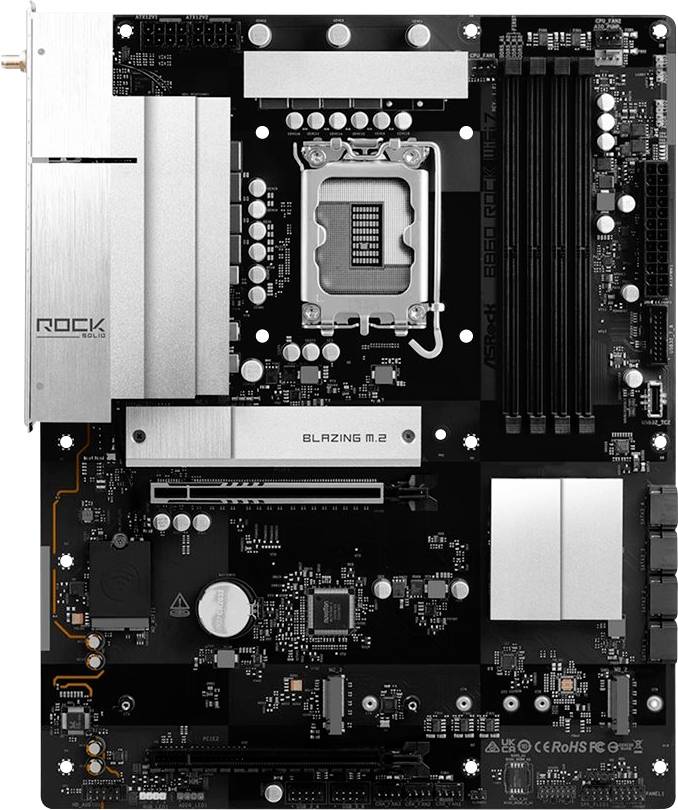

A computer motherboard with labeled slots for CPU, RAM, and other components, including 'ROCK' and 'BLAZING M.2' branding.

A computer motherboard with labeled slots for CPU, RAM, and other components, including 'ROCK' and 'BLAZING M.2' branding.

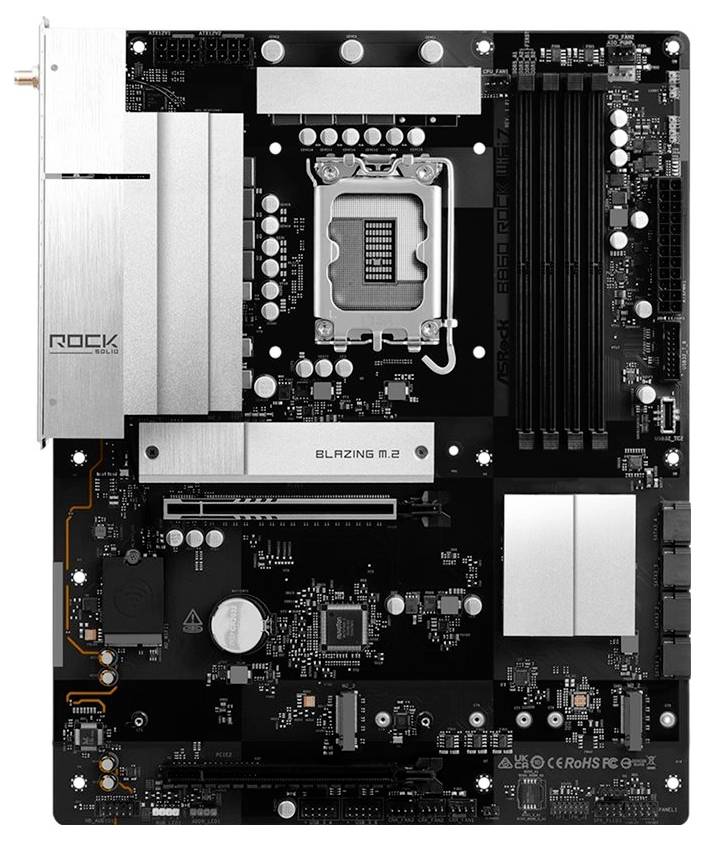

'A black motherboard with silver heatsinks, labeled 'Rock' and 'Blazing M.2', showcasing various slots, ports, and circuits for computer assembly.'

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ASRock ASROCK B860 Rock WIFI 7 (1851) (D) Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 2)
PC ATX Intel B860 Realtek ALC897 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of supported storage drives: 7
UEFI AMI 256 Mbit BIOS type
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
This text is machine translated.

Technical specifications

LGA 1851 (socket V1)
Supported processor slots: LGA 1851
Supported memory: DDR5 SDRAM
HDMI version 2.1
USB-Plug USB Type-A,USB Type-C
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
Intel B860 motherboard chipset

Product type: Motherboard

: #####Intel® 1851

Form factor: ATX

Processor/type: Core Ultra (Series 2)

RAM type: DIMM

RAM / Max. upgrade: 256 GB

Interfaces: HDMI® 2.1

No. of DDR5 slots: 4 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

Bluetooth: 5.4

Bluetooth: Yes

Factory colour: Black

Depth: 244 mm

Width: 305 mm

Display resolution: 3840 x 2160 Pixel

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 6 x

HDCP: Yes

HDR support: Yes

10/100/1000 Mbps ports: 1 x

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Headphone outputs: 3

Microphone in: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 8666 MHz

: 1

: 2

: 1

: 2

EPS power connector (8-pin): yes

RAID support: yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Number of storage drives supported: 7
