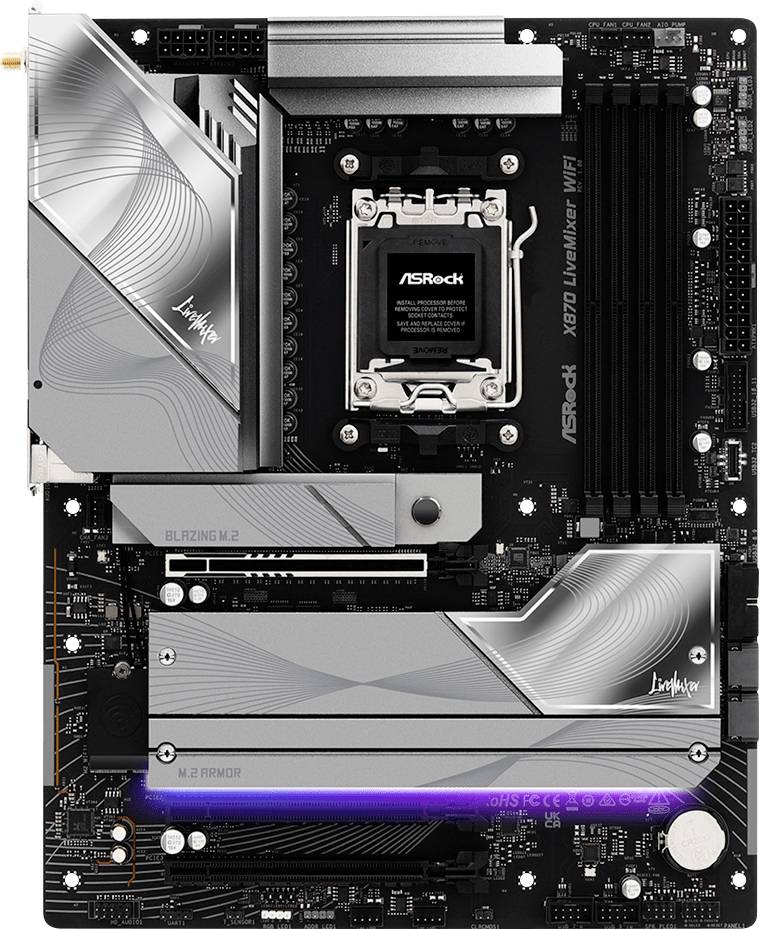

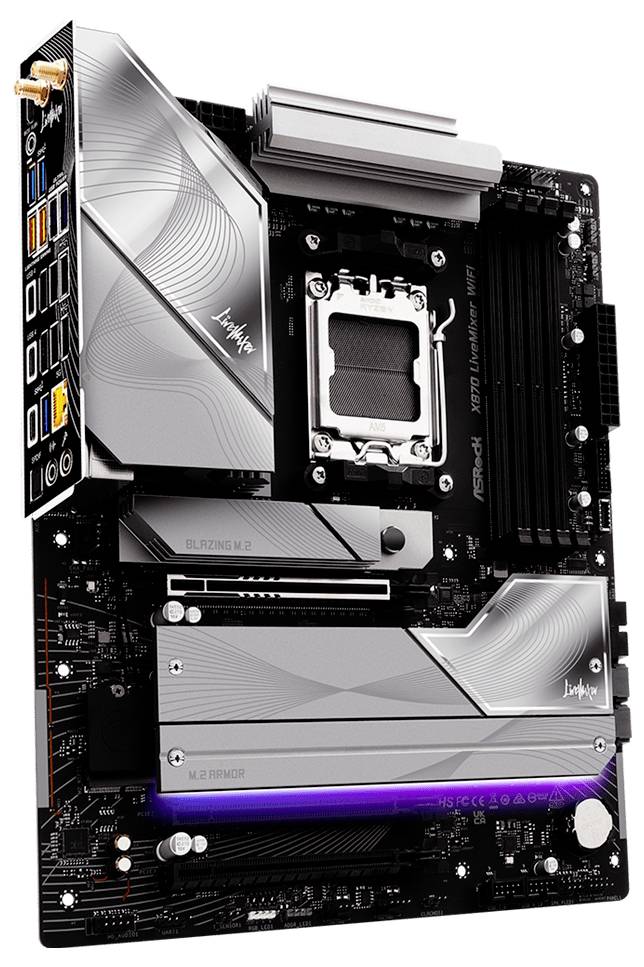

Name: ASRock ASRock X870 Livemixer WiFi AM5 ATX H Motherboard PC base #####AMD AM5 Form factor (details) ATX
Brand: ASRock
SKU: 3620090

1/3

Unavailable

Sales and shipping:

Technical specifications

9 x USB 3.2 1st Gen (5 Rear (USB32_2, USB32_356, USB32_7), 4 Front))
1 x USB 3.2 1st Gen (rear) Type-C
Connector:
1 x SPI TPM header
1 x thermistor cable header
1 x Power LED and speaker header
1 x RGB LED header
3 x Adressable LED headers
2 x CPU fan connectors (4-pin) (intelligent fan control)
3 x housing fan connections (4-pin) (intelligent fan control)
1 x AIO pump connector (4-pin) (intelligent fan control)
1 x 24 pin ATX power connector (high-density power connector)
2 x 8-pole 12V power connections (high-density power connection)
1 x front panel audio connection
2 x USB 2.0 header (supports 4 USB 2.0 ports)
2 x USB 3.2 1st Gen header (Supports 4 USB 3.2 1st Gen ports)
1 x front panel type C USB 3.2 2x 2nd Gen header (20 GB/s)

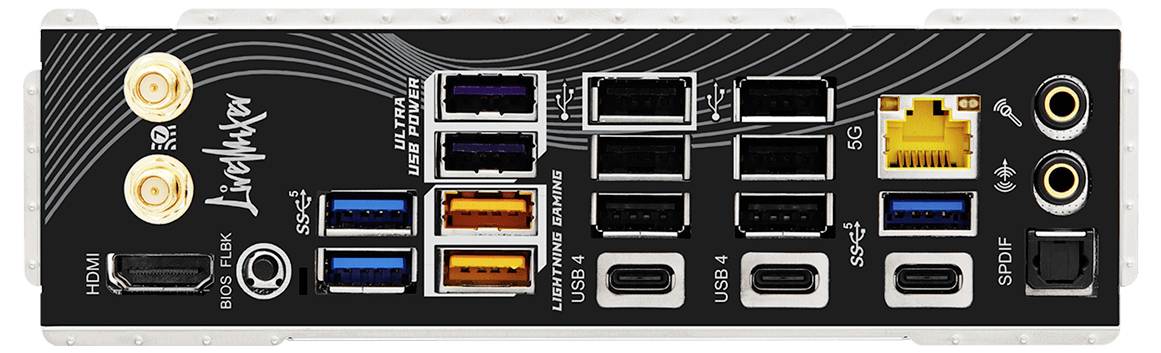

Rear Panel:
2 x antenna connections
1 x HDMI connections
1 x Optical SPDIF output
2 x USB4 Type-C ports (40 GB/s)
1 x USB 3.2 1st Gen type-C port
7 x USB 3.2 1st Gen ports (USB 32_34 are Lightning gaming ports; USB 32_56 support Ultra USB Power)
6 x USB 2.0 ports
1 x RJ-45 LAN connection
1 x BIOS Flashback button
1 x line-out connection (gold-plated audio jack)
1 x microphone input (gold-plated audio socket)
