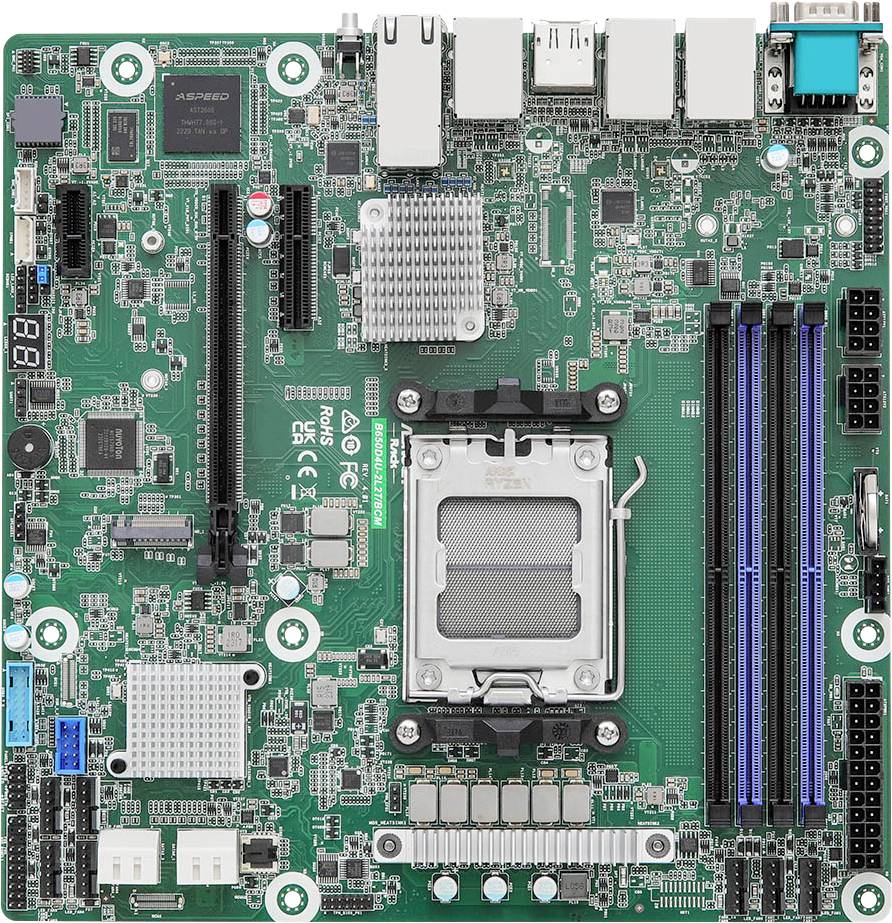

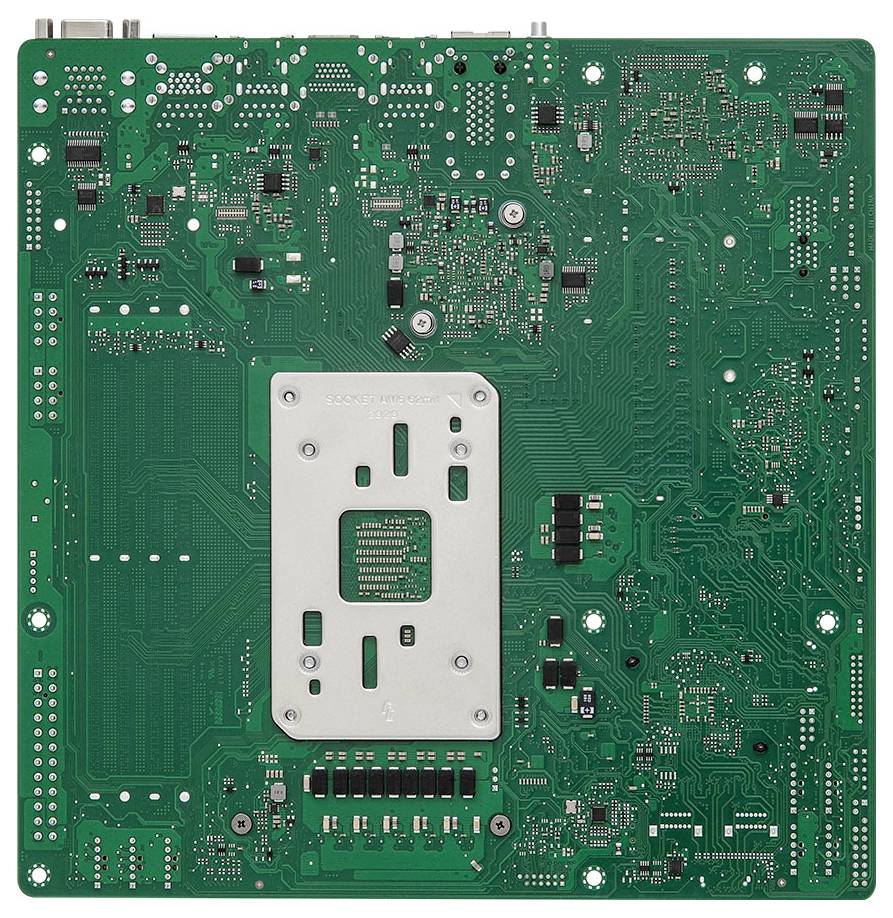

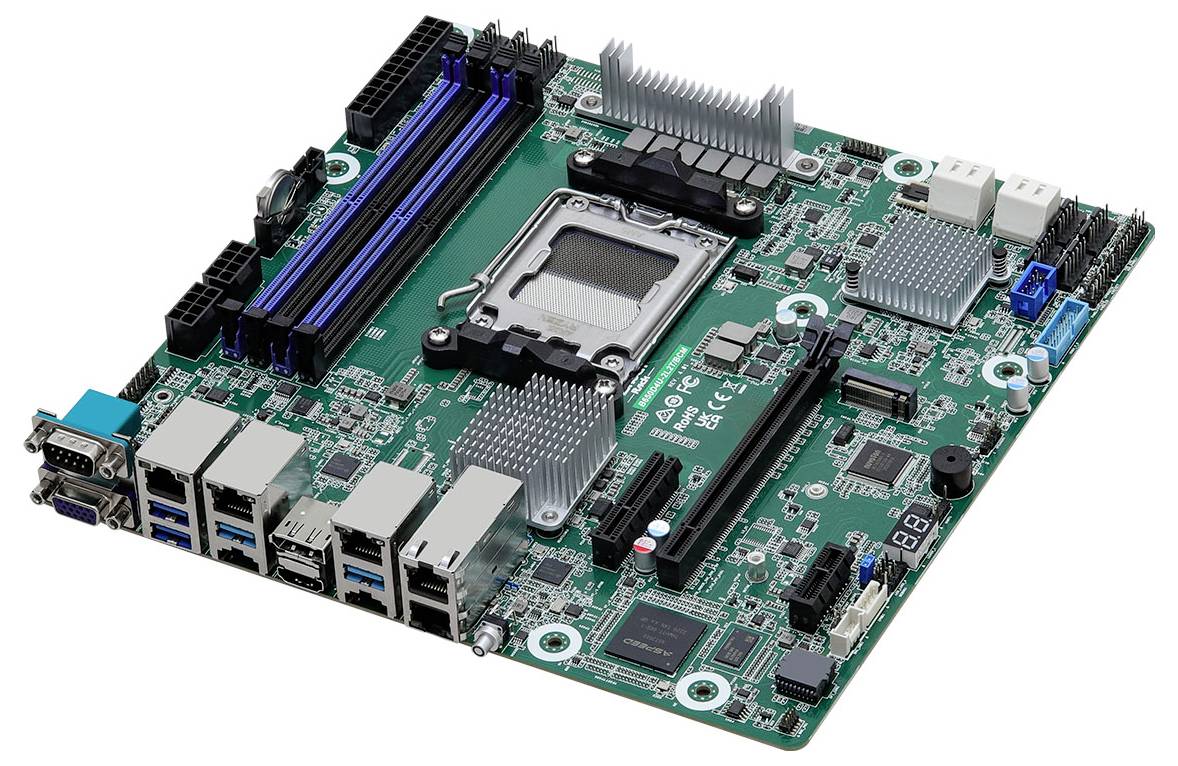

ASRock B650D4U-2L2T/BCM Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B650
EAN:
Part number:
Item no:
ASRock B650D4U-2L2T/BCM Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B650
Highlights & Details
- AMD socket AM5 AMD Ryzen™ 3, AMD Ryzen™ 5
- Server micro ATX AMD B650 Express
- DDR5 SDRAM 4 DIMM RAM maximum: 32 GB
- M.2, SATA III RAID SUPPORT
- BIOS type: UEFI AMI 256 Mbit ACPI version: 6.4 Clear CMOS jumper
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC and non-ECC
- Built-in graphics card model AEED AST2600
- AMD B650 Express motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
- Form factor
Micro-ATX
#####AMD AM5
- Chipset
AMD® B650
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
DisplayPort
HDMI™
VGA
- No. of SATA III ports
4 x
- Depth
24.38 cm
- Width
24.38 cm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
4 x
- RAM / Max. upgrade
32 GB
- RAM type
DIMM
- Range of use
Server
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Operating temperature (T-T)
10 - 35 °C
- Serial ports quantity
1
- Ethernet LAN
yes
- Maximum number of SMP processors
1
- Number of memory slots
4
- ATX Power connector (24-pin)
yes
- TPM connector
yes
- PCI Express x4 (Gen 4.x) slots
1
- Supported memory clock speed (max)
5200 MHz
- Operating relative humidity (H-H)
20 - 90 %
- EPS power connector (8-pin)
yes
- RAID support
yes
- Storage temperature (T-T)
-40 - 70 °C
- IPMI LAN (RJ-45) port
yes
- Clear CMOS jumper
yes
