Name: ASRock B650M-H/M.2+ Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B650
Brand: ASRock
SKU: 3045538

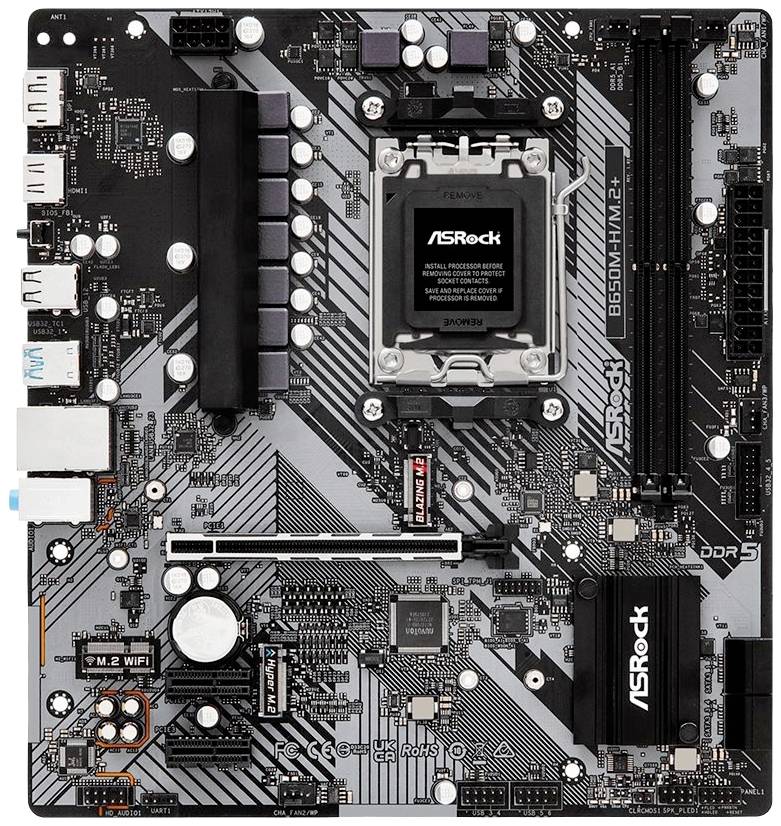

An ASRock motherboard with multiple ports and components, including PCIe slots, RAM banks, and a CPU socket.

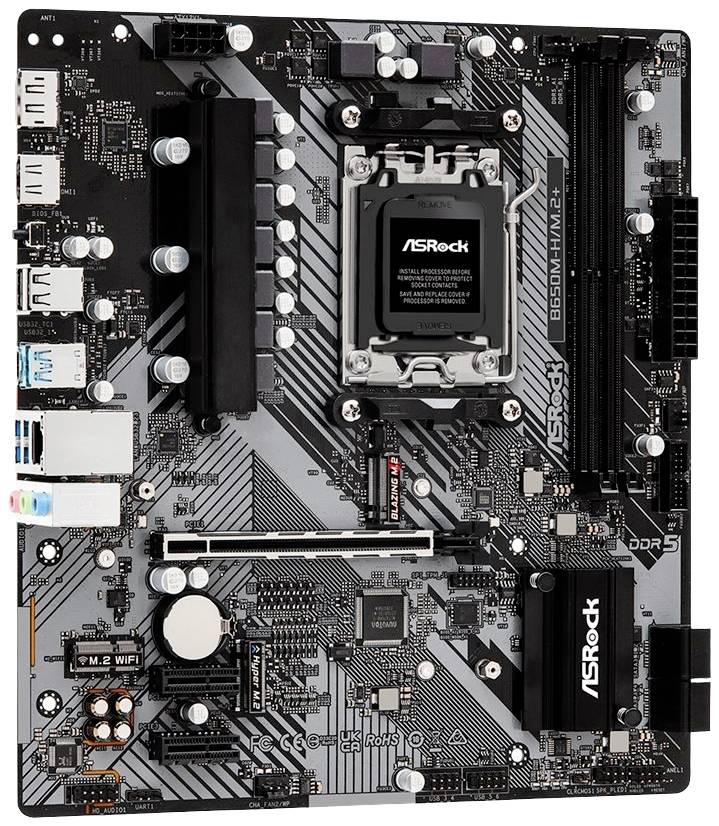

A black computer motherboard with visible connections and components, including the CPU socket, RAM slots, and peripheral device ports.

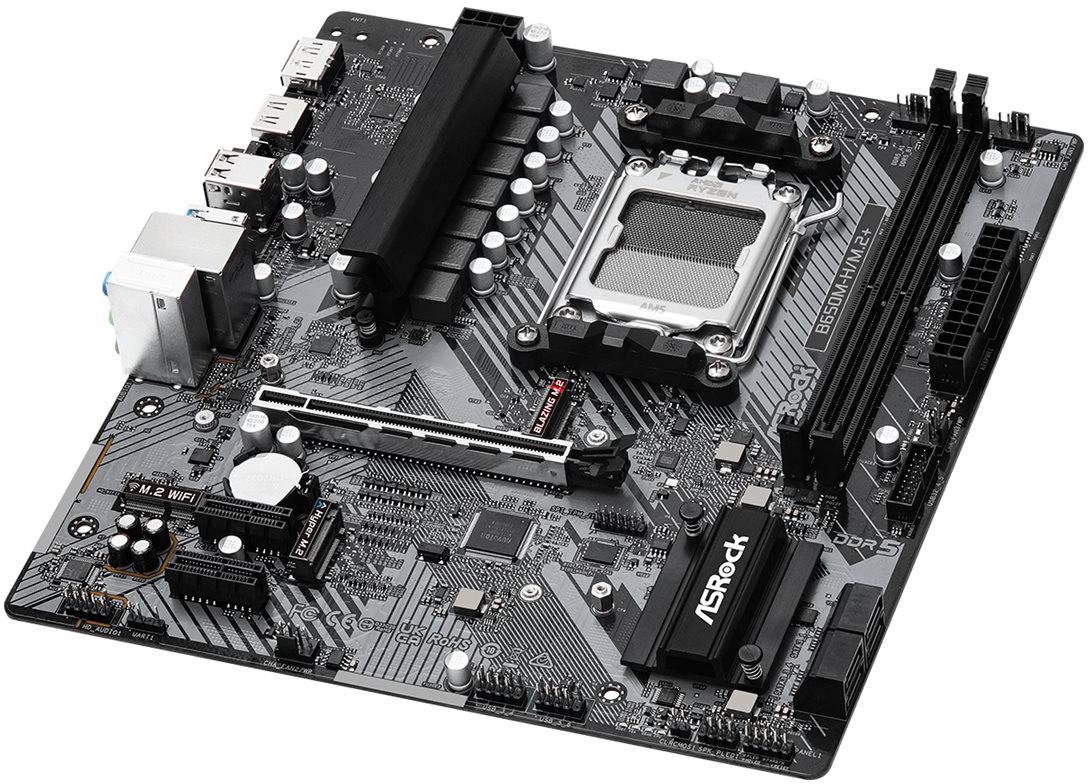

A computer motherboard circuit board with various expansion slots and connectors, suitable for installing processors and memory.

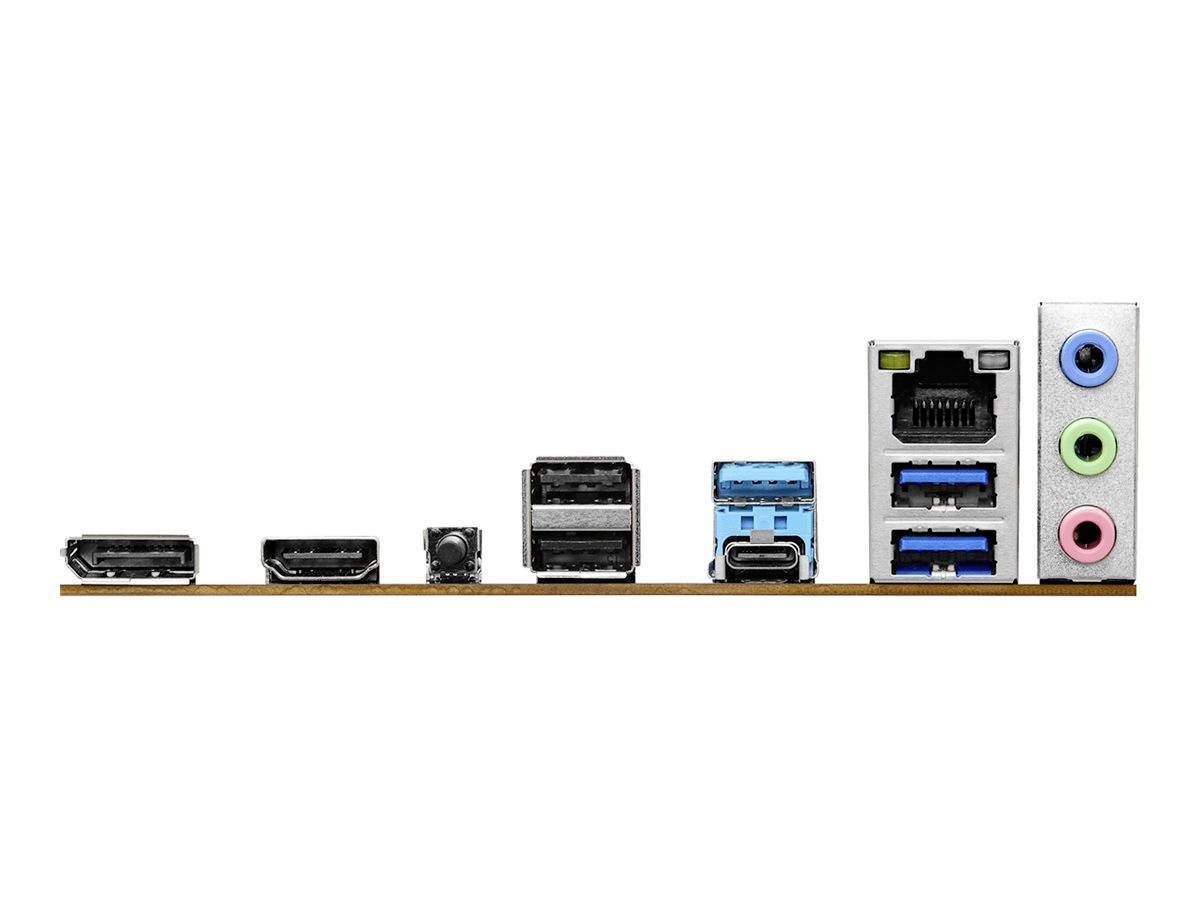

'Back of a computer: Various ports including HDMI, USB, Ethernet and audio sockets.'

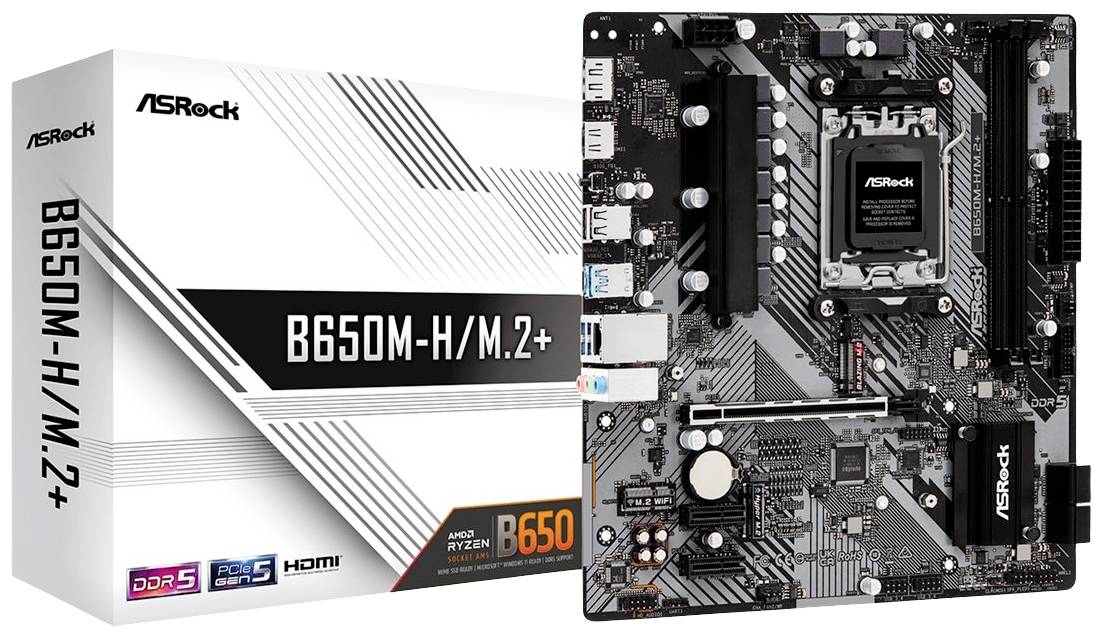

ASRock B650M-H/M.2+ Motherboard with Packaging. Supports DDR5, PCIe Gen5, HDMI. Compatible with AMD Ryzen Processors.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP), AMD EXPO technology
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Realtek RTL8111H network controller
Network interfaces: Gigabit Ethernet
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16 (x16 mode); 2 x PCIe 4.0 x1; 1 x M.2 socket (2230 M.2 Key E slot); 1 x M.2 socket (2260/2280 M.2 Key M slot); 1 x M.2 socket (2280 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10; PCIe 1 ports: 1 x M.2 - RAID 0 / RAID 5.0 / RAID 10; PCIe 4.0 ports: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
External interfaces: 1 x HDMI; 1 x DisplayPort; 1 x USB-C 3.2 Gen 1; 3 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x LAN (Gigabit Ethernet); 2 x antenna; 1 x audio line-in – mini jack plug; 1 x audio line-out – mini jack plug; 1 x Microphone - Mini jack plug
Internal interfaces: 2 x USB 3.2 Gen 1 - multi-pin connector; 4 x USB 2.0 - multi-pin connector; 1 x SPI multi-pin connector; 1 x audio multi-pin connector; 1 x speaker - multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS FEATURES: UEFI BIOS
Hardware features: ASRock instant flash, 15µ gold contact, ASRock full HD UEFI, 6 layer PCB, Dr.MOS MOSFET, water pump header, 6+1+1 DrMOS Power stages, reinforced PCIe slots, ASRock auto driver installer, BIOS Flashback button

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: Micro-ATX

Processor/type: Ryzen (unterstützt Ryzen 7000 Series)

RAM type: DDR5 RAM

Clock speed: 6400 MHz

RAM / Max. upgrade: 96 GB

Interfaces: HDMI™
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Gigabit LAN (1 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
