Name: ASRock B650M PG Lightning Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B650
Brand: ASRock
SKU: 3045540

'B550M Pro4' Motherboard with various ports and slots for CPU, RAM and other components. Markings show different specifications.

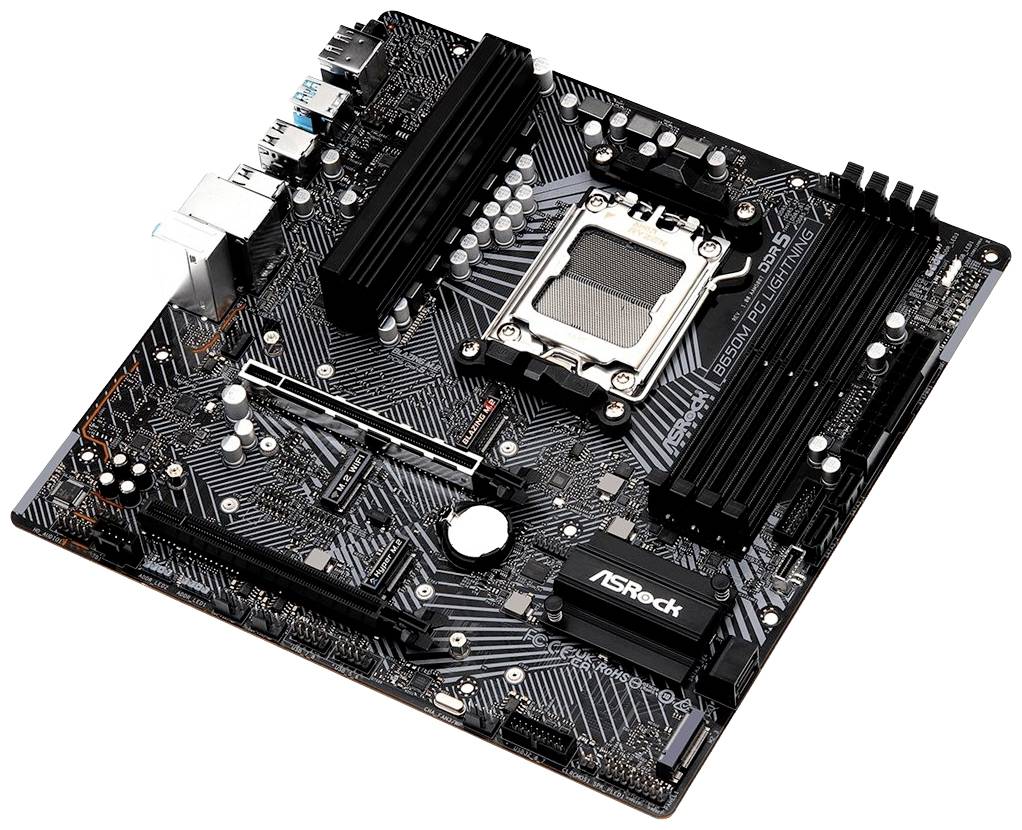

'Motherboard with processor socket, RAM slots and various ports. Black design with silver accents.'

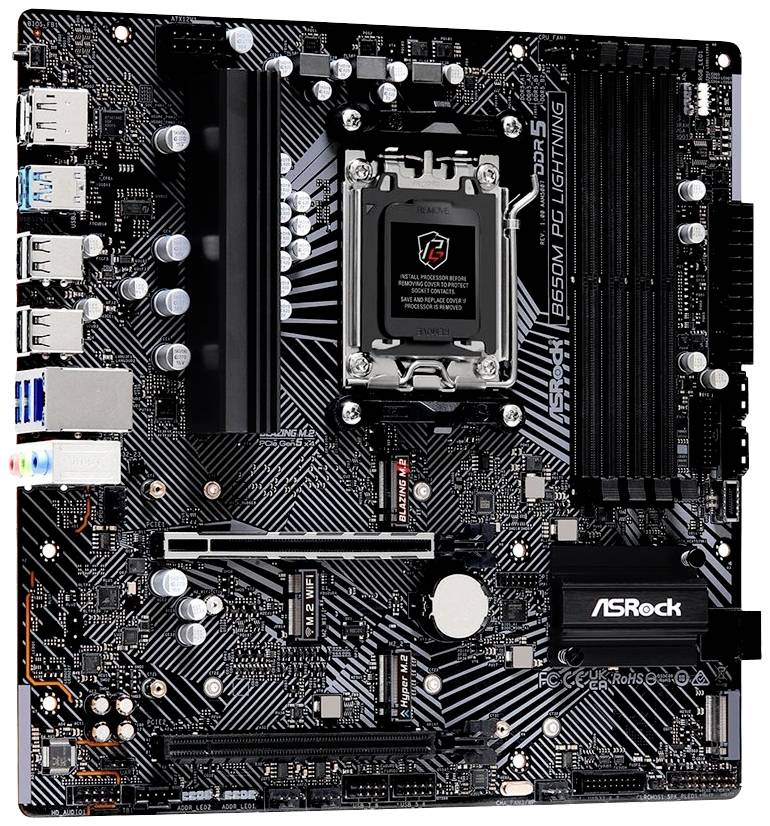

A motherboard with various expansion slots and connectors. Contains a CPU socket, RAM slots, USB ports, and heatsinks.

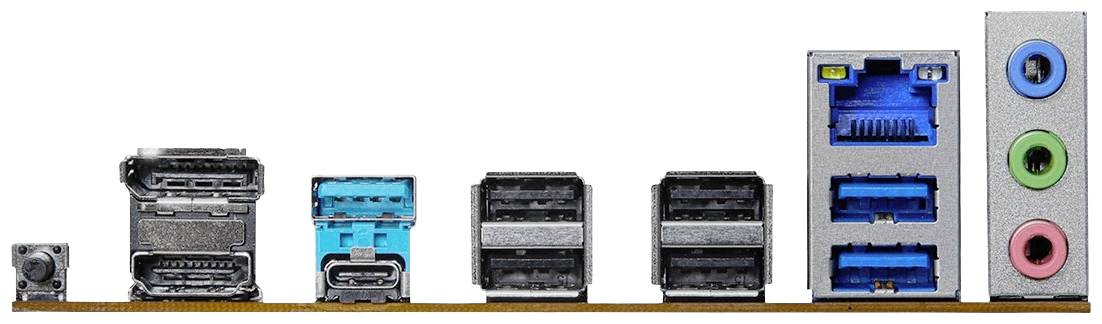

Back of a computer motherboard shows various ports: HDMI, USB, Ethernet and audio.

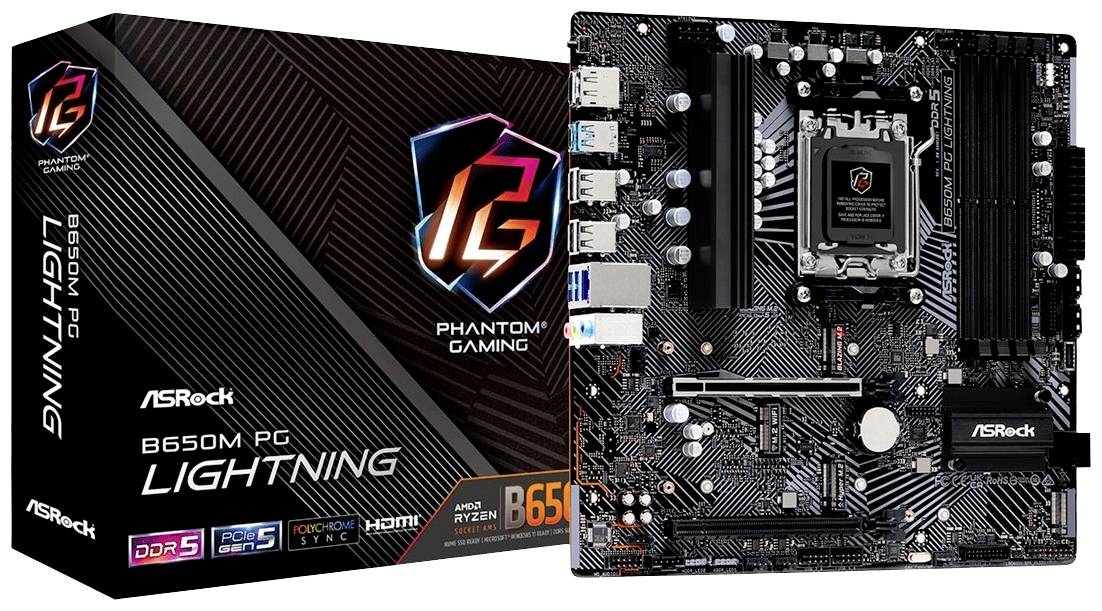

Images of the ASRock Phantom Gaming B650M PC Lightning motherboard and its packaging. Includes support for DDR5, PCIe 5.0 and HDMI.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, AMD EXPO technology
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Network controller Dragon RTL8125BG
Network interfaces 2.5 Gigabit Ethernet
Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x16; 3 x M.2 socket (2260/2280 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10; PCIe 1 ports: 1 x M.2 - RAID 0 / RAID 5.0 / RAID 10; PCIe 4.0 ports: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Outer interfaces: 1 x HDMI; 1 x DisplayPort; 1 x USB 3.2 Gen 2; 1 x USB-C 3.1 Gen 2; 4 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x LAN (2.5Gigabit Ethernet); 1 x audio line in – mini jack plug; 1 x audio line out – mini jack plug; 1 x Microphone - Mini jack plug
Internal interfaces: 4 x USB 2.0 - multi-pin connector; 1 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 1 - multi-pin connector; 4 x SPI - multi-pin connector; 1 x speaker - multi-pin connector; 1 x audio - multi-pin connector; 1 x Thunderbolt 4 - multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS FEATURES: UEFI BIOS
Hardware features: ASRock OC tuner, Dr.MOS MOSFET, Nahimic audio enhancer, water pump header, ASRock POST status checker (PSC), reinforced PCIe slots, 6+2+1 phase Power design, ASRock auto driver installer, BIOS Flashback button, AMD precision boost overdrive (PBO)

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: Micro-ATX

Processor/type: Ryzen (unterstützt Ryzen 7000 Series)

RAM type: DDR5 RAM

Clock speed: 5600 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
4400 MHz
7200 MHz
5200 MHz

RAM / Max. upgrade: 192 GB

Interfaces: HDMI™
DisplayPort
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 3.1 1st gen)
USB A (USB 2.0)
Gigabit LAN (1/2.5 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
Thunderbolt 4
Show more

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 8 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of USB 3.2: 6 x

No. of USB 3.0 ports: 2 x

Depth: 300 mm

Height: 100 mm

Width: 300 mm

UKCA: yes
