Name: ASRock B760M-HDV/ M.2 (1700) Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®
Brand: ASRock
SKU: 3207096

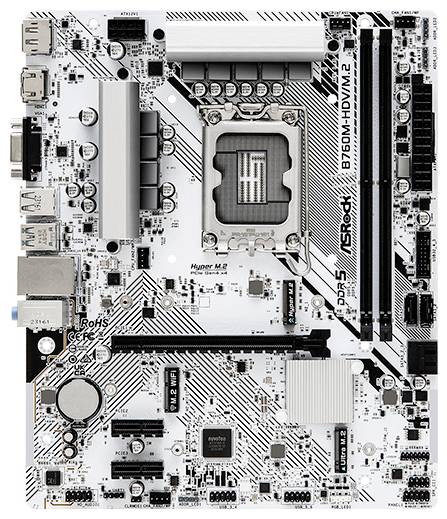

Computer System: White main motherboard with CPU socket in the centre, various ports, memory slots, and chips.

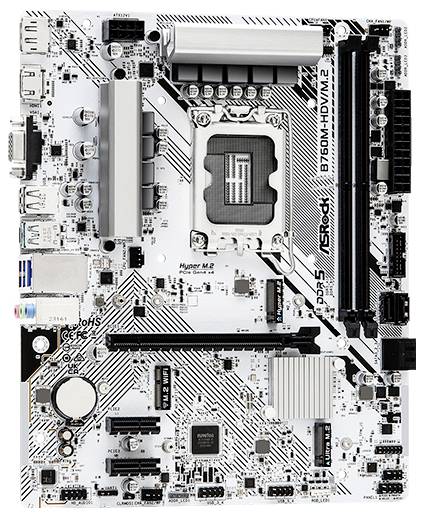

Motherboard of a computer with visible CPU socket, RAM slots, and various ports.

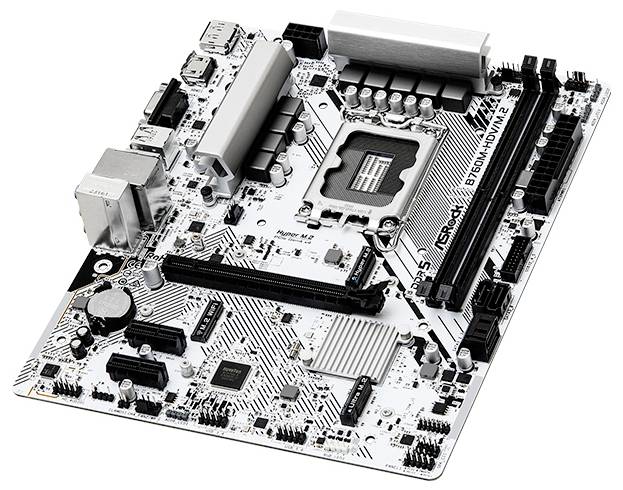

A white motherboard with multiple ports, expansion slots, and chips. It is designed for the assembly of a computer system.

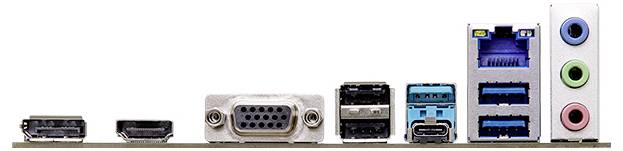

Several computer ports, including HDMI, VGA, USB, Ethernet and 3.5mm audio ports.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: Micro-ATX

Processor/type: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

RAM type: DDR5 RAM

Clock speed: 3200 MHz
4400 MHz
5333 MHz

RAM / Max. upgrade: 128 GB

Interfaces: USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB C®
RJ45
PS/2
VGA
HDMI™
DisplayPort

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 2 x

No. of USB 2.0 ports: 2 x

No. of USB type A 3.0 ports: 3 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

Depth: 300 mm

Height: 100 mm

Width: 300 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207096 ASRock B760M-HDV/ M.2 (1700) Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®

Description

ASRock B760M-HDV/M.2 D4. Processor manufacturer: Intel, processor socket: LGA 1700, compatible processors: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory: DDR4 SDRAM, RAM maximum: 64 GB, RAM type: DIMM. Supported drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interfaces Type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, motherboard form factor: Micro ATX, motherboard chipset family: Intel

This text is machine translated.

Features

Intel LGA 1700 Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen
PC micro ATX Intel B760 Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM Without ECC RAM maximum: 96 GB
M.2, SATA III RAID SUPPORT
BIOS type EFI AMI 128 Mbit
2.5 Gigabit Ethernet
