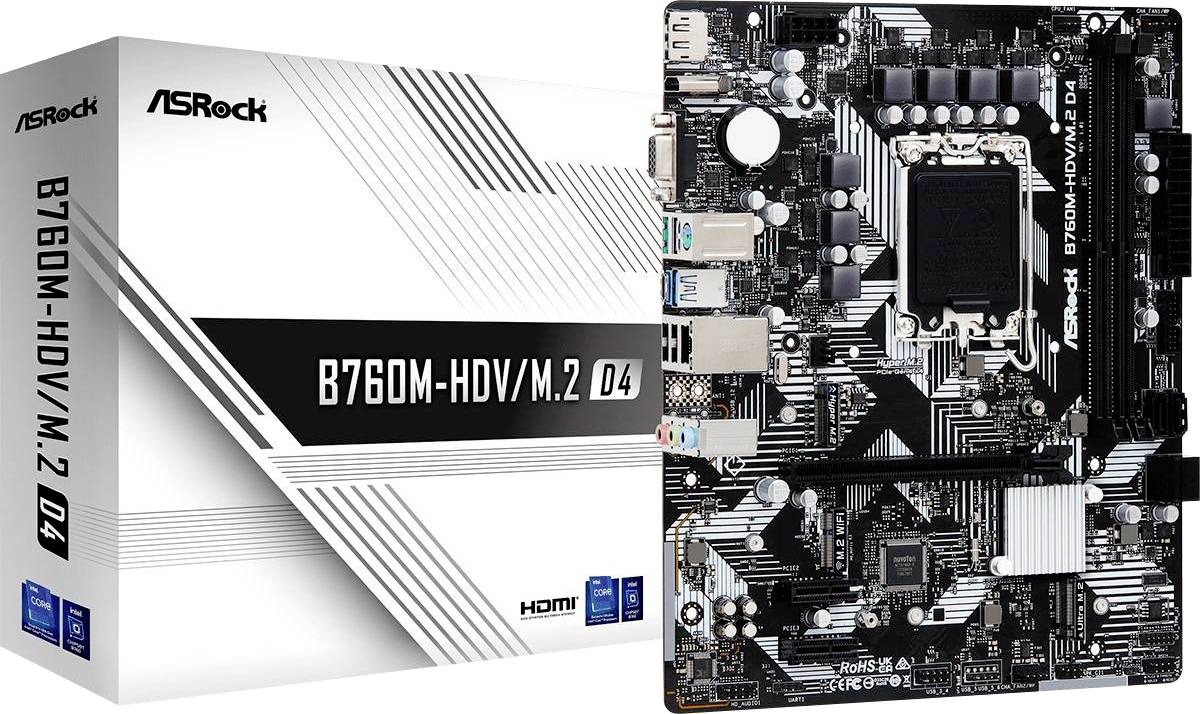

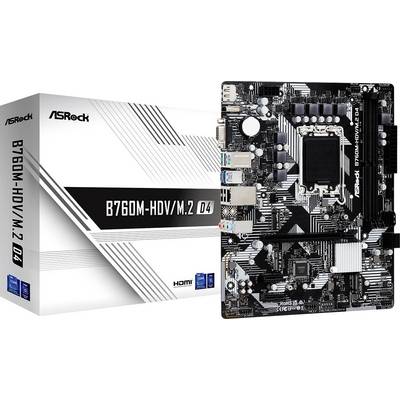

ASRock B760M-HDV/M.2 D4 Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
EAN:
Part number:
Item no:
ASRock B760M-HDV/M.2 D4 Motherboard
Technical specifications
- Product type
Motherboard
- Chipset
Intel® B760
Intel® 1700
- Form factor
Micro-ATX
- RAM type
DDR4 SDRAM
- Clock speed
3200 MHz
- RAM / Max. upgrade
64 GB
- No. of DDR4 slots
2 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB type A 3.0 ports
3 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Depth
201 mm
- Height
100 mm
- Width
244 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2842702 ASRock B760M-HDV/M.2 D4 Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
Description
Features
- Processor manufacturer: IntelLGA 1700 processor socketCompatible processors: Intel® Core™ i3Intel® Core™ i5Intel® Core™ i7Intel® Core™ i9. Supported memory: DDR4 SDRAMRAM maximum: 64 GBRAM type DIMM. Supported drive interfaces: M.2SATA IIIRAID levels 01510. Ethernet interfaces, type Gigabit EthernetRealtek RTL8111H LAN controller Component for: PCMotherboard form factor: Micro ATXMotherboard Chipset family: Intel
- This text is machine translated.
