ASRock B760M Pro RS Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
EAN:
Part number:
Item no:

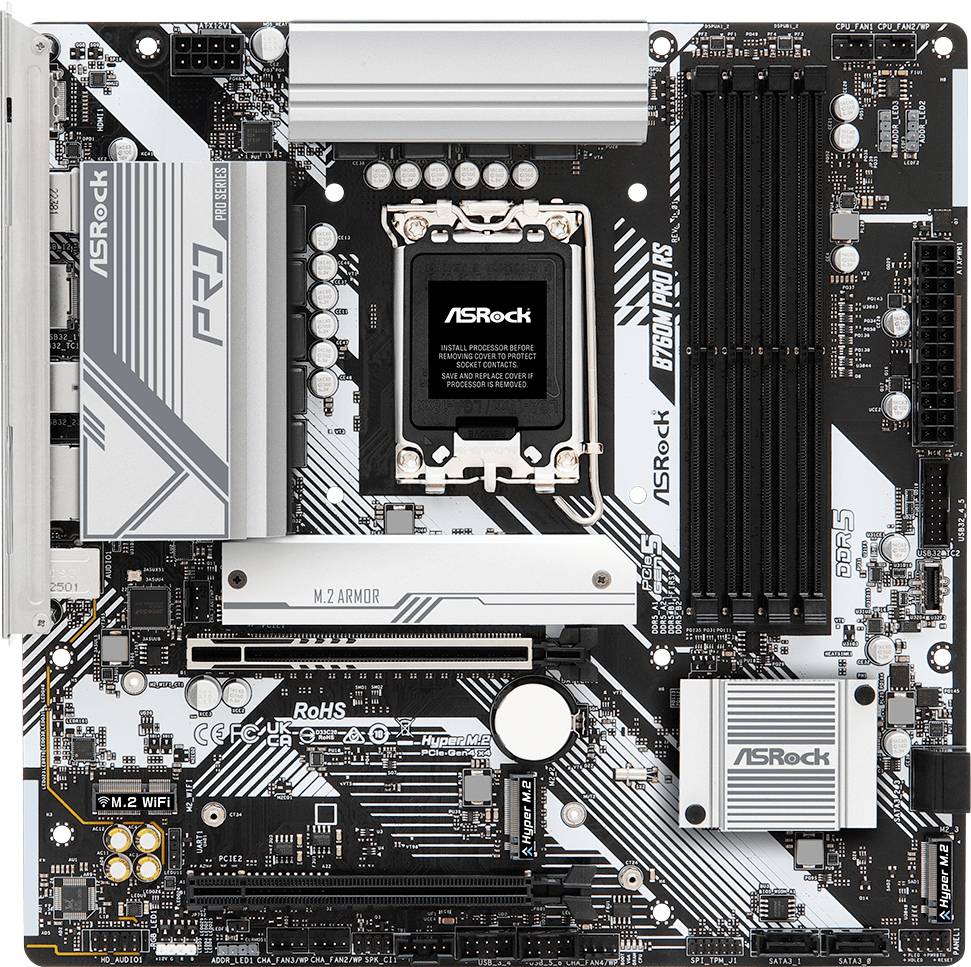

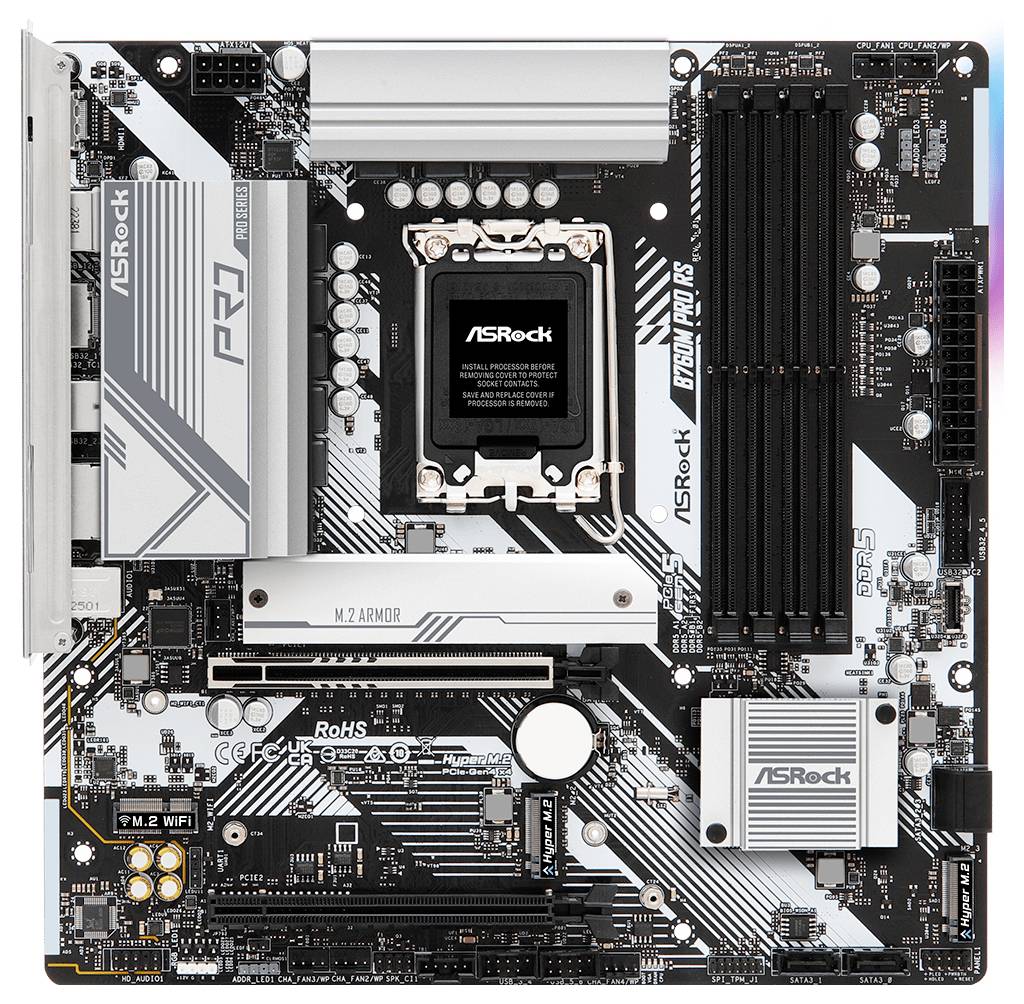

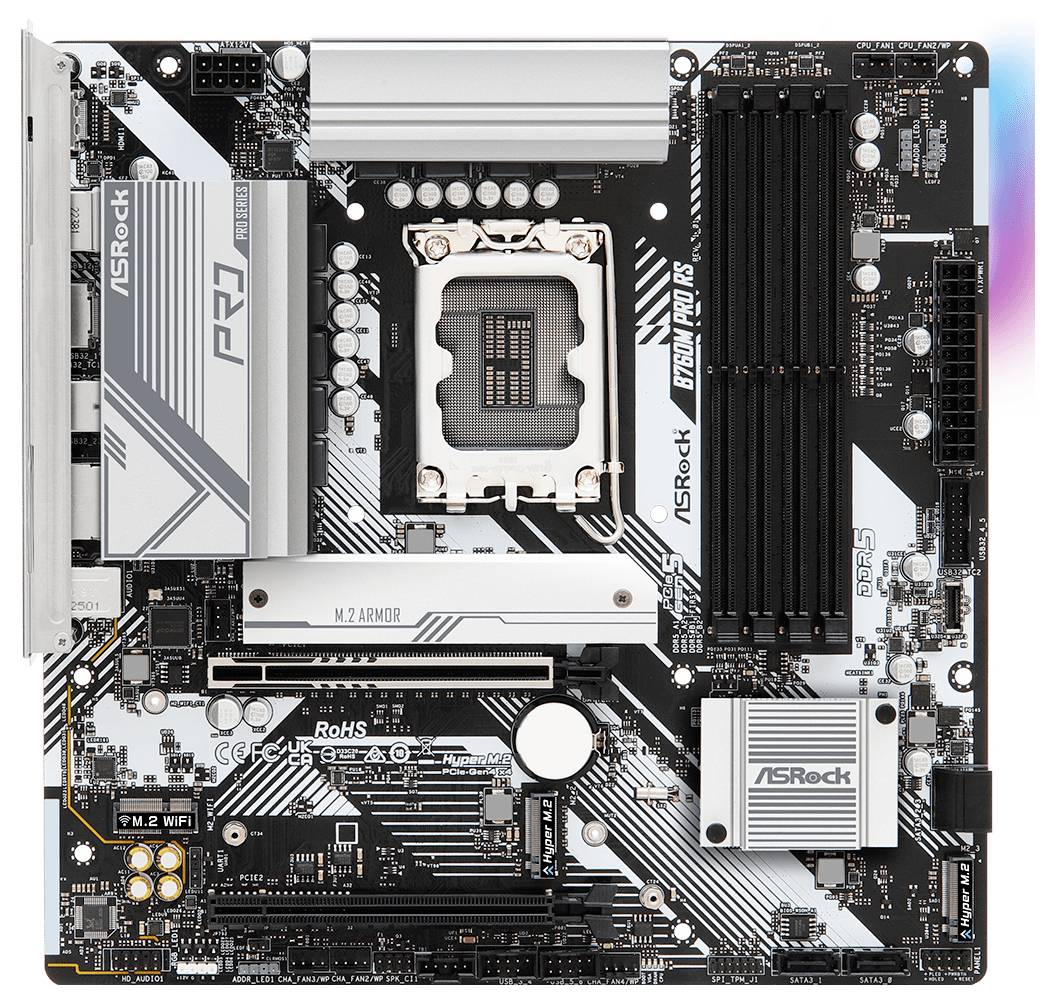

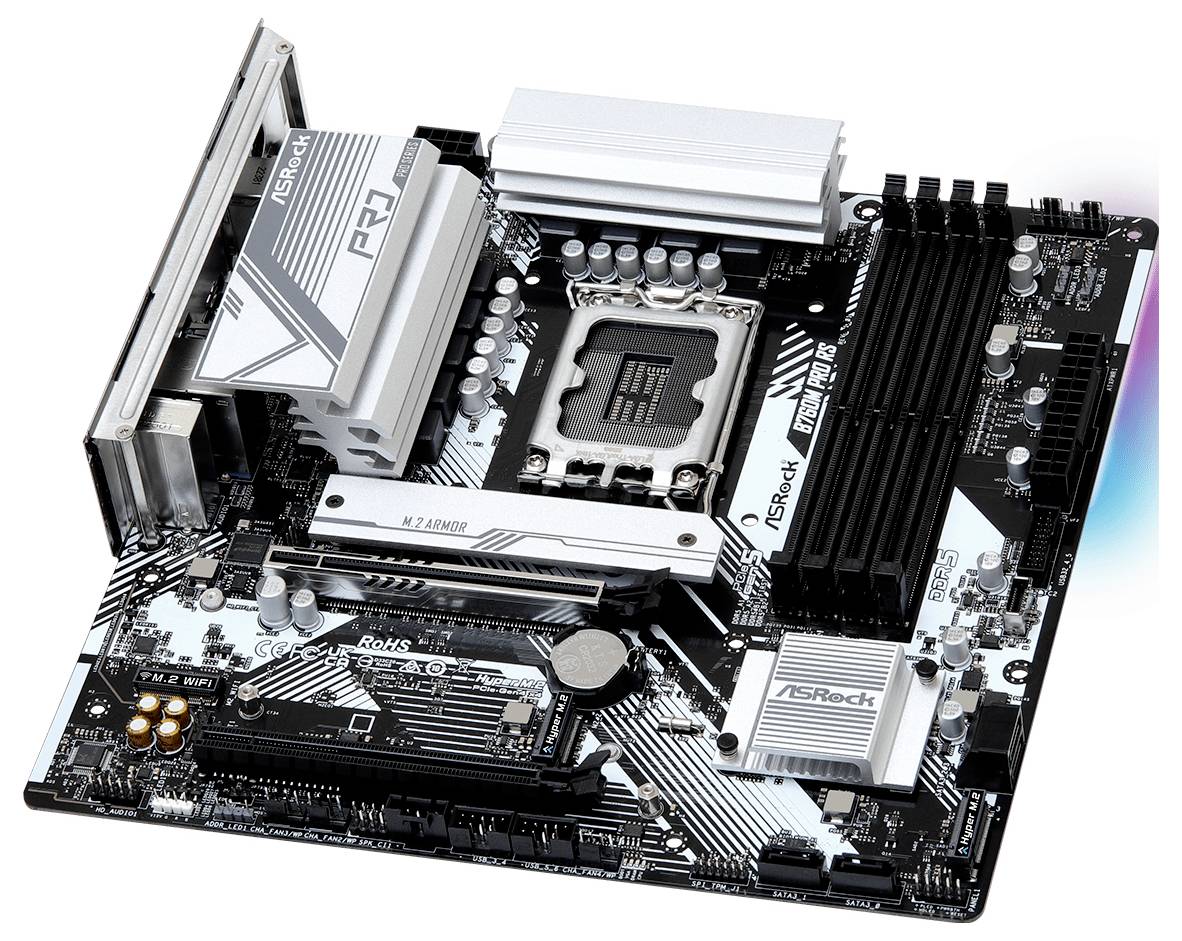

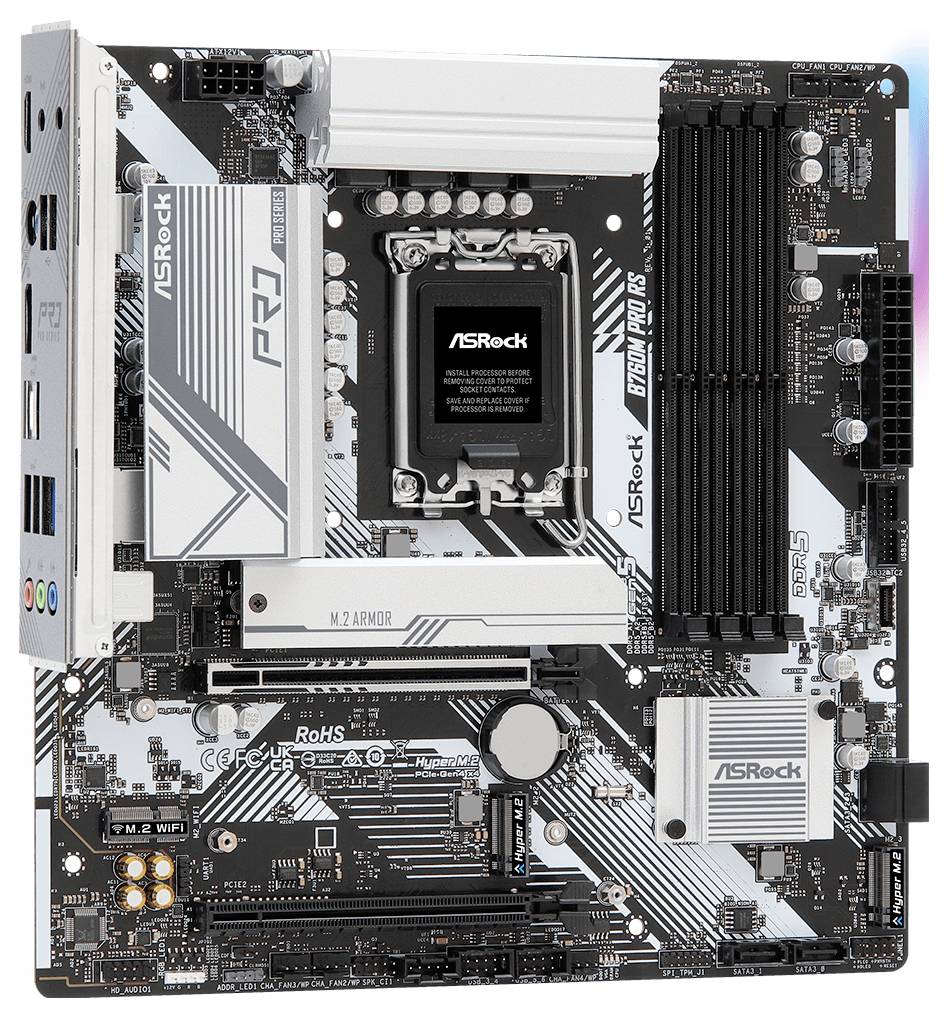

ASRock B760M Pro RS Motherboard
Highlights & Details
- Intel LGA 1700 Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC micro ATX Intel B760 Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM Without ECC RAM maximum: 192 GB
- HDD & SSD M.2, SATA III
- BIOS type EFI AMI 128 Mbit
- 2.5 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- ECC compatibility: Non-ECC
- Intel B760 motherboard chipset
- Product type
Motherboard
- Chipset
Intel® B760
#####Intel® 1700
- Form factor
Micro-ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
192 GB

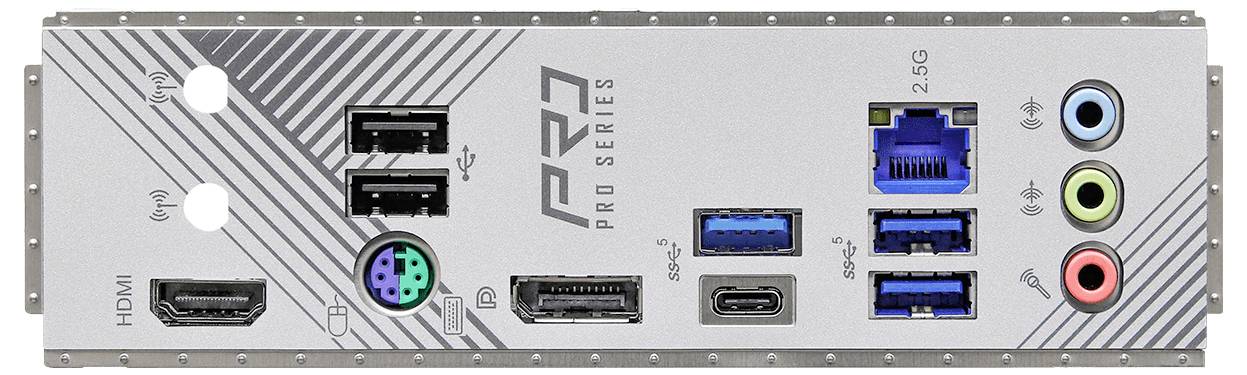

- Interfaces
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB C®
Gigabit LAN (1 Gbps)
Microphone (3.5 mm jack)
HDMI™
DisplayPort
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Depth
244 mm
- Height
100 mm
- Width
244 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB ports
2 x
- No. of memory slots
4
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- No. of HDMI connections
1
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
