ASRock B760M-X GEN5 1700 mAT Motherboard PC base #####Intel® 1700 Form factor (details) ATX
EAN:
Part number:
Item no:
Highlights & Details

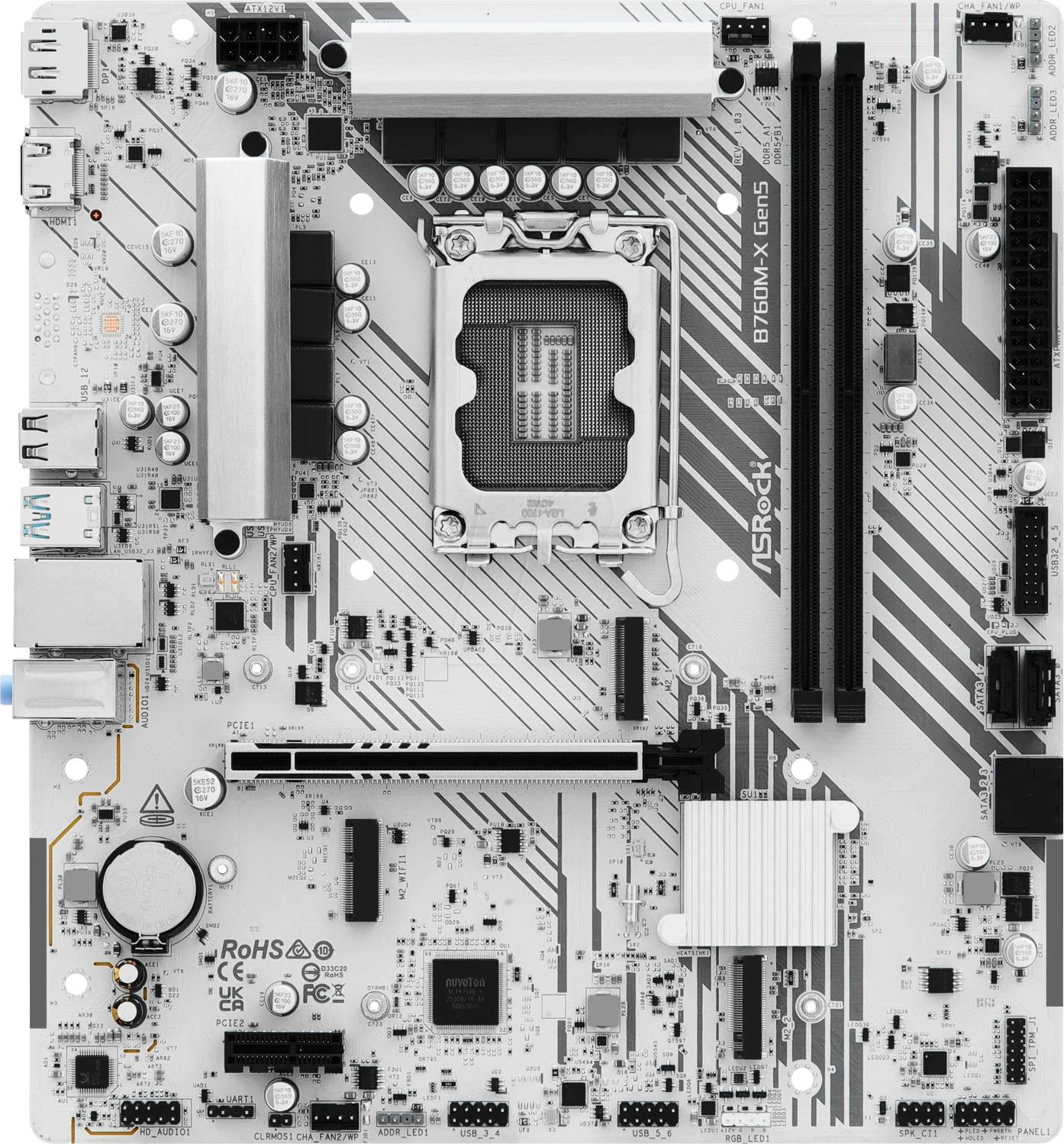

ASRock B760M-X GEN5 1700 mAT Motherboard
- Intel LGA 1700 Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i3 14th Gen, Intel core i3 13th Gen, Intel core i3 12th Gen
- PC micro ATX Intel B760 Realtek ALC897 7.1 channels
- DDR5-SDRAM 2 SO-DIMM RAM memory maximum: 128 GB
- SATA III, M.2 RAID SUPPORT
- BIOS TYPE UEFI AMI
- 2.5 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Supported memory: DDR5 SDRAM
- Intel B760 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
#####Intel® 1700
- Form factor
ATX
- RAM type
SO-DIMM
- RAM / Max. upgrade
128 GB
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- Depth
221 mm
- Width
244 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
- Ethernet LAN
yes
- PCI Express x1 (Gen 3.x) slots
1
- Number of memory slots
2
- Number of M.2 (M) slots
1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- TPM connector
yes
- RGB LED pin header
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
