ASRock B860M Pro-A Motherboard PC base #####Intel® 1851 Form factor (details) ATX
EAN:
Part number:
Item no:
Highlights & Details

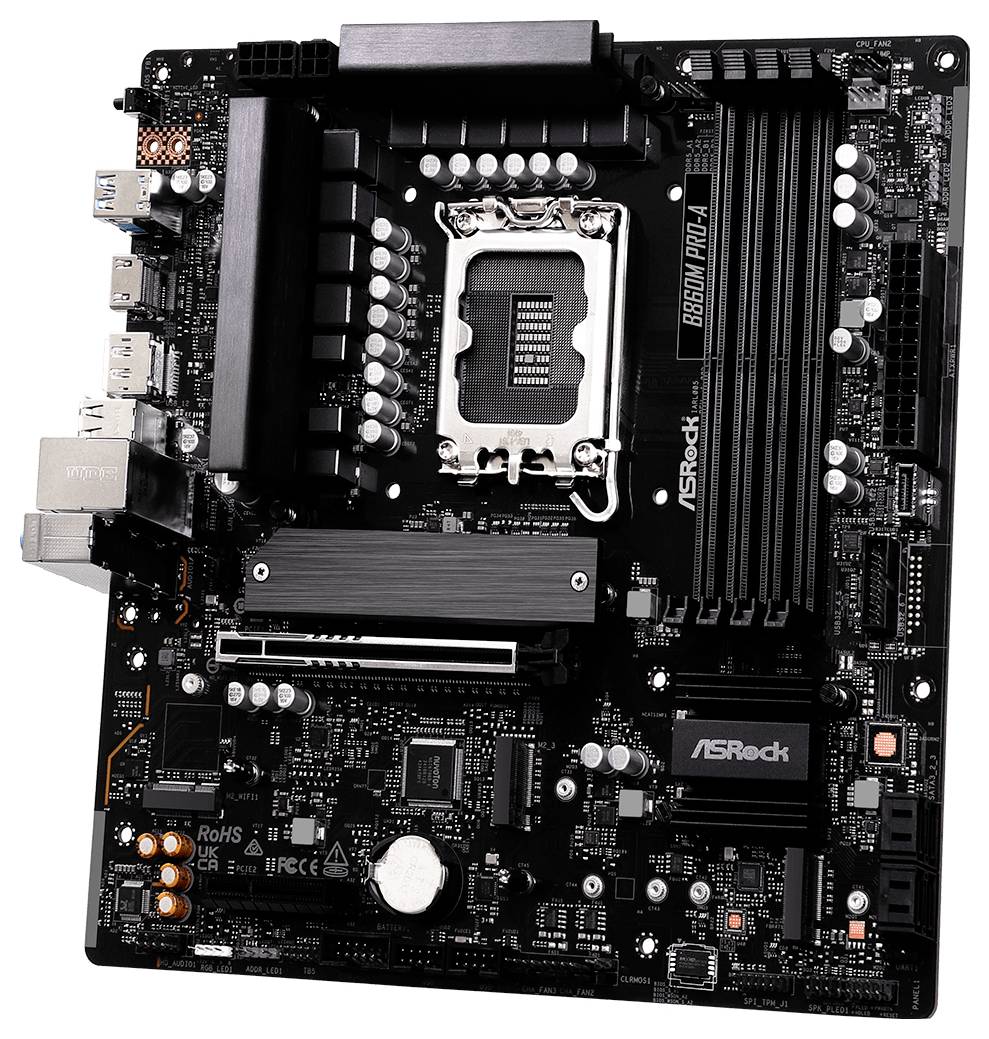

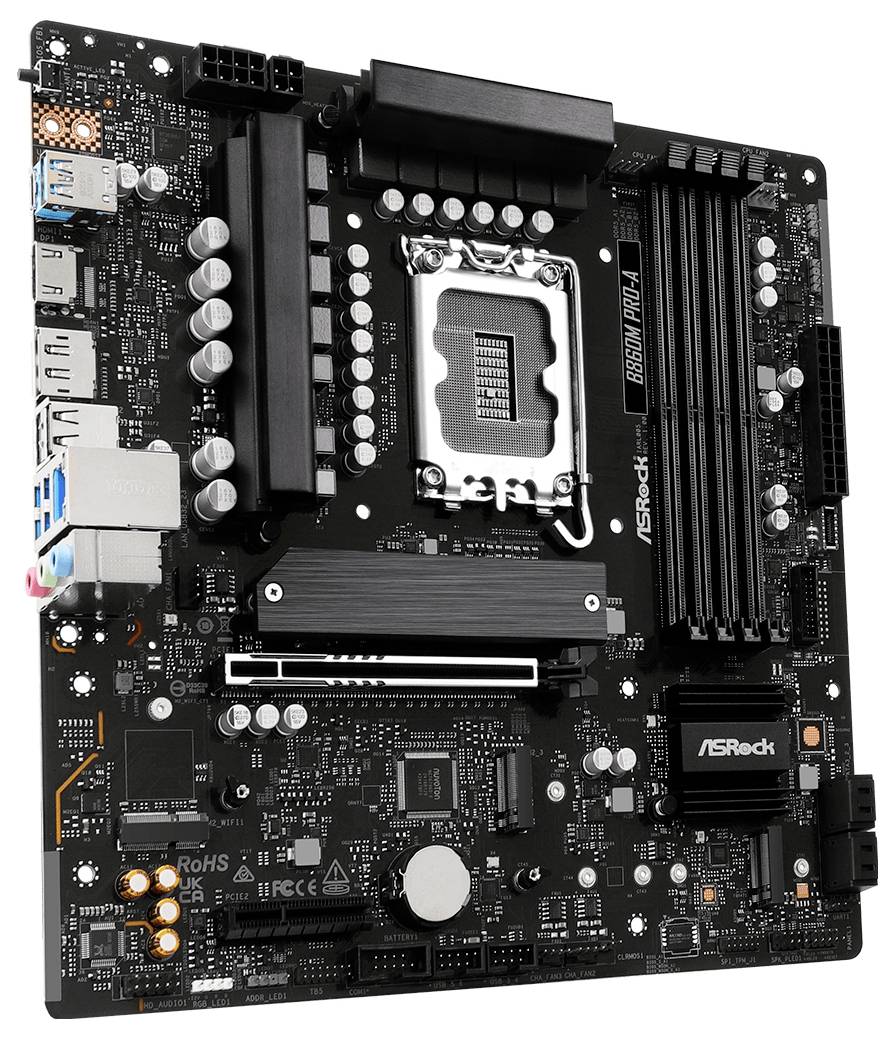

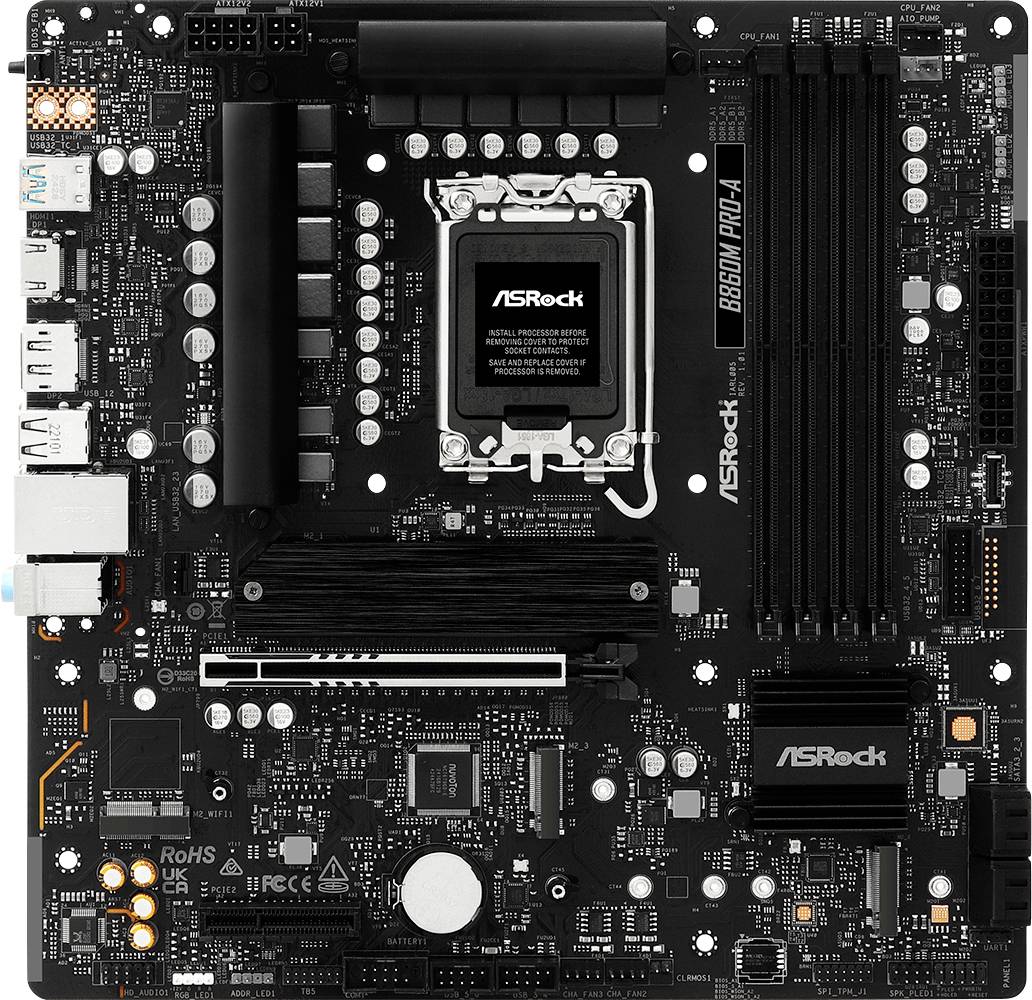

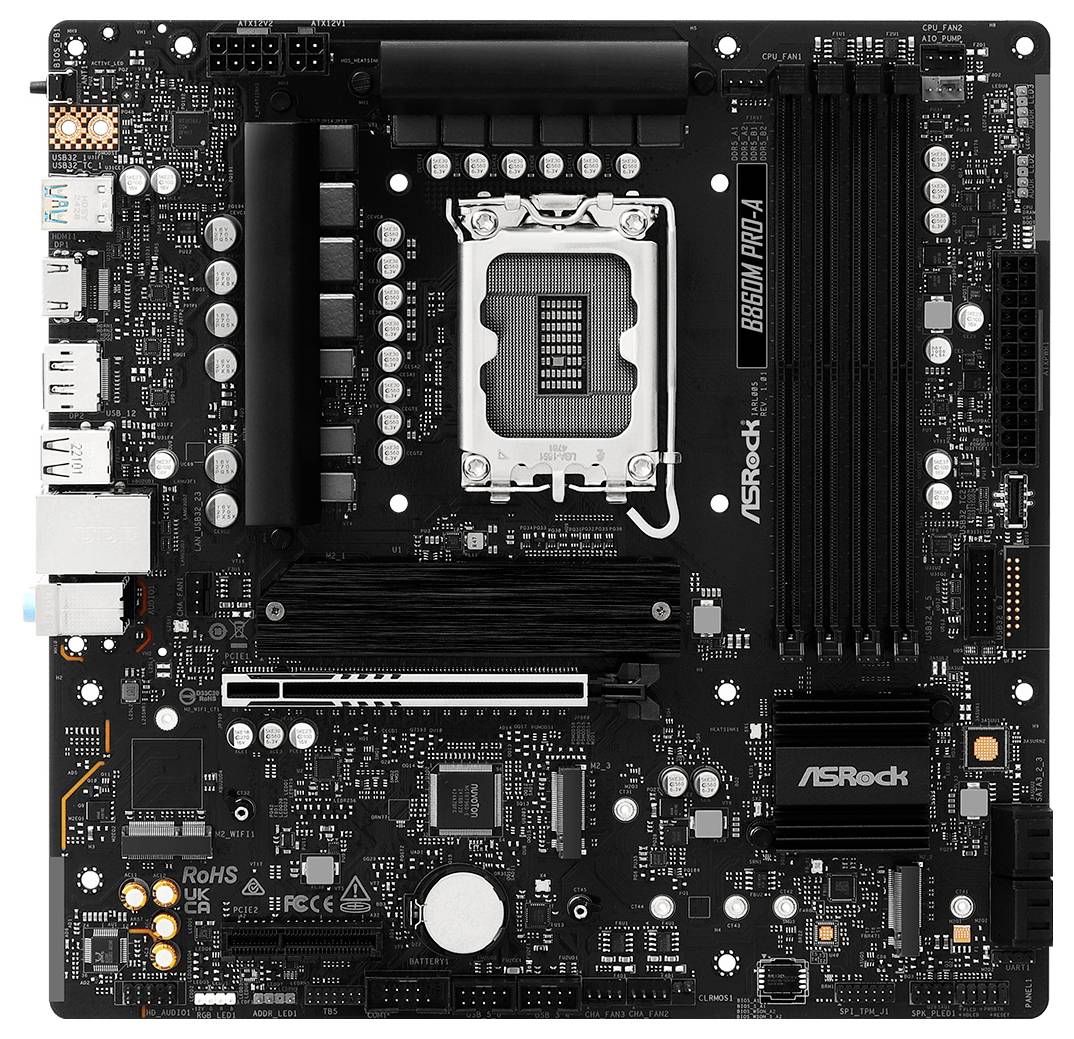

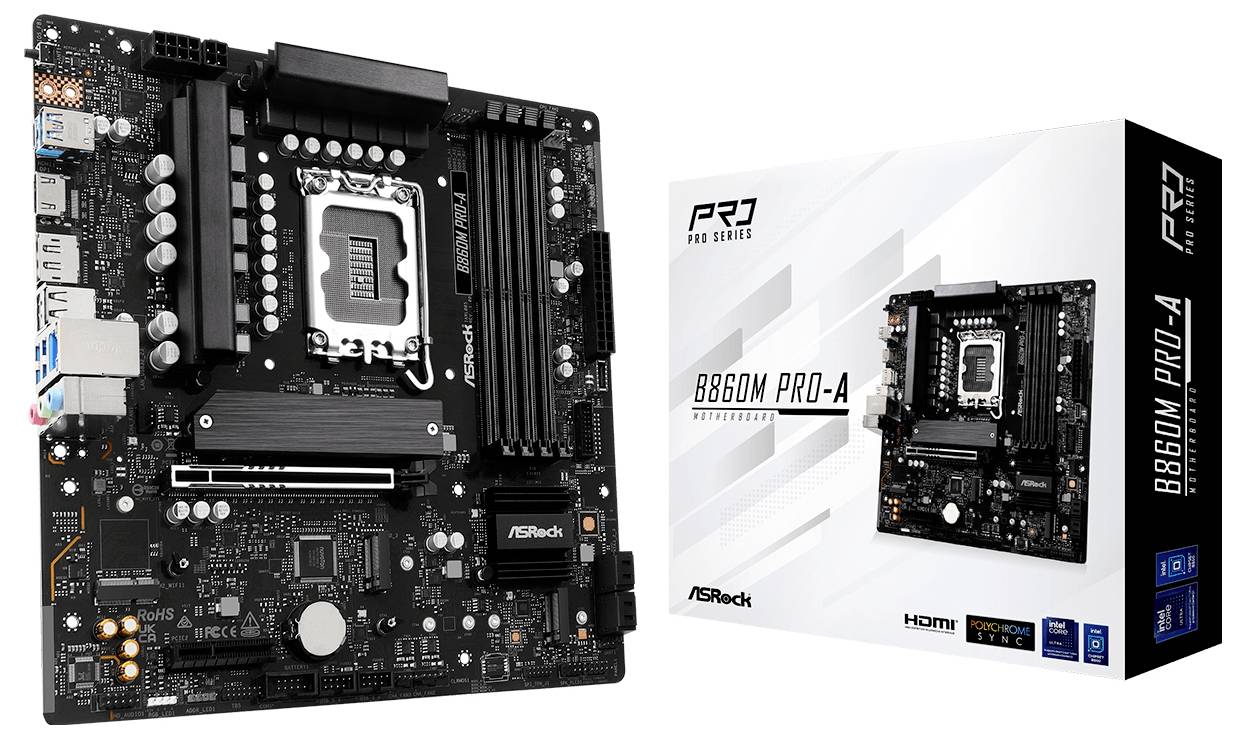

ASRock B860M Pro-A Motherboard
- Intel LGA 1851 (socket V1) Intel core ultra (series 2)
- PC micro ATX Intel B860 Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID SUPPORT
- UEFI AMI 256 Mbit BIOS type
- 2.5 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1851 (socket V1)
- Supported memory: DDR5 SDRAM
- ECC compatibility: Non-ECC
- Number of CPU fan ports: 2
- Number of EPS power connections (4-pin): 1
- Intel B860 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
#####Intel® 1851
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB

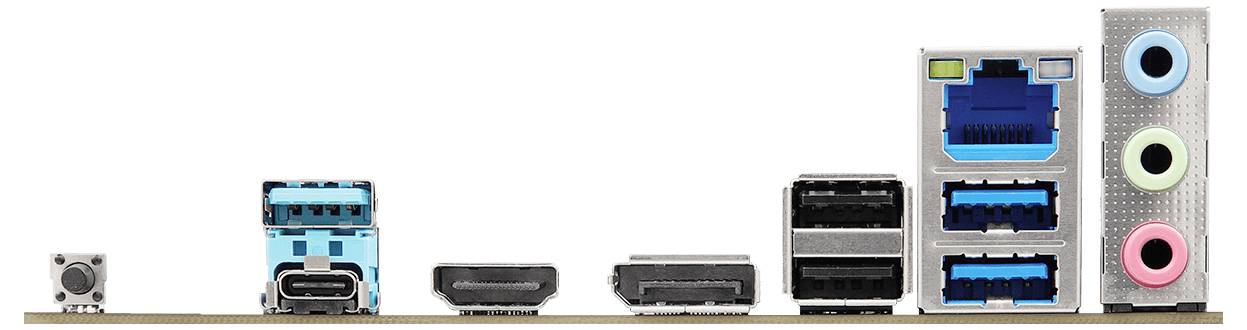

- Interfaces
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
DisplayPort
HDMI™
USB C®
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Factory colour
Black
- Depth
244 mm
- Width
244 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Line-in
yes
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
1
- Microphone in
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- TPM connector
yes
- RGB LED pin header
yes
- PCI Express x4 (Gen 4.x) slots
1
- Supported memory clock speed (max)
8666 MHz
- HDCP
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
