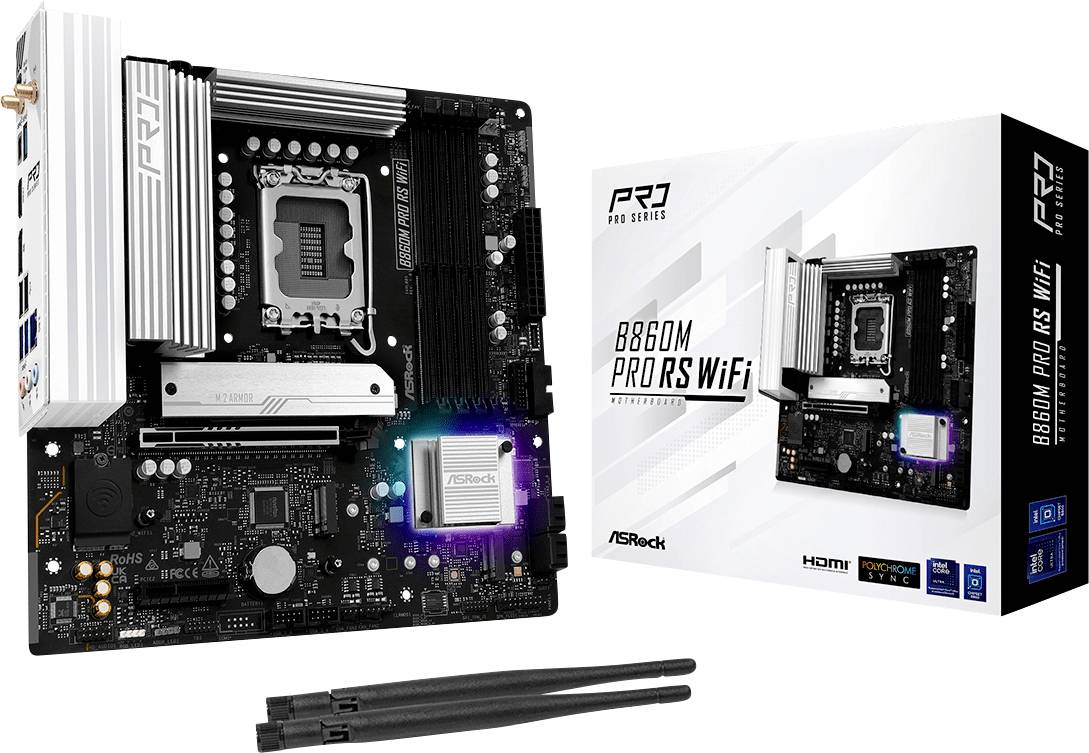

A motherboard displayed next to its box, labeled 'B660M Pro RS WiFi'. Features a socket, heatsinks, and connectivity ports. Includes WiFi antennas.

A motherboard displayed next to its box, labeled 'B660M Pro RS WiFi'. Features a socket, heatsinks, and connectivity ports. Includes WiFi antennas.

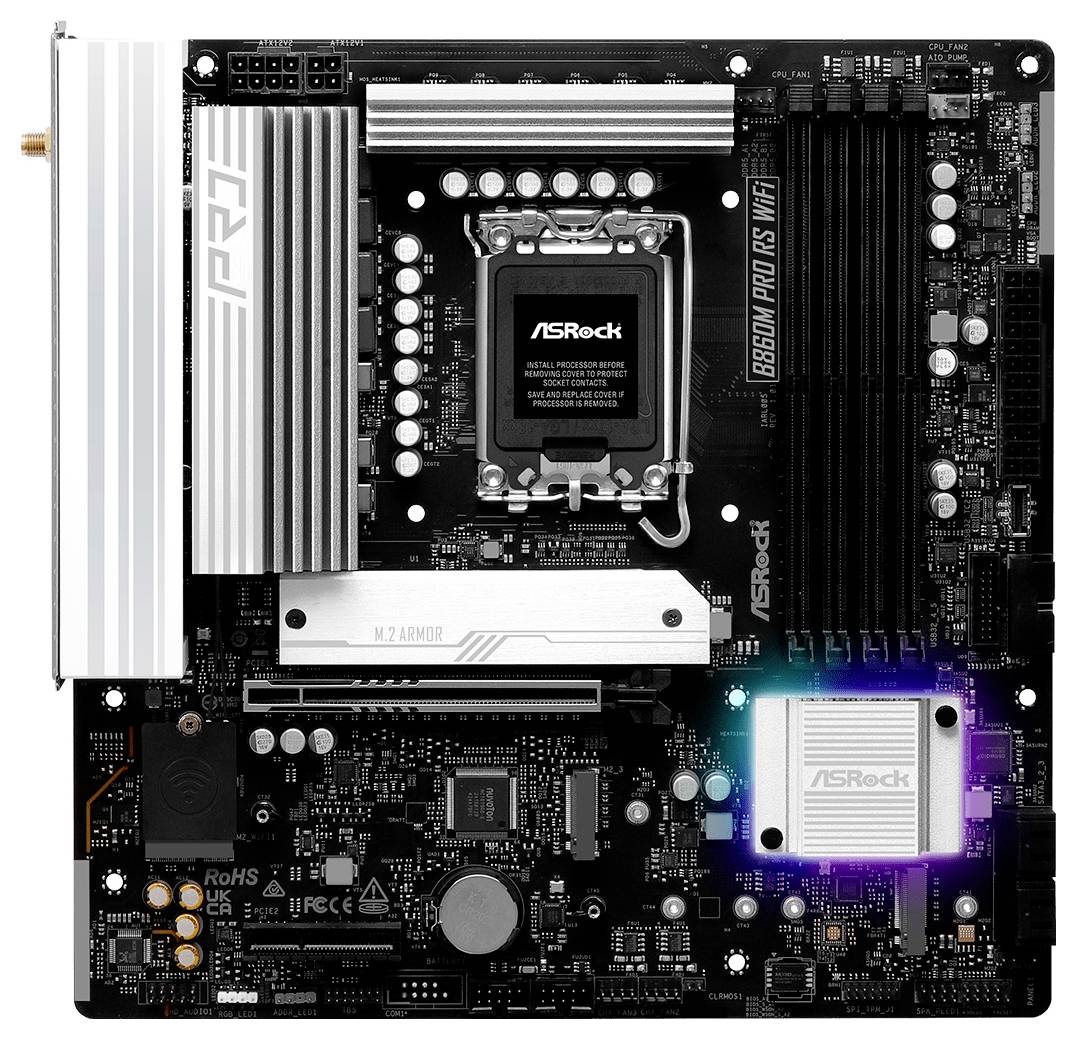

A computer motherboard featuring multiple slots and components, including RAM slots, a CPU socket, and a cooling system, from ASRock.

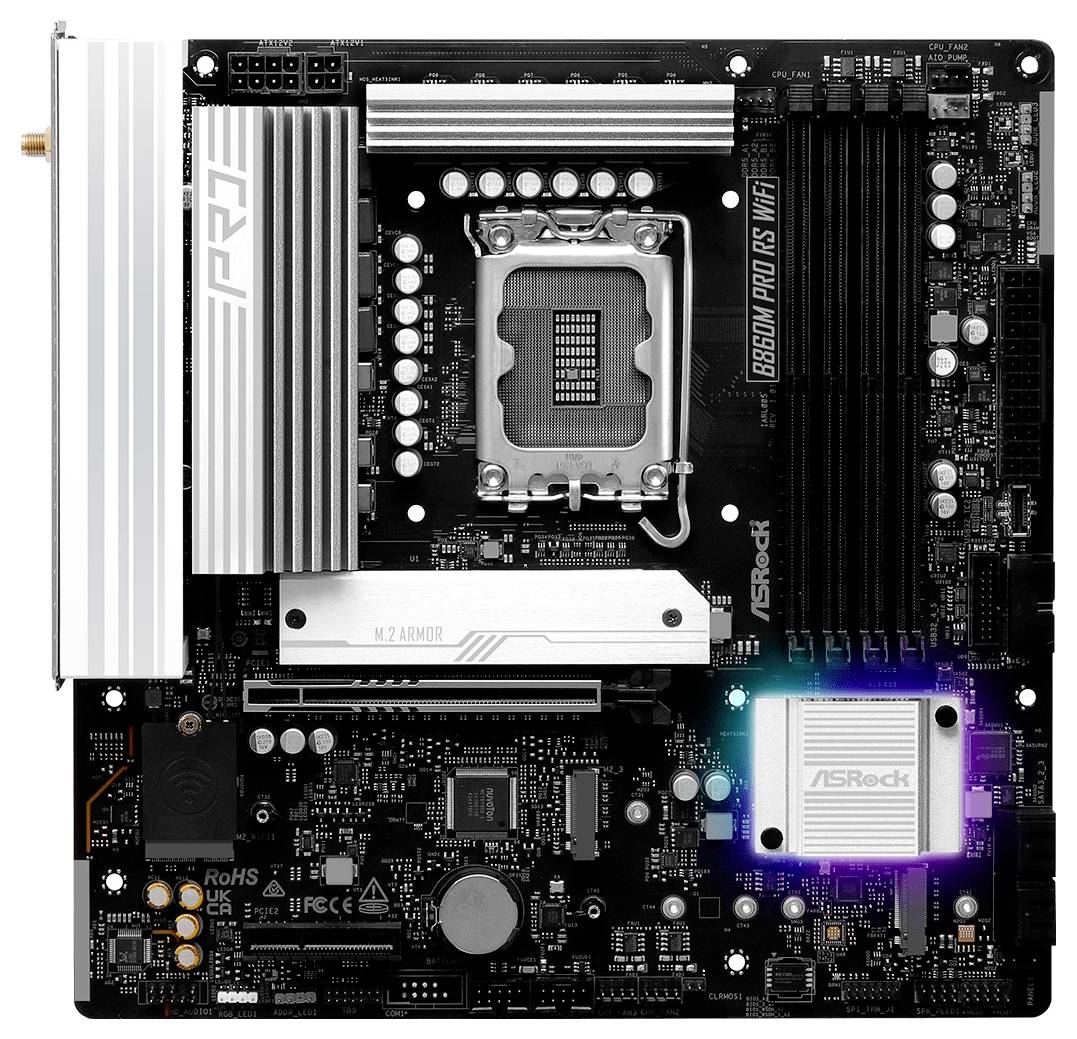

'A top view of a black ASRock B660M PG Riptide motherboard, featuring various slots for CPU, RAM, and storage, with labeled components.'

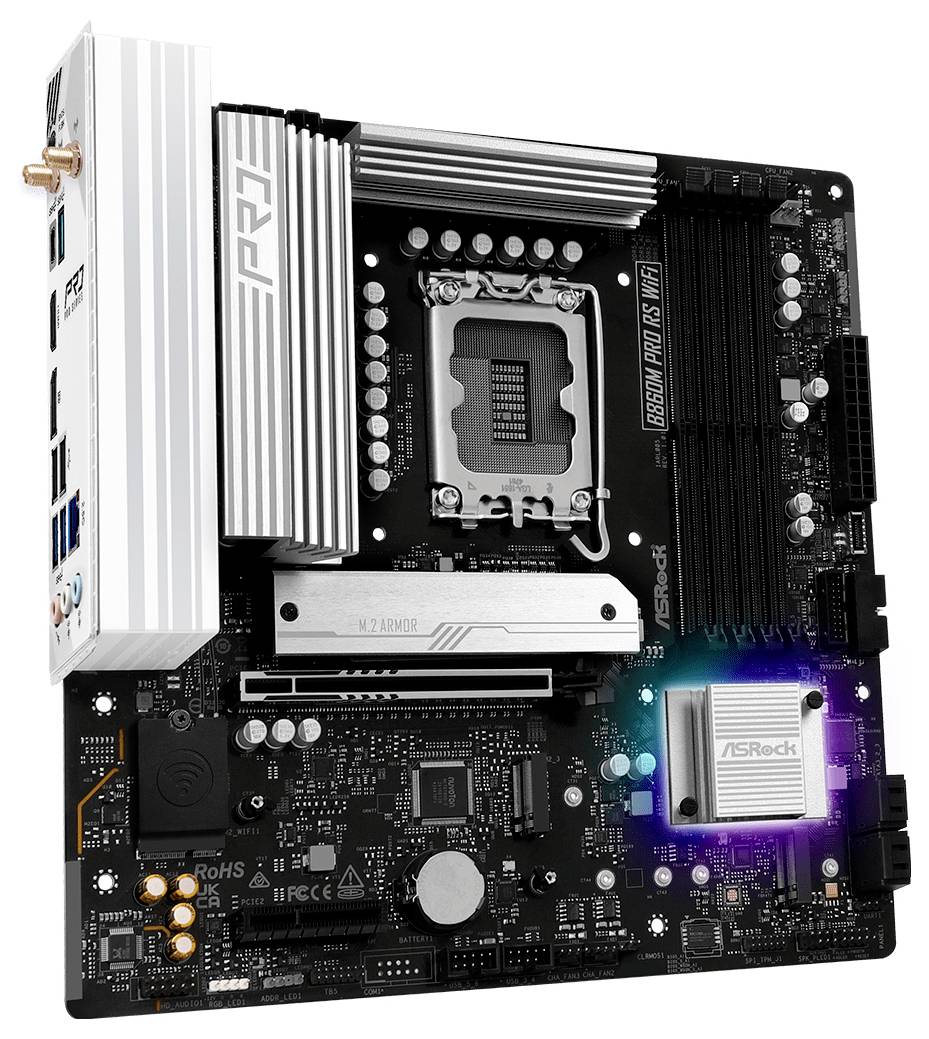

A computer motherboard with multiple slots, ports, and components visible, featuring ASRock branding and a Cezar labeling on a metal heatsink.

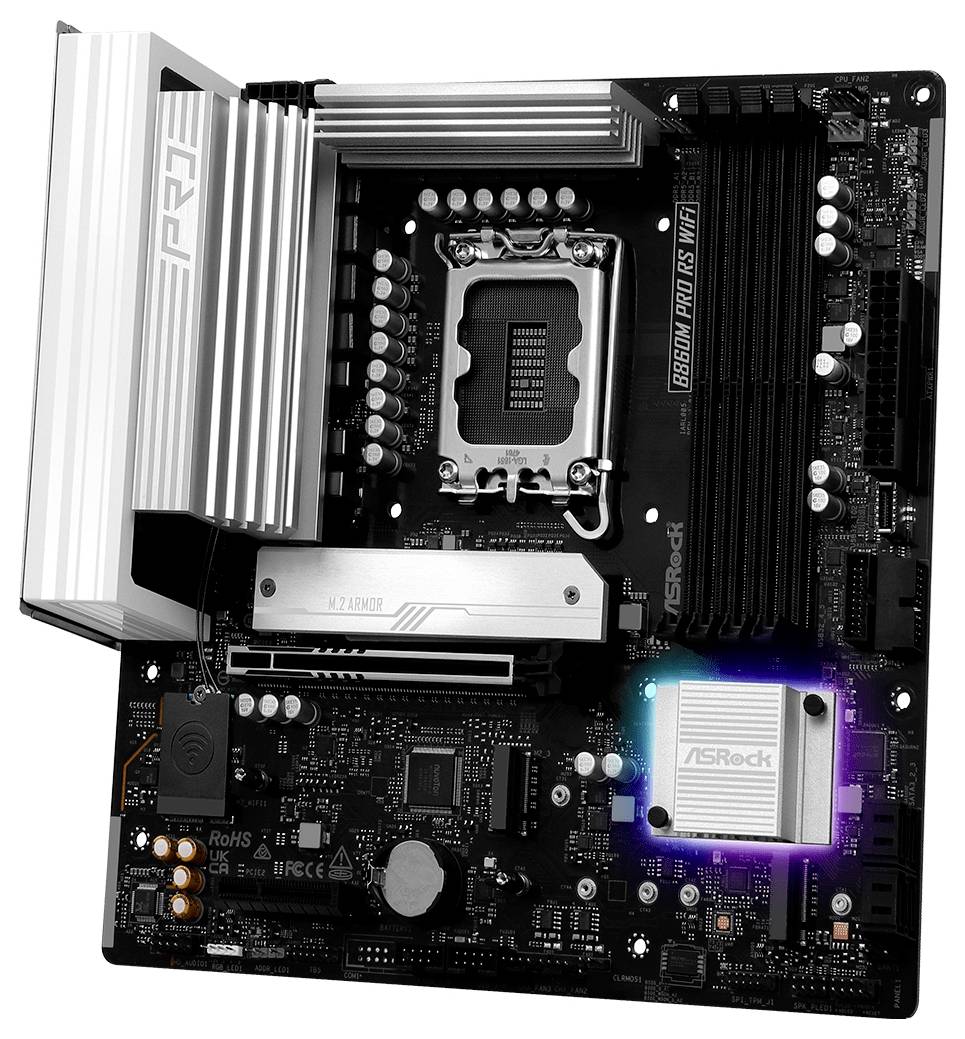

A computer motherboard with labeled CPU socket, RAM slots, dual heatsinks, and various ports. RGB lights illuminate part of the board.

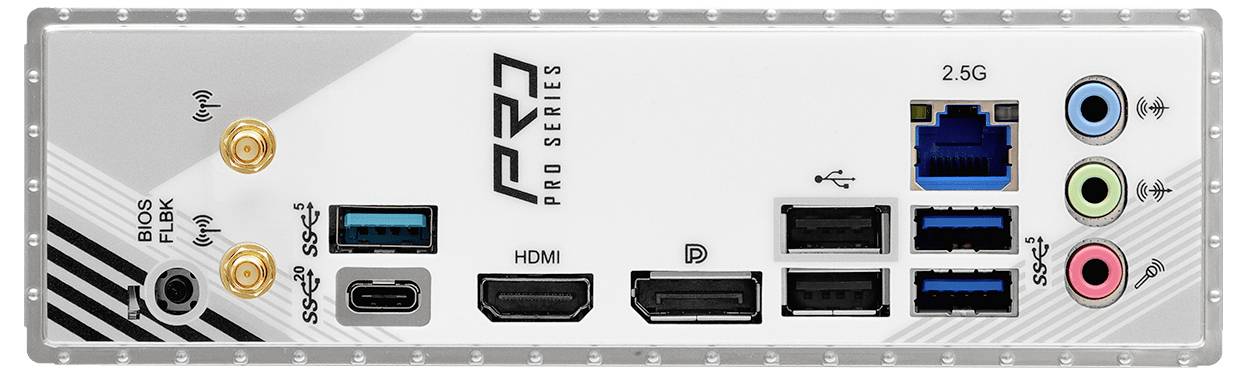

Back panel of a motherboard showing various ports: USB, HDMI, DisplayPort, Ethernet, audio jacks, and Wi-Fi antenna connectors.

1/6

ASRock

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ASRock B860M Pro RS Wifi Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 2)
PC micro ATX Intel B860 Realtek ALC897 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, SATA III RAID SUPPORT
UEFI AMI 256 Mbit BIOS type
2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3
This text is machine translated.

Technical specifications

LGA 1851 (socket V1)
Supported memory: DDR5 SDRAM
ECC compatibility: Non-ECC
Number of CPU fan ports: 2
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
Intel B860 motherboard chipset
Motherboard form factor: Micro ATX

Product type: Motherboard

: #####Intel® 1851

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 256 GB

Interfaces: USB A (USB 2.0)
USB A (USB 3.1 1st gen)
DisplayPort
HDMI™
USB C®

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 4 x

Bluetooth: 5.3

Bluetooth: Yes

Depth: 244 mm

Width: 244 mm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

4-pin Molex: 1

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Line-in: yes

PCI Express x4 (Gen 1.x) slots: 1

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 1

Microphone in: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 8666 MHz

HDCP: yes

EPS power connector (8-pin): yes

RAID support: yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Unbuffered memory: yes
