ASRock EC266D2I Motherboard PC base #####Intel® 1700 Form factor (details) Mini-ITX
EAN:
Part number:
Item no:
Highlights & Details

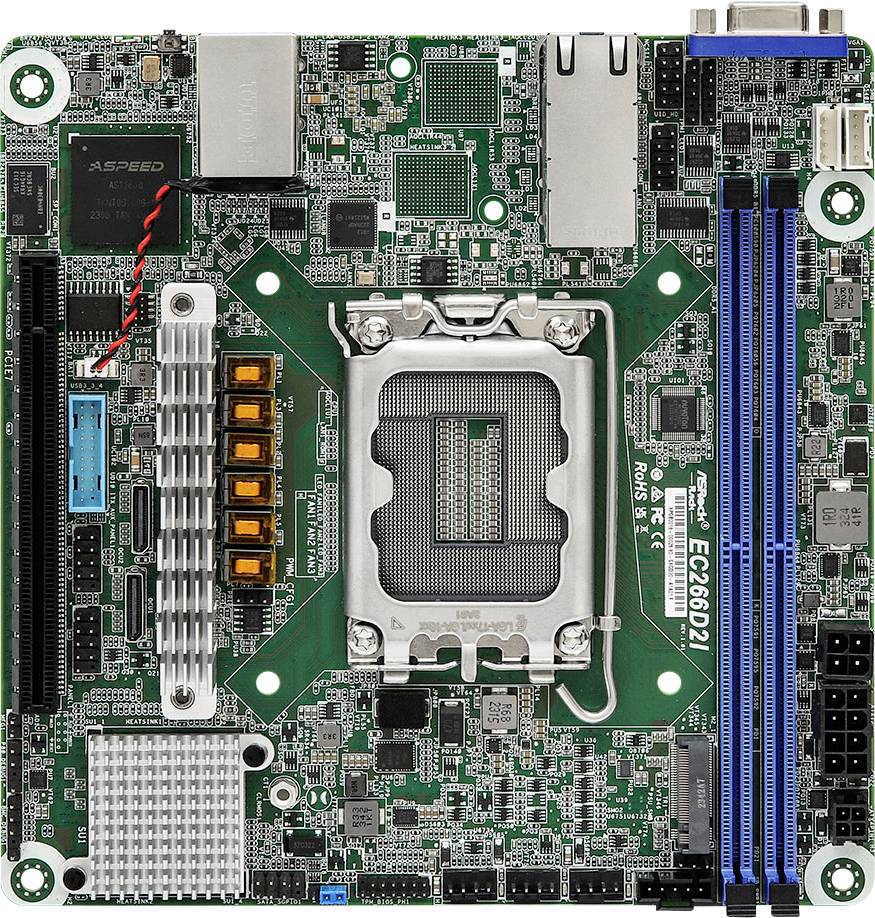

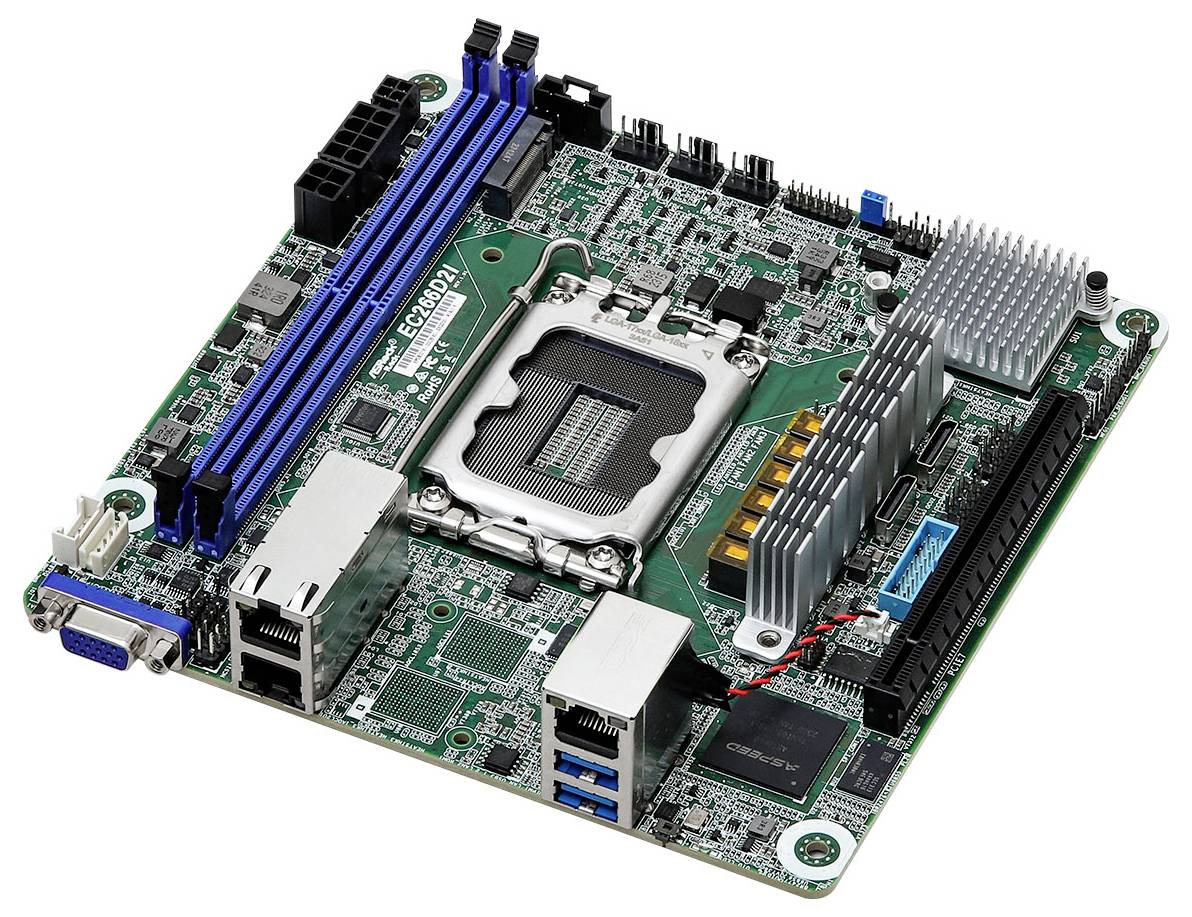

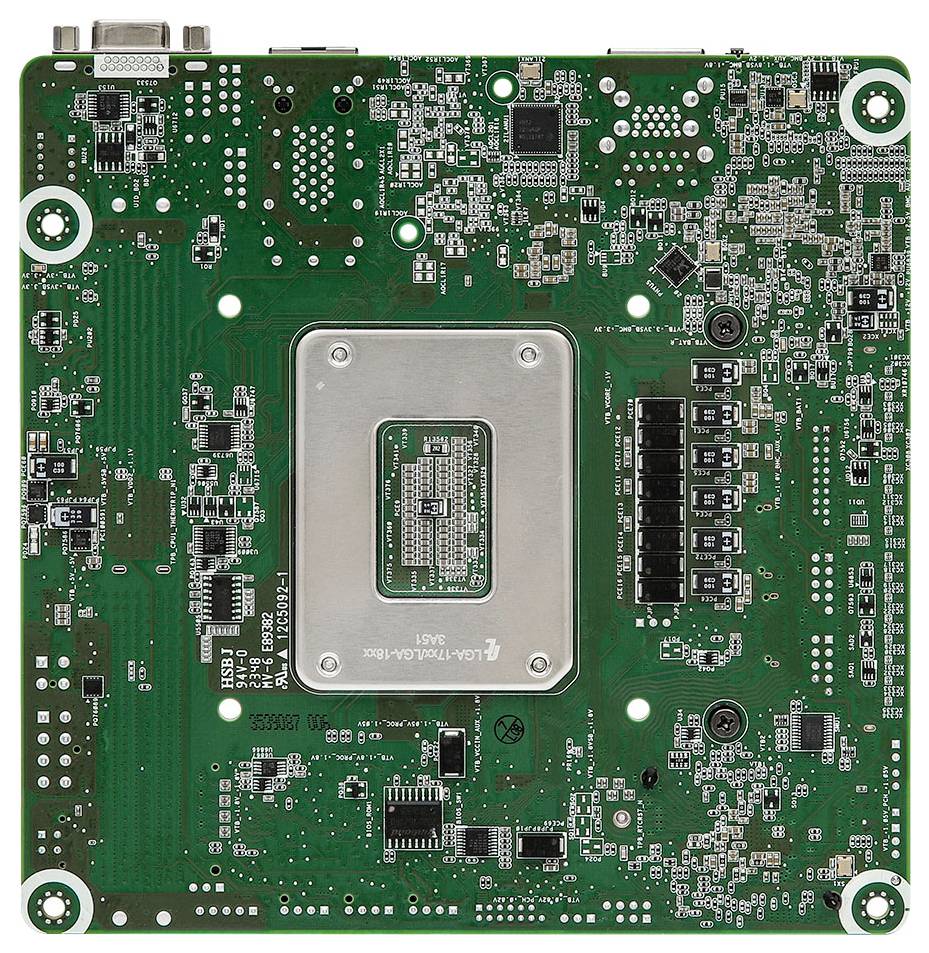

ASRock EC266D2I motherboard Intel C266 LGA 1700 mini ITX
- Intel LGA 1700 Intel® Pentium® Gold, Intel® Xeon®, Intel Xeon E
- Mini ITX Intel C266
- DDR5-SDRAM 2 RAM memory maximum: 32 GB
- RAID support
- BIOS Type: AMI 256 Mbit ACPI Version: 6.4
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Supported processor slots: LGA 1700
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC
- Built-in graphics card model AEED AST2600
- Intel C266 motherboard chipset
- Motherboard form factor: Mini ITX
- Product type
Motherboard
- Form factor
Mini-ITX
#####Intel® 1700
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
VGA
- No. of PCIe 3.0 x16
1 x
- No. of SATA III ports
8 x
- Depth
17.02 cm
- Width
17.02 cm
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
2 x
- 4-pin Molex
1
- RAM / Max. upgrade
32 GB
- RAM type
DDR5 RAM
- Range of use
Server
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Operating temperature (T-T)
10 - 35 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Number of memory slots
2
- Number of M.2 (M) slots
1
- ATX Power connector (24-pin)
yes
- TPM connector
yes
- PCI Express OCuLink connectors (NVMe support)
2
- Supported memory clock speed (max)
4800 MHz
- EPS power connector (8-pin)
yes
- RAID support
yes
- Storage temperature (T-T)
-40 - 70 °C
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
- IPMI LAN (RJ-45) port
yes
