ASRock EC266D4ID-2T/X550 Motherboard PC base #####Intel® 1700 Form factor (details) Mini-ITX
EAN:
Part number:
Item no:

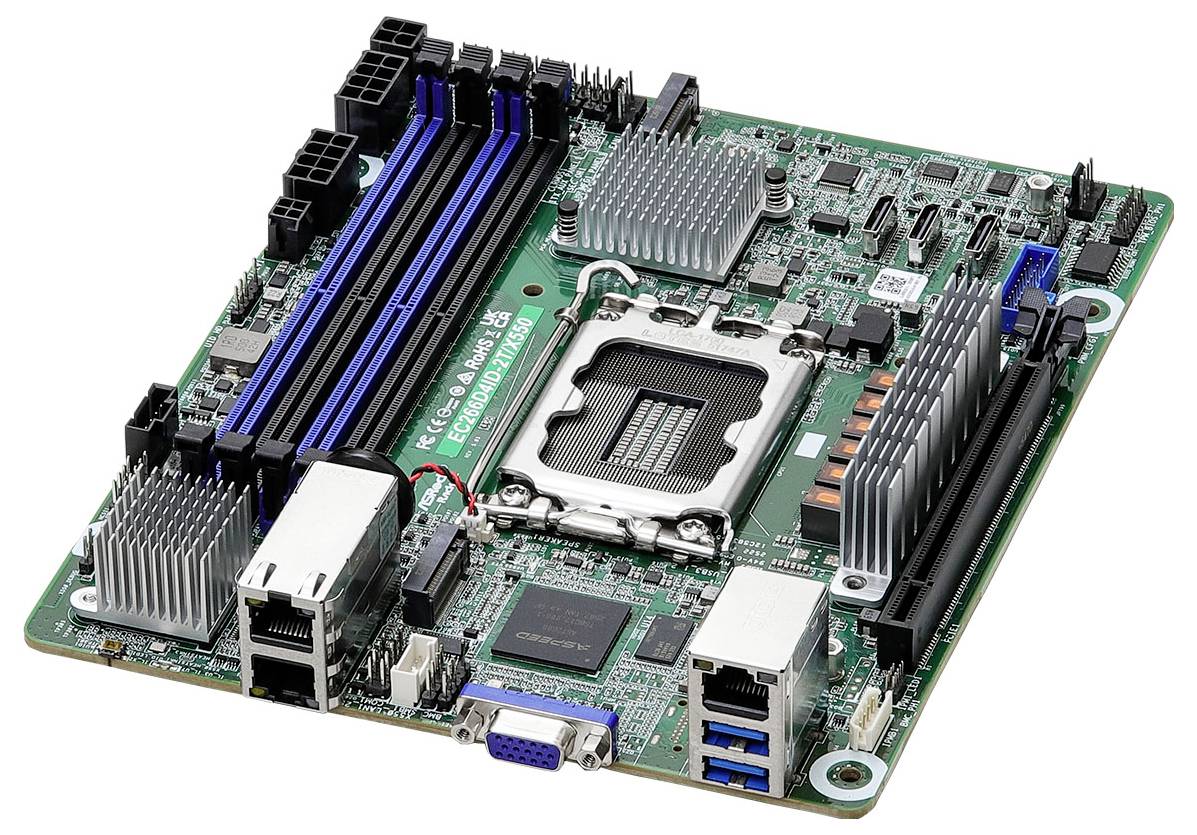

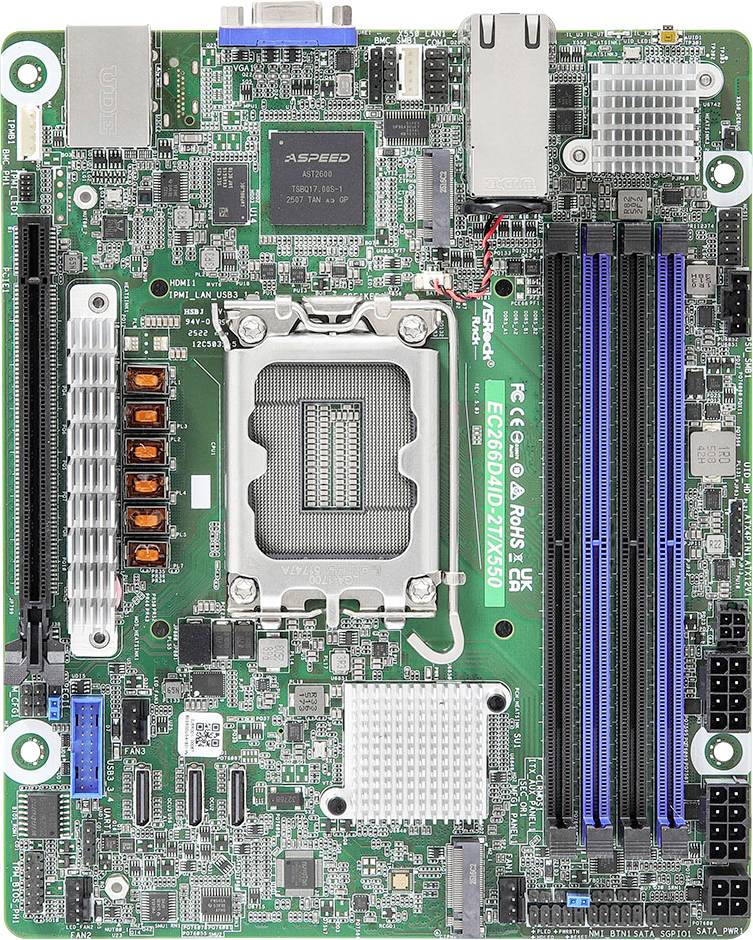

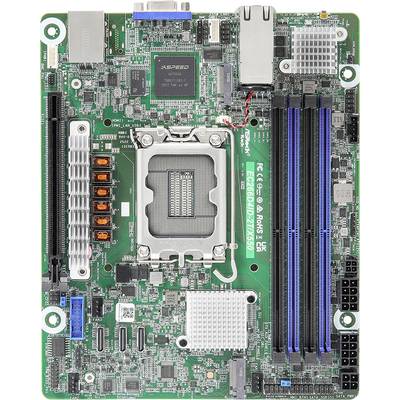

ASRock EC266D4ID-2T/X550 motherboard Intel C266 LGA 1700 mini ITX
Highlights & Details
- Intel LGA 1700 Intel® Pentium® Gold, Intel Xeon E
- Server mini ITX Intel C266
- DDR5 SDRAM 4 DIMM RAM maximum: 32 GB
- SATA III RAID SUPPORT
- ASPEED AST2600
- BIOS Type: AMI 256 Mbit ACPI Version: 6.4
- 10 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Supported memory: DDR5 SDRAM
- Number of memory slot pins: 288
- Intel C266 motherboard chipset
- Motherboard form factor: Mini ITX
- Product type
Motherboard
- Form factor
Mini-ITX
#####Intel® 1700
- Graphics card type
ASPEED
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
VGA
- No. of PCIe 3.0 x16
1 x
- No. of SATA III ports
8 x
- Depth
20.83 cm
- Width
17.02 cm
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Onboard graphics card
Yes
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
2 x
- RAM / Max. upgrade
32 GB
- RAM type
DIMM
- Range of use
Server
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Maximum number of SMP processors
1
- Number of memory slots
4
- TPM connector
yes
- PCI Express OCuLink connectors (NVMe support)
1
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- IPMI LAN (RJ-45) port
yes
