Name: ASRock H510M-H2/M.2 SE Motherboard PC base Intel® 1200 Form factor (details) Micro-ATX Motherboard chipset Intel® H510
Brand: ASRock
SKU: 3045584

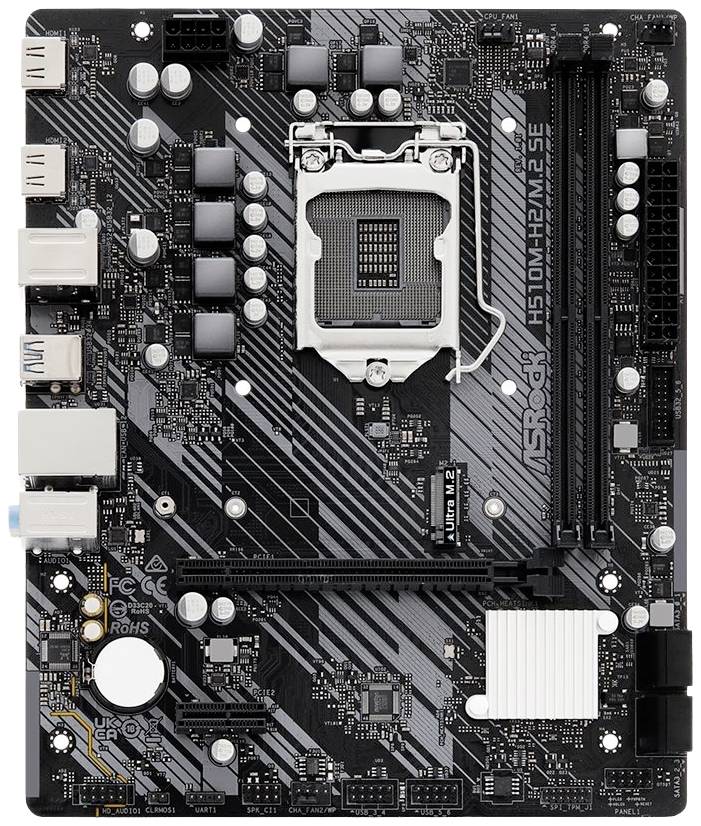

A computer motherboard with multiple expansion slots and connectors, suitable for installation in a desktop case.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC, ECC (Non-ECC Mode Operation)
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP) 2.0
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Realtek RTL8111H network controller
Network interfaces: Gigabit Ethernet
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x1; 1 x M.2 socket (2260/2280 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 / PCIe 3.0 ports: 1 x M.2
External Interfaces: 2 x HDMI; 1 x PS/2 keyboard/mouse; 2 x USB 2.0; 4 x USB 3.2 Gen 1; 1 x LAN (Gigabit Ethernet); 1 x microphone – mini jack plug; 1 x audio line in – mini jack plug; 1 x audio line out – mini jack plug
Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x audio multi-pin connector; 1 x SPI multi-pin connector; 1 x speaker - multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS FEATURES: UEFI BIOS
Hardware features: 4 phase Power design, ASRock instant flash, 15µ gold finger, ASRock A-tuning, ASRock full spike protection, ASRock full HD UEFI, ASRock my favorites in UEFI, ASRock EZ mode, Intel turbo boost technology 3.0, ASRock auto driver installer

Product type: Motherboard

Chipset: Intel® H510

: Intel® 1200

Form factor: Micro-ATX

Processor/type: unterstützt Intel Core der 11. und 10. Generation

RAM type: DDR4 RAM

Clock speed: 2400 MHz
2133 MHz
2800 MHz
2666 MHz
2933 MHz
3200 MHz

RAM / Max. upgrade: 64 GB

Interfaces: HDMI™
PS/2
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
Gigabit LAN (1 Gbps)
Microphone (3.5 mm jack)
Audio line in
Audio line out

No. of DDR4 slots: 2 x

No. of LAN ports: 1 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 6 x

No. of USB type A 3.0 ports: 6 x

No. of USB 3.2: 6 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

No. of PS/2 ports: 1 x

UKCA: yes
