Name: ASRock H610M-HVS/M.2 D5 GEN5 1700 mAT Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipse
Brand: ASRock
SKU: 3730323

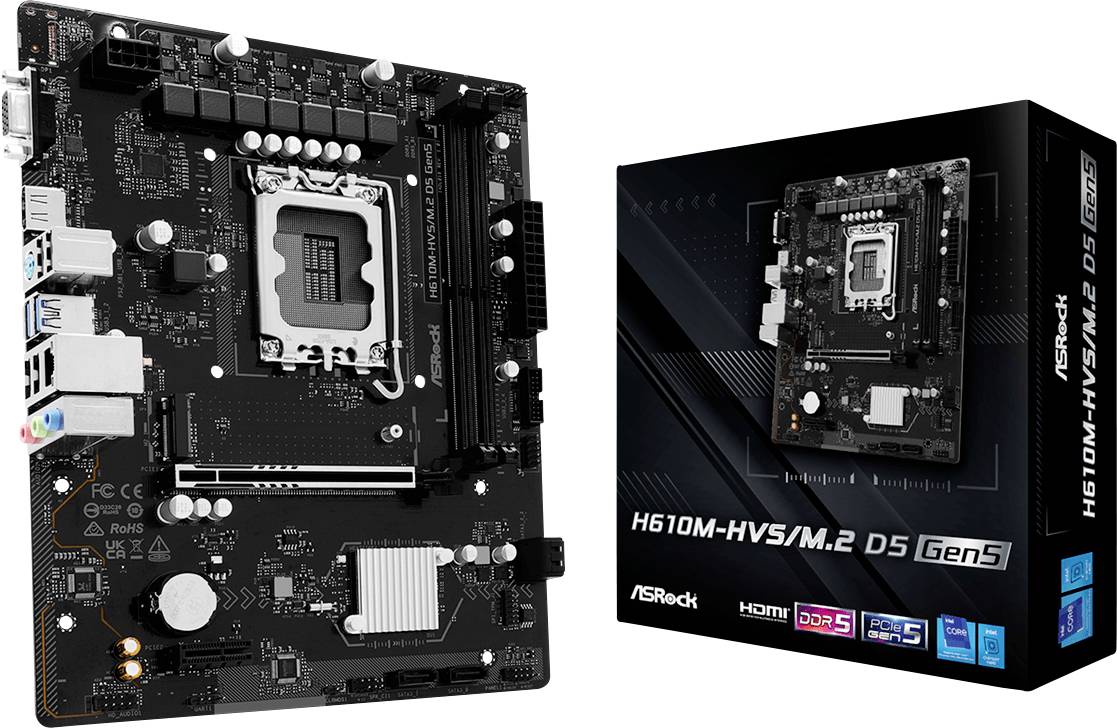

ASRock H610M-HVS/M.2 D5 motherboard shown next to its retail box, featuring an Intel CPU socket, M.2 slot, and DDR5 support.<br>

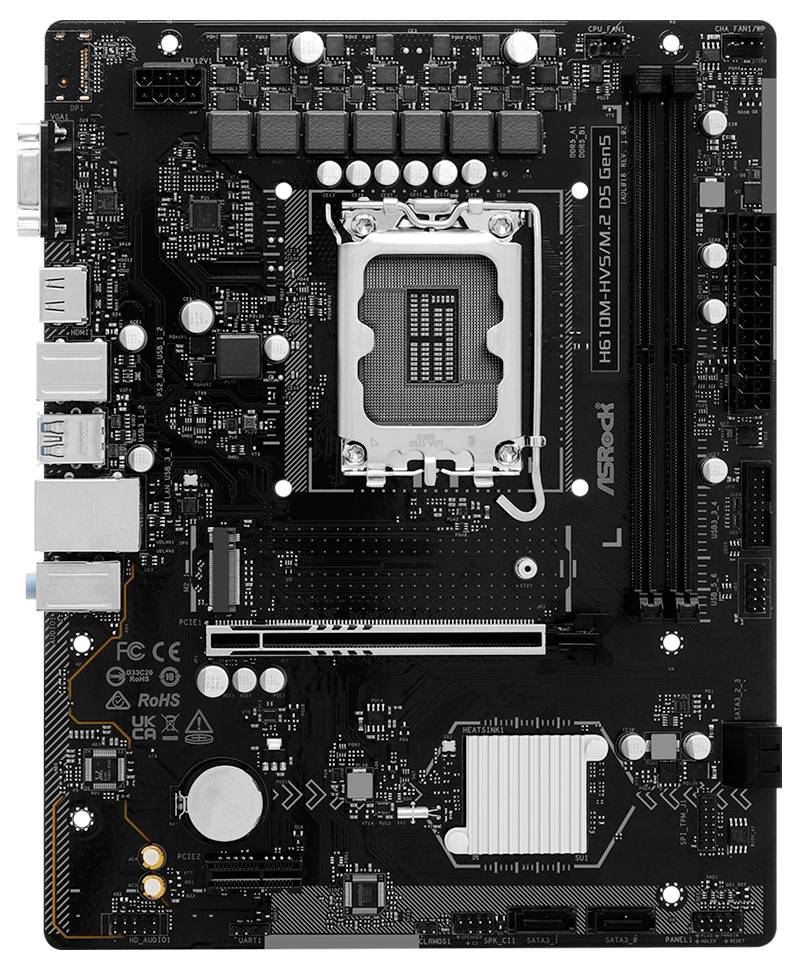

Black ASRock H610M-HVS/M.2 R5.0 microATX motherboard with Intel CPU socket, RAM slots, PCIe slot, and rear I/O ports.

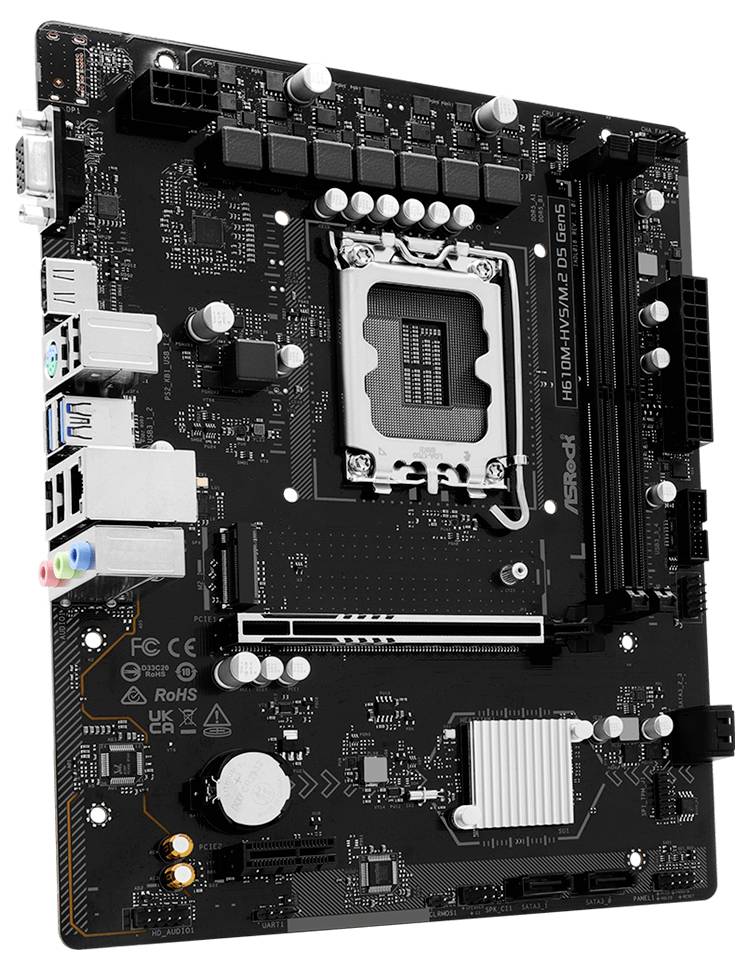

Black computer motherboard with CPU socket, RAM slots, expansion slots, ports, and heatsinks shown on a white background.

Black ASRock motherboard with Intel CPU socket, RAM slots, PCIe slot, heatsinks, and rear I/O ports on a white background

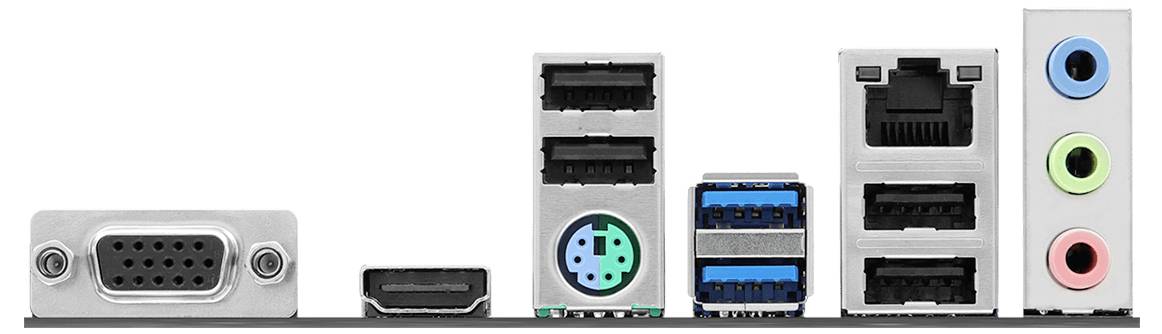

Rear I/O panel of a desktop motherboard showing VGA, HDMI, USB ports, Ethernet, and audio jacks.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Audio:7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN: Gigabit LAN 10/100/1000 MB/s - Realtek 8111H
Operating system: Microsoft® Windows® 10 64-bit / 11 64-bit

Product type: Motherboard

Chipset: Intel® H610

: Intel® 1700

Form factor: Micro-ATX

Processor/type: Intel® Core™-Prozessoren der 14., 13. und 12. Generation

RAM type: DDR5 RAM

RAM / Max. upgrade: 128 GB

Interfaces: HDMI® 2.1
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
PS/2
RJ45
Audio line in
Headphone input
Microphone input

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 6 x

No. of USB 3.2: 4 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

Onboard graphics: HDMI 2.1, D-Sub

No. of PS/2 ports: 1 x

UKCA: yes
