ASRock H810M-X GEN5 WIFI 1851 mATX Motherboard PC base #####Intel® 1851 Form factor (details) ATX

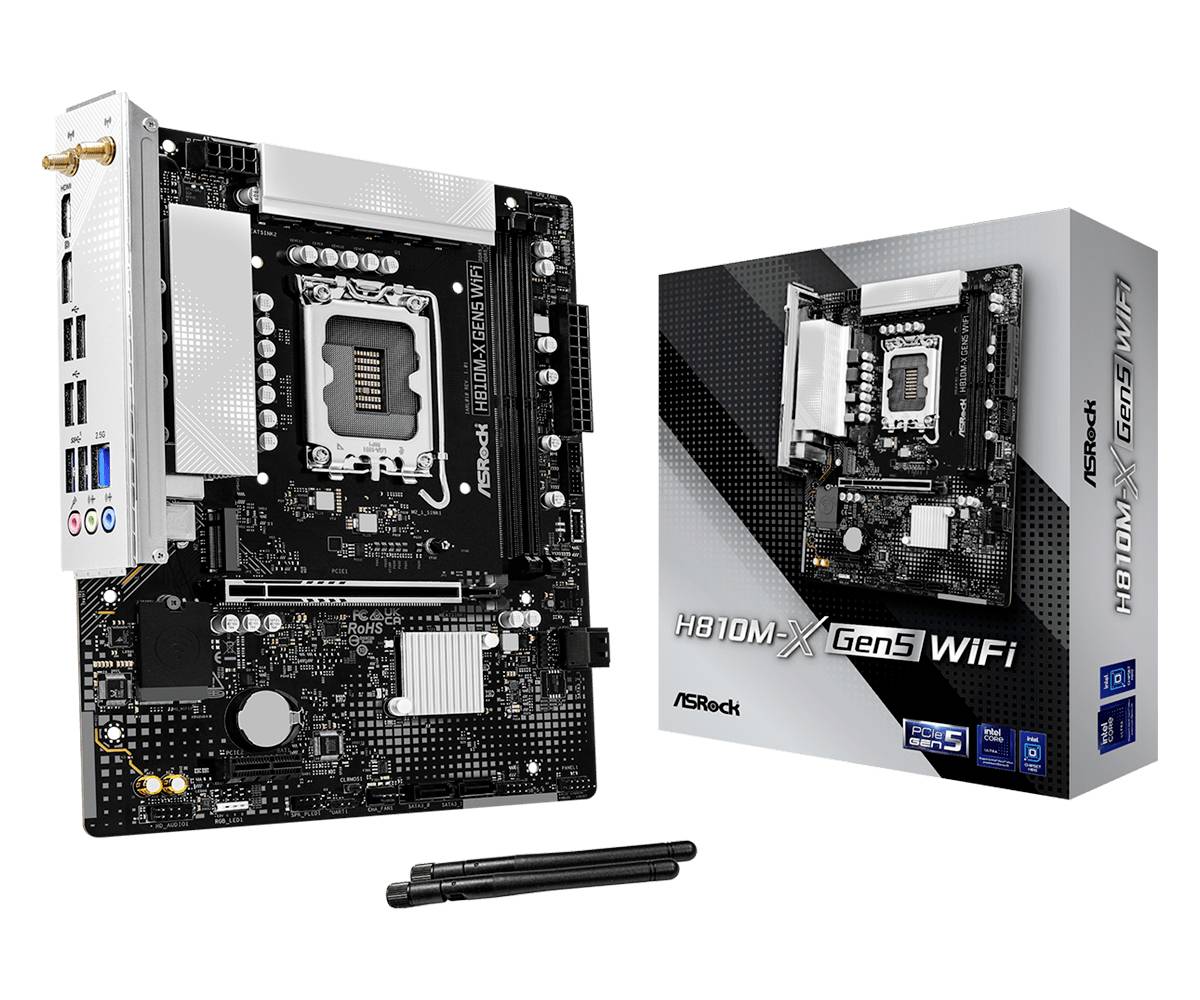

ASRock H810M-X Gen5 WiFi motherboard shown with retail box and two Wi-Fi antennas on a white background.

ASRock H810M-X Gen5 WiFi motherboard shown with retail box and two Wi-Fi antennas on a white background.

ASRock H610M-XE WIFI motherboard shown from above, with Intel CPU socket, RAM slots, expansion slots, heatsinks, and rear I/O ports.

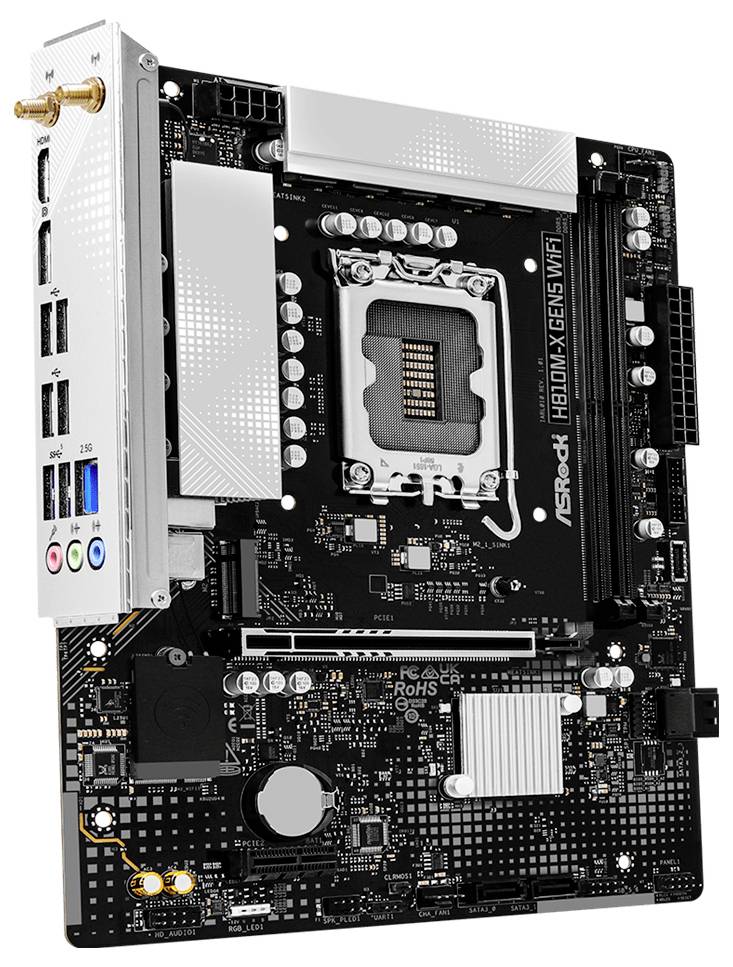

ASRock H610M-X GEN5 WiFi computer motherboard with CPU socket, heatsinks, expansion slots, and rear I/O ports visible on a white background

ASRock X670E WiFi motherboard with CPU socket, RAM slots, PCIe slot, heatsinks, and power connectors.

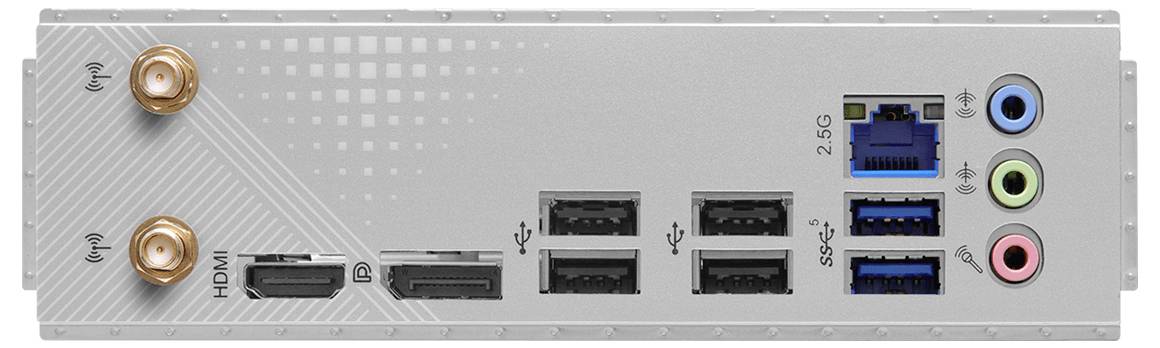

Rear motherboard I/O panel with two copper antenna connectors, HDMI and DisplayPort video outputs, four USB ports, 2.5G Ethernet, and three color-coded audio jacks.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ASRock H810M-X GEN5 WIFI 1851 mATX Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 2)
PC micro ATX Intel H810 Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
SATA III, M.2
UEFI AMI 256 Mbit BIOS type
2.5 Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth 5.3
This text is machine translated.

Technical specifications

LGA 1851 (socket V1)
Supported memory: DDR5 SDRAM
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Intel H810 motherboard chipset
Motherboard form factor: Micro ATX

Product type: Motherboard

: #####Intel® 1851

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 1 x

No. of SATA III ports: 4 x

Bluetooth: 5.3

Bluetooth: Yes

Depth: 193 mm

Width: 244 mm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

HDCP: Yes

10/100/1000 Mbps ports: 1 x

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 2

Number of M.2 (M) slots: 1

Microphone in: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

TPM connector: yes

RGB LED pin header: yes

PCI Express x1 (Gen 4.x) slots: 1

: 1

EPS power connector (8-pin): yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes
