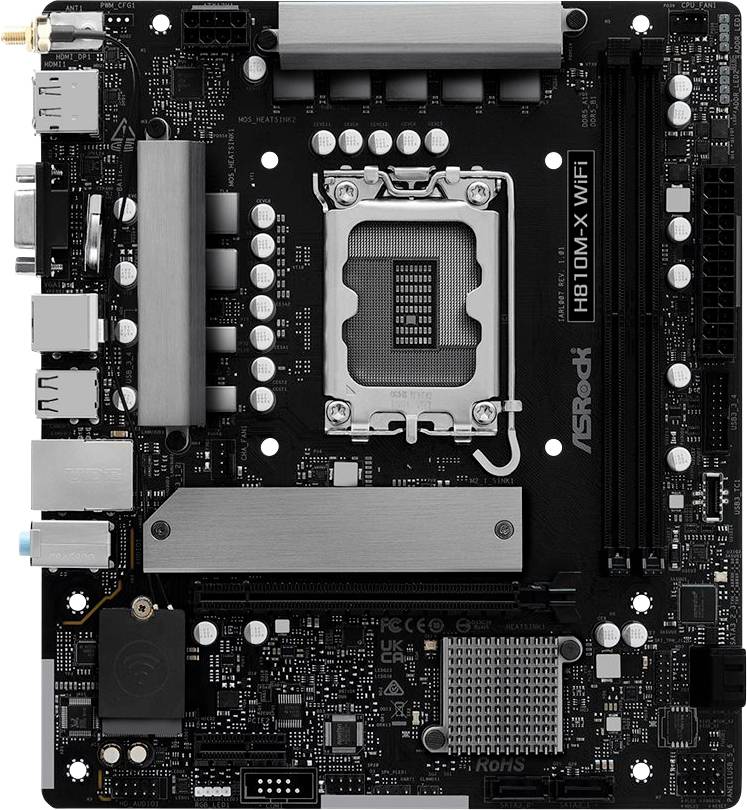

ASRock H810M-X Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810
EAN:
Part number:
Item no:
Technical specifications
- Width: 22 cm
- Depth: 19.3 cm
- Max. Number Processors: 1
- Supported RAM Health Check: Non-ECC
- Registered or buffered: Unbuffered, clock-independent, unbuffered
- Special features (supported RAM): Two-channel memory architecture, unbuffered, Intel extreme memory profiles (XMP) 3.0
- Type (Audio): HD Audio (8-channel)
- Network interfaces (LAN): 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0
- Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x PCIe 4.0 x1; M.2 socket (Key E, for wireless module); M.2 socket (2280 M.2 Key M slot)
- Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
- Audio Codec: Realtek ALC897
- Network controller (LAN): Dragon RTL8125BG
- Product type
Motherboard
- Chipset
Intel® H810
#####Intel® 1851
- Form factor
Micro-ATX
- Processor/type
Intel Core Ultra (Serie 2)
- RAM type
DDR5 RAM
- Clock speed
3200 MHz
- RAM / Max. upgrade
128 GB
- Interfaces
HDMI™
USB C® (USB 3.2 1st gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
DisplayPort
VGA
PS/2
RJ45
Audio line in
Audio line out
Show more
- No. of DDR5 slots
2 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
4 x
- No. of USB type A 3.0 ports
4 x
- No. of USB 3.2
4 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- No. of PS/2 ports
1 x
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400755 ASRock H810M-X Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810
