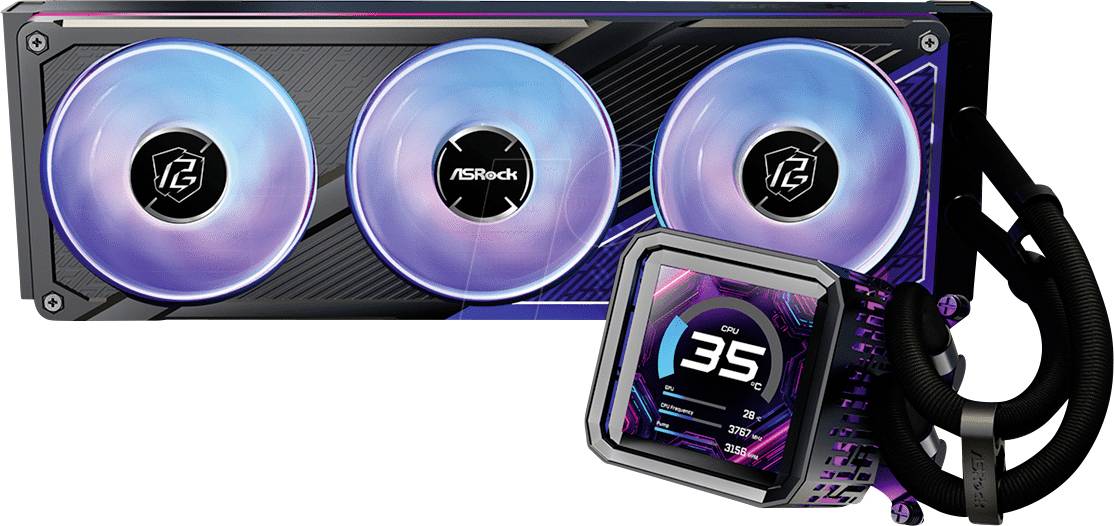

ASRock Phantom Gaming 360 LCD PC water cooling
EAN:
Part number:
Item no:
Highlights & Details
ASRock Phantom Gaming 360 LCD PC water cooling
- Processor liquid cooling 12 cm 2400 RPM
- Supported processor slots: Socket AM4, socket AM5, LGA 1851, LGA 1700
- 31.4 dB 61.28 cfm 3.11 mmH2O Liquid-lubricated bearings
- Support for pulse width modulation
- 70 x 70 x 25 mm
- Black
- This text is machine translated.
Technical specifications
- Fan diameter 12 cm
- Supported processor slots: Socket AM4, socket AM5, LGA 1851, LGA 1700
- Bearing type: Fluid-lubricated bearing
- Number of fans: 3 fans
- 4-pin fan connector
- Product type
PC water cooling
- Factory colour
Black
- Rotational speed (max.)
2400 U/min
- Noise emission (max.)
31.4 dB
- Heatsink material
Aluminium
- Length
45 cm
- Screen size diagonal (inches)
3.4 inch
- Display resolution
480 x 480 Pixel
- Type
Liquid cooling
- UKCA
yes
- Pump motor speed (max)
3100 RPM
- Pump motor speed (min)
1200 RPM
- Fan voltage
12 V
- Radiator width
12 cm
- Radiator depth
39.7 cm
- Radiator height
3.2 cm
- Illumination LED
yes
- Fan dimensions (W x D x H)
70 x 70 x 25 mm
- Waterblock width
8.6 cm
- Waterblock depth
10 cm
- Waterblock height
10.8 cm
- Pulse-width modulation (PWM) support
yes
- Maximum airflow
61.28 cfm
- Maximum air pressure
3.11 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730348 ASRock Phantom Gaming 360 LCD PC water cooling
