Name: ASRock Phantom Gaming B650I Lightning WiFi Motherboard PC base #####AMD AM5 Form factor (details) Mini-ATX Motherboard c
Brand: ASRock
SKU: 3045559

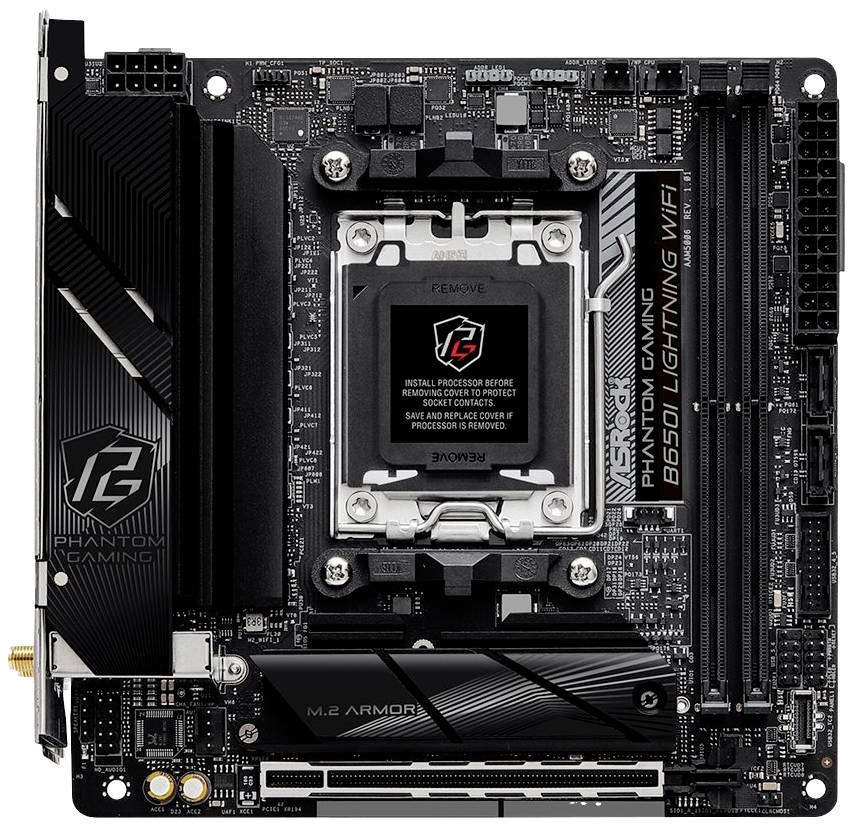

Motherboard with black design and Wi-Fi support. Inscription 'Phantom Gaming B650I Lightning'. Visible PCIe and RAM slots.

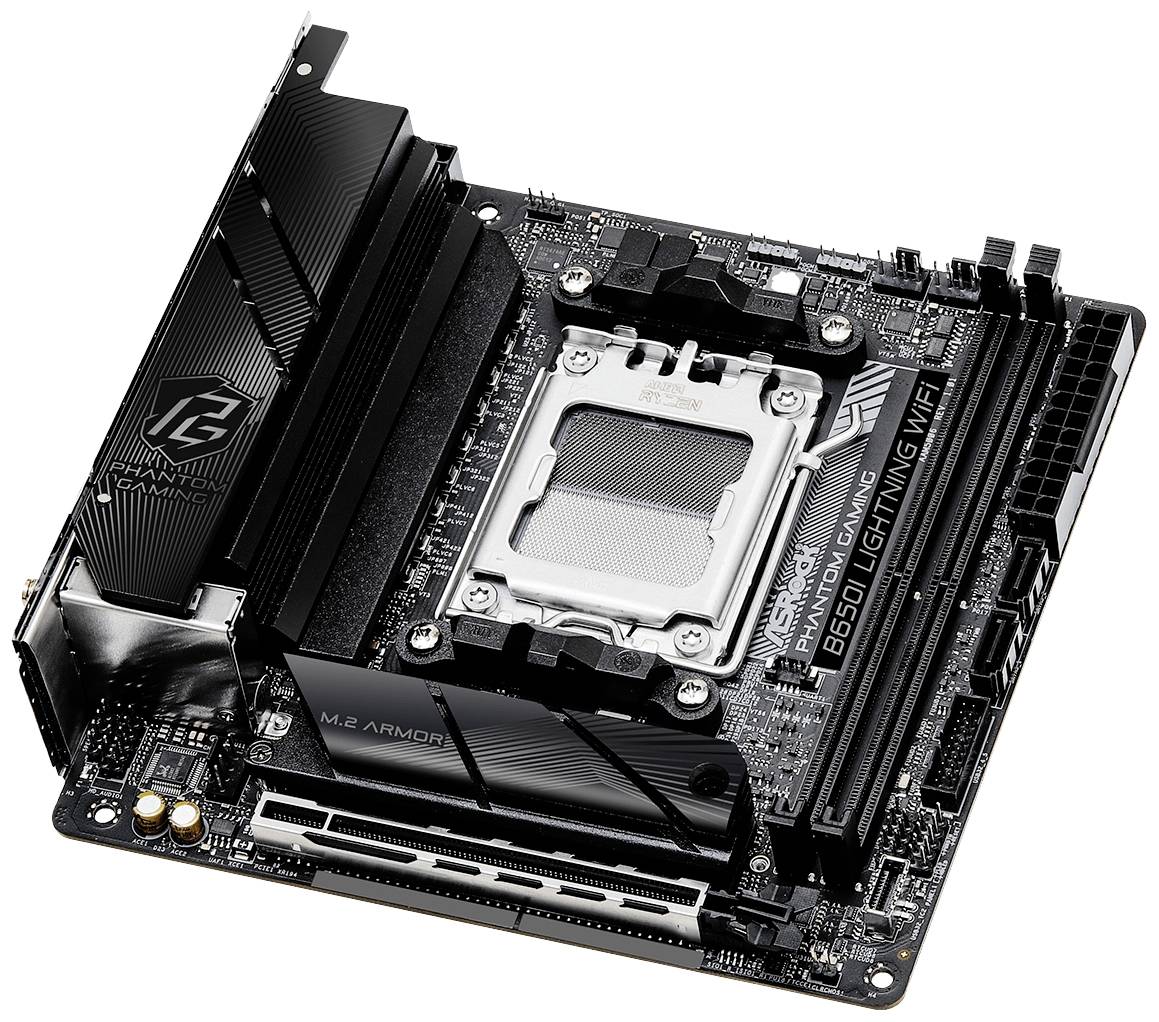

A black computer motherboard, marked with 'B550 Lightning WiFi'. It displays various ports and expansion slots.

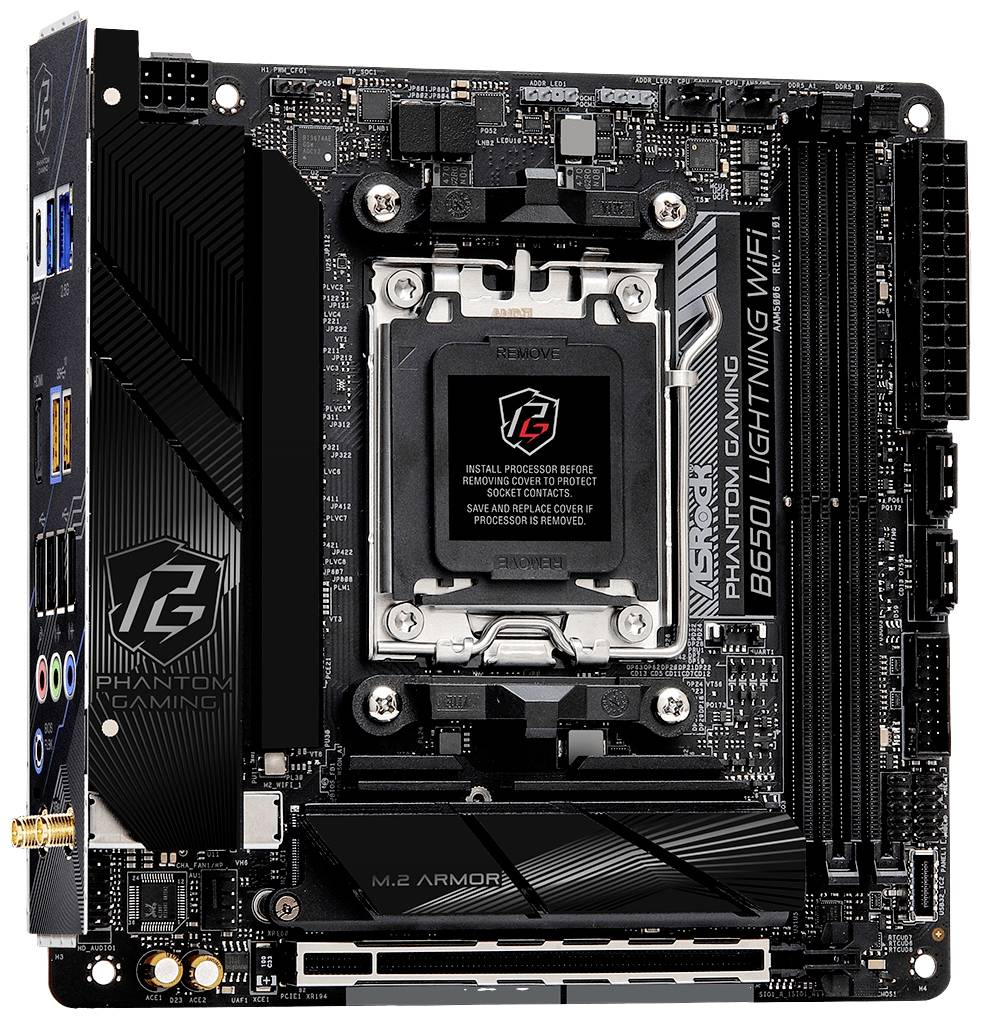

Motherboard with labelling 'Phantom Gaming' and 'B650I Lightning WiFi'. Contains CPU socket, RAM slots, and various ports.

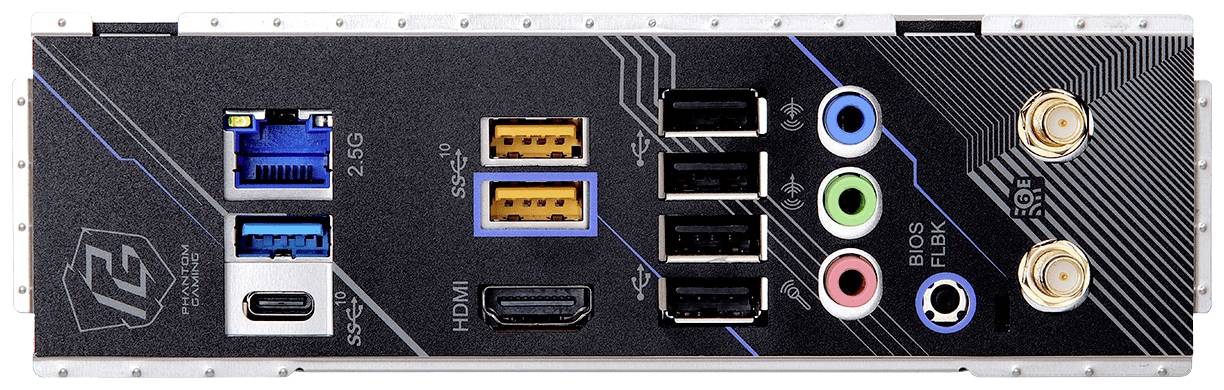

Connections of a Computer Motherboard: USB 3.0, USB-C, HDMI, Audio Inputs, Ethernet, Optical Audio Output and Wi-Fi Antenna.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
Registered or buffered: Unbuffered
Special features: Two-channel memory architecture, Intel extreme memory profiles (XMP), AMD EXPO technology
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Network controller Dragon RTL8125BG
Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x M.2 socket (2230 M.2 Key E slot); 2 x M.2 socket (2280 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 2 x 7-pin serial ATA - RAID 0 / RAID 1; PCIe 5.0 ports: 1 x M.2 - RAID 0 / RAID 1 / RAID 10; PCIe 4.0 ports: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
External interfaces: 1 x HDMI; 1 x USB-C 3.2 Gen 2; 3 x USB 3.2 Gen 2; 4 x USB 2.0; 2 x antenna; 1 x LAN (2.5Gigabit Ethernet); 1 x microphone – mini jack plug; 1 x audio line out – mini jack plug; 1 x audio line in – mini jack plug
Internal interfaces: 1 x USB-C 3.2 Gen 1 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 2 x USB 2.0 - multi-pin connector; 1 x audio - multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: Mini-ATX

Processor/type: Ryzen (unterstützt Ryzen 7000 Series)

RAM type: DDR5 RAM

Clock speed: 5600 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz

RAM / Max. upgrade: 92 GB

Interfaces: HDMI™
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Gigabit LAN (1/2.5 Gbps)
Microphone (3.5 mm jack)
Audio line in
Audio line out
Bluetooth
Wi-Fi 6E (IEEE 802.11ax)
Show more

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 6 x

No. of USB 3.2 2nd Gen (USB 3.1): 3 x

No. of USB 3.2: 2 x

No. of USB 3.0 ports: 2 x

Factory colour: Multicolour

Depth: 300 mm

Height: 100 mm

Width: 300 mm

Weight: 1.04

UKCA: yes
