ASRock Phantom Gaming Z890 Riptide WiFi Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chips
EAN:
Part number:
Item no:
Highlights & Details

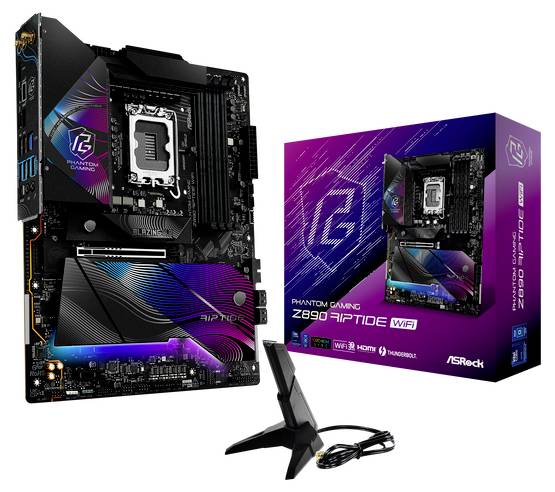

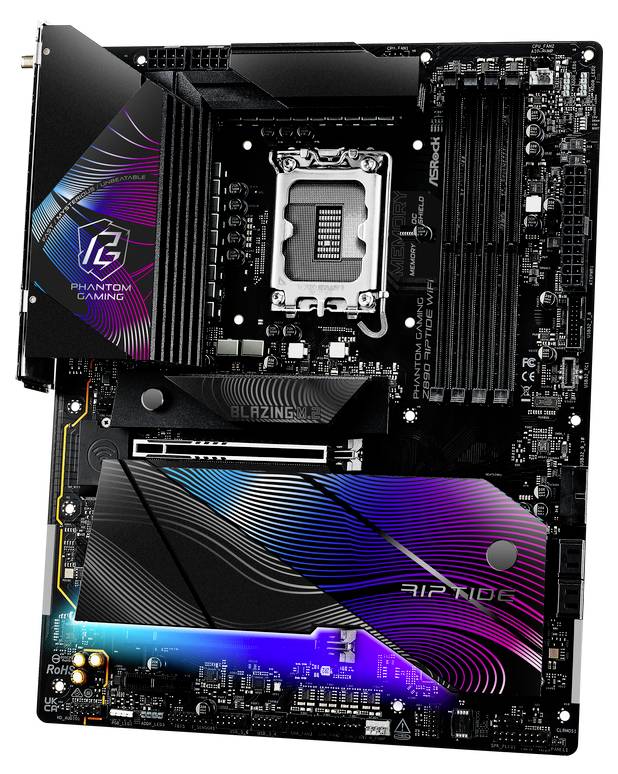

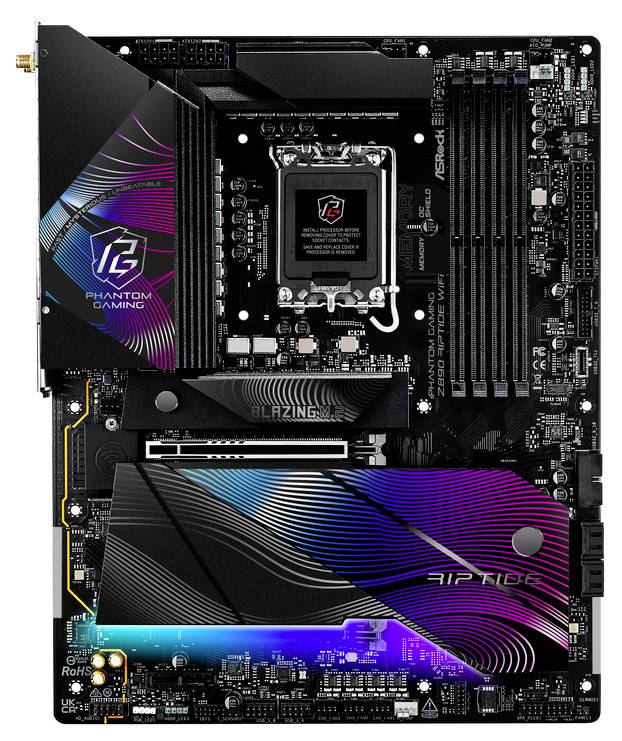

Phantom Gaming Z890 Riptide WiFi - ATX motherboard
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 4 x DDR5 DIMMs supports Dual channel, up to 9466+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1

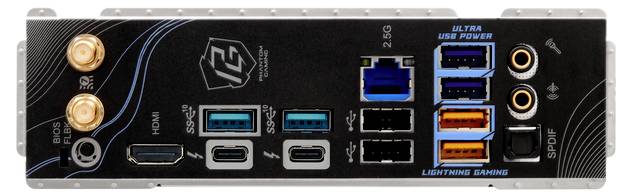

- Graphics Output Options: 1 HDMI; 2 Thunderbolt™ 4 Type-C.
- Realtek ALC1220 7.1 CH HD audio codec
Technical specifications
- 4x M2 interface (1x PCIe 5.0 x4, 3x PCIe 4.0 4x)
- Product type
Motherboard
- Chipset
Intel® Z890
#####Intel® 1851
- Form factor
ATX
- RAM type
DDR5 RAM
- Clock speed
9466 MHz
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
Bluetooth
Thunderbolt 4
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
2 x
- No. of PCIe x4
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
6 x
- No. of USB 3.2 2nd Gen (USB 3.1)
8 x
- No. of USB 3.2
2 x
- No. of USB 3.0 ports
3 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- Onboard graphics
1 HDMI 2.1; 2 Thunderbolt™ 4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342055 ASRock Phantom Gaming Z890 Riptide WiFi Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chips
Description
Based on the design concept "built for stability and reliability", ASRock makes no compromises in any detail. This motherboard is made from high-quality materials and enthusiasts can enjoy the over-clocking power of DDR5 memory by activating the pre-tested profiles. Simply make sure that the Intel® XMP/AMD EXPO™ memory modules are capable, and overclocking can be affordable, satisfactory and absolutely trouble-free.
This text is machine translated.
This text is machine translated.
Features
- PCIe Gen5 (Graphics, M.2)
- Dual channel DDR5
- Thunderbolt 4 type-C ports (40 GB/s)
- Server-grade low-loss PCB
- 18+1+1+1+1 Power phase, 80A SPS for Vcore+GT+SA with bigger heat-sink cover
- Memory OC shield
- Flexible integrated I/O-shielding
- 20K Long-life Capacitors (Black Caps) (High-quality, conductive polymer capacitors)
- Killer 2.5G LAN, 802.11be Wi-Fi 7 modules
- ASRock lightning gaming ports
- BIOS Flashback Button
- ASRock car driver installer
- ASRock post status checker
Hints
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
