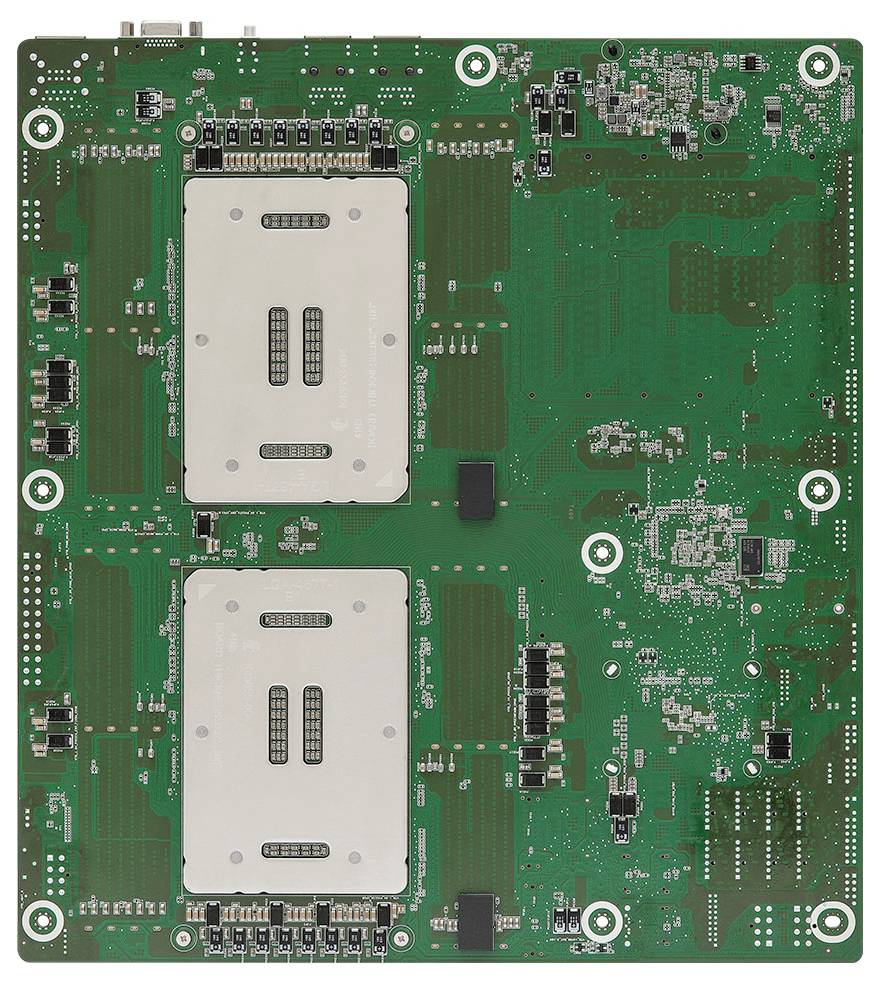

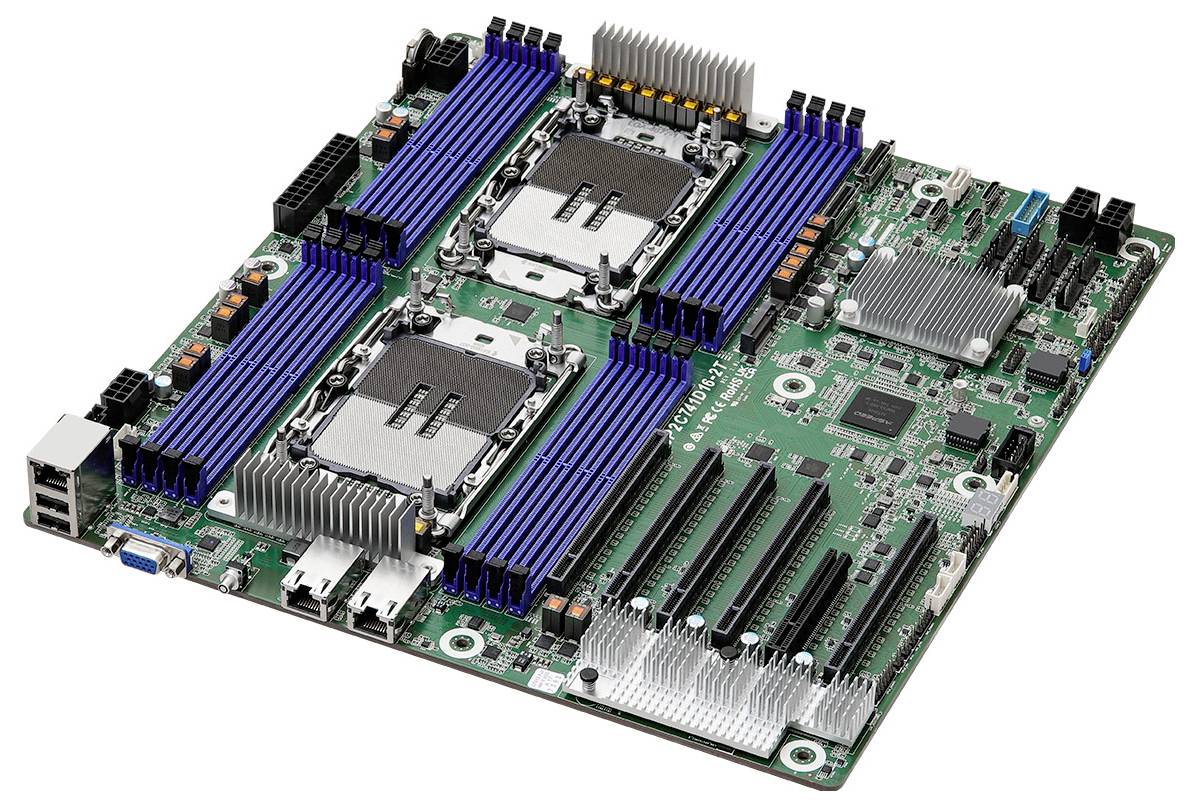

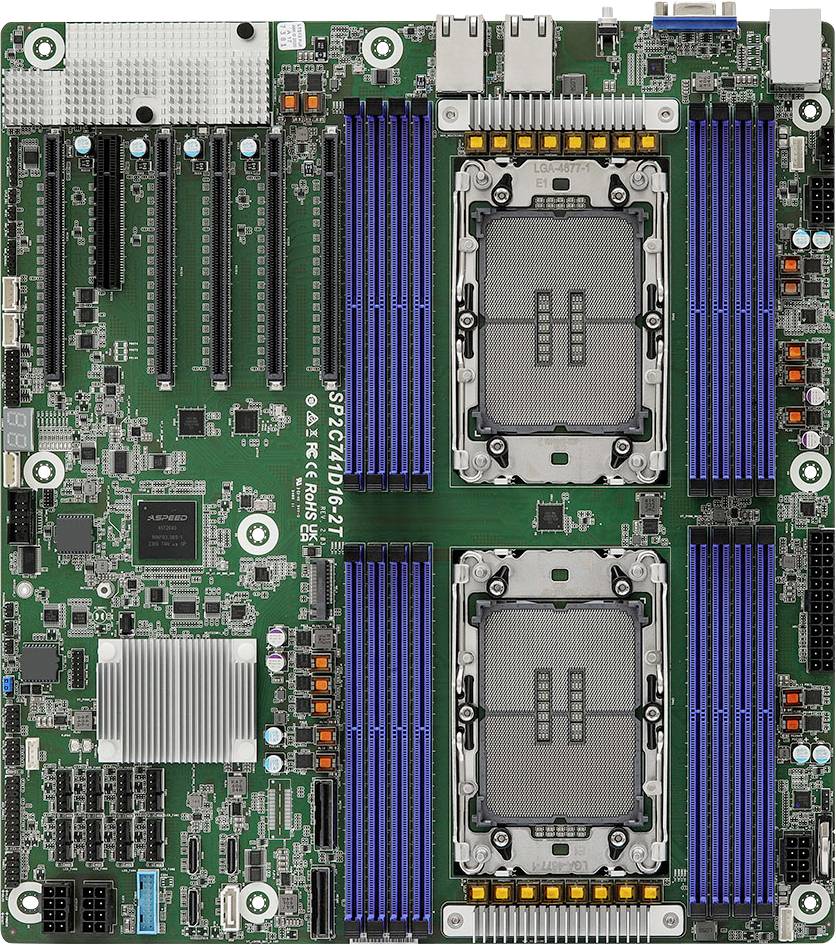

ASRock SP2C741D16-2T Motherboard PC base #####Intel® LGA 4677 Form factor (details) EEB
EAN:
Part number:
Item no:
ASRock SP2C741D16-2T Motherboard PC base #####Intel® LGA 4677 Form factor (details) EEB
Highlights & Details
- Intel LGA 4677 (socket E) Intel® Xeon®
- EEB
- DDR5 SDRAM 16
- BIOS Type: UEFI AMI 512 Mbit ACPI Version: 4.0
- This text is machine translated.
Technical specifications
- LGA 4677 (socket E)
- Supported processor slots: LGA 4677 (Socket E)
- Supported memory: DDR5 SDRAM
- Built-in graphics card model AEED AST2600
- Product type
Motherboard
- Form factor
EEB
#####Intel® LGA 4677
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
VGA
- No. of PCIe 3.0 x16
5 x
- No. of SATA III ports
4 x
- Depth
33.78 cm
- Width
30.7 cm
- Screen size diagonal (inches)
24 inch
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
2 x
- RAM type
DDR5 RAM
- Range of use
Server
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
512 Mbit
- Operating temperature (T-T)
10 - 35 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Number of memory slots
16
- Number of M.2 (M) slots
1
- ATX Power connector (24-pin)
yes
- TPM connector
yes
- PCI Express OCuLink connectors (NVMe support)
3
- Supported memory clock speed (max)
5600 MHz
- PCI Express x8 (Gen 5.x) slots
1
- EPS power connector (8-pin)
yes
- Storage temperature (T-T)
-40 - 70 °C
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- IPMI LAN (RJ-45) port
yes
