ASRock TRX50 WS Motherboard PC base #####AMD sTR5 Form factor (details) E-ATX Motherboard chipset AMD® TRX50
EAN:
Part number:
Item no:

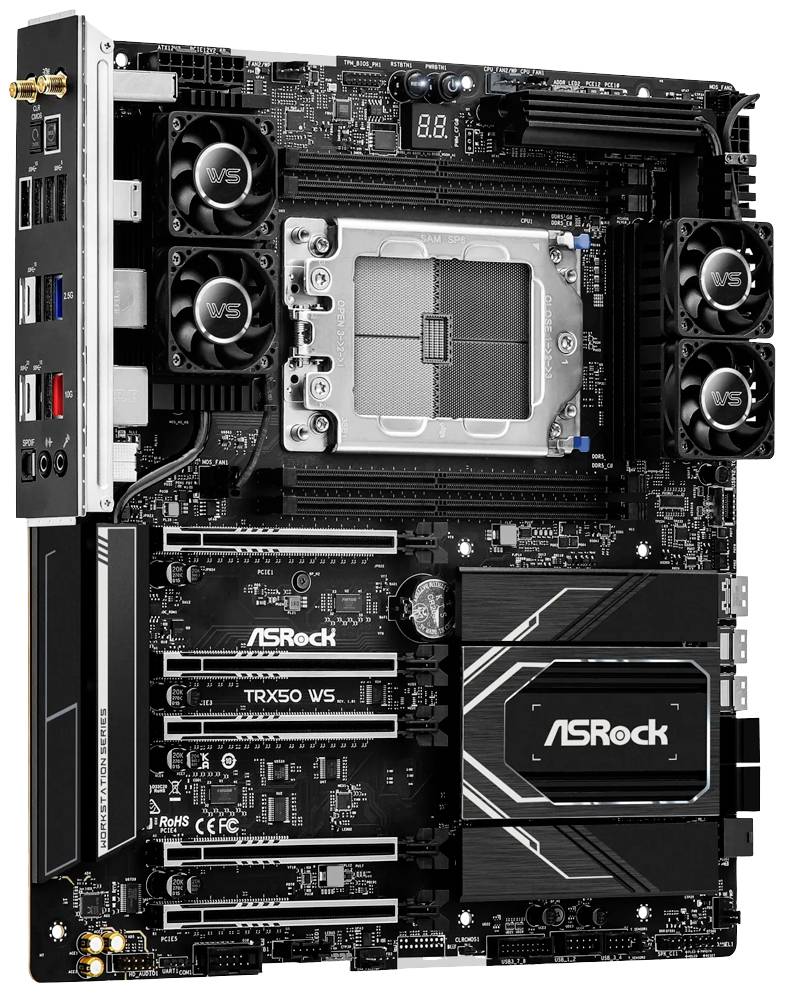

ASRock TRX50 WS Motherboard
Technical specifications
- Supported RAM Health Check: ECC
- RAM - Registered or buffered: Registered, buffered, 3DS-RDIMM
- RAM features: Four-channel memory architecture
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC1220
- Audio-compatibility: High-definition audio
- Network controller: Dragon RTL8125BG / Marvell AQC113
- Network interfaces: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 2 x PCIe 5.0 x16; 1 x PCIe 4.0 x16 (x4 mode); 1 x PCIe 4.0 x16 (8x mode); 1 x PCIe 5.0 x16 (8x mode); 1 x M.2 socket (2230 M.2 Key E slot); 2 x M.2 socket (2260/2280 M.2 Key M slot)
- Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10; PCIe 1 ports: 1 x Blazing M.2 - RAID 0 / RAID 5.0 / RAID 10; PCIe 4.0 ports: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10; SATA-600 / PCIe 4.0 connection points 2 x SlimSAS
- External interfaces: 2 x antenna; 1 x USB-C 3.2 Gen2; 1 x SPDIF output; 4 x USB-C 3.2 Gen 2; 1 x USB 3.2 Gen 2; 1 x USB 3.2 Gen 1; 2 x LAN (2.5Gigabit Ethernet); 1 x LAN (10Gigabit Ethernet); 1 x Audio Line Out - Mini jack plug; 1 x Microphone - Mini jack plug
- Internal interfaces: 1 x USB-C 3.2 Gen 2x2 - pin strip; 2 x USB 3.2 Gen 1 - pin strip; 4 x USB 2.0 - pin strip; 1 x SPI - pin strip; 1 x audio - pin strip; 1 x speaker - pin strip; 1 x serial - pin strip
- Power Connections: Main power connector, 24-pin, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors
- BIOS type: AMI
- BIOS FEATURES: UEFI BIOS
- Hardware features: ASRock instant flash, ASRock A-tuning, ASRock full HD UEFI, 2oz copper PCB, water pump header, pre-mounted I/O shield, 12 layer PCB, reinforced PCIe slots, surface mount technology (SMT), ASRock auto driver installer, Smart Power stage (SPS) technology, BIOS flash back button, Extended heat sink Armor, 110A Power stage, server-grade ultra-low-loss PCB, 20K black capacitors, ASRock Polychrome RGB, chipset heat sink, aluminum heat sink design, 18+3+3 Phase Power design
- Product type
Motherboard
- Chipset
AMD® TRX50
#####AMD sTR5
- Form factor
E-ATX
- Processor/type
Ryzen (unterstützt die Ryzen Threadripper PRO 7000 Series / 7000 Series)
- RAM type
DDR5 RAM
- Clock speed
7600 MHz
- RAM / Max. upgrade
1 TB
- Interfaces
USB C® (USB 3.2 2x 2nd gen)
USB A (USB 3.2 2nd gen)
S/PDIF
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Gigabit LAN (1/2.5 Gbps)
Gigabit LAN (10 Gbps)
Audio line in
Audio line out
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
2 x
- No. of PCIe 3.0 x16
2 x
- No. of PCIe 3.0 x16
3 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
4 x
- No. of USB 3.2
4 x
- No. of USB 3.0 ports
3 x
- No. of serial ports
1 x
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045580 ASRock TRX50 WS Motherboard PC base #####AMD sTR5 Form factor (details) E-ATX Motherboard chipset AMD® TRX50
Description
Scope of delivery
- 2 x M2 screws
- 2 x thermistor cable
- 2 x spacer for M.2 socket
- ASRock WiFi 2.4/5/6 GHz antenna
- 4 x Serial ATA cable
- 1 x Multi PSU Adapter cable
