ASRock TURIN2D16-2T Motherboard PC base #####AMD SP5 Form factor (details) EEB Motherboard chipset SoC
EAN:
Part number:
Item no:

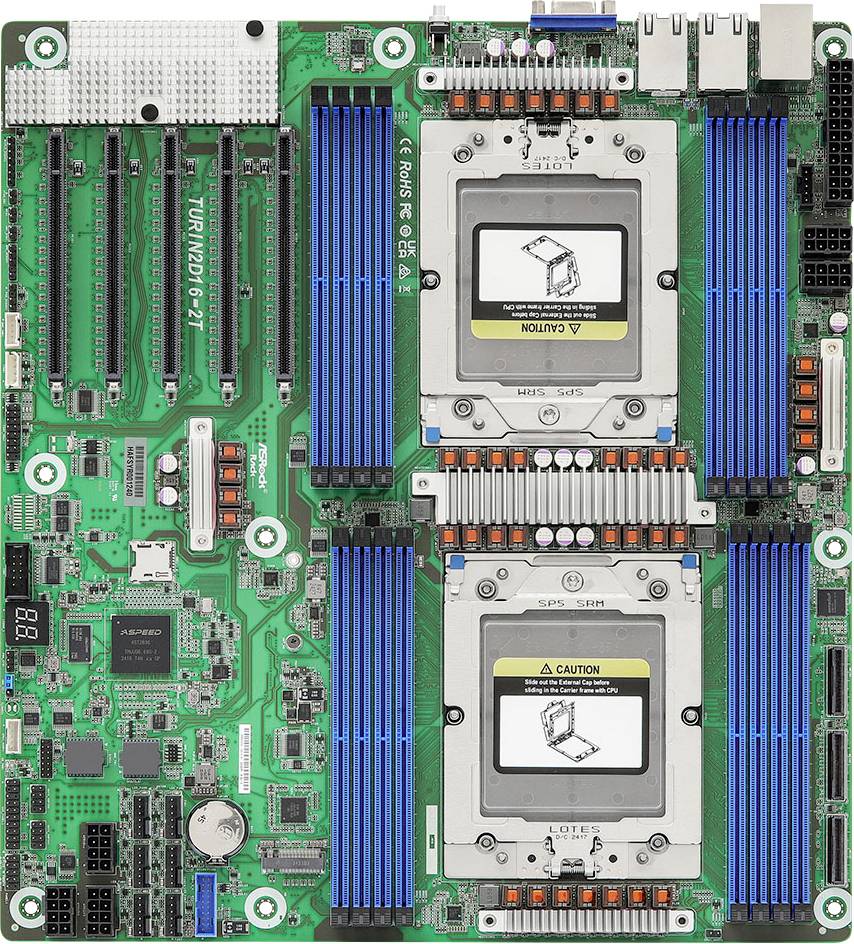

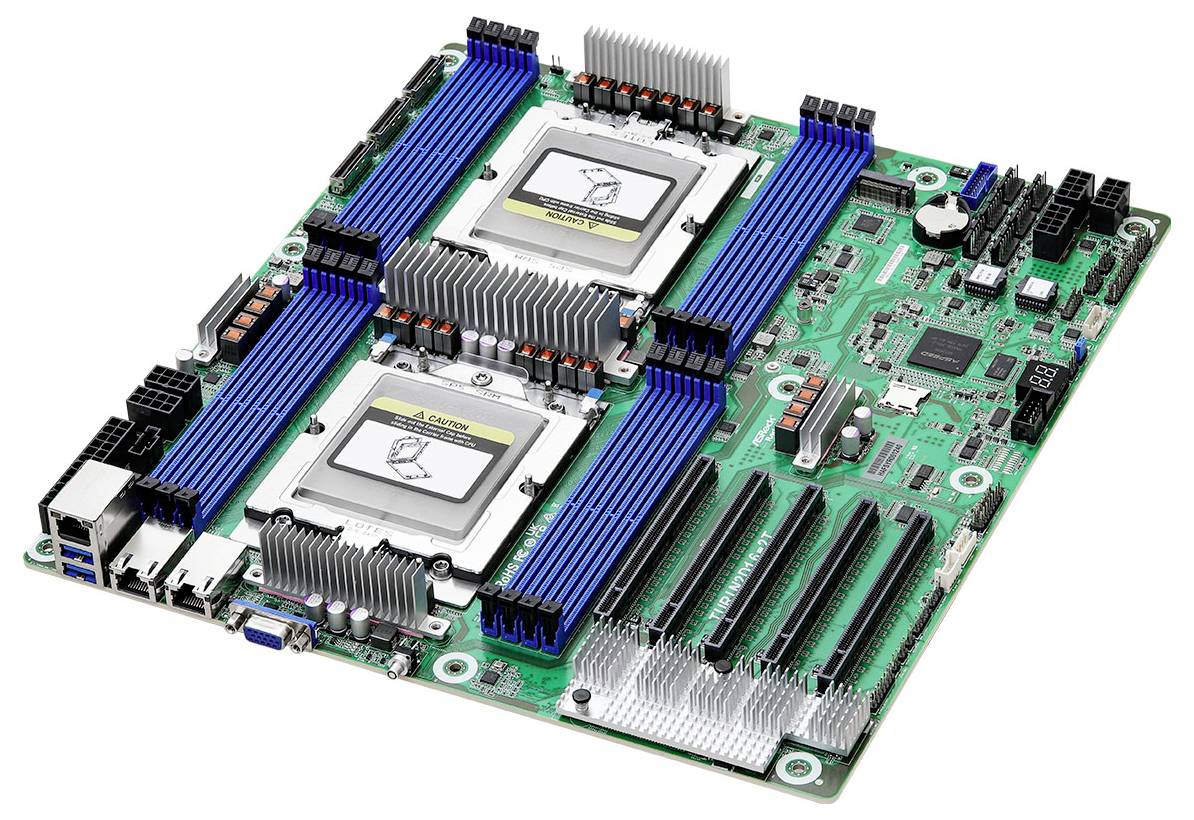

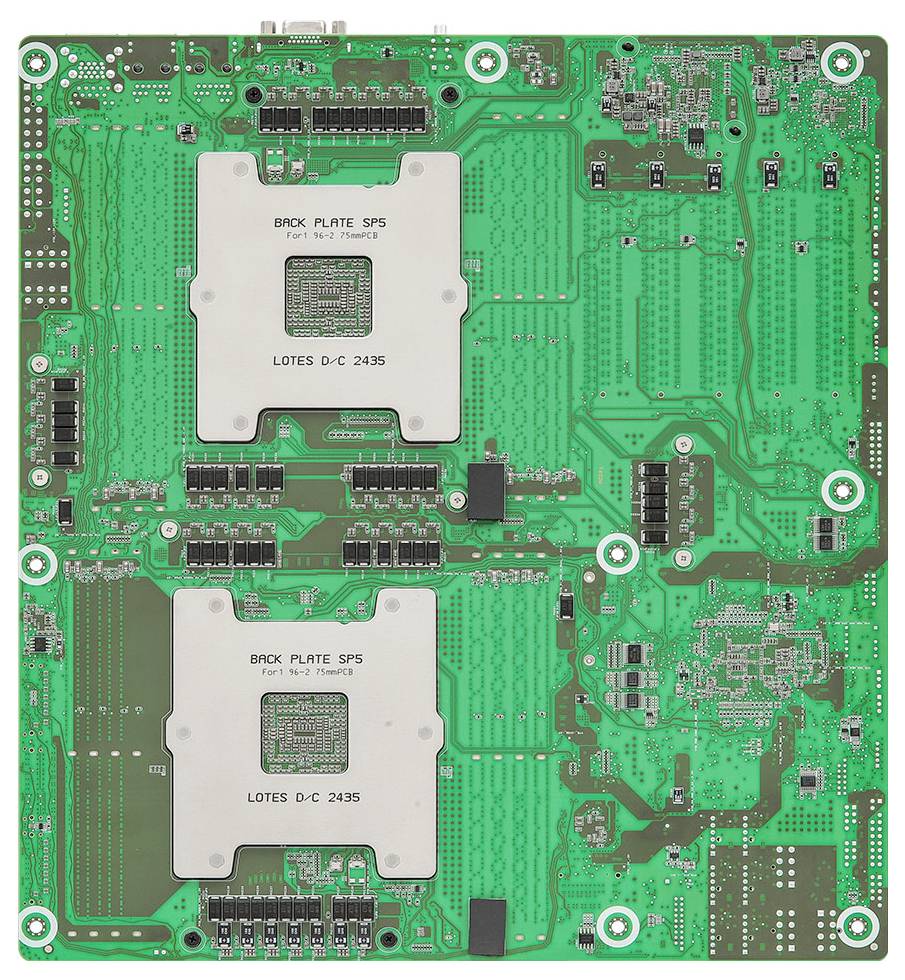

ASRock TURIN2D16-2T motherboard AMD SoC socket SP5 EEB
Highlights & Details
- AMD socket SP5 AMD EPYC 9004
- Server EEB AMD SoC
- DDR5 SDRAM 16 DIMM RAM maximum: 256 GB
- SATA III
- ASPEED AST2600
- BIOS Type: AMI 256 Mbit ACPI Version: 6.4
- 10 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- Socket SP5
- Supported memory: DDR5 SDRAM
- Number of memory slot pins: 288
- Motherboard AMD SoC
- Product type
Motherboard
- Form factor
EEB
#####AMD SP5
- Chipset
SoC
- Graphics card type
ASPEED
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
VGA
- No. of PCIe 3.0 x16
3 x
- No. of PCIe 3.0 x16
2 x
- No. of SATA III ports
16 x
- Depth
33.53 cm
- Width
30.48 cm
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Onboard graphics card
Yes
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
2 x
- RAM / Max. upgrade
256 GB
- RAM type
DIMM
- Range of use
Server
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Operating temperature (T-T)
10 - 35 °C
- Ethernet LAN
yes
- Maximum number of SMP processors
2
- Number of memory slots
16
- TPM connector
yes
- Operating relative humidity (H-H)
20 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- IPMI LAN (RJ-45) port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531342 ASRock TURIN2D16-2T Motherboard PC base #####AMD SP5 Form factor (details) EEB Motherboard chipset SoC
