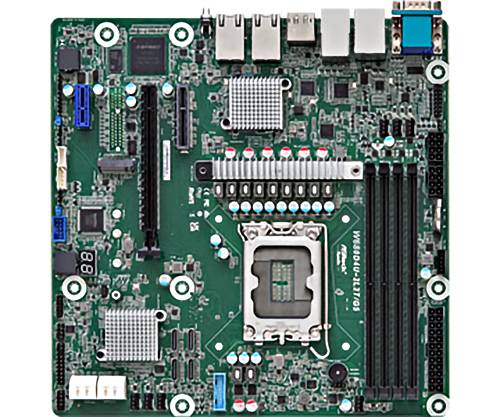

ASRock W680D4U-2L2T/G5 Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® W
EAN:
Part number:
Item no:
Highlights & Details
ASRock W680D4U-2L2T/G5 motherboard Intel W680 LGA 1700 micro ATX
- Intel LGA 1700 Intel core i9 13th Gen, Intel core i9 12th Gen, Intel core i7 13th Gen, Intel core i7 12th Gen, Intel core i5 13th Gen, Intel core i5 12th Gen, Intel core i3 13th Gen, Intel core i3 12th Gen
- PC micro Intel W680
- DDR5 SDRAM 4 DIMM RAM maximum: 32 GB
- SATA RAID support
- BIOS Type: AMI 256 Mbit ACPI Version: 6.4
- 10 Gigabit Ethernet, Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC and non-ECC
- Intel W680 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
- Form factor
Micro-ATX
#####Intel® 1700
- Chipset
Intel® W680
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
DisplayPort
HDMI™
USB A (USB 2.0)
VGA
- No. of DDR5 slots
4 x
- No. of USB 2.0 ports
2 x
- Cable length
0 cm
- Depth
24.38 cm
- Width
24.38 cm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Keyboard layout
German, QWERTZ
- Operating voltage
1.1 V
- 10/100/1000 Mbps ports
4 x
- RAM / Max. upgrade
32 GB
- RAM type
DIMM
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Operating temperature (T-T)
10 - 35 °C
- Serial ports quantity
1
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Number of memory slots
4
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- TPM connector
yes
- RGB LED pin header
yes
- RAID support
yes
- Storage temperature (T-T)
-40 - 70 °C
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- IPMI LAN (RJ-45) port
yes
