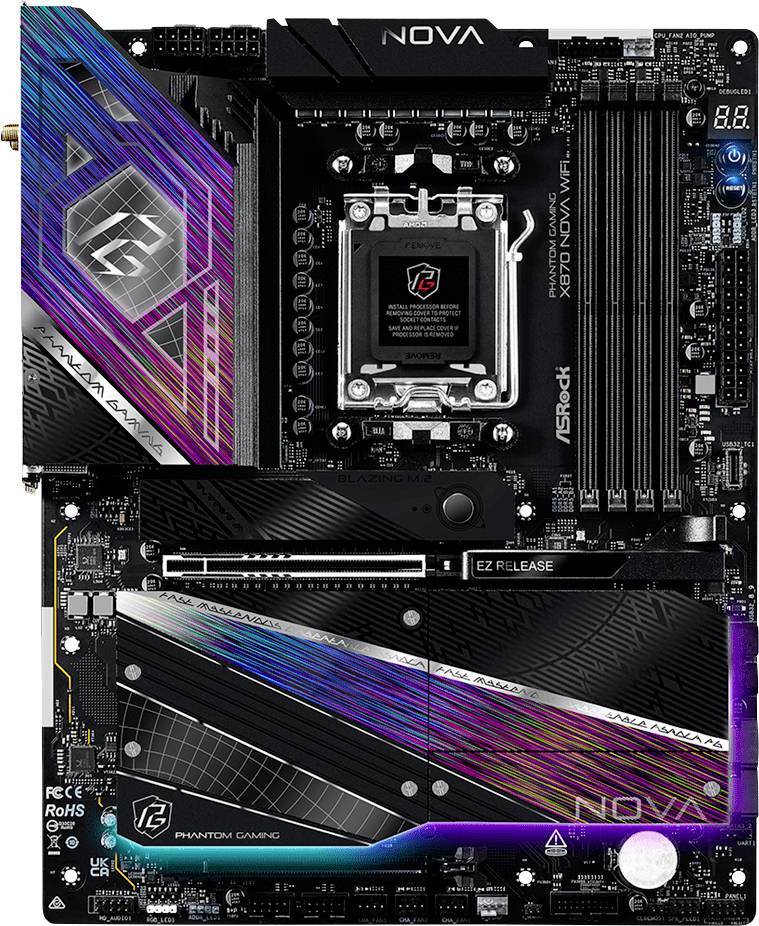

Motherboard with a vibrant, geometric design featuring multiple PCIe slots, RAM slots, and a large CPU socket. Labeled 'Phantom Gaming'.

Motherboard with a vibrant, geometric design featuring multiple PCIe slots, RAM slots, and a large CPU socket. Labeled 'Phantom Gaming'.

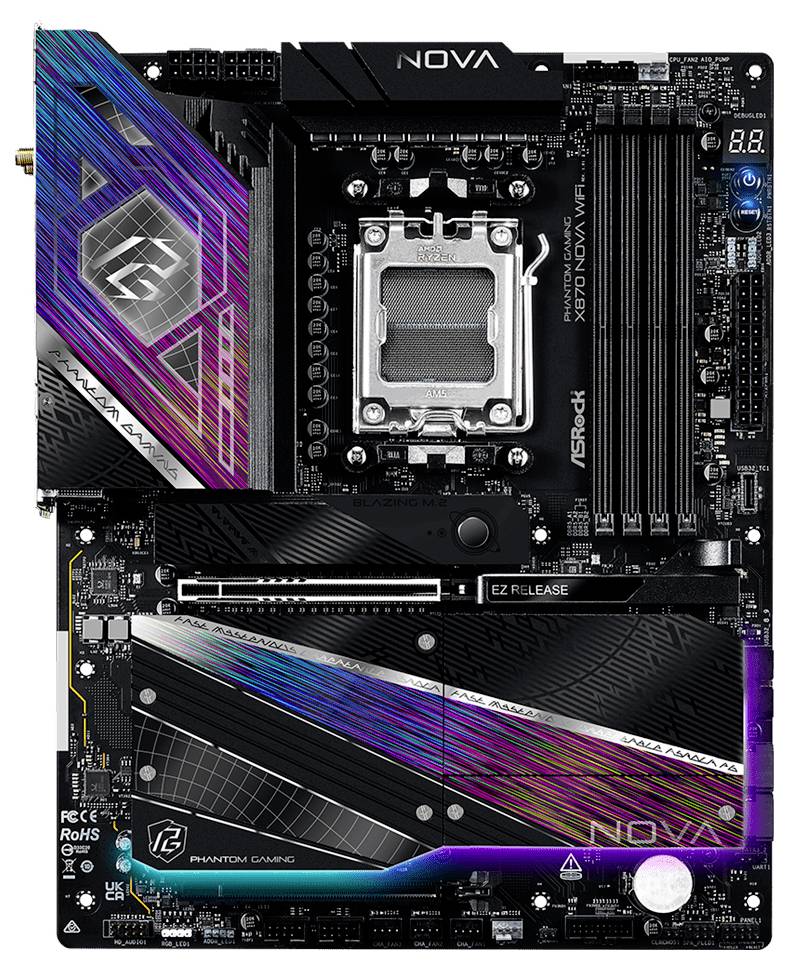

A computer motherboard with colored stripes, labeled 'AsRock X670E Nova WiFi.' Features slots for CPU, RAM, and other components.

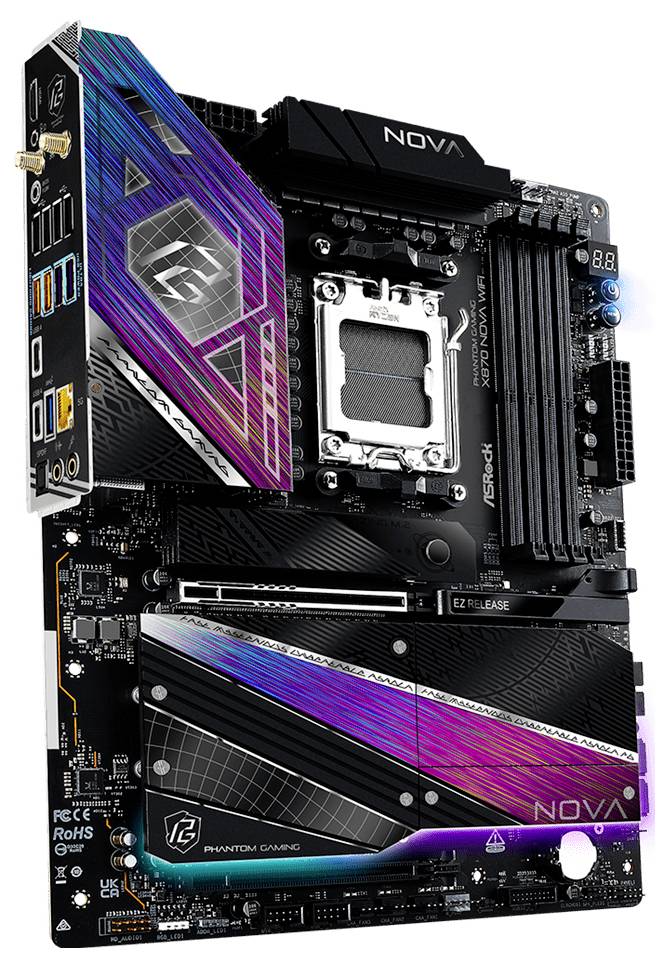

A motherboard featuring vibrant, angular patterns and multiple connection ports. The design combines both utility and colorful aesthetics.

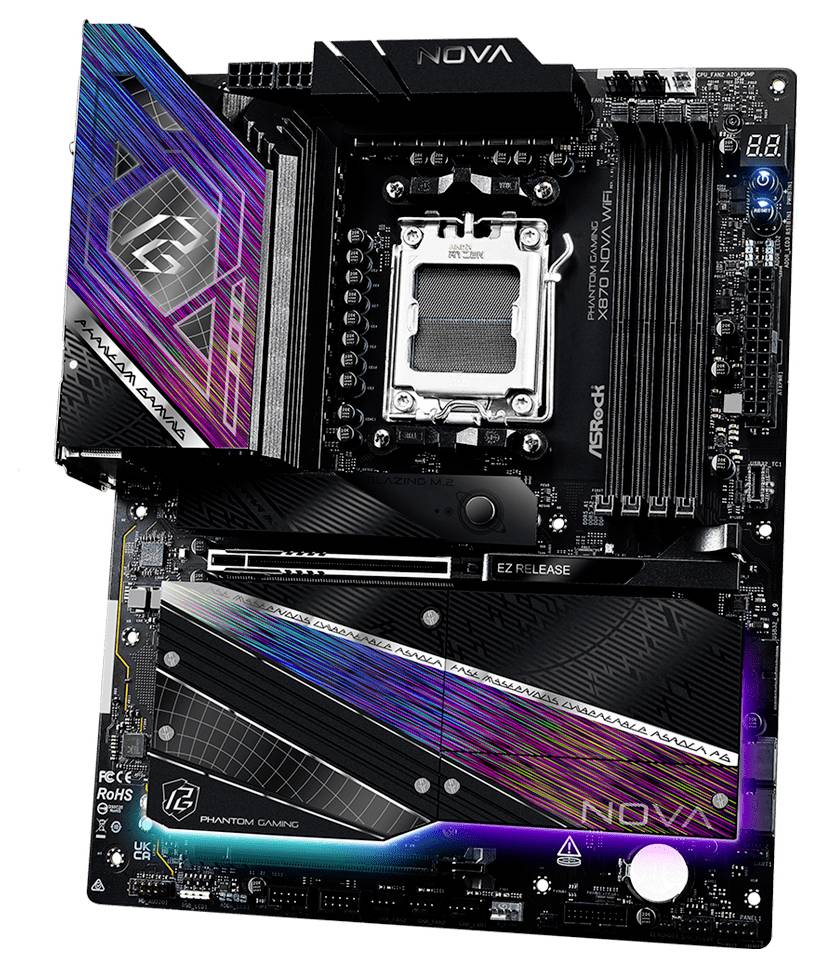

ASRock B650E NOVA WiFi motherboard with RGB lighting, displaying various components like RAM slots, CPU socket, and heatsinks.

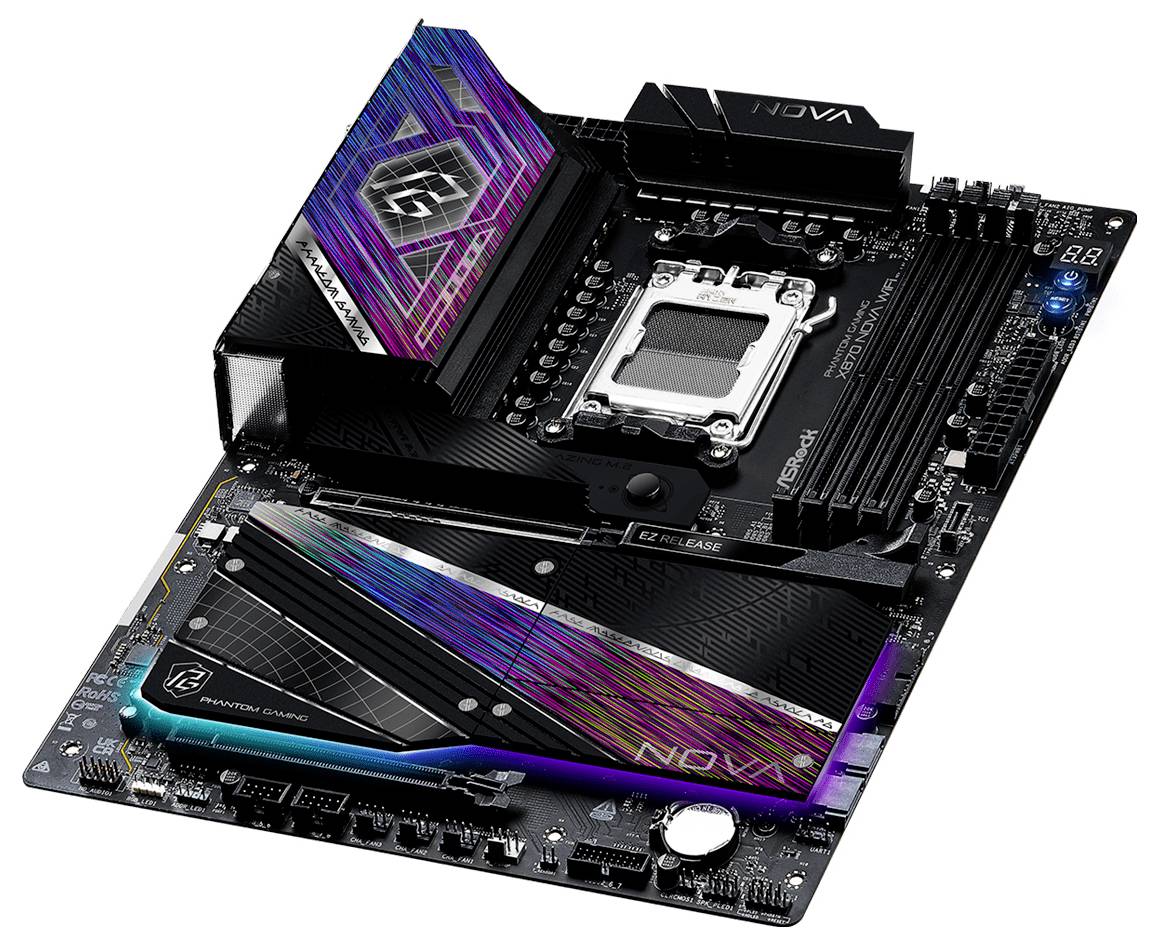

'A black motherboard with colorful accents and various slots and connectors, designed for computer hardware assembly and upgrades.'

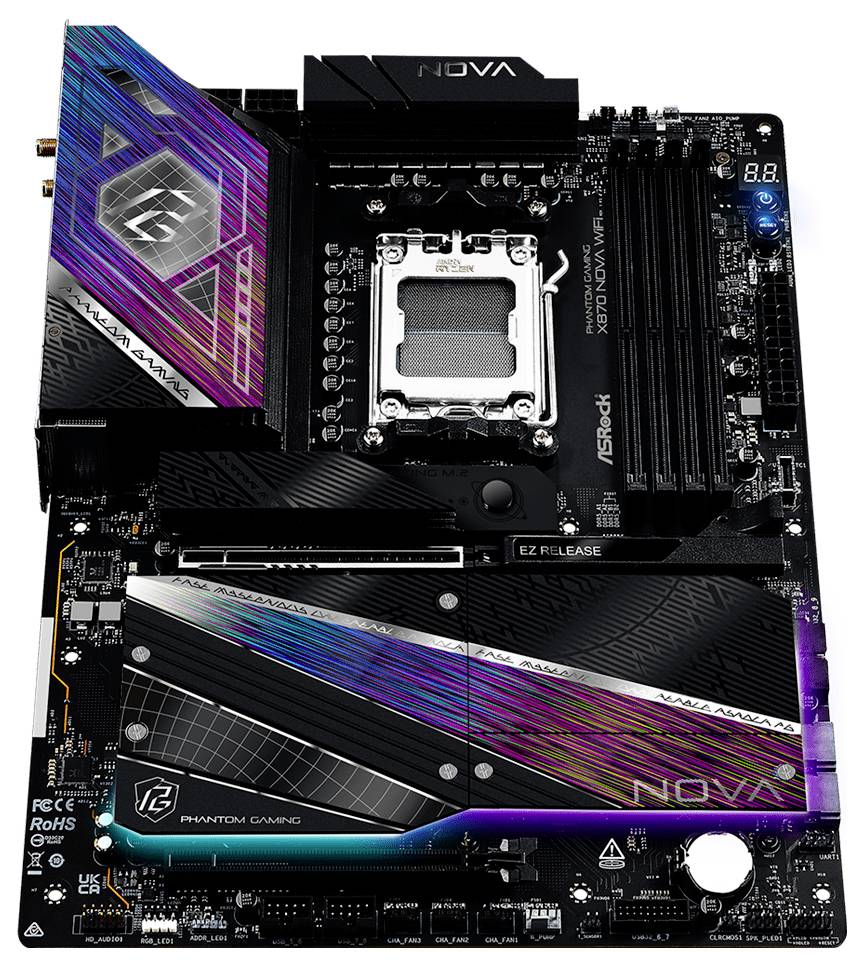

Motherboard with colorful design features an LGA socket, RAM slots, expansion slots, and heat sinks; labeled 'Phantom Gaming' and 'Nova.'

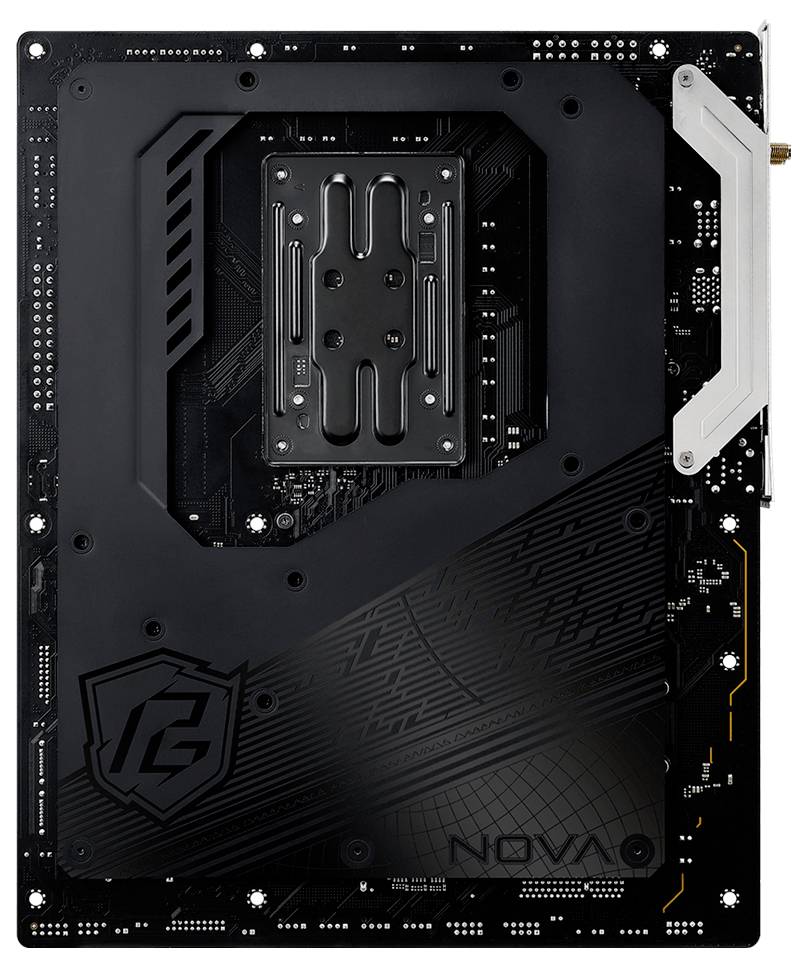

The image shows the rear side of a black computer motherboard with a socket in the center and various connection ports around the edges.

1/7

ASRock

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ASRock X870 Motherboard

Highlights & Details

AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
PC ATX AMD X870 Realtek ALC4082 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, SATA III RAID SUPPORT
UEFI AMI 256 Mbit BIOS type
5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
This text is machine translated.

Technical specifications

Socket AM5
Supported memory: DDR5 SDRAM
ECC compatibility: ECC and non-ECC
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 2
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 7 (802.11be)
AMD X870 motherboard chipset

Product type: Motherboard

Chipset: AMD® X870

: #####AMD AM5

Form factor: ATX

Processor/type: Ryzen 7000 Series. Ryzen 8000 Series. Ryzen 9000 Series

RAM type: DIMM

RAM / Max. upgrade: 256 GB

Interfaces: USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB A (USB 3.1 2nd gen)
HDMI™

No. of DDR5 slots: 4 x

No. of LAN ports: 1 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

Onboard audio: 7.1

Bluetooth: 5.4

Bluetooth: Yes

Depth: 244 mm

Width: 305 mm

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

No of. USB type A 3.1 /3.2 2nd gen: 2 x

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 1

Microphone in: yes

S/PDIF out port: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

RGB LED pin header: yes

USB4 Gen 2x2 ports quantity: 2

USB 3.2 Gen 2x2 connectors: 1

EPS power connector (8-pin): yes

RAID support: yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
