ASRock X870 Taichi Creator Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X870
EAN:
Part number:
Item no:

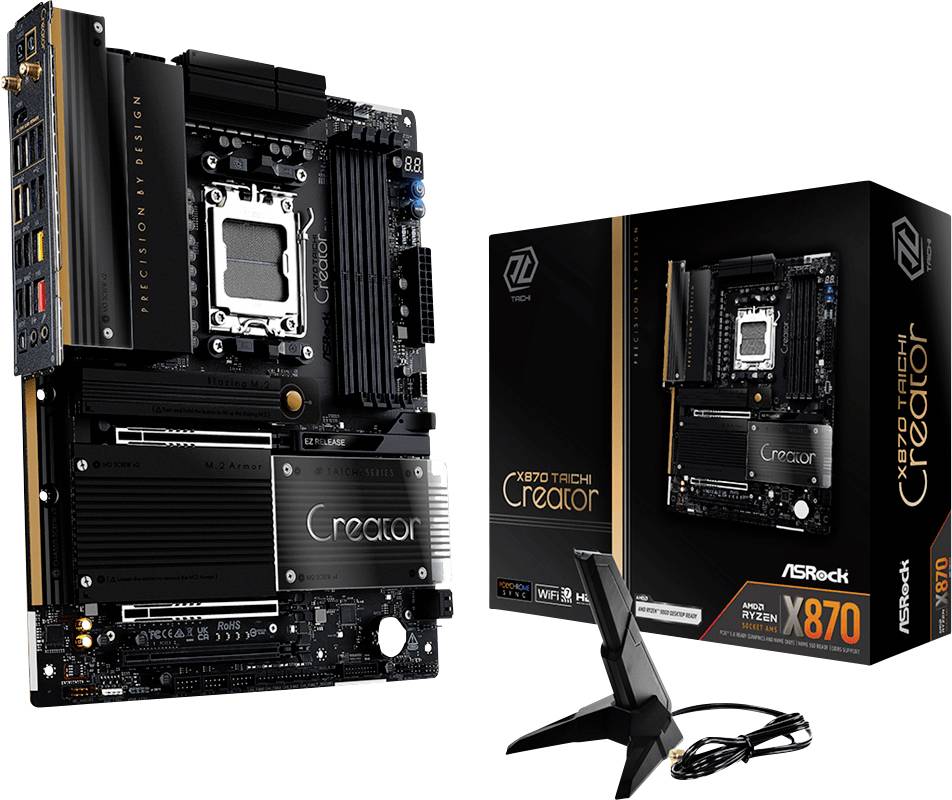

ASRock X870 Taichi Creator Motherboard
Highlights & Details
- Supports AMD AM5 base Ryzen™ 9000, 8000 and 7000 series
- 18+2+1 Power phase, 80A SPS for Vcore+SOC
- 4 x DDR5 DIMMs, supports Dual channel, up to 8000+ (OC)
- 2 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics output: 1 HDMI, 2 USB4 type-C
- Audio: Realtek ALC4082 7.1 CH HD audio codec, Nahimic audio
Technical specifications
- Operating system: Microsoft® Windows® 10 64-bit / 11 64-bit
- LAN: 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 MB/s (Marvell (Aquantia) AQC113)
- USB: CPU: 2 x USB4 Type-C (Rear), 1 x USB 3.2 2nd Gen Type-A (Rear (USB32_8), 4 x USB 3.2 Gen1 Type-A (Rear (USB32_1234) | Chipset: 1 x USB 3.2 2x type-C (front), 1 x USB 3.2 2nd Gen type A (rear (USB32_7)), 6 x USB 3.2 1st Gen type A (2 rear (USB32_56), 4 front), 8 x USB 2.0 (2 rear, 6 front)
- Connection: 1 x thermistor cable header; 1 x Power LED and speaker header; 1 x RGB LED headers; 3 x addressable LED headers; 2 x CPU fan connector (4-pin) (Smart fan speed control); 4 x chassis fan connectors (4-pin) (Smart fan speed control); 1 x AIO pump fan connector (4-pin) (Smart fan speed control); 1 x 24-pin ATX Power connector (hi-density Power connector); 2 x 8-pin 12V Power connectors (hi-density Power connector); 1 x front panel audio connector (15μ gold audio connector); 3 x USB 2.0 headers (support 6 USB 2.0 ports); 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports); 1 x front panel type C USB 3.2 Gen2 headers (20 GB/s); 1 x Dr. Debug with LED; 1 x Power Button with LED; 1 x Reset Button with LED

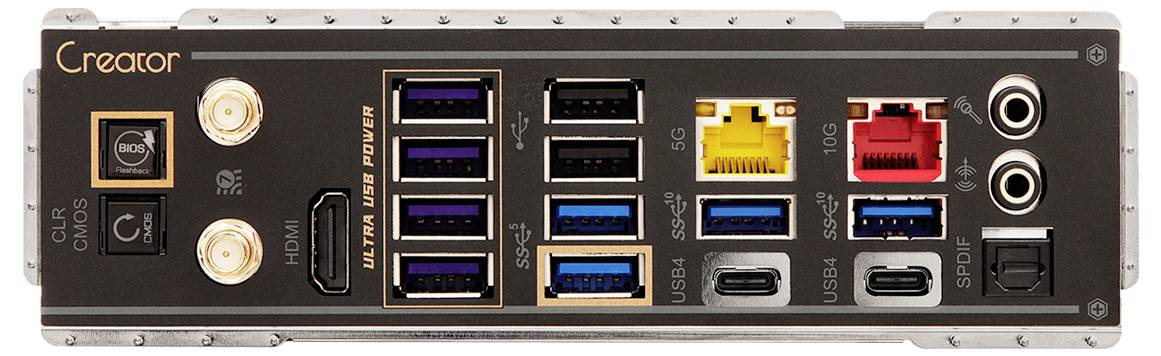

- Faceplate: 2 x antenna ports; 1 x HDMI port; 1 x optical SPDIF out port; 2 x USB4 type C ports (40 GB/s); 2 x USB 3.2 2nd Gen type A ports (10 GB/s); 6 x USB 3.2 1st Gen type A ports (USB32_1234 supports Ultra USB Power.); 2 x USB 2.0 ports; 2 x RJ-45 LAN ports; 1 x Clear CMOS button; 1 x BIOS Flashback Button; 1 x Line-Out jack (Gold Audio jack); 1 x Microphone input socket (Gold Audio jack)
- Product accessories: 4 x SATA data cables; 1 x ASRock WiFi 2.4/5/6 GHz antenna; 1 x ARGB splitter cable; 1 x thermistor cable
- Product type
Motherboard
- Chipset
AMD® X870
#####AMD AM5
- Form factor
ATX
- Processor/type
AMD Ryzen™ 9000, 8000 und 7000 Serie
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
USB C®
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
S/PDIF (optical)
Audio line out
Microphone input
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
2 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
4 x
- Onboard audio
7.1 HD
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3537881 ASRock X870 Taichi Creator Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X870
Description

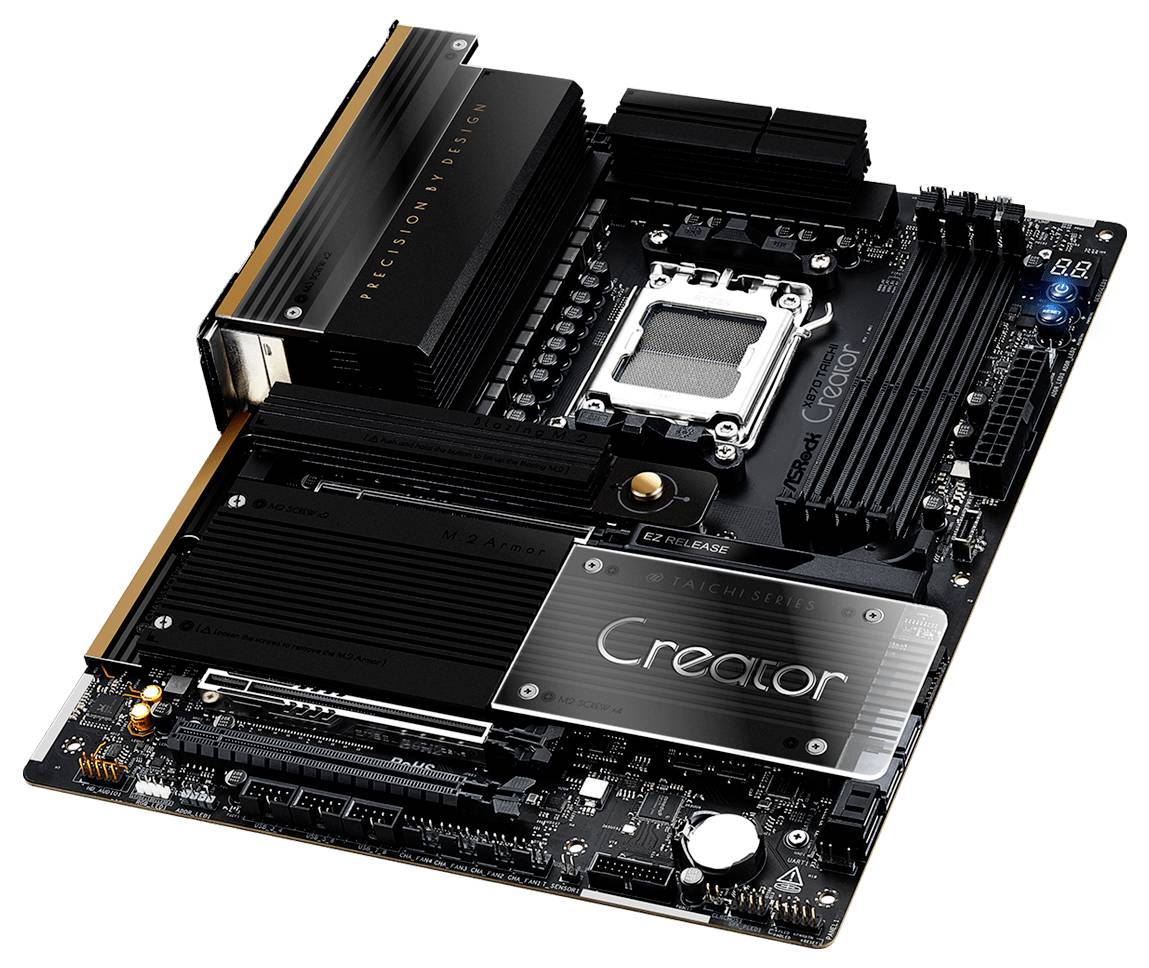

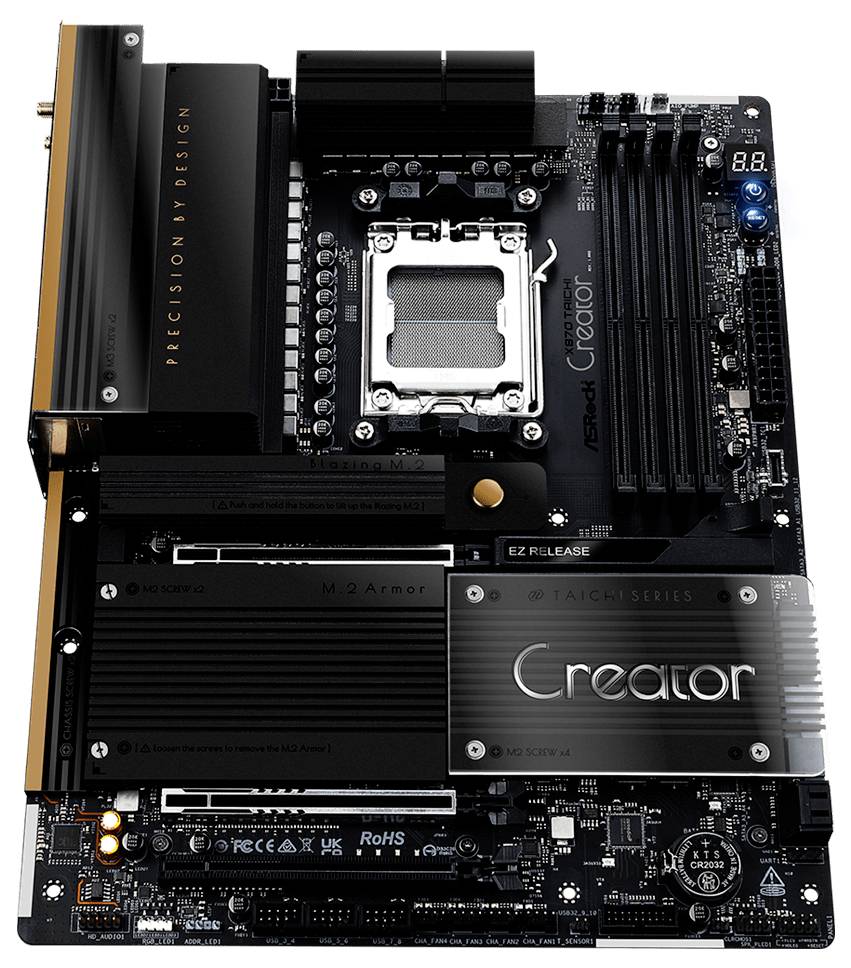

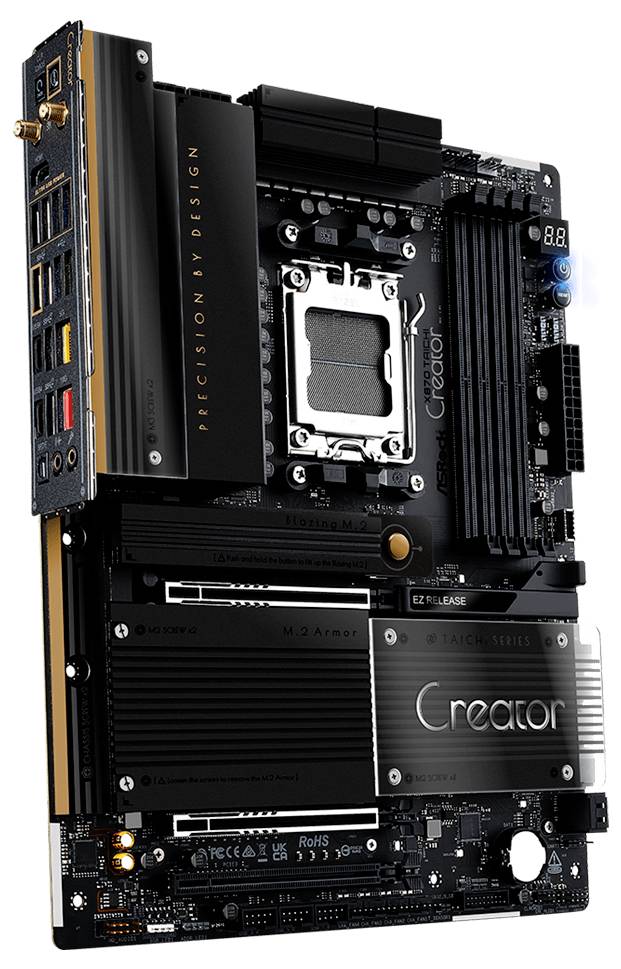

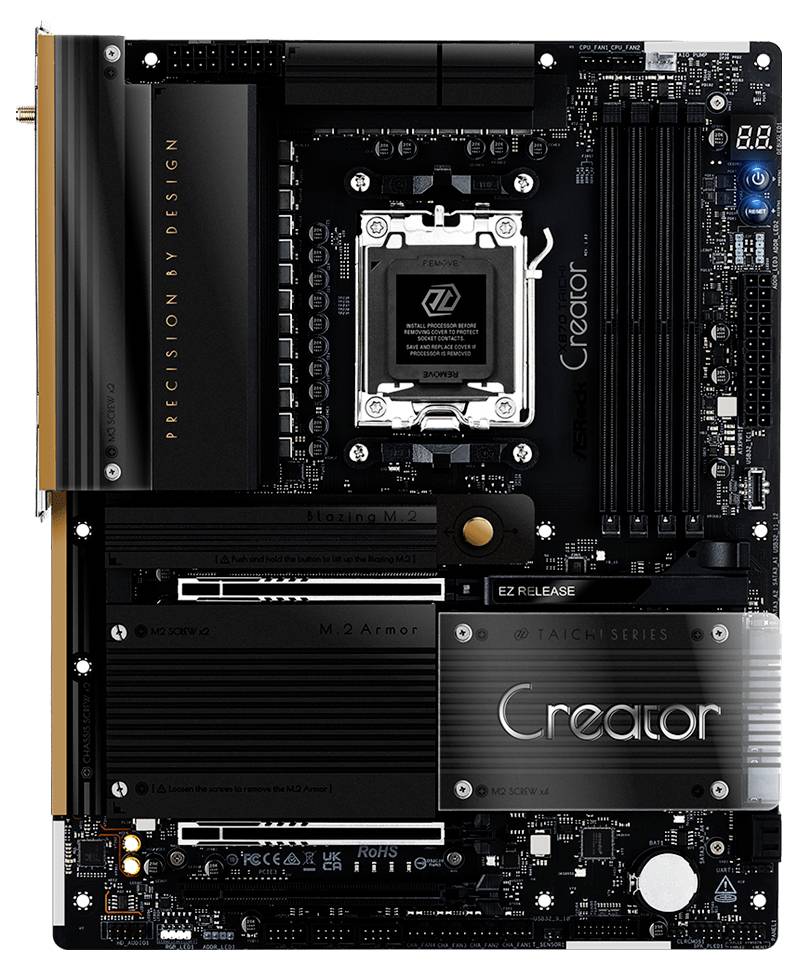

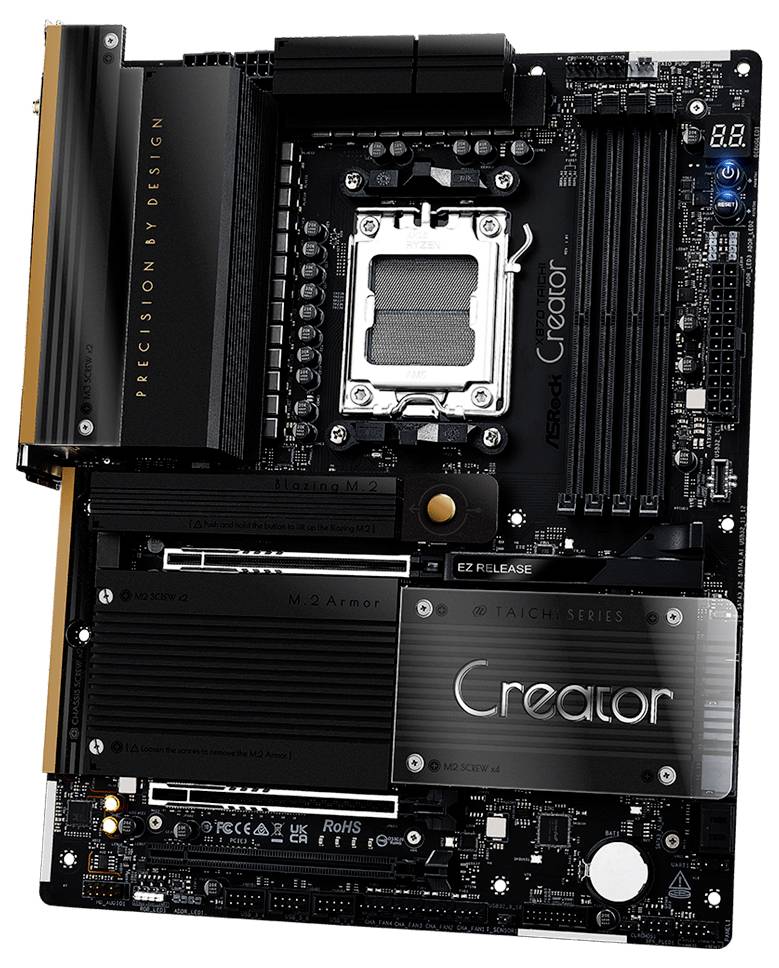

The X870 Taichi Creator features 10 GbE and 5 GbE LAN, two USB4 type C ports, two Gen5-M.2 slots, and two PCIe 5.0 x16 slots with additional spacing for Dual GPU configurations. Its sharp lines, metallic edges and mirrored type plate reflect the characteristic Taichi Creator style - precision meets elegance.
