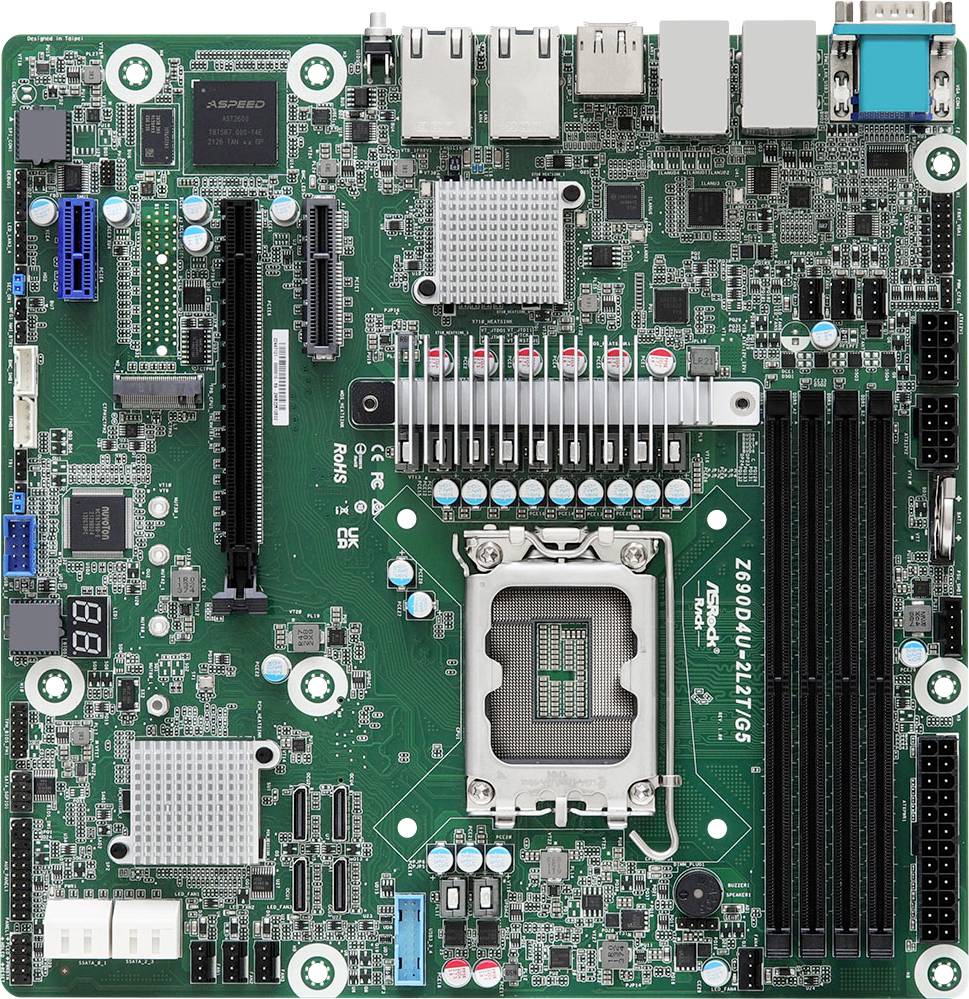

A computer motherboard with various slots, ports, and a central processor socket.

A computer motherboard with various slots, ports, and a central processor socket.

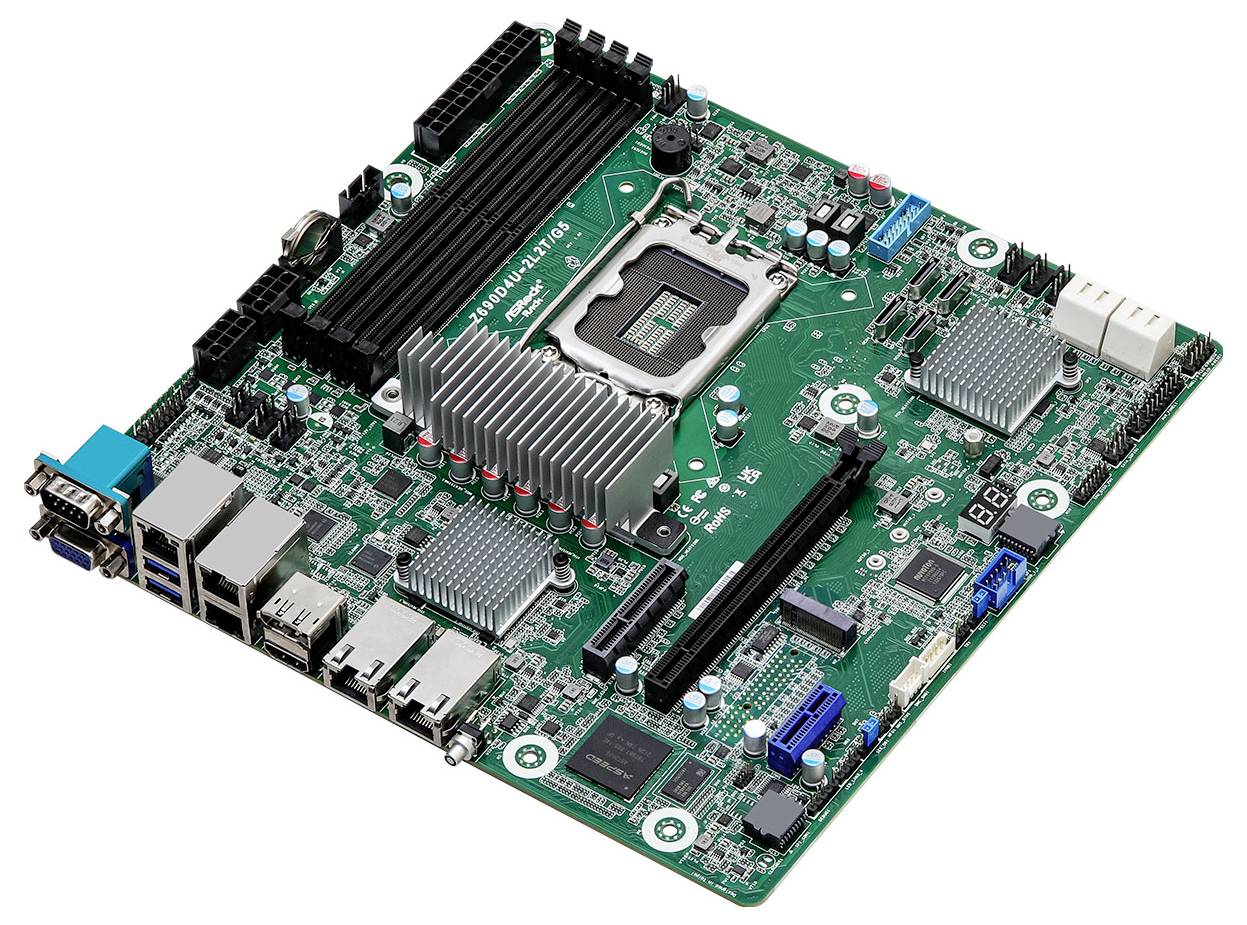

A computer motherboard displaying various ports, slots, and a central processing unit (CPU) socket, crucial for computer hardware integration.

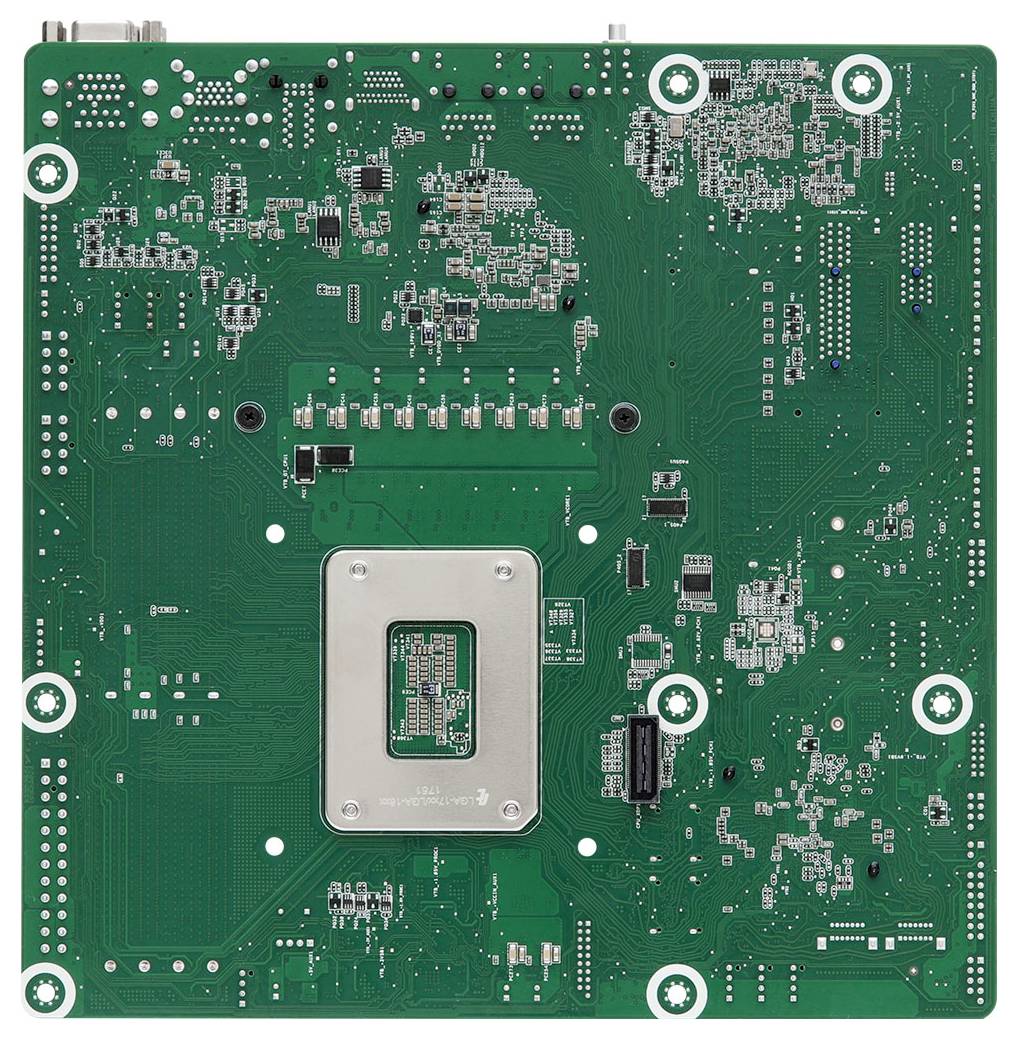

Green circuit board with various electronic components, traces, and connectors, featuring a central rectangular metallic area for a processor.

1/3

ASRock

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ASRock Z690D4U-2L2T/G5 Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® Z690

Highlights & Details

Intel LGA 1700 Intel® Celeron®, Intel® Pentium®
Server micro ATX Intel Z690
DDR5 SDRAM 4 DIMM
HDD & SSD M.2, SATA III
ASPEED AST2600
BIOS Type: AMI ACPI Version: 6.4
This text is machine translated.

Technical specifications

LGA 1700 processor socket
Supported memory: DDR5 SDRAM
ECC compatibility: Non-ECC
Intel Z690 motherboard chipset
Motherboard form factor: Micro ATX

Product type: Motherboard

Form factor: Micro-ATX

: #####Intel® 1700

Chipset: Intel® Z690

Graphics card type: ASPEED

Interfaces: Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
DisplayPort
HDMI™
USB A (USB 2.0)
VGA

No. of PCIe 3.0 x16: 1 x

No. of SATA III ports: 8 x

No. of USB 2.0 ports: 2 x

Depth: 24.4 cm

Width: 24.4 cm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

10/100/1000 Mbps ports: 4 x

RAM type: DIMM

Range of use: Server

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): 10 - 35 °C

Serial ports quantity: 1

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 1

Maximum number of SMP processors: 1

Number of memory slots: 4

Number of M.2 (M) slots: 1

Front panel connector: yes

ATX Power connector (24-pin): yes

TPM connector: yes

PCI Express x4 (Gen 4.x) slots: 1

Operating relative humidity (H-H): 20 - 90 %

Storage temperature (T-T): -40 - 70 °C

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

IPMI LAN (RJ-45) port: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3531325 ASRock Z690D4U-2L2T/G5 Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® Z

Description

Features

Micro ATX (9.6" x 9.6")
Supports 12th & 13th Gen Intel® Core™, Pentium® and Celeron® series processors
4 DIMM slots (2DPC), supports DDR5 non-ECC UDIMM
1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 3.0 x1
3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
Supports 1 M.2 (PCIe3.0 x4)
2 RJ45 (10GbE) by Intel® X710
2 RJ45 (1GbE) by Intel i210
Up to 8 SATA 6Gb/s
1 VGA, 1 HDMI, 1 DisplayPort
Remote management (IPMI)
