Name: ASRock Z890 LiveMixer WiFi Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89
Brand: ASRock
SKU: 3342058

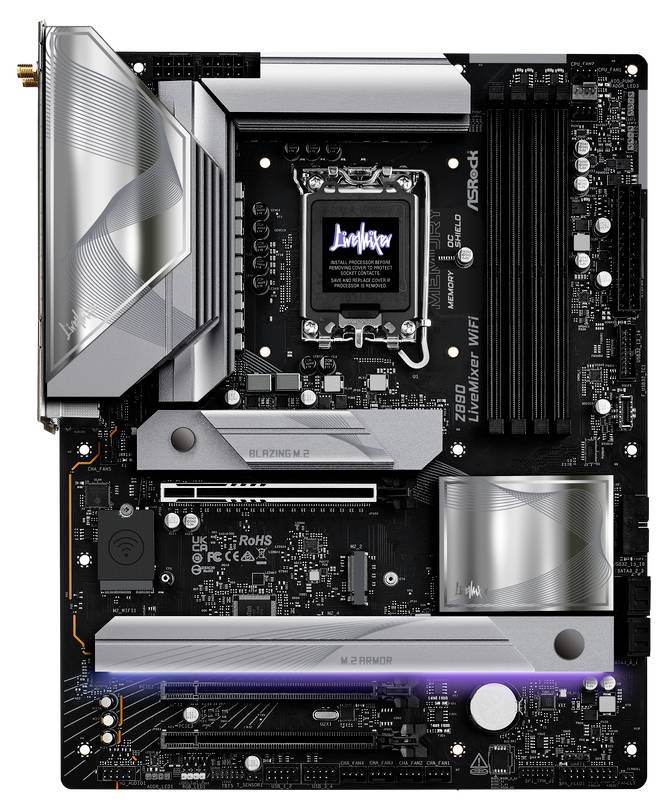

Motherboard with multiple expansion slots, connectors, and a large heatsink. The screen displays 'LiveMixer'.

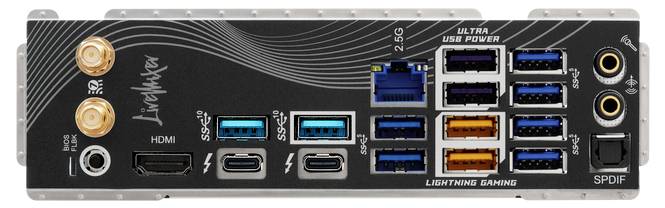

Back of a computer motherboard with multiple USB ports, HDMI, Ethernet port, and audio connections for gaming and connectivity.

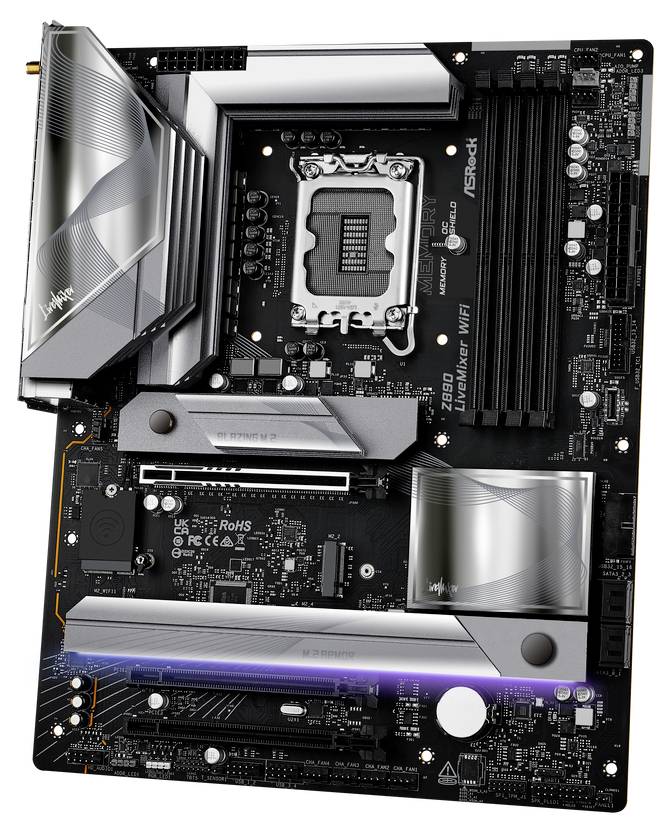

A motherboard with an Intel LGA1200 socket, PCIe slots, and various connections. Notable features include the heatsinks and RGB lighting.

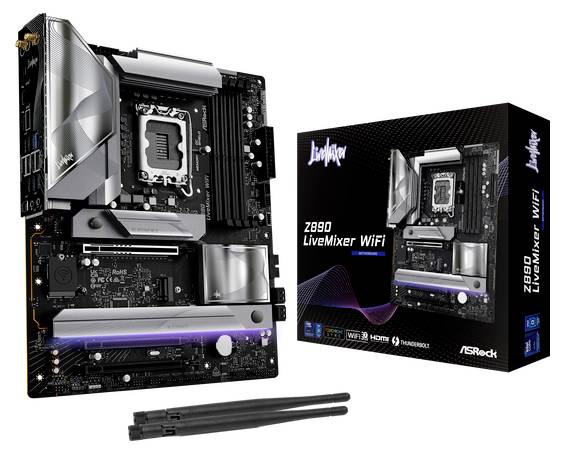

Motherboard 'Z890 LiveMixer WiFi' beside packaging, with WiFi aerials. Contains PCIe slots, RAM banks, and CPU socket.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ASRock Z890 LiveMixer WiFi Motherboard

Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
4 x DDR5 DIMMs supports Dual channel, up to 9466+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x16
Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C.
REALTEK ALC1220 7.1 CH HD

Technical specifications

4x M2 interface (1x PCIe 5.0 x4, 3x PCIe 4.0 4x)

Product type: Motherboard

Chipset: Intel® Z890

: #####Intel® 1851

Form factor: ATX

RAM type: DDR5 RAM

Clock speed: 9466 MHz

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
Bluetooth
Thunderbolt 4

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x16: 3 x

No. of PCIe x4: 2 x

No. of USB 2.0 ports: 4 x

No. of USB 3.2 2nd Gen (USB 3.1): 14 x

No. of USB 3.2: 2 x

No. of USB 3.0 ports: 3 x

No. of SATA III ports: 4 x

Onboard audio: 7.1
Optical S/PDIF

Onboard graphics: 1 HDMI 2.1; 2 Thunderbolt™ 4

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3342058 ASRock Z890 LiveMixer WiFi Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89

Description

The LiveMixer series has been developed to meet the requirements of modern content Creator and offers excellent connection possibilities for streaming and various accessories. Their reliable performance ensures seamless content creation and efficient time management.

This text is machine translated.

Features

PCIe Gen5 (Graphics, M.2)
Dual channel DDR5
Thunderbolt 4 type-C ports (40 GB/s)
Server-grade low-loss PCB
18+1+1+1+1 Power phase, 80A SPS for Vcore+GT+SA with bigger heat-sink cover
Memory OC shield
Flexible integrated I/O-shielding
20K durable capacitors (Black Caps) (High quality and conductive polymer capacitors) for Vcore
2.5G LAN, 802.11be Wi-Fi 7 modules
ASRock lightning gaming ports
BIOS Flashback Button
ASRock car driver installer
ASRock post status checker

Hints

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Description

Features

PCIe Gen5 (Graphics, M.2)
Dual channel DDR5
Thunderbolt 4 type-C ports (40 GB/s)
Server-grade low-loss PCB
18+1+1+1+1 Power phase, 80A SPS for Vcore+GT+SA with bigger heat-sink cover
Memory OC shield
Flexible integrated I/O-shielding
20K durable capacitors (Black Caps) (High quality and conductive polymer capacitors) for Vcore
2.5G LAN, 802.11be Wi-Fi 7 modules
ASRock lightning gaming ports
BIOS Flashback Button
ASRock car driver installer
ASRock post status checker
