ASRock Z890 Pro-A Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
EAN:
Part number:
Item no:

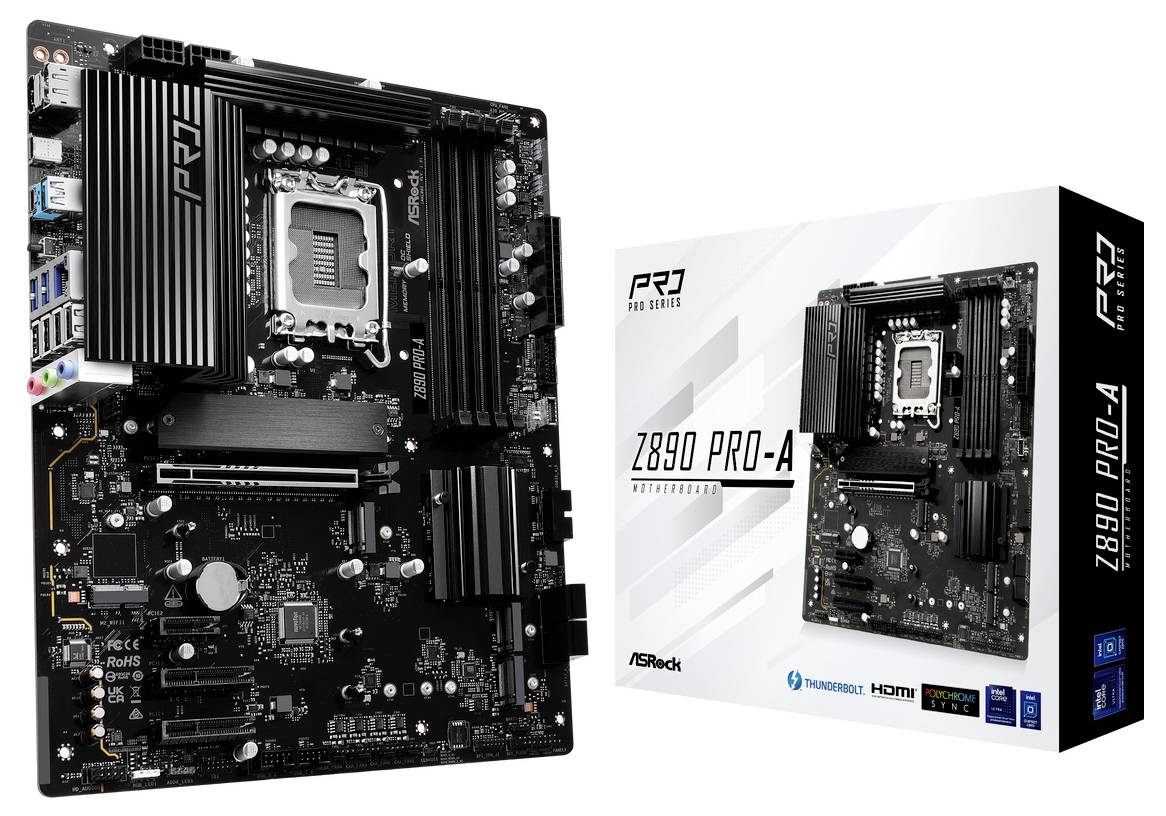

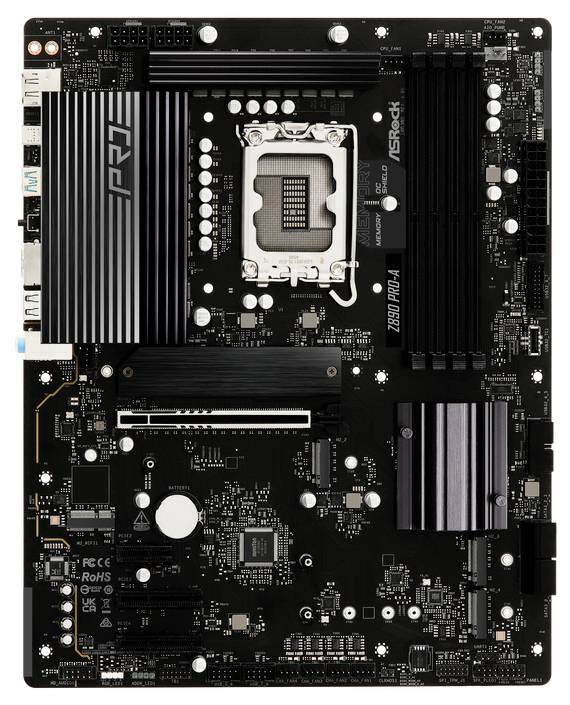

ASRock Z890 Pro-A Motherboard
Highlights & Details
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 4 x DDR5 DIMMs supports Dual channel, up to 9066+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi

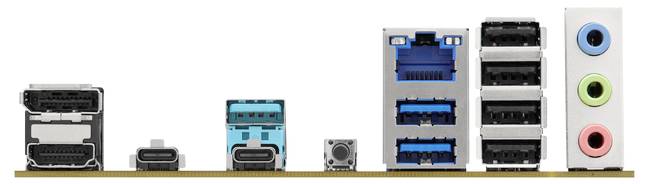

- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C.
- Realtek ALC897 7.1 CH HD Audio Codec
Technical specifications
- 4x M2 interface (1x PCIe 5.0 x4, 3x PCIe 4.0 4x)
- Product type
Motherboard
- Chipset
Intel® Z890
#####Intel® 1851
- Form factor
ATX
- RAM type
DDR5 RAM
- Clock speed
9066 MHz
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
Bluetooth
Thunderbolt 4
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
1 x
- No. of PCIe x4
2 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
8 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
3 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- Onboard graphics
1 HDMI 2.1; 1 Thunderbolt 4; 1 x DisplayPort
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342066 ASRock Z890 Pro-A Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
Description
The Pro-A series was developed for improved stability, durability and efficiency and offers reliable performance, user-friendly functions and an appealing appearance - Ideal for the daily computer requirements.
This text is machine translated.
This text is machine translated.
Features
- PCIe Gen5 (Graphics, M.2)
- Dual channel DDR5
- Thunderbolt 4 type-C port (40 GB/s)
- 16+1+1+1+1 Power phase, Dr. MOS for Vcore+GT
- Memory OC shield
- 2.5G LAN
- BIOS Flashback Button
- ASRock car driver installer
- ASRock post status checker
