ASSMANN WSW AWHC 10-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 10 No. of rows: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ASSMANN WSW AWHC 10-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 10 No. of rows: 2 1 pc(s)
- Total number of pins 10
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Connector type
Pin strip, straight
- CS
2.54 mm
- No. of rows
2
- Pins per row
5
- Total number of pins
10
- Nominal voltage
500 V AC
- Nominal current
3 A
- Contact material
Brass
- Content
1 pc(s)
- Connection
Cut & Clip
- Type
AWHC 10-0111-T
- Dim
(L x W x H) 8.3 x 22.95 x 12.4 mm
- Factory colour
Grey
- Height
12.4 mm
- Length
8.3 mm
- Width
22.95 mm
- Connector contact surface
Gold plated
- Board contact surface
Gold plated
- Manufacturer part #
AWHC 10-0111-T
- Pins
2 x 5
- Connection
-
- Case material
PBT
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Product type
Pin strip
Variants(All information is without VAT, plus shipping costs)
Pins
ASSMANN WSW AWHC 10-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 10 No. of rows: 2 1 pc(s)
This article
2 x 5
Minimum order quantity: 1
Multiple: 1
€ 2.34*
ASSMANN WSW AWHC 14-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s)
2 x 7
Minimum order quantity: 1
Multiple: 1
€ 2.34*
ASSMANN WSW AWHC 20-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 20 No. of rows: 2 1 pc(s)
2 x 10
Minimum order quantity: 1
Multiple: 1
€ 2.51*

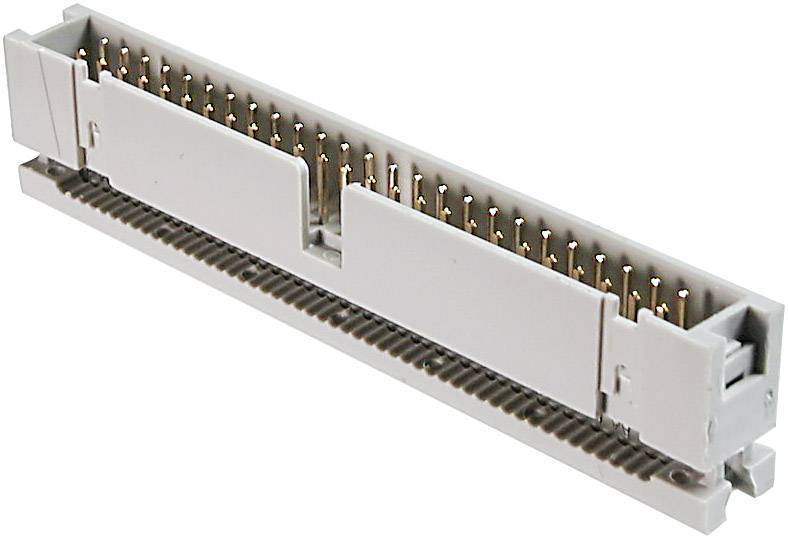

ASSMANN WSW AWHC 40-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 40 No. of rows: 2 1 pc(s)
2 x 20
Minimum order quantity: 1
Multiple: 1
€ 3.18*
ASSMANN WSW AWHC 16-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 16 No. of rows: 2 1 pc(s)
2 x 8
Minimum order quantity: 2
Multiple: 1
€ 1.50*
ASSMANN WSW AWHC 26-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 26 No. of rows: 2 1 pc(s)
2 x 13
Minimum order quantity: 1
Multiple: 1
€ 2.51*
ASSMANN WSW AWHC 34-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 34 No. of rows: 2 1 pc(s)
2 x 17
Minimum order quantity: 1
Multiple: 1
€ 3.02*
Documents & Downloads
Datasheet
Datasheet 743500 ASSMANN WSW AWHC 10-0111-T Pin strip Contact spacing: 2.54 mm Total number of pins: 10 No. of rows: 2 1 pc(s)
Description
With insulation-clamp-Mounting without Soldering.
