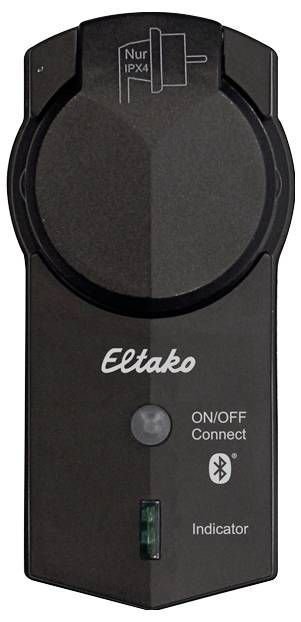

ASSU-BT/230V Eltako Socket timer Socket Switching capacity (max.) 2300 W

1-channel timer with Bluetooth and Eltako Connect-APP. 1 N/O contact not floating 16A/250V AC, 230V-LED-lamps and ESL up to 400W, light bulbs 2300 W. 116x56x46mm (dimensions without plug), black Suitable for indoor and outdoor use, IP44 (splash proof). With Astro function. Standby loss of only 0.3 watt. Adapter for German earthing contact socket-outlet. With increased protection against accidental contact. Supply and switching voltage 230V. Contact switching in the zero crossing. Bistable relay, so even when switched on there is no coil power loss and no heat up. Up to 60 timer clock memory slots are distributed freely to the channel. With date and automatic change-over from summer to winter time. Min. Power reserve without battery approx. 7 days. Each memory position can be occupied either with the Astro function (automatic switching after sunrise or sunset) or with the switch-on and switch-off time. The Astro on/off time can be moved up to ± 2 hours. In addition, a time shift of up to ± 2 hours influenced by the solstice can be entered. The timer is set via Bluetooth with the APP. Connect the timer to the APP: Press the button on the front for 5 seconds and the blue LED flashes. Now the connection with the APP can be established (factory setting PIN 123123). Flashing of the blue LED signals the pairing readiness. This ends automatically after 3 minutes, but can >be stopped manually for 5 seconds by pressing a button. Scan QR code on the user manual; the APP guides you through programming process. Once the connection to the APP is established, the blue LED will be lit permanently. If the connection is not disconnected via the APP, it is automatically disconnected after 20 minutes without interaction with the APP. After the connection has been disconnected via the APP, the timer signals its readiness for pairing again and the blue LED flashes. Change PIN: The PIN for the Bluetooth connection can be changed in the APP under the entry Device PIN. Bluetooth Reset (delete any PIN changes): Tap the button on the front panel 8 times briefly or plug the adapter out and out 8 times within 40 seconds. The blue LED flashes. Setting the timer via the Eltako Connect APP: Editing programs: Creating, editing and activating/deactivating time and Astro programs. Channel configuration: Select between the AUTO, On or Off functions. Random mode: When the random mode is on, all switching times of all channels are randomly shifted by up to 15 minutes. Switch-on times earlier and switch-off times later. Time offset solar solstice: Adjustment of a time shift of up to ± 2 hours at the solstice of summer and at the solstice of winter. Date and Time: Manual or automatic setting of the date, time, time zone and summer/winter time is possible. Site: Manual or automatic entry of the site is possible. Bluetooth: Enable permanent visibility. Enabling permanent visibility means that Bluetooth remains active at the timer and does not need to be activated manually before establishing a connection. Factory settings: Select between deleting all programs, resetting Bluetooth settings, and resetting to factory settings. Using the timer switch with the button on the front: Manual switching: By a short press of a button it can always be switched on and off manually. Switching the AUTO function on and off: By pressing a button >for 2 seconds but
