Astro AI Handheld multimeter Digital CAT II 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Highlights & Details
AstroAI MUS4KRD Intelligent True-RMS digital multimeter with 4,000 counts, automatic measuring range selection and NCV detection
- CAT II 600 V
Technical specifications
- Voltage reading range DC (min.)
0.8 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.8 V
- V AC reading range (max.)
600 V
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
40 to 1000 Hz
- Power supply (details)
2x 1.5 V AAA batteries
- Height
30 mm
- Width
62 mm
- Length
122 mm
- Weight
240 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
- Voltage metering
AC/DC
- Type
MUS4RKD
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 122 x 62 x 30 mm
Documents & Downloads
Datasheet
Datasheet 3829838 Astro AI Handheld multimeter Digital CAT II 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 3829838 Astro AI Handheld multimeter Digital CAT II 600 V Display (counts): 4000
Description

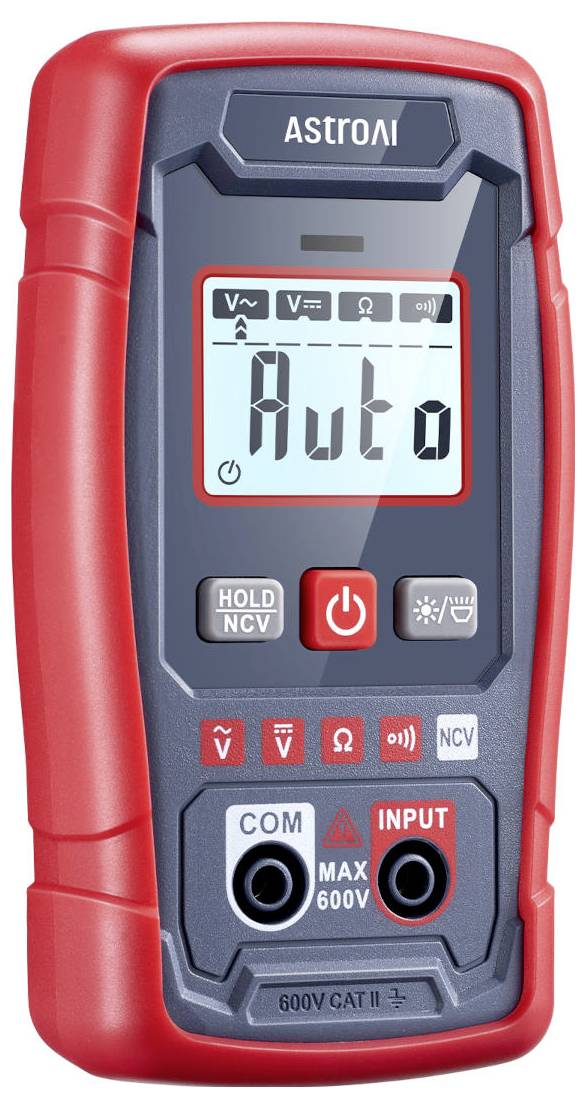

The AstroAI MUS4KRD is an intelligent True-RMS digital multimeter for electric test and error searches in the home, workshop and on the vehicle. It measures DC and AC voltage as well as resistance and also enables acoustic continuity tests.
Intelligent measuring mode: After switching on, the multimeter automatically detects whether DC voltage, AC voltage, resistance or continuity is being tested. Mode and measuring range do not have to be selected manually. The True RMS measurement supports reliable alternate voltage measurements, even with non-sinusoidal signals.
Non-contact voltage detection: With the NCV function, the presence of AC voltage can be detected without contact. Acoustic signals, the display and a colored control lamp distinguish between weak and strong signals.
Safe and robust design: The multimeter is designed for measurements up to 600 V and is assigned to the measurement category CAT II 600 V. It carries the CE marking and meets the RoHS requirements. An impact-protective silicone sleeve protects the device in the daily work environment; integrated overvoltage protection circuits support the safe application.
User-friendly features: The HOLD function keeps the current measurement value on the display. Backlight, built-in torch, battery level indicator and automatic about 15-minute cut-off make the torch easy to use and protect the batteries.
Complete equipped: Test leads, two pre-installed AAA batteries, storage bag and user manual are included, so that the multimeter can be used immediately.
This text is machine translated.
Intelligent measuring mode: After switching on, the multimeter automatically detects whether DC voltage, AC voltage, resistance or continuity is being tested. Mode and measuring range do not have to be selected manually. The True RMS measurement supports reliable alternate voltage measurements, even with non-sinusoidal signals.
Non-contact voltage detection: With the NCV function, the presence of AC voltage can be detected without contact. Acoustic signals, the display and a colored control lamp distinguish between weak and strong signals.
Safe and robust design: The multimeter is designed for measurements up to 600 V and is assigned to the measurement category CAT II 600 V. It carries the CE marking and meets the RoHS requirements. An impact-protective silicone sleeve protects the device in the daily work environment; integrated overvoltage protection circuits support the safe application.
User-friendly features: The HOLD function keeps the current measurement value on the display. Backlight, built-in torch, battery level indicator and automatic about 15-minute cut-off make the torch easy to use and protect the batteries.
Complete equipped: Test leads, two pre-installed AAA batteries, storage bag and user manual are included, so that the multimeter can be used immediately.
This text is machine translated.

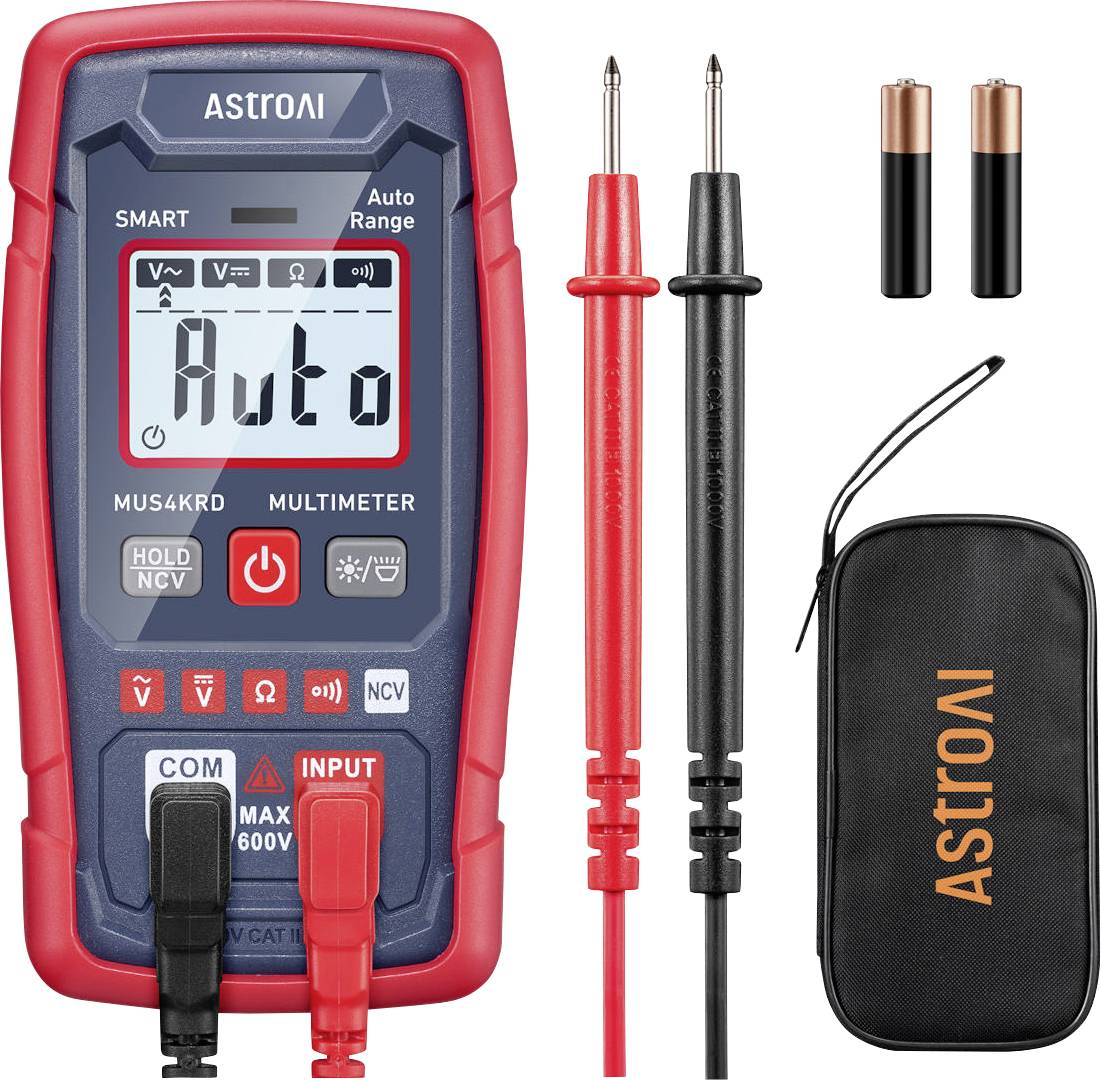

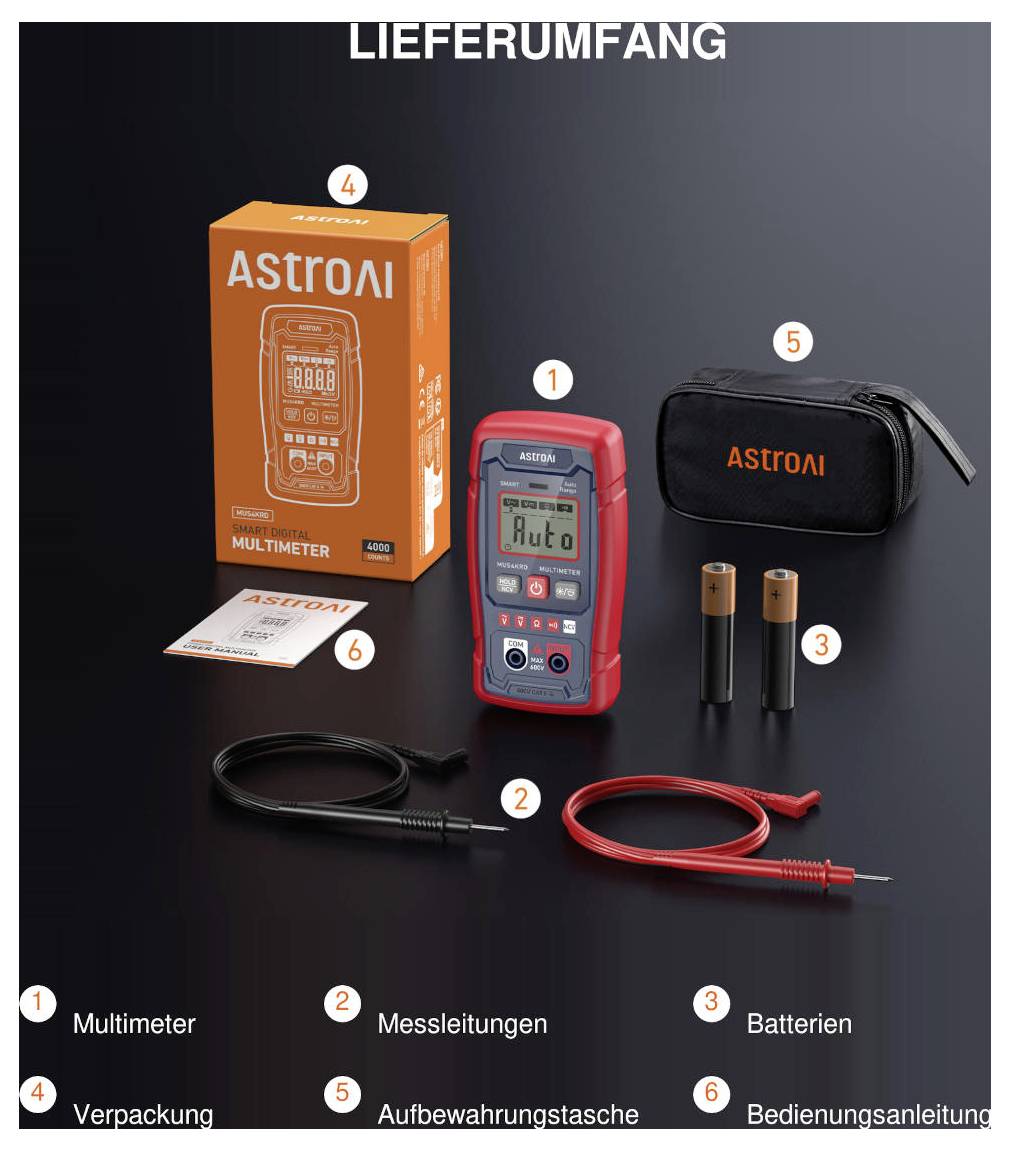

Scope of delivery
- 1 x AstroAI MUS4KRD digital multimeter
- 1 x test lead set (red and black)
- 2 x 1.5 V AAA batteries (pre-installed)
- 1 x storage pouch
- 1x user manual
