Name: Asus 90MB1JD0-M0EAY0 Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
Brand: Asus
SKU: 3348334

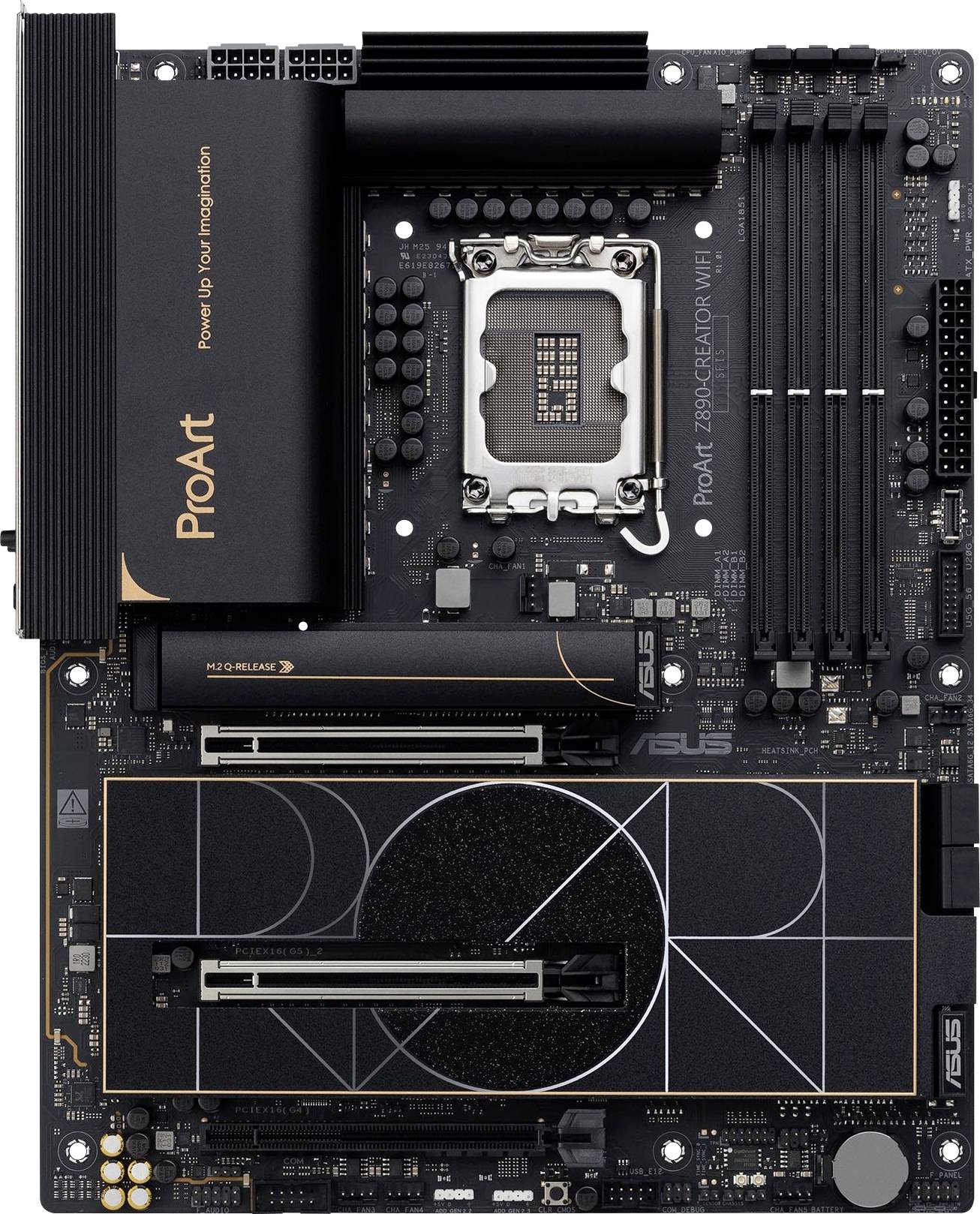

ProArt Z690-CREATOR WIFI Motherboard with multiple RAM slots and PCIe slots, suitable for high-performance computers.

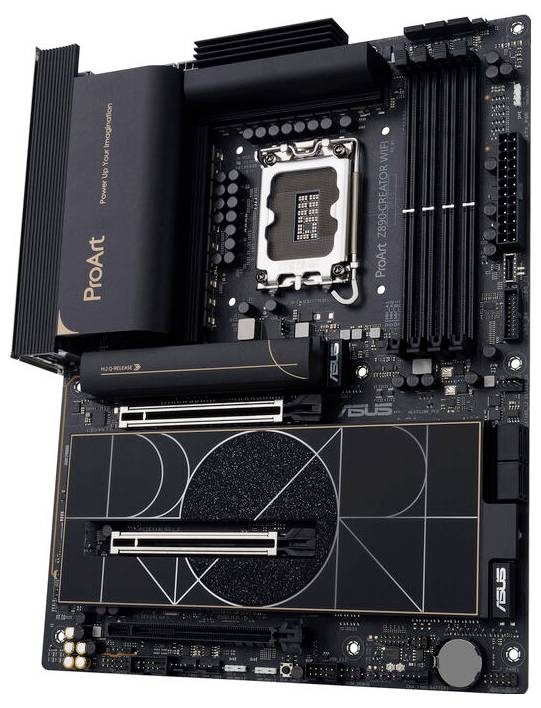

ProArt Z690-Creator WiFi Motherboard displays slots for RAM, CPU, and PCIe with a modern circuit design, optimised for creator workflows.

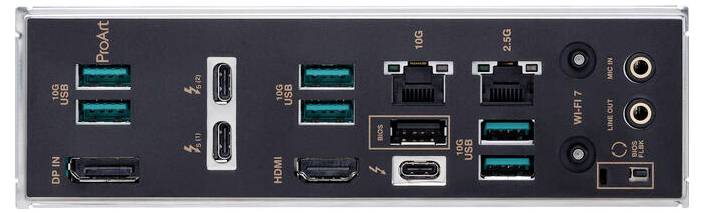

Back of a computer motherboard with various ports: USB, HDMI, Ethernet, DisplayPort, audio ports, and network connections.

Asus motherboard, model 'ProArt Z690-Creator WIFI', with multiple RAM slots and connections for professional applications.

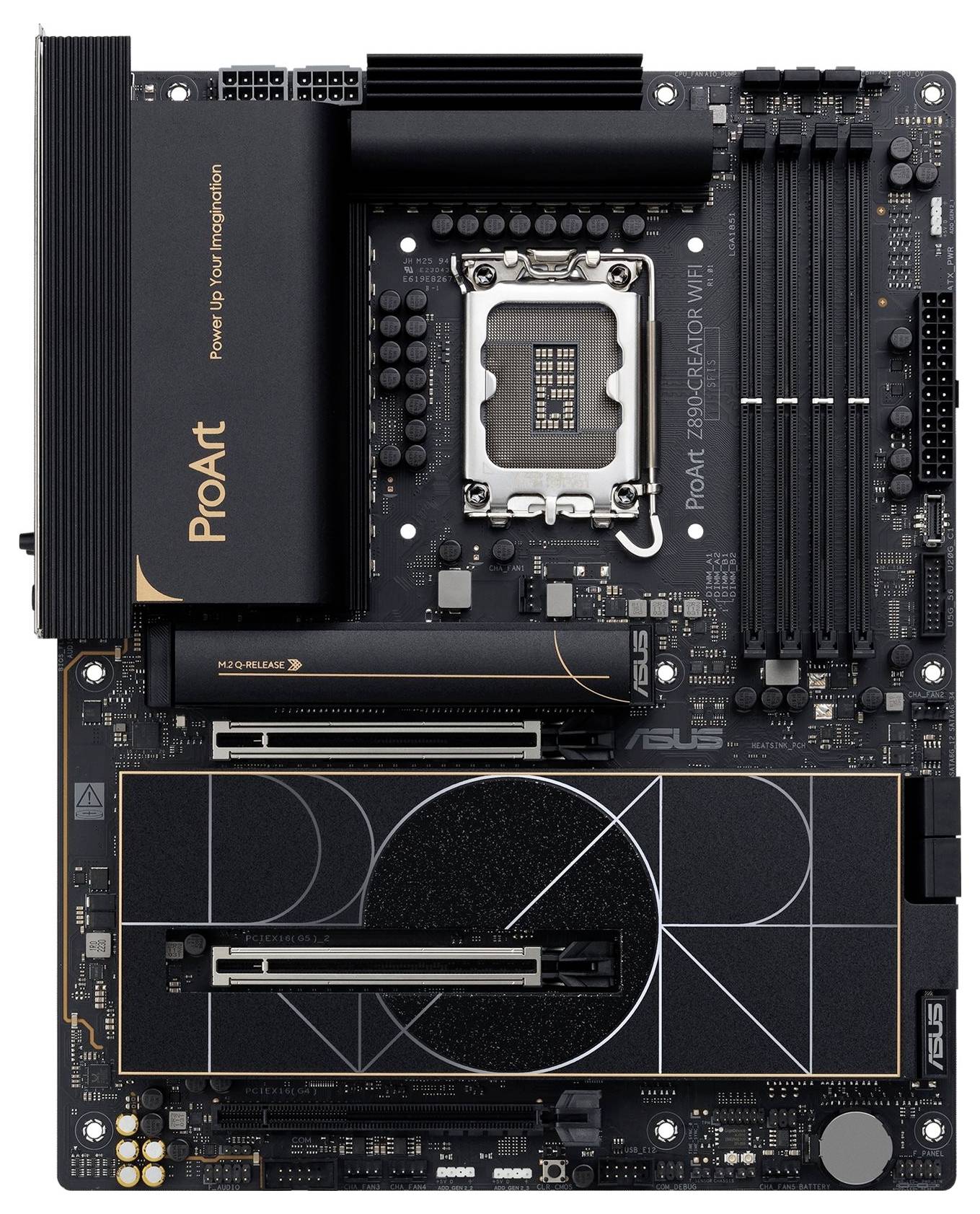

'ASUS ProArt Motherboard with multiple RAM slots and PCIe interfaces, suitable for creative professionals and high-performance applications.'

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus 90MB1JD0-M0EAY0 Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 2)
PC ATX Intel Z890 Realtek ALC1220P 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 192 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 9
BIOS type UEFI AMI 256 Mbit Clear CMOS button
2.5 Gigabit Ethernet, 10 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
This text is machine translated.

Pre-contractual information under the EU Data Act

Technical specifications

LGA 1851 (socket V1)
Supported processor slots: LGA 1851
ECC compatibility: Non-ECC
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 2
Number of water pump connections: 1
Number of temperature sensor headers: 1
Number of RGB LED pin strips: 3
HDMI version 2.1
WLAN-standards Wi-Fi 7 (802.11b)
Intel Z890 motherboard chipset
1. M.2 Largest key size: 22110
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
3. M.2 Largest key size: 2280
3. M.2 highest PCI Express generation: 4.0
4. M.2 Largest key size: 2280
4. M.2 highest PCI Express generation: 4.0
5th M.2 largest key size: 2280
5th M.2 highest PCI Express generation: 4.0

Product type: Motherboard

Chipset: Intel® Z890

: #####Intel® 1851

Form factor: ATX

RAM type: DDR5 RAM

RAM / Max. upgrade: 192 GB

Interfaces: USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1 Gbps)
Headphone jack (3.5 mm)
HDMI™
DisplayPort

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 2 x

No. of USB 2.0 ports: 1 x

No. of SATA III ports: 4 x

Bluetooth: 5.4

Bluetooth: Yes

Factory colour: Black

Depth: 244 mm

Height: 100 mm

Width: 305 mm

Display resolution: 7680 x 4320 Pixel

No. of 10 Gb LAN ports: 2 x

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB ports: 1 x

No. of memory slots: 4

No. of USB A 2.0 ports: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 6 x

Mobile internet: WiFi

No. of HDMI connections: 1

10/100/1000 Mbps ports: 2 x

Video resolution: 7680 x 4320 Pixel

Range of use: PC

Weight: 5

Wi-Fi: built-in

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 5

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 ports quantity: 1

Headphone outputs: 1

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Chassis intrusion connector: yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 9066 MHz

EPS power connector (8-pin): yes

RAID support: yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Thunderbolt ports quantity: 3

Unbuffered memory: yes

Clear CMOS button: yes

Number of storage drives supported: 9
