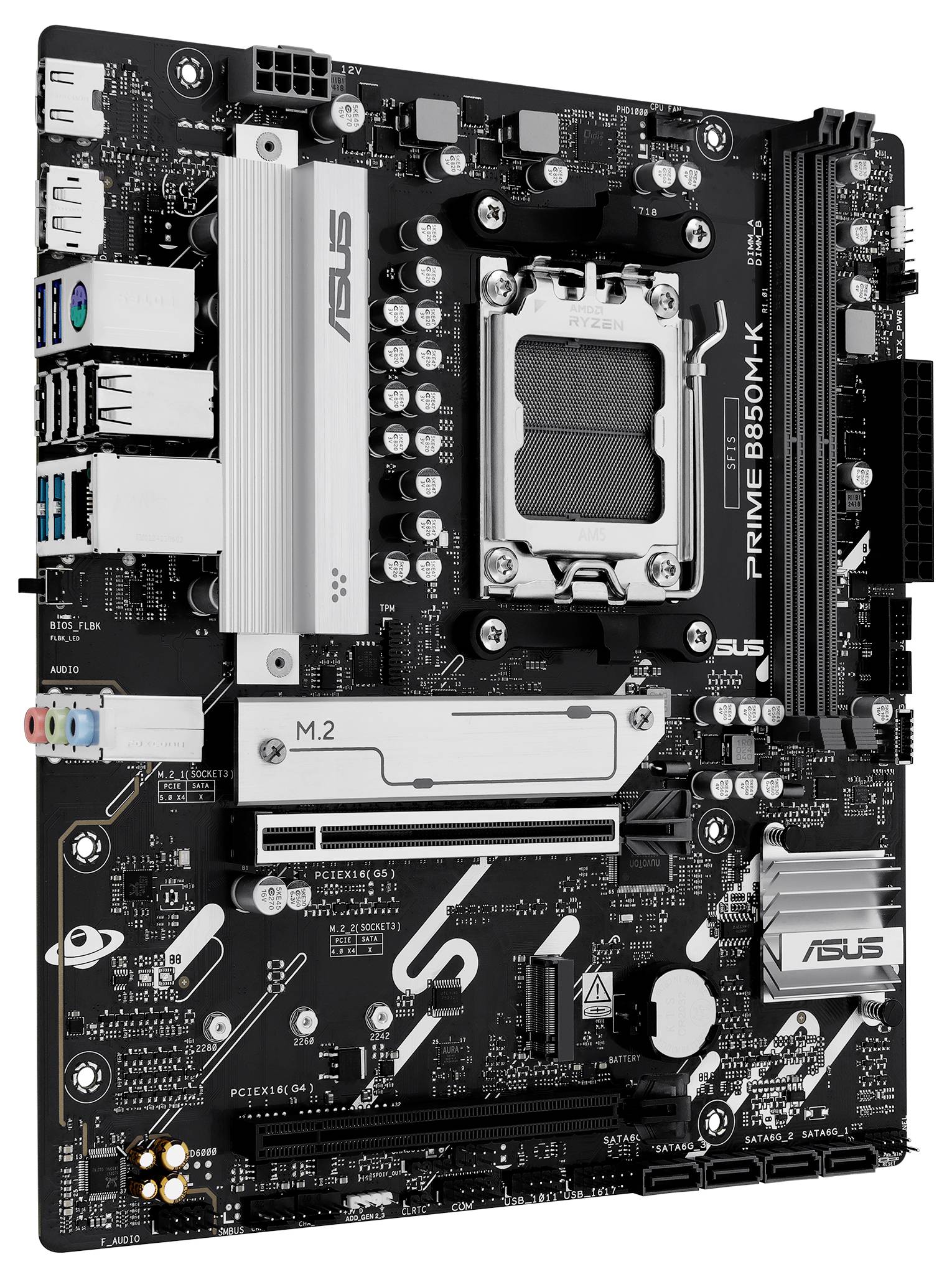

An ASUS computer motherboard with multiple ports, memory slots, and a CPU socket.

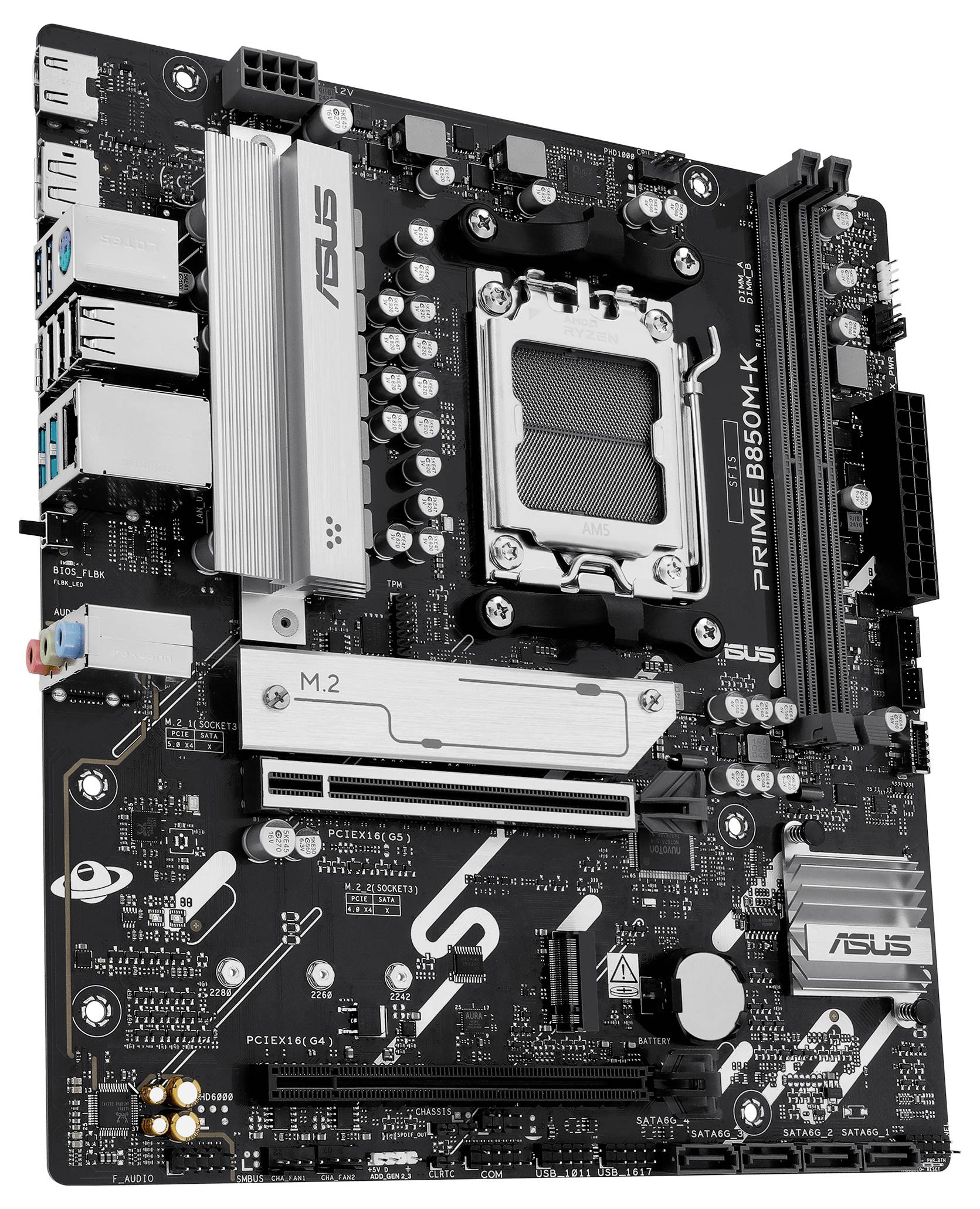

A black computer motherboard with multiple expansion slots and connectors, including a CPU socket and M.2 slot.

Motherboard with CPU socket, memory slots, M.2 connector and various interfaces on a black circuit board.

A black motherboard with a CPU socket, RAM slots, PCIe slots, and various connections. Model name: 'PRIME B560M-K'.

Motherboard connections: HDMI, DisplayPort, USB ports, LAN port, audio ports in multiple colours.

Asus 90MB1LV0-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B850-7

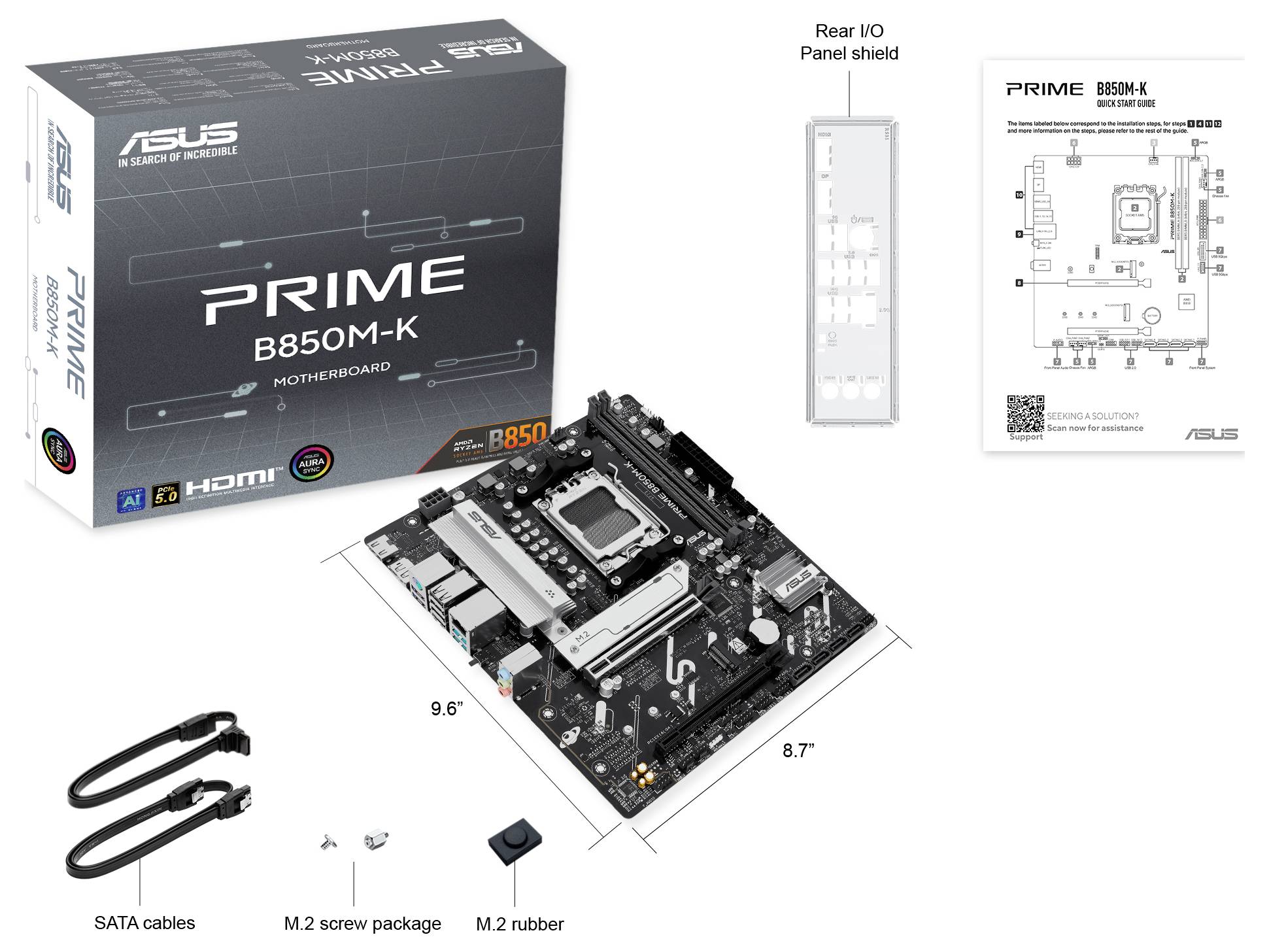

ASUS Motherboard Set with Prime B850M-K, rear panel bracket, SATA cables, M.2 screws and rubber package. Detailed installation instructions included.

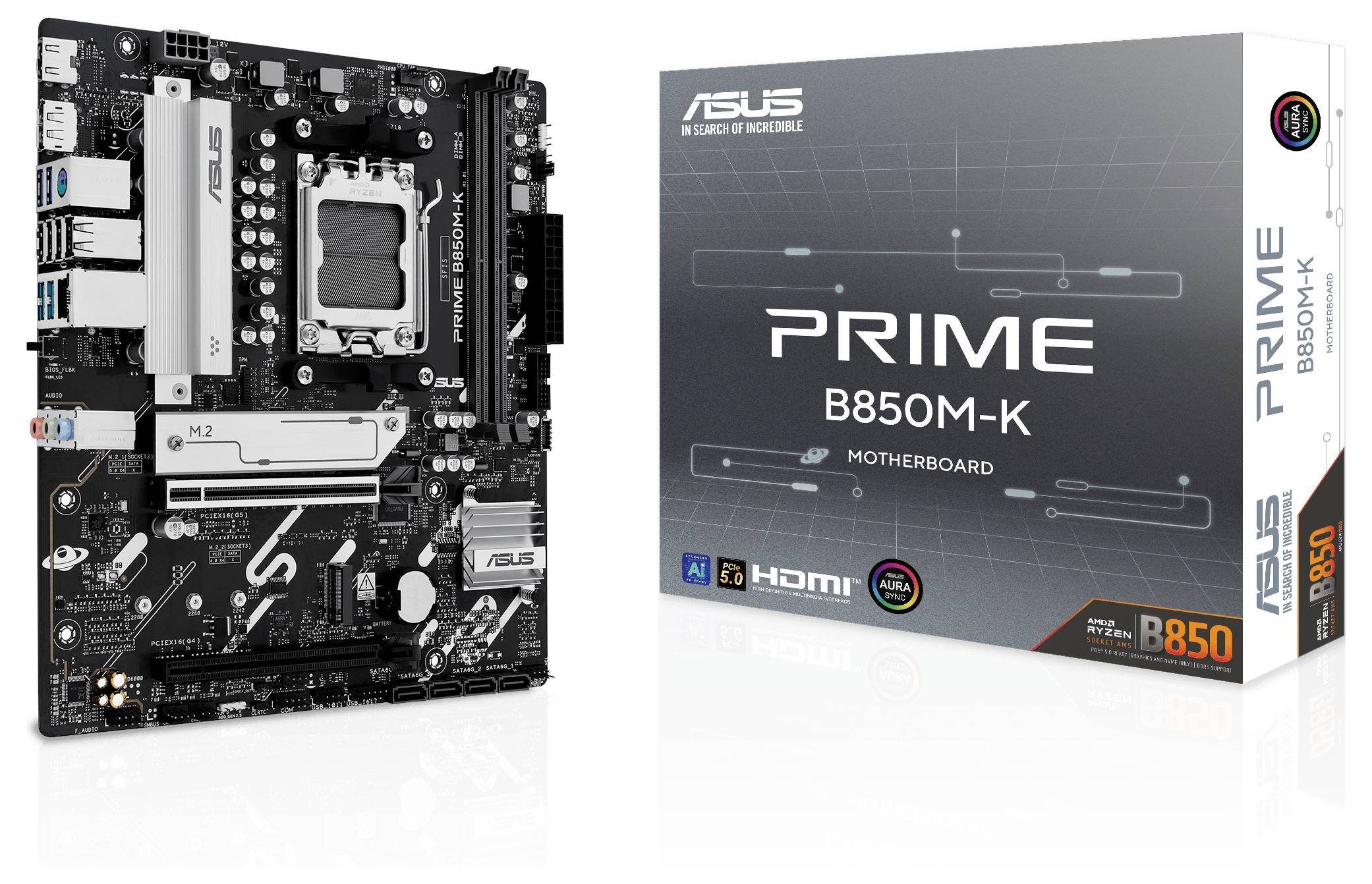

An ASUS Prime B850M-K motherboard next to its packaging. The motherboard displays various connectors and expansion slots.

ASUS PRIME B650M-K Motherboard, ATX format, with PCIe slots, multiple USB ports and an M.2 slot for storage expansion.

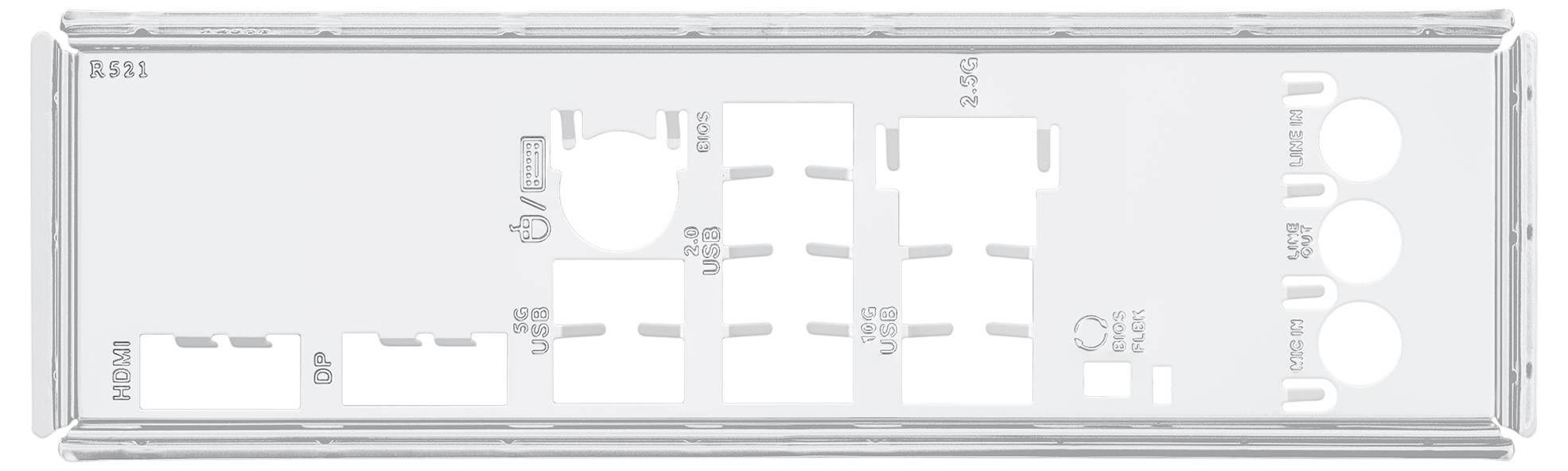

'Cover for motherboard ports, showing labels: HDMI, DP, USB 3.2, LAN, USB 2.0, Audio.'

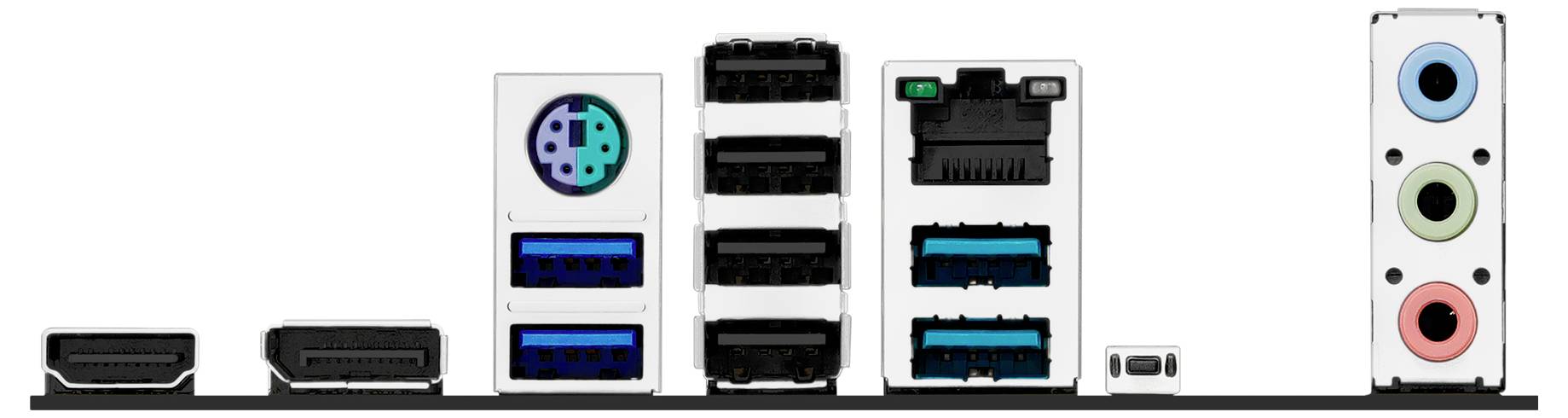

Back of a computer motherboard with HDMI and DisplayPort connections, USB ports, Ethernet and audio inputs.

A computer motherboard with multiple expansion slots and connectors, including RAM slots, a CPU socket, and various interfaces.

An ASUS motherboard with multiple connectors, expansion slots, and a central CPU socket.

'ASUS PRIME B550M-K' motherboard with AM4 socket, PCIe slots, RAM slots, SATA ports. Key components for computer assembly.

1/17

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Asus 90MB1LV0-M0EAY0 Motherboard

Highlights & Details

AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
PC micro ATX AMD B850 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
UEFI AMI 256 Mbit BIOS type
2.5 Gigabit Ethernet
This text is machine translated.

Technical specifications

Socket AM5
Supported processor slots: Socket AM5
ECC compatibility: ECC and non-ECC
Number of CPU fan ports: 1
AMD B850 motherboard chipset
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0

Product type: Motherboard

Chipset: AMD® B850

: #####AMD AM5

Form factor: Micro-ATX

RAM type: DDR5 RAM

RAM / Max. upgrade: 128 GB

Interfaces: DisplayPort
HDMI™
PCIe 4.0 x16
PCIe 5.0 x16
PS/2
SATA III
USB A (USB 2.0)

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

No. of PS/2 ports: 1 x

Depth: 221 mm

Height: 100 mm

Width: 244 mm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 2 x

10/100/1000 Mbps ports: 1 x

Range of use: PC

Wi-Fi: No

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Ethernet LAN: yes

Number of memory slots: 2

Number of M.2 (M) slots: 2

Front panel connector: yes

12V power connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.07 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3405640 Asus 90MB1LV0-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B850

Description

Features

Ready for advanced AI-PCs: Designed for the future of AI-computing, with the necessary performance and connectivity for demanding AI applications,AMD AM5 socket: Ready for AMD socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 series desktop processors,Improved power supply solution: 6+2+1-phase power supply design, 8-layer PCB, alloyed reactors and long-life capacitors for stable power supply,Ultra fast connectivity: PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Rear USB 10Gbps type-A and front USB 5Gbps type-C® support, Comprehensive cooling: VRM and M.2 heat sinks, PCH heat sinks, hybrid fan headers and fan Xpert 2+,DIY friendly design: BIOS Flashback™, Q Dashboard, Q-LED Kern,Unmatched personalization: Three addressable RGB Gen 2 headers, all configurable with Asus exclusive Aura Sync RGB lighting,Renowned software: Armoury Crate, Asus AI Advisor, Asus Driver Hub, Asus MyHotkey
